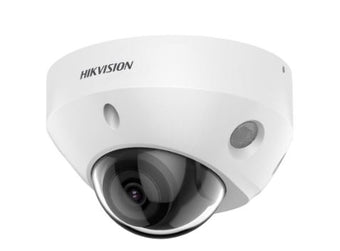

DS-2CD2583G2-IS Hikvision w/ audio IP PoE Camera 8 MP AcuSense Mini Dome

Data sheet PDF

Product Description

8 MP AcuSense Fixed Mini Dome Network Camera

• High quality imaging with 8 MP resolution
• Clear imaging against strong backlight due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• -S: Audio and alarm interface available
• Water and dust resistant (IP67) and vandal resistant (IK08)

? Specification
Camera
Image Sensor 1/2.8? Progressive Scan CMOS
Max. Resolution 3840 ? 2160
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: -30? to 30?, tilt: 0? to 75?, rotate: 0? to 360?
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 106.4?, vertical FOV 58.4?, diagonal FOV 124.8?
4 mm, horizontal FOV 87.6?, vertical FOV 44.4?, diagonal FOV 104.9?
Lens Mount M12
Iris Type Fixed
Aperture F1.6
Depth of Field
2.8 mm: 1.4 m to ?
4 mm: 2.1 m to ?
DORI
DORI
2.8 mm:
D: 88 m
O: 35 m
R: 18 m
I: 9 m
4 mm:
D: 118 m
O: 47 m
R: 24 m
I: 12 m
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream
50 Hz:
20 fps (3840 ? 2160)
25 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)
60 Hz:
20 fps (3840 ? 2160)
30 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)
Sub Stream
50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)
Third Stream
50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)
*Third stream is supported under certain settings.

Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps
(MP2L2)/8 -320 Kbps (MP3)/16-64 Kbps (AAC-LC)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) 120 dB
SNR ? 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white
balance adjustable by client software or web browser
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 512 GB
Built-in Microphone Yes

Audio
-IS:
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input
impedance: 4.7 K?, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output
impedance: 100 ?, interface type: non-equilibrium
Alarm
-IS:
1 input, 1 output (max. 12 VDC, 20 mA)
Reset Key Yes
Event
Basic Event
Motion detection (human and vehicle targets classfication), video tampering alarm,
exception
Smart Event Line crossing detection, intrusion detection, face detection
Linkage
Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger
capture, send email
Deep Learning Function
Perimeter Protection
Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
General
Power
12 VDC ? 25%, 0.54 A, max. 6.5 W, ? 5.5 mm coaxial power plug, reverse polarity
protection
PoE: (802.3af, Class 3, 36 V to 57 V), 0.22 A to 0.14 A, max. 8 W
Camera Material Base: aluminum, cover: plastic
Camera Dimension ? 113.6 mm ? 72.6 mm (? 4.5" ? 2.9")
Package Dimension 134 mm ? 134 mm ? 108 mm (5.3" ? 5.3" ? 4.3")
Camera Weight Approx. 400 g (0.9 lb.)
With Package Weight Approx. 635 g (1.4 lb.)
Storage Conditions -30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Approval
EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN
50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
Safety
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)

Environment
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
Electrical Safety Protection
IP67 (IEC 60529-2013)
IK10 (IEC 62262: 2002)
