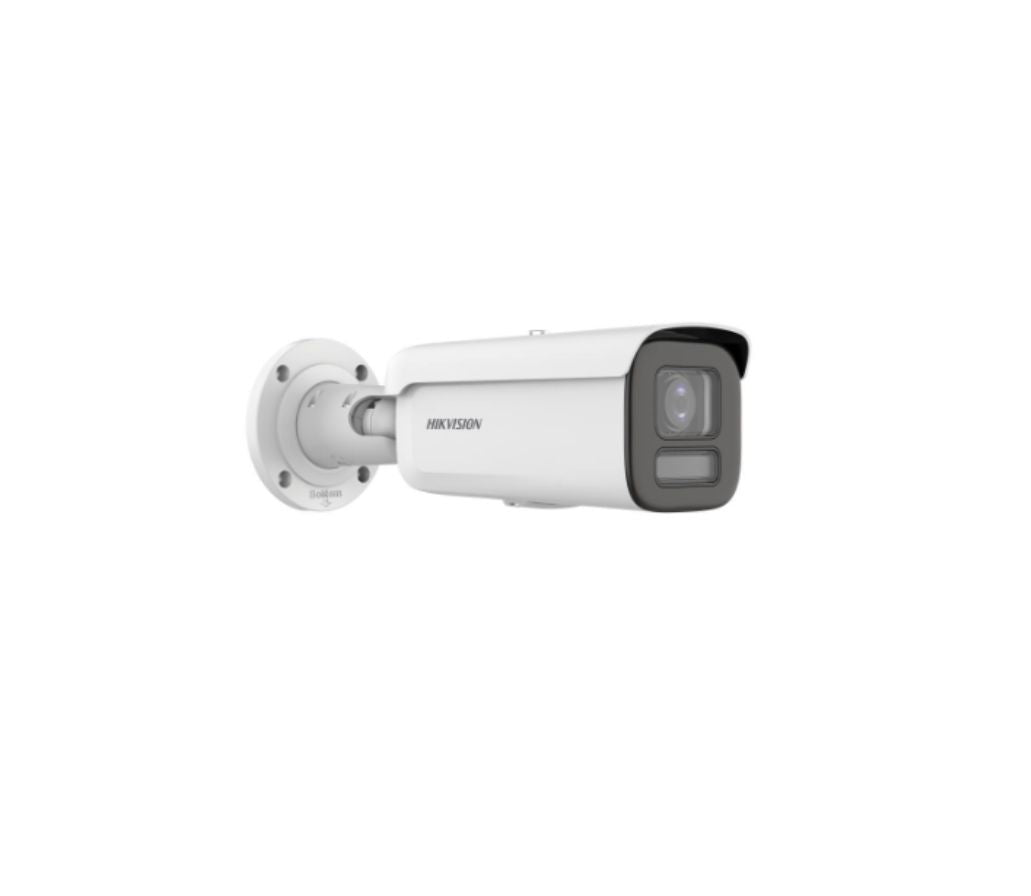

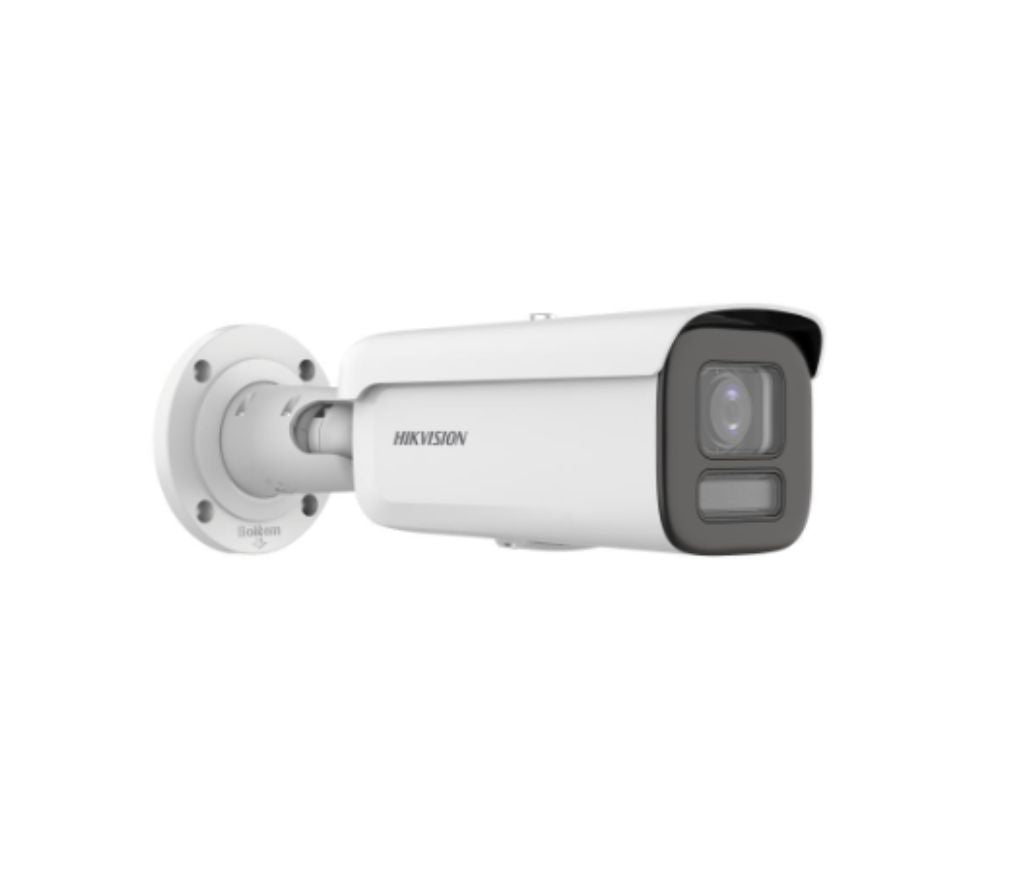

DS-2CD2687G2T-LZS Hikvision 4K ColorVu Motorized Varifocal Bullet

Data sheet PDF

Product Description

4K ColorVu Motorize Varifocal Bullet Network Camera

• High quality imaging with 8 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• 24/7 colorful imaging
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Water and dust resistant (IP67) and vandal resistant (IK10)

Specification

• Camera

• Lens

• DORI

• Illuminator

• Video

• Audio

• Network

• Image

• Interface

• Event

• Deep Learning Function

• General

• Approval

• Camera
• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution3840 ? 2160
• Min. IlluminationColor: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time1/3 s to 1/100,000 s
• Day & Night24/7 color imaging
• Angle AdjustmentPan: 0? to 355?,tilt: 0? to 90?,rotate: 0? to 360?

• Lens
• Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV2.8 to 12 mm, horizontal FOV 103.3? to 40?, vertical FOV 52.7?to 22.3?, diagonal FOV 127.9?to 46.1?
• Lens MountIntegrated
• FocusAuto,Semi-auto,Manual
• Iris TypeDC iris
• ApertureMax. F1.0
• Depth Of Field2.4 m to ?

• DORI
• DORI

  Wide: D: 96 m, O: 38.1 m, R: 19.2 m, I: 9.6 m

  Tele: D: 160 m, O: 63.5 m, R: 32.0 m, I: 16 m

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 60 m
• Smart Supplement LightYes

• Video
• Main Stream

  50 Hz:

  25 fps (3840 ? 2160, 3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

  60 Hz:

  24 fps (3840 ? 2160)

  30 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

• Third Stream

  50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream

• Audio
• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
• Network Storage

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Wide Dynamic Range (WDR)130 dB
• SNR? 52 dB
• Image EnhancementBLC,HLC,3D DNR
• Privacy Mask4 regions of privacy mask

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage




  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Audio

  1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium,

  1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium

• Alarm1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
• Reset KeyYes

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,supplement light,audible warning,trigger alarm output

• Deep Learning Function
• Face CaptureYes

• General
• Power

  12 VDC ? 25%, 1.21 A, max. 14.5 W,?5.5 mm coaxial power plug,reverse polarity protection,

  PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.43 A to 0.32 A, max. 18 W

• MaterialAluminum alloy body
• Dimension298 mm ? 97.9 mm ? 95.7 mm (11.8" ? 3.9" ? 3.8")
• Package Dimension385 mm ? 190 mm ? 180 mm (15.2" ? 7.5" ? 7.1")
• WeightApprox. 1465 g (3.2 lb.)
• With Package WeightApprox. 2081 g (4.6 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,three streams

• Approval
• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE
