DS-2CD2T27G1-L Hikvision IP PoE Camera 2 MP ColorVu Bullet w/ resolution

Data sheet PDF

Product Description

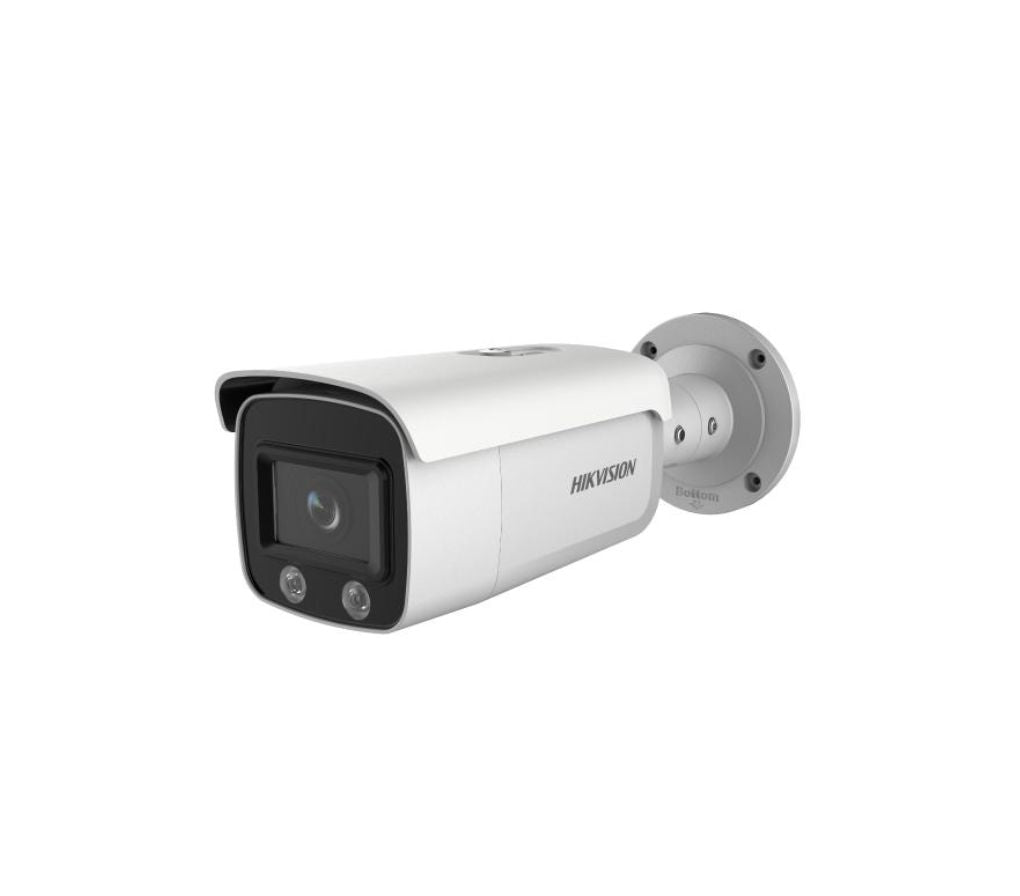

2 MP ColorVu Fixed Bullet Network Camera

• High quality imaging with 2 MP resolution
• 24/7 full color imaging
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67)
• Robust structure design with full metal materials

Camera

Lens

Illuminator

Video

Network


Interface

Event

General

Approval

• Camera
• Image Sensor1/2.8" Progressive Scan CMOS
• Min. Illumination0.0035 Lux @ (F1.0, AGC ON), 0 Lux with Light
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120 dB
• Angle AdjustmentPan: 0? to 360?, tilt: 0? to 90?, rotate: 0? to 360?
• Lens
• FocusFixed
• Lens Type2.8/4/6 mm
• FOV2.8 mm, horizontal FOV: 112?, vertical FOV: 57?, diagonal FOV: 138?; 4 mm, horizontal FOV: 89?, vertical FOV: 46?, diagonal FOV: 106?; 6 mm, horizontal FOV: 56?, vertical FOV: 30?, diagonal FOV: 66??
• ApertureF1.0
• Lens MountM16
• Illuminator
• White Light RangeWarm white LEDs (3000K), up to 30m
• Video
• Max. Resolution1920 ? 1080
• Main Stream50Hz: 25fps (1920 ? 1080, 1280 ? 960, 1280 ? 720); 60Hz: 30fps (1920 ? 1080, 1280 ? 960, 1280 ? 720)
• Sub Stream50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240); 60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240)
• Third Stream50Hz: 25fps (1920 ? 1080, 1280 ? 720, 640 ? 360, 352 ? 288); 60Hz: 30fps (1920 ? 1080, 1280 ? 720, 640 ? 360, 352 ? 240)
• Video CompressionMain stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeMain Profile/High Profile
• H.265 TypeMain Profile
• Region Of Interest (ROI)Support 1 fixed region for main stream and sub-stream separately
• Network
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• User/HostUp to 32 users, 3 levels: Administrator, Operator and User
• Network StorageSupport micro SD/SDHC/SDXC card (128 G) local storage, NAS (NFS, SMB/CIFS), ANR
• ClientiVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200
• Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11; Plug-in free live view: Chrome 45.0+, Firefox 52.0+
• Alarm TriggerMotion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Image
• Day/Night SwitchDay/Night
• DNR3D DNR
• Image EnhancementBLC/3D DNR/HLC
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Interface
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• Event
• Smart EventLine crossing detection, intrusion detection, object removal detection, unattended baggage detection
• Face DetectionYes
• Exception DetectionScene change detection
• General
• Firmware VersionV5.5.82
• General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Startup And Operating Conditions-30 ?C to +60 ?C (-22 ?F to +140 ?F), humidity 95% or less (non-condensing)
• Power Supply12 VDC ? 25%, ? 5.5 mm coaxial power plug,PoE (802.3af, class 3)
• Power Consumption And Current12 VDC, 0.7 A, max. 9 W; PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10.5 W
• Camera DimensionCamera: ? 105 ? 290.7 mm (? 4.1" ? 11.4");With package: 385 ? 190 ? 180 mm (15.2" ? 7.5" ? 7.1")
• Camera WeightCamera: 1200 g (2.6 lb.); With package: 1800 g (4 lb.)
• Approval
• ProtectionIP67
