DS-2CD3688G2T-LIZS Hikvision w/ audio IP PoE Camera 8 MP Dual Illumination

Data sheet PDF

Product Description

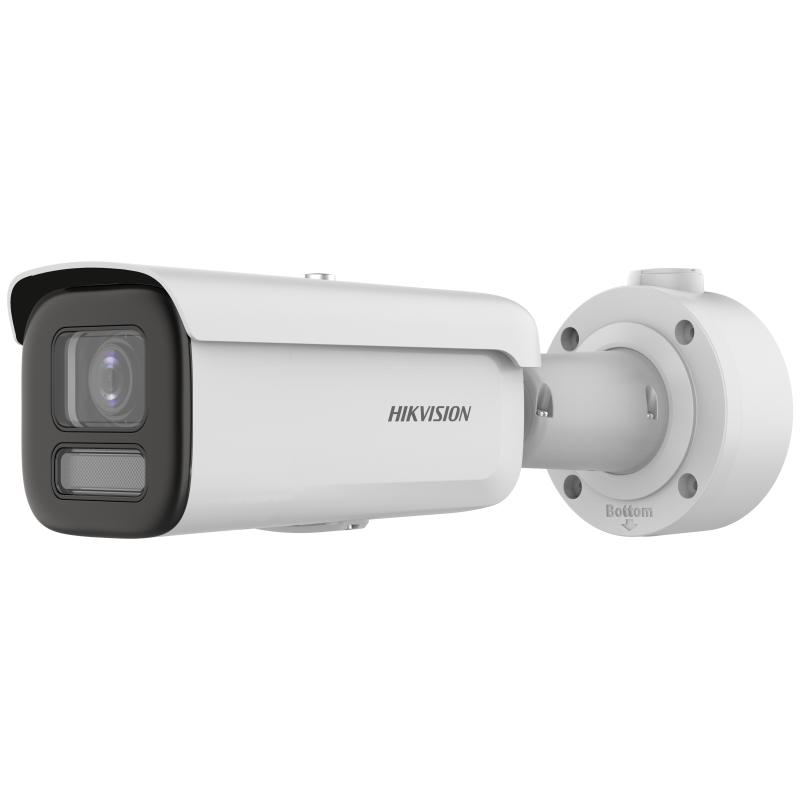

8 MP Dual Illumination Motorized Varifocal Bullet Network Camera

• High quality imaging with 8 MP resolution
• Smart Dual-Light: advanced technology with long range
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Motorized varifocal lens for easy installation and monitoring
• Focus on human and vehicle classification based on deep learning
• Water and dust resistant (IP67) and vandal resistant (IK10)

Specification

• Camera

• Lens

• DORI

• Illuminator

• HEOP

• Video

• Audio

• Network

• Image

• Interface

• Event

• Deep Learning Function

• General

• Approval

• Camera
• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution3840 ? 2160
• Min. IlluminationColor: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0? to 355?,tilt: 0? to 90?,rotate: 0? to 360?

• Lens
• Lens TypeVarifocal lens, motorized lens, 2.7 to 13.5 mm
• Focal Length & FOV2.7 to 13.5 mm, horizontal FOV 112.3? to 41.2?, vertical FOV 58.1? to 23.1?, diagonal FOV 137.4? to 47.3?
• Lens MountIntegrated
• Iris TypeDC iris
• ApertureF1.2
• Depth Of Field1 m to ?

• DORI
• DORI

  Wide: D: 87 m, O: 35 m, R: 17 m, I: 9 m

  Tele: D: 216 m, O: 86 m, R: 43 m, I: 22 m

• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeUp to 60 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• HEOP
• Open Resources

  Memory: 40 MB,

  Smart RAM: 350 MB,

  eMMC: 2 GB

• Computing Power1.5 TOPS
• Open CapabilityHEOP 2.0 OpendevSDK
• Deep Learning StructureCaffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
• Programming LanguageC,C++

• Video
• Main Stream

  50 Hz:

  25 fps (3840 ? 2160, 3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

  60 Hz:

  24 fps (3840 ? 2160)

  30 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

• Third Stream

  50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

  *Third stream is supported under certain settings.

• Fourth Stream

  50 Hz: 10 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 10 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  *Fourth stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  Fourth stream: H.265/H.264/MJPEG,

  *Third stream and fourth stream are supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)5 fixed regions for main stream and sub-stream
• Target CroppingYes

• Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network Storage

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Wide Dynamic Range (WDR)120 dB
• Image EnhancementBLC,HLC,3D DNR,Defog
• SNR? 52 dB
• Privacy Mask4 programmable polygon privacy masks

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Audio

  1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium,

  1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium

• Alarm2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
• Reset KeyYes
• Power Output12 VDC, max. 100 mA

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart Event




  Unattended baggage detection,object removal detection, scene change detection,audio exception detection,defocus detection

• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning

• Deep Learning Function
• Face CaptureYes
• People CountingYes
• Perimeter Protection

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection,

  Support alarm triggered by specified target types (human and vehicle)

• General
• Power

  12 VDC ? 25%, 1.21 A, max. 14.5 W,?5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3at, Class 4, max. 18 W

• MaterialFront cover: Metal, body: Metal, bracket: Metal
• Dimension334 mm ? 97.9 mm ? 95.7 mm (13.2" ? 3.9" ? 3.8")
• Package Dimension386 mm ? 190 mm ? 180 mm (15.2" ? 7.5" ? 7.1")
• WeightApprox. 1085 g (2.4 lb.)
• With Package WeightApprox. 1639 g (3.6 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• General Fun
