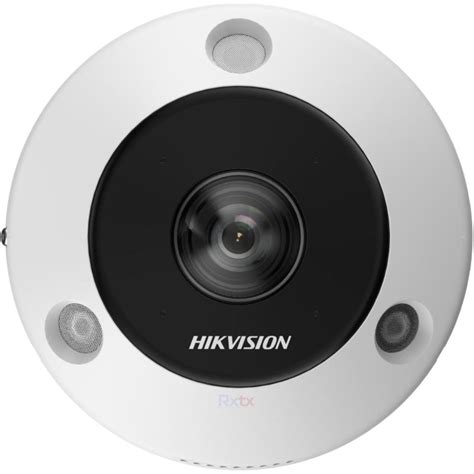

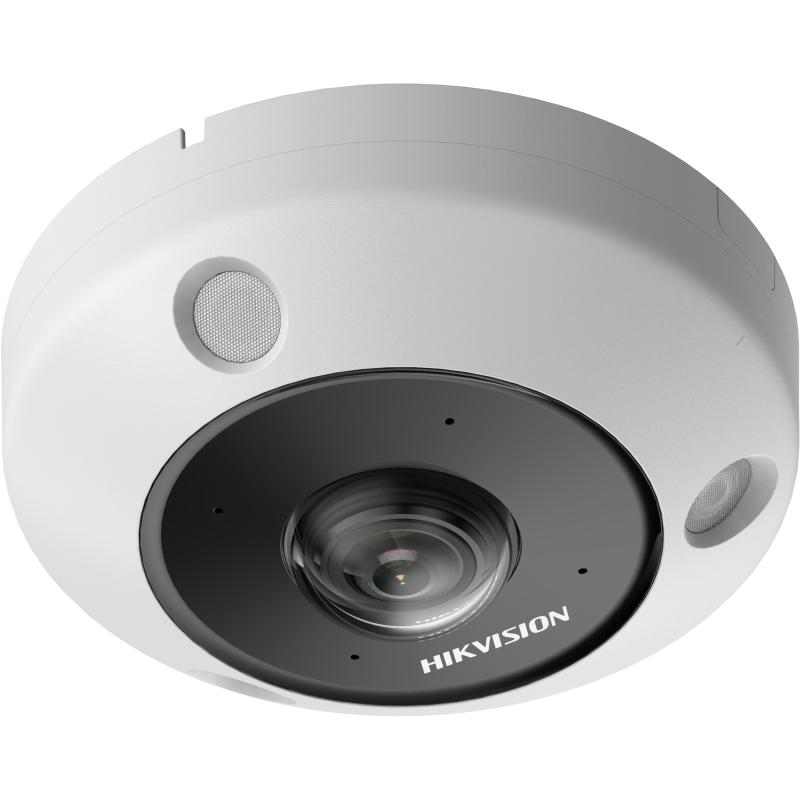

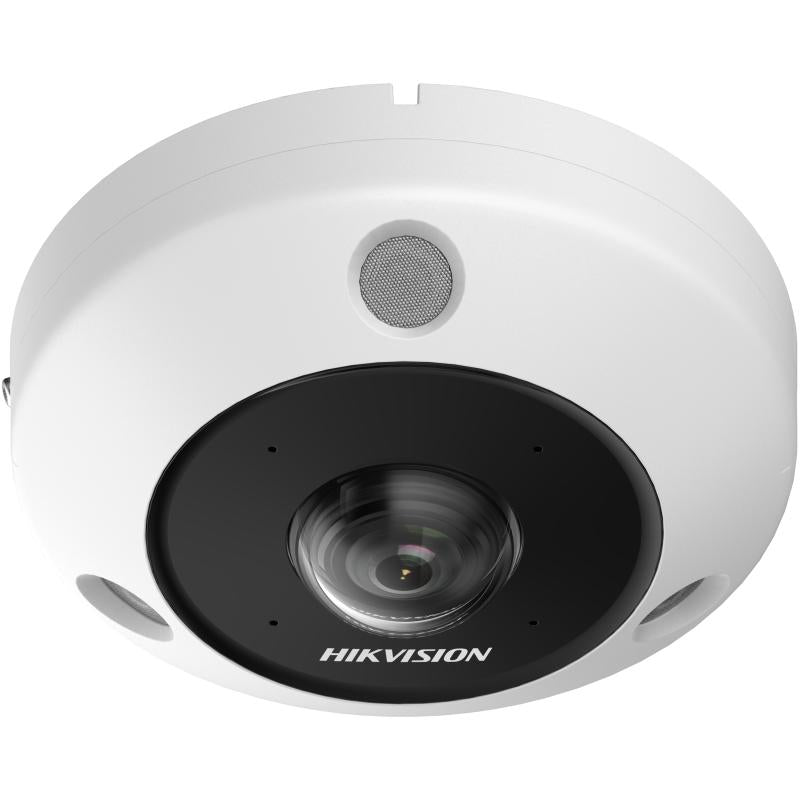

Hikvision DS-2CD63C5G1-IVS — 12MP 360° DeepinView Fisheye
Imagine covering an entire room with a single camera — no blind spots, no gaps. The Hikvision DS-2CD63C5G1-IVS gives you panoramic security in stunning 12MP detail, so you can clearly see faces, movements, and key events. With built-in analytics like Heat Map, People Counting, and Queue Management, it doesn’t just record — it helps you make smarter decisions. And because it’s built tough with IP67 weatherproofing and IK10 vandal protection, you can trust it to perform in almost any environment.
Why Buyers Choose This Model
- 12MP panoramic resolution — capture sharp, clear video that makes it easy to identify faces, objects, and incidents without second-guessing.
- 360° fisheye coverage — monitor an entire area with one device, reducing the need for multiple cameras and lowering installation costs.
- Smart IR up to 15 m — see clearly even in total darkness, so you never miss critical activity at night.
- Built-in 4 microphones + speaker — enable real-time two-way audio, letting you listen in and respond instantly when something happens.
- Deep learning analytics — leverage features like Heatmap, People Counting, and Queue Management to optimize business operations, improve safety, and understand visitor flow.
- Flexible dewarping display modes — switch between fisheye, panorama, and PTZ views for complete situational awareness tailored to your needs.
- Rugged IP67 and IK10 housing — install indoors or outdoors with confidence, knowing it’s protected against dust, rain, and vandal attempts.
- PoE or 12VDC power — simplify setup with flexible power options, avoiding complex wiring headaches.
What This Helps You Avoid
With traditional setups, you might need several cameras to cover a single space. That means more cabling, more NVR channels, and higher maintenance costs — not to mention blind spots that put your security at risk.
The DS-2CD63C5G1-IVS eliminates those frustrations by giving you complete 360° coverage in one device. No more worrying about missed activity at the edges of the frame or the expense of managing multiple units. Plus, the built-in analytics save you from manually reviewing hours of footage, helping you act faster and with confidence. It’s peace of mind, simplified.
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
DS-1276ZJ-SUS, DS-1275ZJ-SUS, DS-1273ZJ-140, DS-1273ZJ-140B, DS-1271ZJ-140, DS-2280ZJ-WA140
Accessories & Mounts Available
DS-1275ZJ-SUS Hikvision Vertical pole mount Horizontal Stainless Steel
In stock
Choose your option
Hikvision DS-1273ZJ-140 Wall Mount Bracket for Turret Cameras Aluminum
In stock
Choose your option
Technical Specifications
Hikvision DS-2CD63C5G1-IVS — 12MP DeepinView IR Fisheye
Get a true 360° view with one camera — cut blind spots, simplify cabling, and capture usable detail even after dewarping. Built-in mics & speaker enable two-way talk, while IR up to 15 m keeps scenes visible in zero-light conditions. On-board analytics like Heatmap, People Counting, and Queue Management help you make smarter staffing and layout decisions. :contentReference[oaicite:0]{index=0}
Key Features
- 12 MP (3504×3504) fisheye sensor for crisp, dewarped detail and multi-view modes (up to 20 display options). :contentReference[oaicite:1]{index=1}
- 360° coverage with 1.29 mm fixed panomorph lens (RPL: 89VVT); F2.2 aperture. :contentReference[oaicite:2]{index=2}
- Three IR emitters with Smart IR, up to 15 m range for low/zero-light scenes. :contentReference[oaicite:3]{index=3}
- Built-in 4 microphones + speaker for real-time two-way audio. :contentReference[oaicite:4]{index=4}
- Deep learning analytics: Heatmap, People Counting, Queue Management, Intersection Analysis. :contentReference[oaicite:5]{index=5}
- Ruggedized IP67 and IK10 protection for harsh installs. :contentReference[oaicite:6]{index=6}
- PoE (802.3af) or 12 VDC power; max draw 12.5 W (PoE). :contentReference[oaicite:7]{index=7}
Camera
Lens & DORI
IR & Illumination
HEOP & Compute
Video & Display
Audio
Network & Security
Interfaces & I/O
Events & Analytics
Power, Env. & Build
Approvals & Anti-Corrosion Level
Model
All specifications are taken verbatim from the manufacturer datasheet. :contentReference[oaicite:8]{index=8}
Optional Accessories (Mounts)
- DS-1276ZJ-SUS (Corner Mount)
- DS-1275ZJ-SUS (Vertical Pole Mount)
- DS-1273ZJ-140 / DS-1273ZJ-140B (Wall Mount)
- DS-1271ZJ-140 (Pendant Mount)
- DS-2280ZJ-WA140 (Junction Box)
Note: DS-1276ZJ-SUS and DS-1275ZJ-SUS are recommended for use with DS-1273ZJ-140 or DS-1273ZJ-140B. :contentReference[oaicite:9]{index=9}
Ideal Applications
- Retail floors and malls — wide, overhead 360° coverage with Heatmap helps optimize merchandising and staffing.
- Hotel lobbies, offices, campuses — fewer cameras needed for complete situational awareness, plus two-way audio for engagement.
- Hospitals and schools — queue management and people counting for flow and safety monitoring.
- Warehouses, factories, and transit hubs — dewarp into multiple PTZ views to monitor aisles, docks, and entries simultaneously.
Downloads
Frequently Asked Questions
The DS-2CD63C5G1-IVS supports up to 3504 × 3504 resolution (12 MP).
In low light, it achieves 0.03 lux (color mode, F2.2, AGC ON). In B/W mode it can go down to 0.006 lux, and with IR illumination active it supports 0 lux.
It uses three IR LEDs and supports up to 15 meters of IR range.
Yes — the camera has built-in microphones (4 mic) and a speaker for two-way audio.
It supports up to 20 display/dewarp modes, including fisheye, 180°/360° panoramas, 4PTZ splits, fisheye + 3PTZ, cylinder, hemisphere, and more.
The camera supports deep learning–based analytics like People Counting, Heat Map, Queue Management, and Intersection Analysis.
It supports H.265+, H.265, H.264+, H.264 (main stream) and MJPEG for sub-stream.
The camera supports wall, table, and ceiling mounting types.
It’s rated IP67 (dust & water protection) and IK10 (vandal resistance).
The camera can use 12 VDC (±20%) or PoE (IEEE802.3af Class 3). Maximum power draw is ~11.5 W (on 12 VDC) or up to 12.5 W via PoE.
