DS-2CE10HFT-F28
DS-2CE10HFT-F28
Infrared (IR)
Available in stock (99)
Description
Description

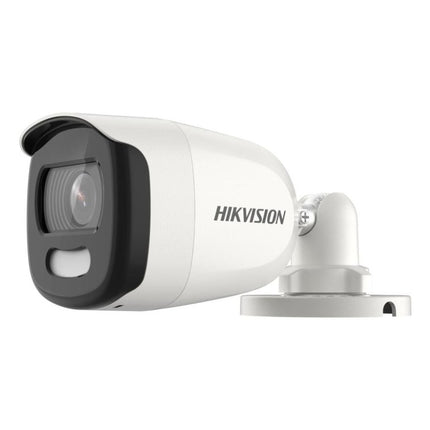

5 MP ColorVu Fixed Mini Bullet Camera
- 5 MP full time color bullet camera
- 24/7 full color imaging
- 2.8 mm fixed focal lens
- Warm supplemental light with 20 m range
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description

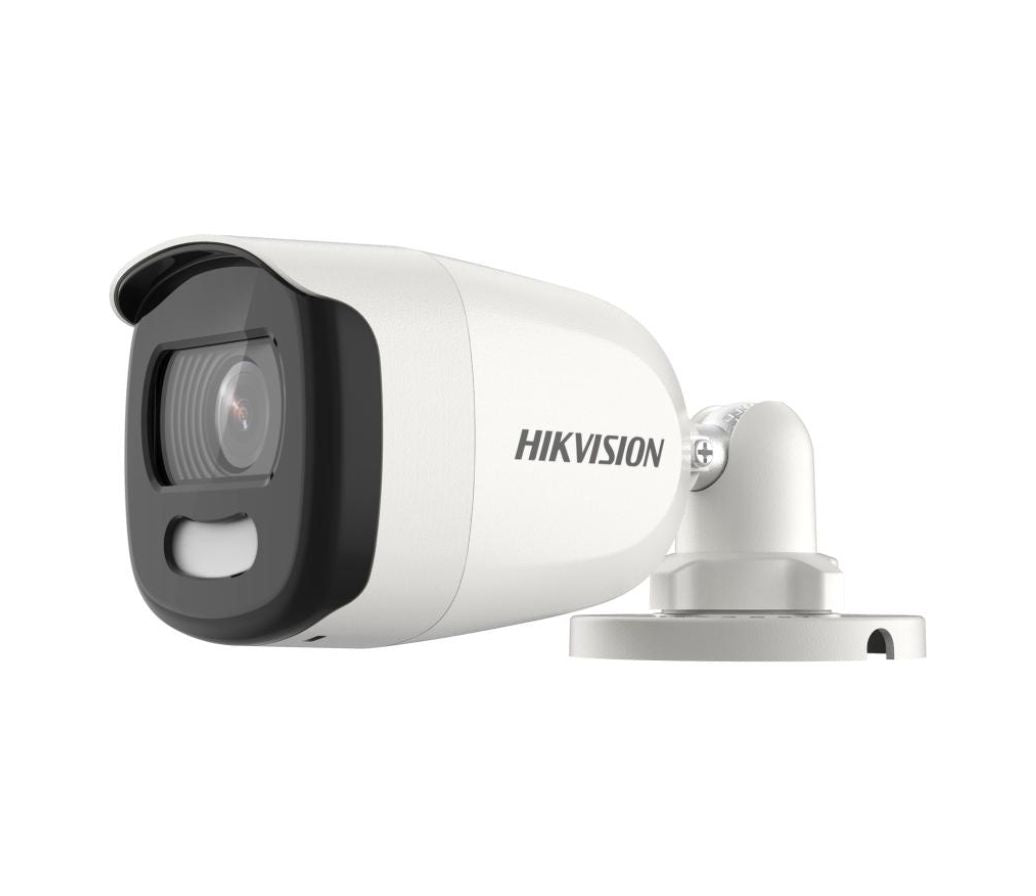

5 MP ColorVu Fixed Mini Bullet Camera
- 5 MP full time color bullet camera
- 24/7 full color imaging
- 2.8 mm fixed focal lens
- Warm supplemental light with 20 m range
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
Specification
- Camera
- Image Sensor5 MP CMOS
- Max. Resolution2560 (H) ? 1944 (V)
- Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightColor
- Angle AdjustmentPan: 0? to 360?; Tilt: 0? to 90?; Rotate: 0? to 360?
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm fixed lens
- Focal Length & FOV2.8 mm, horizontal FOV: 99.7?, vertical FOV: 72?, diagonal FOV: 139.8?
- Lens MountM16
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 20m
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Mirror, Smart Light, AGC
- Frame Rate
TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps
CVI: 4MP@30fps, 4MP@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
CVBS: PAL/NTSC
- Day/Night ModeColor
- Wide Dynamic Range (WDR)?130 dB
- Image EnhancementBLC, HLC
- White BalanceAuto/Manual
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- MaterialMetal
- Dimension68 mm ? 70 mm ? 168.2 mm (2.68" ? 2.76" ? 6.62")
- WeightApprox. 350 g (0.77 lb.)
- Operating Condition-40? C to 60? C (-40? F to 140? F), Humidity 90% or less (no condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power
12 VDC ? 25%, Max. 3.5 W
*You are recommended to use one power adapter to supply the power for one camera.
- Approval
- ProtectionIP67
