Technical Specifications

Data sheet PDF

Product Description

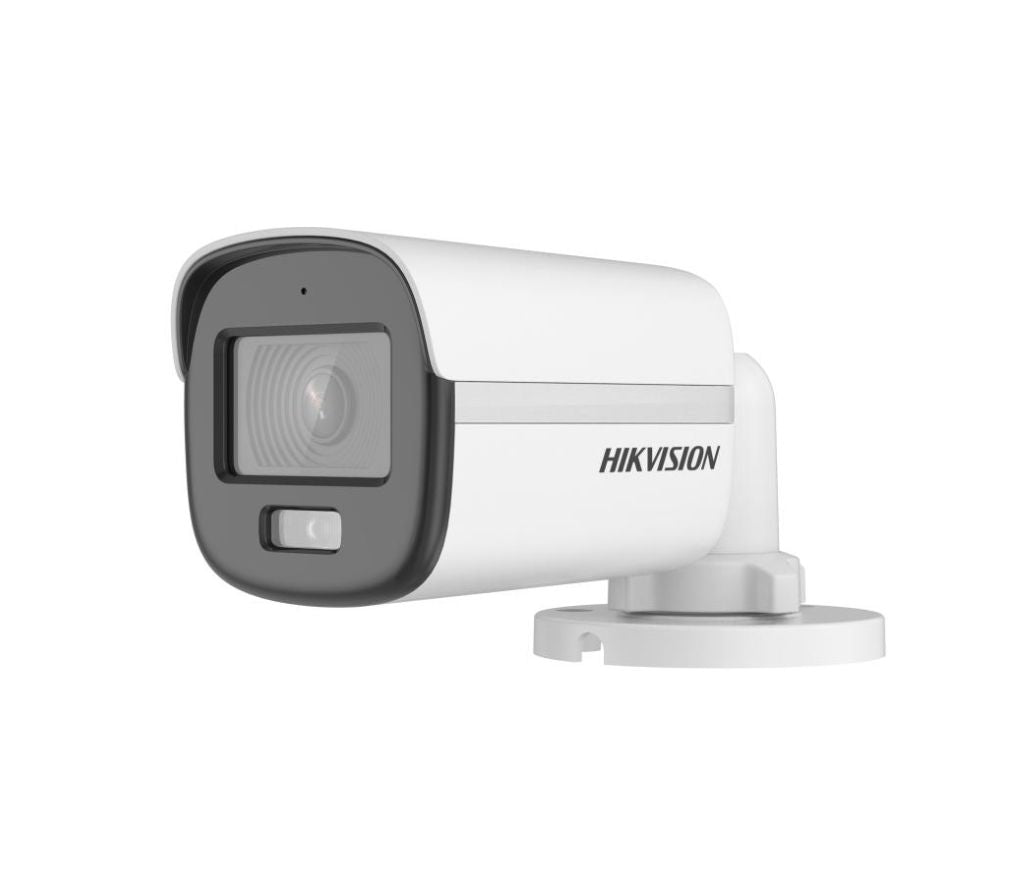

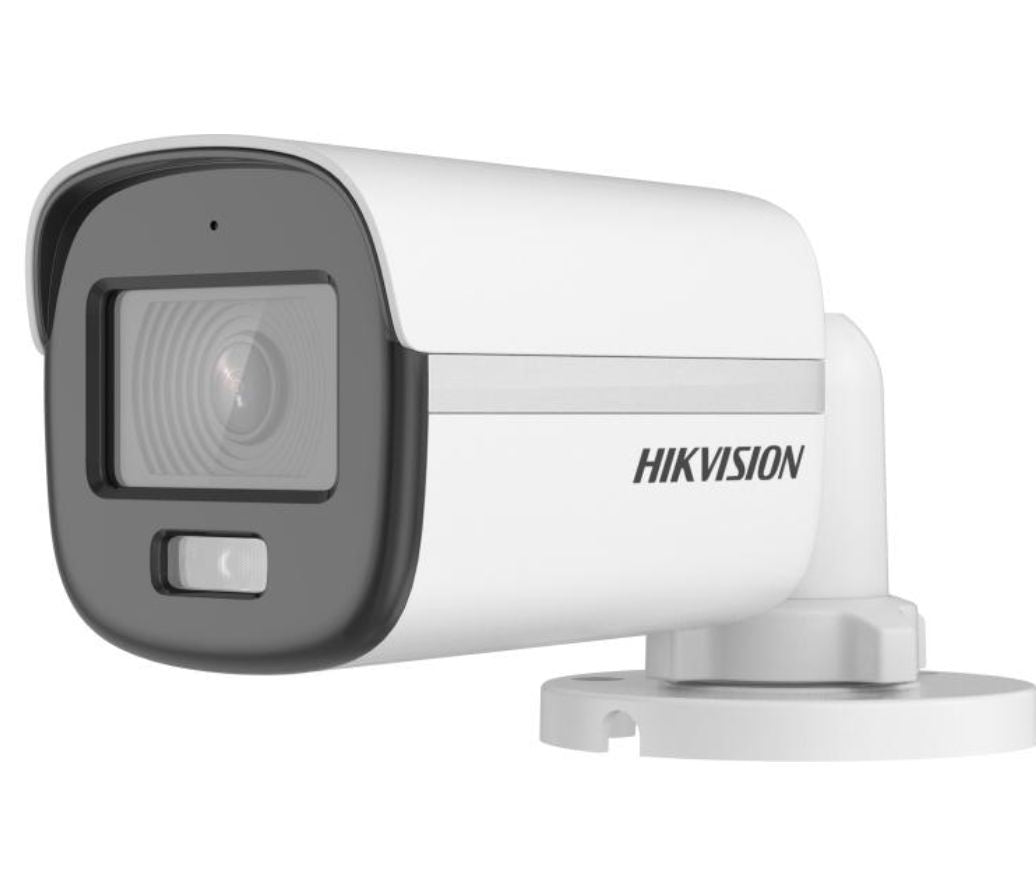

3k/5MP ColorVu Audio Fixed Mini Bullet Camera

  • High quality imaging with 3k/5MP,
  • 24/7 color imaging with F1.0 aperture
  • 2.8 mm and fixed focal lens
  • Up to 20 m white light distance for bright night imaging
  • Water and dust resistant (IP67)
  • High quality audio with audio over coaxial cable, built-in mic

Specification

    • Camera
    • Image Sensor3k/5MP CMOS
    • Signal SystemPAL/NTSC
    • Resolution2960 (H) ? 1665 (V)
    • Frame Rate

      TVI: 3k/5MP@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps

      AHD: 5 MP@20fps, 4 MP@25fps/30fps

      CVI: 4 MP@25fps/30fps

      CVBS: PAL/NTSC

    • Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
    • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
    • Lens2.8 mm and fixed focal lens
    • Field Of View

      2.8 mm, horizontal FOV: 102?, vertical FOV: 56?, diagonal FOV: 122?

      , horizontal FOV: 80?, vertical FOV: 45?, diagonal FOV: 96?

    • Lens MountM12
    • Light AlarmSolid Light Alarm (White Light)
    • Day & Night24/7 Color Imaging
    • WDR (Wide Dynamic Range)Digital WDR
    • Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 90?, Rotation: 0? to 360?
    • Image
    • White LightAuto/Off
    • Image ModeSTD/HIGH-SAT/HIGHLIGHT
    • AGCYes
    • Day/Night ModeColor
    • White BalanceAuto/Outdoor/Global/Manual
    • AE (Auto Exposure) ModeBLC;HLC;Global;HLS;DWDR
    • Noise Reduction2D DNR
    • LanguageEnglish
    • FunctionDefective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light
    • Interface
    • Video OutputSwitchable TVI/AHD/CVI/CVBS
    • Audio InBuilt-in mic
    • General
    • Operating Conditions-40?C to 60?C (-40?F to 140?F), Humidity: 90% or less (non-condensing)
    • Power Supply

      12 VDC ? 25%,

      *You are recommended to use one power adapter to supply the power for one camera.

    • ConsumptionMax. 2.5 W
    • Protection LevelIP67
    • MaterialPlastic
    • White Light RangeUp to 20 m
    • CommunicationHIKVISION-C
    • Dimension161.1 mm ? 70 mm ? 70 mm (6.34" ? 2.76" ? 2.76")
    • WeightApprox. 238 g (0.52 lb.)
