Product Description

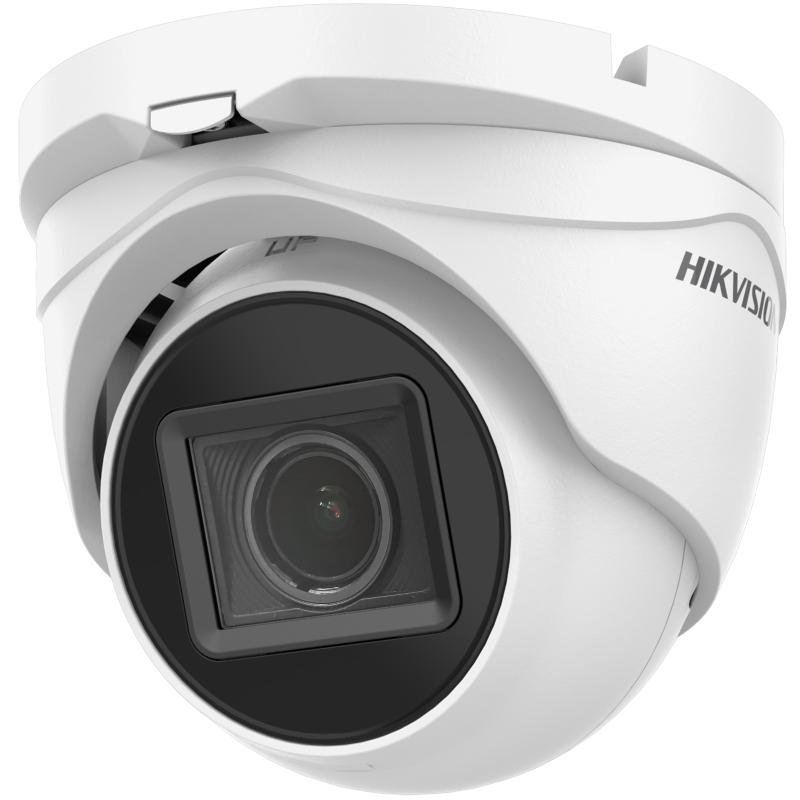

4K Motorized Varifocal Turret Camera

  • 8 MP turret camera
  • Lens focuses automatically when zooming in or out
  • EXIR 2.0: advanced infrared technology with 60 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)










? Specification
Camera
Image Sensor 8.29 megapixel progressive scan CMOS
Max. Resolution 3840 (H) ? 2160 (V)
Min. Illumination 0.01 Lux@(F2.4, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
Day ? Night IR Cut Filter
Angle Adjustment Pan: 0? to 360?, Tilt:0? to 75?, Rotate: 0? to 360?
Signal System PAL/NTSC
Lens
Lens Type 2.7 mm to 13.5 mm motorized vari-focal lens
Focal Length ? FOV 108.1? to 45.6?
Lens Mount ?14
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 60 m
Smart Supplement Light Yes
Image Settings Brightness,Mirror,Sharpness,AGC
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,
2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 8M@12.5fps, 8M@15fps
CVBS: 960H P/N
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC,HLC
Noise Reduction 2D DNR
White Balance Auto/Manual
Interface
Video Output Switchable TVI/AHD/CVI/CVBS,1 HD analog output
General
Power
9 VDC to 15 VDC Max. 8.6 W
*You are recommended to use one power adapter to supply the power for one
camera.
Material Metal
Dimension 134.3 mm ? 123.86 mm ? 110.24 mm (5.29" ? 4.88" ? 4.34")
Weight Approx. 580 g (1.28 lb.)
Operating Condition -40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity 90% or less (non-condensing)
Communication HIKVISION-C
Language English
Approval
Protection IP67
