Technical Specifications

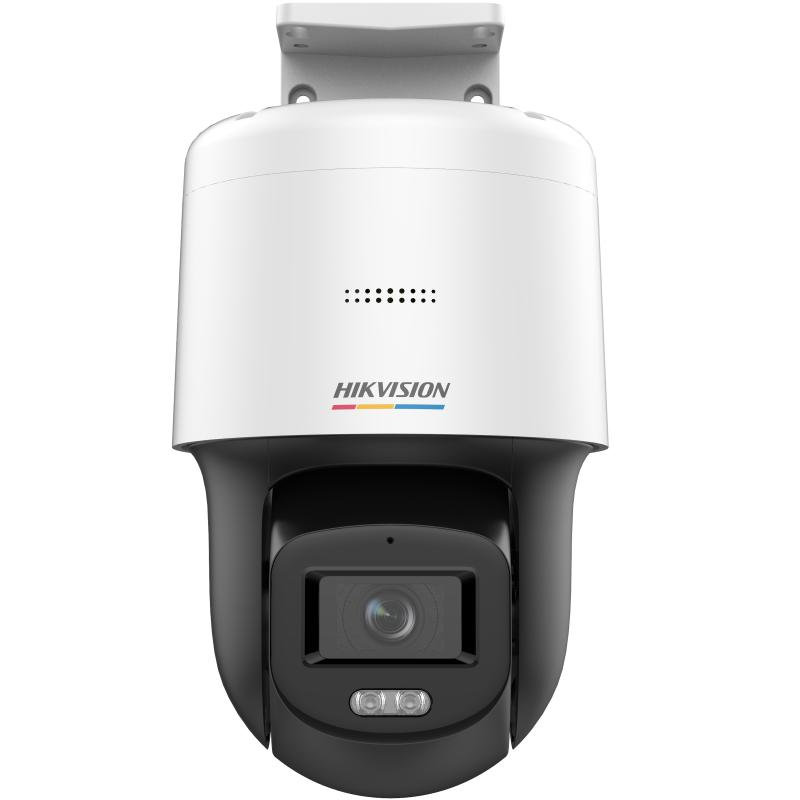

DS-2DE2C400SCG-E — 4 MP ColorVu Network Speed Dome

If you need a compact PTZ camera that can actively “look around” while still giving you bright, full-color detail, the DS-2DE2C400SCG-E is built for that job. It combines 4 MP imaging with ColorVu performance (F1.0 aperture and white-light support) so you can keep visibility strong even when lighting drops. You also get built-in microphone and speaker for real-time audio awareness, plus remote access through Hik-Connect for live viewing and management. And because it’s IP66-rated, it’s designed to stay reliable in demanding outdoor conditions.

Key Features

High-resolution video
4 MP class imaging (max resolution 2560 × 1440)
ColorVu low-light performance
0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
PTZ movement
Pan 0°–340°, Tilt -5°–105° with configurable pan/tilt speed
Clear backlight handling
Digital WDR, plus BLC/HLC and 3D DNR image enhancement
Two-way audio ready
Built-in microphone and built-in speaker
Local recording support
microSD/SDHC/SDXC up to 256 GB
Outdoor durability
IP66 water and dust resistant

Ideal Applications & Common Uses

Entrances and drive lanes
Use PTZ pan/tilt to follow movement, with Digital WDR for challenging backlight.
Parking areas and open lots
White light support up to 30 m helps maintain visibility when ambient lighting is low.
Perimeters and building exteriors
IP66-rated housing supports outdoor deployments where dust and water exposure is expected.
Remote monitoring and multi-site oversight
Hik-Connect cloud service/app supports remote management and viewing.

Camera & Optics

Image Sensor
1/1.8" Progressive Scan CMOS
Max Resolution
2560 × 1440
Min Illumination
Color: 0.001 Lux @(F1.0, AGC ON); 0 Lux with Light
Focal Length
2.8 mm / 4 mm
Field of View (2.8 mm)
H: 105.7°; V: 57.3°; D: 124.9°
Field of View (4 mm)
H: 88.7°; V: 44.7°; D: 107.5°
Aperture
F1.0

Illuminator

Supplement Light Type
White Light
Supplement Light Range
White Light Distance: up to 30 m
Smart Supplement Light
Yes

PTZ

Movement Range (Pan)
0° to 340°
Movement Range (Tilt)
-5° to 105°
Pan Speed
Configurable from 4° to 21°/s
Tilt Speed
Configurable from 4° to 19°/s

Video

Main Stream
50 Hz: 25 fps; 60 Hz: 30 fps (up to 2560 × 1440)
Sub-Stream
50 Hz: 25 fps; 60 Hz: 30 fps (up to 1280 × 720)
Video Compression
H.265, H.264, MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Profile
Baseline Profile, Main Profile, High Profile
H.265 Profile
Main Profile

Audio

Built-in Microphone
Yes
Built-in Speaker
Yes
Audio Compression
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM
Audio Sampling Rate
8 kHz / 16 kHz
Environment Noise Filtering
Yes

Network

Protocols
IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
API
Open Network Video Interface, ISAPI, SDK


Image Settings
Saturation, brightness, contrast, sharpness
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
BLC, HLC, 3D DNR

Interface & Storage

Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board Storage
microSD/SDHC/SDXC card support up to 256 GB

Events & Linkage

Basic Events
Motion detection, video tampering alarm, exception
Linkage Actions
Upload to FTP, notify surveillance center, send email, upload to memory card

Power, Size & Protection

Power (12V DC)
12 V, 0.6 A, max 7.2 W
Power (PoE)
IEEE 802.3af, 36 V to 57 V, 0.3 A, max 10 W
Operating Conditions
With light on: -30°C to 40°C; With light off: -30°C to 50°C (≤95% RH, non-condensing)
Ingress Protection
IP66 (water and dust resistant)
Camera Dimensions
162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2")
Camera Weight
Approx. 780 g (1.7 lb.)

Available Models

Model Variants
DS-2DE2C400SCG-E(F0); DS-2DE2C400SCG-E(F1)
