DS-2DE4225TI-D
DS-2DE4225TI-D
Infrared (IR)
Motorized
Pan Tilt Zoom (PTZ)
Out of stock
Description
Description

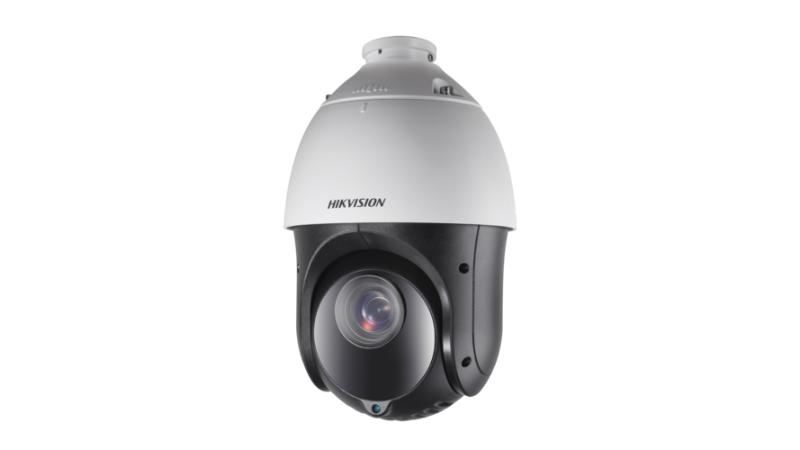

4-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 25 ? optical zoom allows for closer viewing of subjects in expansive areas
- Up to 100 m IR range ensures safety at night
- Water and dust resistant (IP66)
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
4-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 25 ? optical zoom allows for closer viewing of subjects in expansive areas
- Up to 100 m IR range ensures safety at night
- Water and dust resistant (IP66)
Specification
- Camera
- Image Sensor1/2.8" Progressive Scan CMOS
- Max. Resolution1920 ? 1080
- Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
- Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
- Day & NightIR cut filter
- Zoom25? optical, 16 ? digital
- Lens
- Focal Length4.8 mm to 120 mm, 25 ? optical
- FOVHorizontal FOV: 57.6? to 2.5? (wide to tele)
- FocusAuto, semi-auto, manual
- ApertureF1.6 to F3.5
- Zoom SpeedApprox. 3.2 s (optical, wide to tele)
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 100 m
- PTZ
- Movement Range (Pan)360? endless
- Movement Range (Tilt)-15? to 90? (auto flip)
- Pan Speed
Pan manual speed: 0.1? to 80?/s
Pan preset speed: 80?/s
- Tilt Speed
Tilt manual speed: 0.1? to 80?/s
Tilt preset speed: 80?/s
- Proportional PanRotation speed can be adjusted automatically according to zoom multiples
- Presets256
- Patrol Scan10 patrols, up to 32 presets for each patrol
- Pattern Scan5 patterns, record time over 10 minutes for each scan
- Park ActionPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
- PTZ Status DisplayYes
- Scheduled TaskPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-Off MemoryYes
- Video
- Frame Rate
50 Hz: 25 fps @(1920 ? 1080)
60 Hz: 30 fps @(1920 ? 1080)
- Network
- ProtocolsUTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
- Image SettingsAGC, white balance
- Wide Dynamic Range (WDR)? 120 dB
- Image StabilizationEIS
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask8 programmable privacy masks
- Regional FocusYes
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
- RS-485
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
- General
- Power12 VDC, max. 20 W (IR: 7 W)
- Dimension? 164.5 ? 295 mm (? 6.47" ? 11.61")
- Operating Condition-30? C to 65? C (-22? F to 149? F). Humidity 90% or less
- LanguageEnglish
- Approval
- ProtectionIP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
