Product Description

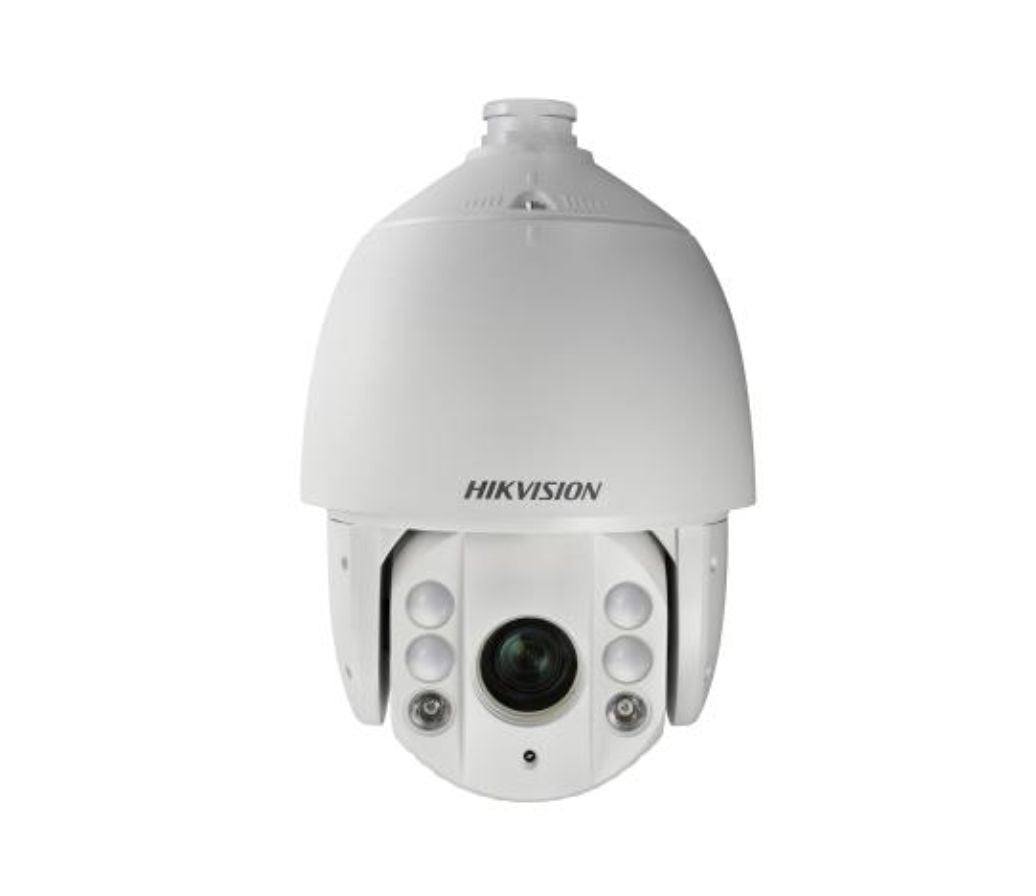

7-inch 2 MP 32X Powered by DarkFighter IR Network Speed Dome

• High quality imaging with 2 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Clear imaging against strong back lighting due to 120 dB WDR technology
• Pan and tilt ability enables camera to monitor zones of interest
• 32x optical zoom allows for closer viewing of subjects in expansive areas
• Up to 150m IR range ensures safety at night
• Water and dust resistant (IP66).

Specification

• Lens
• FOVHorizontal field of view: 55.6? to 2.04? (Wide-Tele),Vertical field of view: 32.4? to 1.14? (Wide-Tele),Diagonal field of view: 63? to 2.34? (Wide-Tele)
• Zoom SpeedApprox. 5.6 s (optical lens, wide-tele)
• Working Distance10 mm to 1500 mm (wide-tele)
• Aperture RangeF1.2 to F4.4
• Focal Length4.8 mm to 153 mm, 32? optical zoom
• Image
• Image EnhancementHLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
• Sub-Stream50Hz: 25fps (704 ? 576, 640 ? 480, 352 ? 288),60Hz: 30fps (704 ? 480, 640 ? 480, 352 ? 240)
• Max. Resolution1920 ? 1080
• Main Stream50Hz: 25fps (1920 ? 1080, 1280 ? 960, 1280 ? 720),50fps (1920 ? 1080, 1280 ? 960, 1280 ? 720),60Hz: 30fps (1920 ? 1080, 1280 ? 960, 1280 ? 720),60fps (1920 ? 1080, 1280 ? 960, 1280 ? 720)
• Third Stream50Hz: 25fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 576, 640 ? 480, 352 ? 288),60Hz: 30fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 480, 640 ? 480, 352 ? 240)
• Network
• Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users,3 levels: Administrator, Operator and User
• ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
• Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Alarm LinkageAlarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, etc.
• Interface
• Alarm Output1-ch alarm output
• Alarm Input2-ch alarm input
• Audio Input1-ch audio input
• Audio Output1-ch audio output
• Network Interface1 RJ45 10 M/100 M Ethernet, Hi-PoE
• Compression Standard
• H.264+Support
• H.265+Support
• H.264 TypeBaseline Profile/Main Profile/High Profile
• Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
• H.265 TypeMain Profile
• Video Bitrate32 Kbps to 16384 Kbps
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
• Audio BitrateG.711alaw/G.711ulaw: 64 Kbps,G.722.1/G.726: 16 Kbps,MP212/PCM: 32 Kbps/64 Kbps/128 Kbps
• SVCSupport
• Camera Module
• Image Sensor1/2.8" progressive scan CMOS
• Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001Lux @(F1.6, AGC ON),0 Lux with IR
• White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• GainAuto/Manual
• Shutter Time50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
• Day & NightIR Cut Filter
• Digital Zoom16?
• Privacy Mask24 programmable privacy masks
• Focus ModeAuto/Semi-automatic/Manual
• WDR120 dB WDR
• Supplement Light
• IR Distance150 m
• Smart IRSupport
• PTZ
• Movement Range (Pan)360? endless
• Pan SpeedConfigurable, from 0.1?/s to 160?/s, ,Preset speed: 240?/s
• Movement Range (Tilt)From -15? to 90? (auto-flip)
• Tilt SpeedConfigurable, from 0.1?/s to 120?/s,Preset Speed: 200?/s
• Proportional ZoomSupport
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Power-Off MemorySupport
• Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• 3D PositioningSupport
• PTZ Status DisplaySupport
• Preset FreezingSupport
• Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
• Smart Features
• Basic Event DetectionMotion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception
• Smart DetectionFace Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
• Smart TrackingSupport
• Smart RecordANR (Automatic Network Replenishment), Dual-VCA
• ROIMain stream, sub-stream, and third stream respectively support four fixed areas.
• General
• MaterialADC 12, PC, PC+10%GF
• Dimensions? 220 mm ? 353.4 mm (? 8.66" ? 13.91")
• WeightApprox. 4.5 kg (9.92 lb)
• Protection LevelIP66, IK10 (excluding glass window), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Power24 VAC and Hi-PoE,Max.: 40 W (Max. 14 W for IR)
• Working Temperature-30?C to 65?C (-22?F to 149?F)
• Working Humidity? 90%
