Product Description

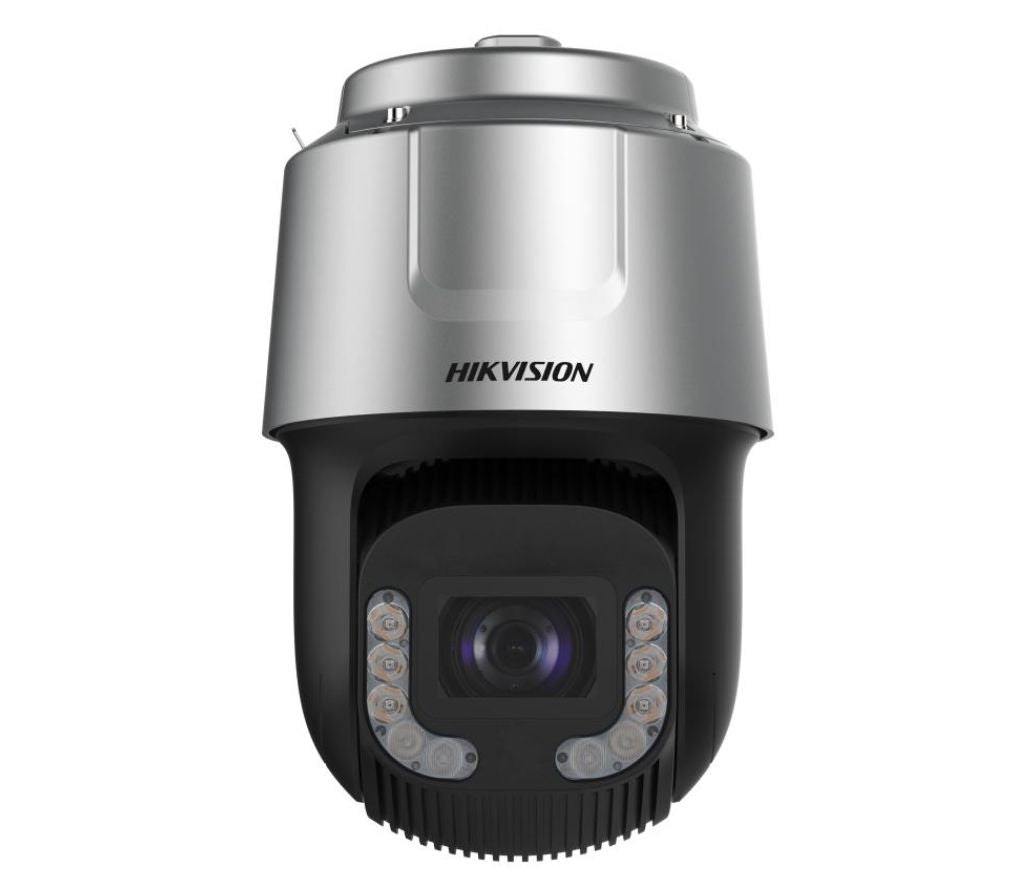

8-inch 8 MP 35X DarkFighterX IR Network Speed Dome

• Dual sensor 1/1.2" progressive scan CMOS
• High quality imaging with 8 MP resolution
• Excellent low-light performance with DarkFighter X technology
• 35? optical zoom and 16? digital zoom provide close up views over expansive areas
• 300 m IR distance
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Supports face capture to detect, capture, grade, and select faces in motion
• Supports road traffic to detect vehicles
• Efficient H.265+/H.265 compression technology
• 140 dB WDR, 3D DNR, HLC, BLC, EIS, defog

Specification

• Camera
• Image SensorTwo sensors, 1/1.2" Progressive Scan CMOS
• Max. Resolution3840 ? 2160
• Min. IlluminationColor: 0.0004 Lux @ (F1.6, AGC ON),B/W: 0.0001 Lux @ (F1.6, AGC ON),0 Lux with IR
• Shutter Speed1/1 s to 1/30000 s
• Zoom35 ? optical,16 ? digital
• Slow ShutterYes
• Lens
• Focal Length7.4 to 259 mm
• FOVHorizontal field of view: 61.26? to 1.77?, vertical field of view: 35.5? to 1?, diagonal field of view: 69.35? to 2.03?
• FocusAuto,semi-auto,manual,rapid focus
• ApertureF1.6
• Zoom SpeedApprox. 8 s
• Illuminator
• Supplement Light TypeHybrid
• Supplement Light RangeIR distance: up to 300 m
• Smart Supplement LightYes
• PTZ
• Movement Range (Pan)0? to 360?
• Movement Range (Tilt)-20? to 90?
• Pan SpeedPan speed: configurable from 0.1? to 210?/s, preset speed: 280?/s
• Tilt SpeedTilt speed: configurable from 0.1? to 150?/s, preset speed 250?/s
• Proportional PanYes
• Presets300
• Preset FreezingYes
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
• 3D PositioningYes
• PTZ Status DisplayYes
• Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
• Power-Off MemoryYes
• Video
• Main Stream

  50 Hz: 25 fps (3840 ? 2160, 2560 ? 1440, 1920 ? 1080, 1280 ? 960, 1280 ? 720),

  60 Hz: 24 fps (3840 ? 2160, 2560 ? 1440, 1920 ? 1080, 1280 ? 960, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (704 ? 576, 640 ? 480, 352 ? 288)

  60 Hz: 24 fps (704 ? 576, 640 ? 480, 352 ? 240)

• Third Stream

  50 Hz: 25 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 576, 640 ? 480, 352 ? 288)

  60 Hz: 24 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 480, 640 ? 480, 352 ? 240)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline profile,Main profile,High profile
• H.265 TypeMain profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)8 fixed regions for each stream
• Audio
• Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
• Audio Bit Rate64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
• Network
• ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,FTP,TCP/IP,ICMP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,UPnP,SMTP,SNMP,IGMP,UDP,Bonjour,NTP
• Simultaneous Live ViewUp to 20 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/HostUp to 32 users. 3 user levels: administrator, operator, and user
• SecurityPassword protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark
• Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
• ClientiVMS-4200,HikCentral Pro,Hik-Connect
• Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+
• Image
• Image Parameters SwitchYes
• Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Day/Night SwitchDay,night,auto,schedule
• Wide Dynamic Range (WDR)140 dB
• SNR? 52 dB
• DefogOptical defog
• Image StabilizationEIS
• Image EnhancementBLC,HLC,3D DNR
• Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
• Regional FocusYes
• Regional ExposureYes
• Interface
• Video OutputCVBS: 1.0 V[p-p]/75 ?, PAL/NTSC, BNC connector
• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Audio

  1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 K? ? 10%,

  1 output (line out), line level, output impedance: 600 ?

• Alarm7 input(s), 2 output(s)
• RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• ResetYes
• Event
• Basic Eventvideo tampering alarm,exception,alarm input and output,Motion detection
• Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection,unattended baggage detection,object removal detection
• Alarm LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan)
• Smart TrackingManual tracking,auto-tracking
• Deep Learning Function
• Face Capture

  Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture

• Face ComparisonRecognizes face identity via face modeling, grading and comparing to those in face library
• Road Traffic And Vehicle Detection
• Road TrafficSupport vehicle detection (license plate number,vehicle model, and vehicle color recognition)
• General
• Power

  36 VDC ? 25%, max. 62 W,

  Hi-PoE

• Dimension?267 mm ? 430 mm (?10.5" ? 16.9")
• WeightApprox. 10 kg (22.05 lb.)
• MaterialADC12
• Operating Condition-40 ?C to 70 ?C (-40 ?F to 158 ?F). Humidity 95% or less (non-condensing)
• Vandal-Proof AlarmYes
• HeaterYes
• WiperNo
• DemistYes
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Approval
• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015)
• SafetyCE-LVD (EN 62368-1: 2014/A11: 2017),CB (IEC 62368-1: 2014 + A11),UL (UL 62368-1),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1)
• EnvironmentCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013),IK10 (IEC 62262:2002),TVS 6K
