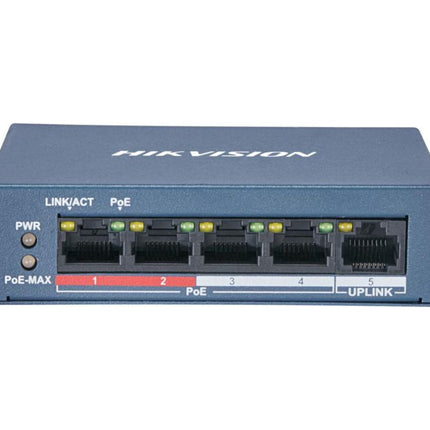

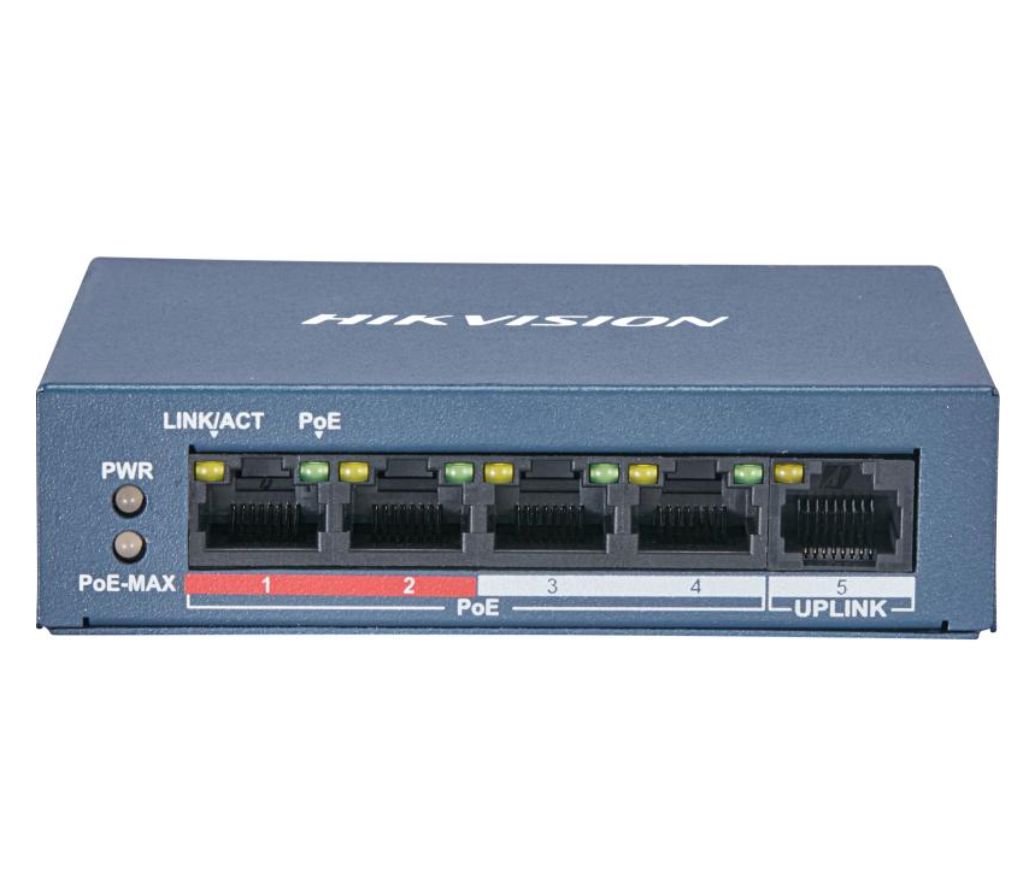

DS-3E0105P-E/M Hikvision 4 Port Fast Ethernet Unmanaged POE Switch
- VendorHIKVISION
DS-3E0105P-E/M Hikvision 4 Port Fast Ethernet Unmanaged POE Switch
- VendorHIKVISION
Data sheet PDF
Product Description
4 Port Fast Ethernet Unmanaged POE Switch
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Specification
- Network Parameters
- Ports4 ? 10/100 Mbps PoE ports, and 1 ? 10/100 Mbps RJ45 port
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- Working ModeStandard mode (default); Extend mode
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Forwarding ModeStore-and-forward switching
- High Priority PortsPorts 1 to 2
- MAC Address Table2 K
- Switching Capacity1 Gbps
- Packet Forwarding Rate0.744 Mpps
- Internal Cache0.768 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af, IEEE 802.3at
- PoE Power Pin
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE PortPorts 1 to 4
- Max. Port Power30 W
- PoE Power Budget35 W
- Dialing Function
- Long RangePorts 1 to 4: up to 300 m; and the speed rate of the port is 10 Mbps.
- General
- Dimensions (W ? H ? D)105 mm ? 27.6 mm ? 83.1 mm (4.1? ? 1.1? ? 3.3?)
- ShellMetal material, fan-free design
- Gross Weight0.48 kg (1.06 lb)
- Net Weight0.20 kg (0.40 lb)
- Operating Temperature?10 ?C to 55 ?C (14 ?F to 131 ?F)
- Operating Humidity5% to 95% (no condensation)
- Storage Temperature?40 ?C to 85 ?C (?40 ?F to 185 ?F)
- Storage Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 0.8 A
- Power Consumption In Idle3 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
