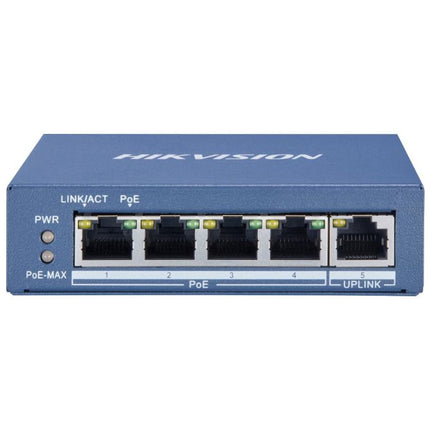

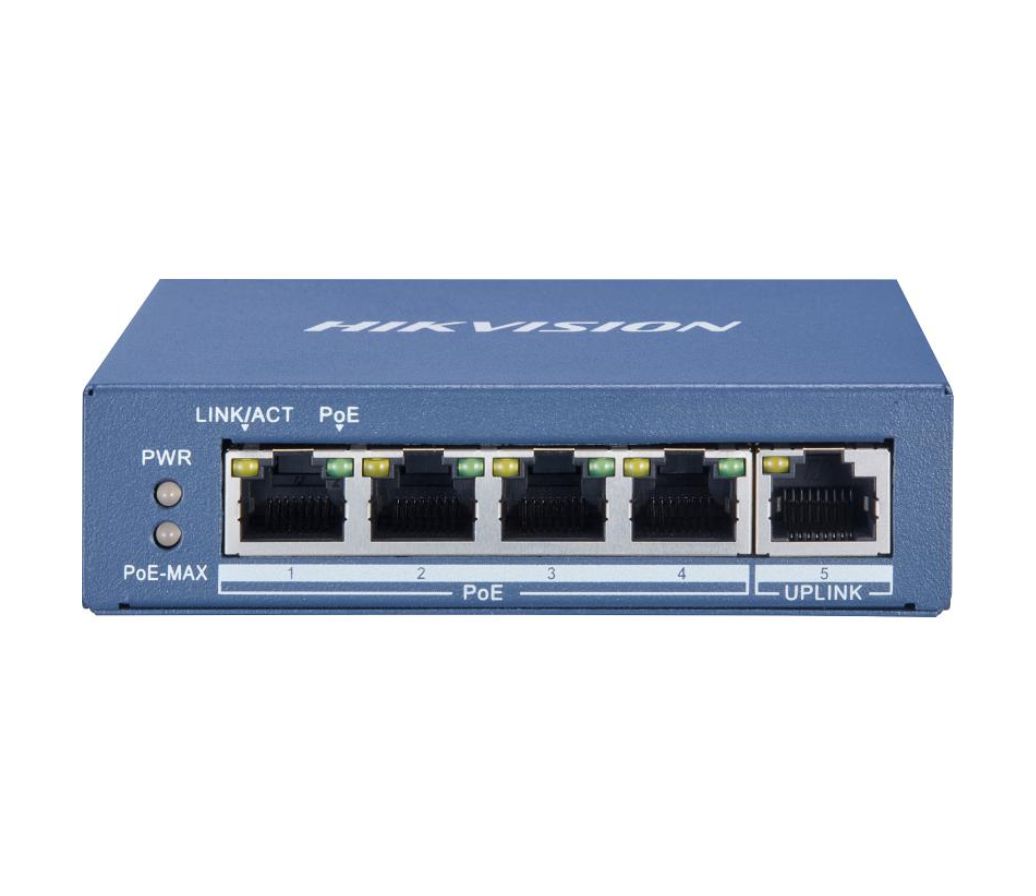

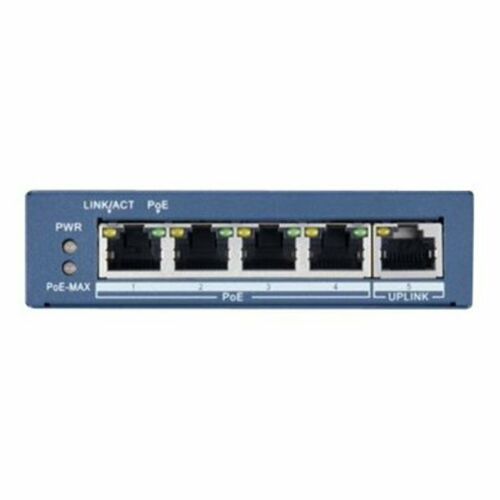

DS-3E0505P-E SWITCH HIKVISION 4-PORTS UNMANAGED GIGABIT PoE
DS-3E0505P-E SWITCH HIKVISION 4-PORTS UNMANAGED GIGABIT PoE
Out of stock
Description
Description
DS-3E0505P-E SWITCH HIKVISION 4-PORTS UNMANAGED GIGABIT PoE
This listing includes:
-  (1) ACCESSORIES: DS-3E0505P-E
DS-3E0505P-E  view data sheet
4 Port Gigabit Unmanaged POE Switch
- Layer 2 network switch designed for video data transmission
- 4 x 10/100/1000 Mbps ethernet ports and 1 x 10/100/1000 Mbps uplink ethernet port
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
- IEEE 802.3 af & at high PoE power supply
- Store-and-forward switching
- Safe and reliable using 6 KV high surge protection
- Plug and play ensures simplicity and convenience.
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
4 Port Gigabit Unmanaged POE Switch
- Layer 2 network switch designed for video data transmission
- 4 x 10/100/1000 Mbps ethernet ports and 1 x 10/100/1000 Mbps uplink ethernet port
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
- IEEE 802.3 af & at high PoE power supply
- Store-and-forward switching
- Safe and reliable using 6 KV high surge protection
- Plug and play ensures simplicity and convenience.
Specification
- Network Parameters
- Ports4 ? Gigabit PoE ports, and 1 ? Gigabit RJ45 port
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
- Forwarding ModeStore-and-forward switching
- MAC Address Table2 K
- Switching Capacity10 Gbps
- Packet Forwarding Rate7.44 Mpps
- Internal Cache1 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af, IEEE 802.3at
- PoE Power PinEnd-span: 1/2(-), 3/6(+)
- PoE PortPorts 1 to 4
- Max. Port Power30 W
- PoE Power Budget60 W
- General
- Dimensions (W ? H ? D)105 mm ? 27.6 mm ? 83.1 mm (4.1? ? 1.1? ? 3.3?)
- ShellMetal material, fan-free design
- Gross Weight0.84 kg (1.85 lb)
- Net Weight0.26 kg (0.57 lb)
- Operating Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
- Operating Humidity5% to 95% (no condensation)
- Storage Temperature-40 ?C to 85 ?C (-40 ?F to 185 ?F)
- Storage Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 1.35 A
- Power Consumption In Idle5 W
- Max. Power Consumption65 W
- Approval
- EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 10)
- SafetyUL (UL 62368-1); CB(IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2020)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2009)
