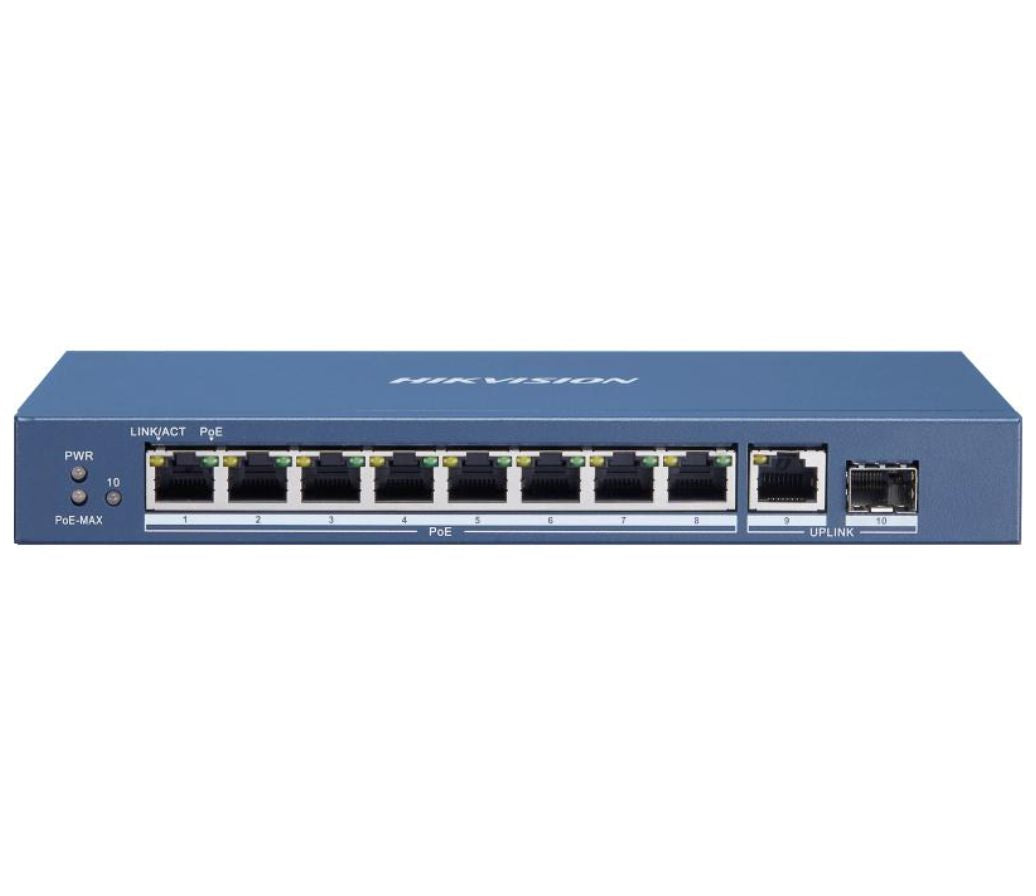

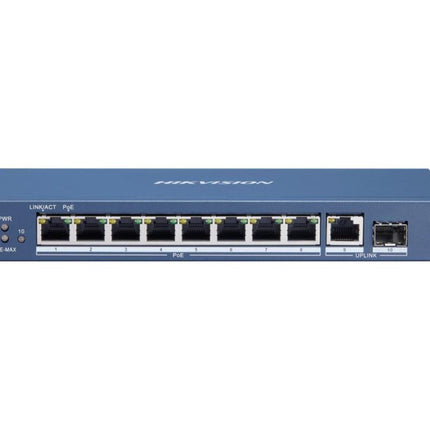

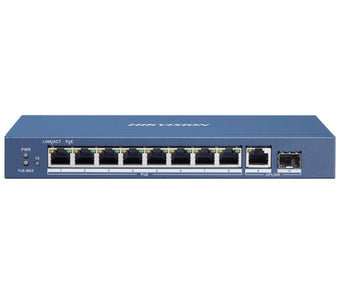

DS-3E0510P-E/M Hikvision 8 Port Gigabit Unmanaged POE Switch
DS-3E0510P-E/M Hikvision 8 Port Gigabit Unmanaged POE Switch
Hurry up, only 1 item left in stock.
Description
Description
DS-3E0510P-E/M Hikvision 8 Port Gigabit Unmanaged POE Switch
This listing includes:
-  (1) ACCESSORIES: DS-3E0510P-E/M
DS-3E0510P-E/M  view data sheet
8 Port Gigabit Unmanaged POE Switch
- 8 ? Gigabit PoE ports, 1 ? Gigabit RJ45 port, 1 ? Gigabit SFP fiber optical port
- IEEE 802.3at/af standard
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
- 6 KV surge protection for PoE ports
- PoE power management
- Gigabit network access
- Wire-speed forwarding and non-blocking design
- Store-and-forward switching
- Solid high-strength metal shell
- Reliable fan-free design
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
8 Port Gigabit Unmanaged POE Switch
- 8 ? Gigabit PoE ports, 1 ? Gigabit RJ45 port, 1 ? Gigabit SFP fiber optical port
- IEEE 802.3at/af standard
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
- 6 KV surge protection for PoE ports
- PoE power management
- Gigabit network access
- Wire-speed forwarding and non-blocking design
- Store-and-forward switching
- Solid high-strength metal shell
- Reliable fan-free design
- General
- ShellMetal material
- Net Weight0.635 kg (1.40 lb)
- Gross Weight1.366 kg (3.01 lb)
- Dimensions (W ? H ? D)217.6 mm ? 27.8 mm ? 108.55 mm (8.6'' ? 1.1'' ? 4.3'')
- Operating Temperature?10 ?C to 55 ?C (14 ?F to 131 ?F)
- Storage Temperature?40 ?C to 85 ?C (?40 ?F to 185 ?F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 1.35 A
- Max. Power Consumption65 W
- Power Consumption In Idle7 W
- Installation ModeDesk-Mounted,Wall-Mounted
- Surge Protection6 KV
- Network Parameters
- Ports8 ? Gigabit PoE port,1 ? Gigabit RJ45 port,1 ? Gigabit fiber optical port
- MAC Address Table4 K
- Switching Capacity20 Gbps
- Packet Forwarding Rate14.88 Mpps
- Internal Cache1.5 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af;IEEE 802.3at
- PoE Power PinEnd-span: 1/2(+), 3/6(-)
- PoE PortPoE: Ports 1 to 8
- Max. Port Power30 W
- PoE Power Budget58 W
- Dialing Function
- Long Range/
- Port Isolation/
- PoE Watchdog/
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry
CE-RoHS (201165EU);
WEEE (201219EU);
Reach (Regulation (EC) No.19072006)
Specification
General
Network Parameters
PoE Power Supply
Dialing Function
Approval
