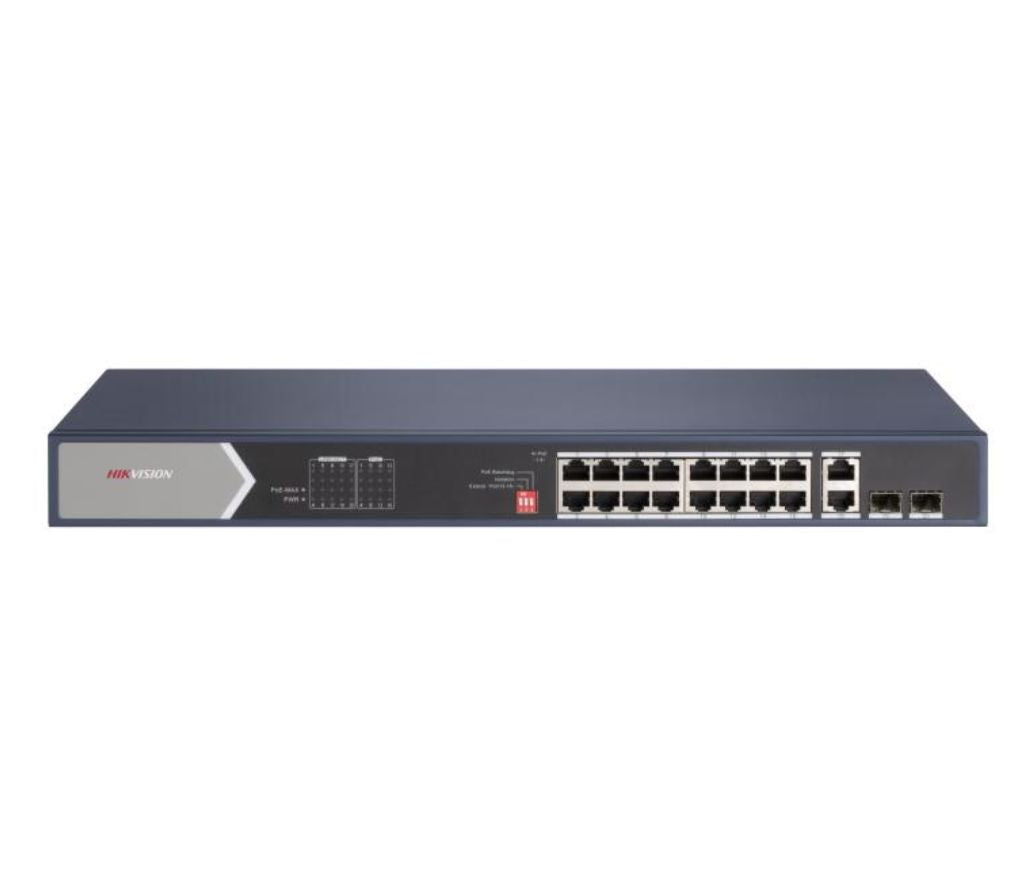

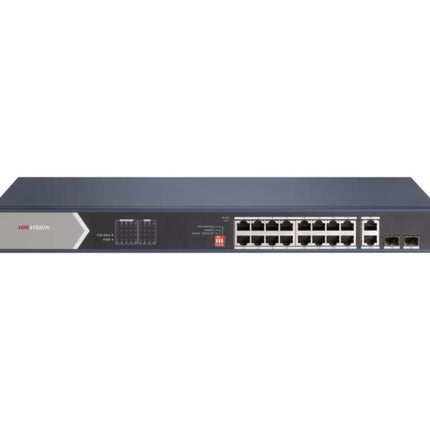

DS-3E0520HP-E Hikvision 16 Port Gigabit Unmanaged POE Switch
DS-3E0520HP-E Hikvision 16 Port Gigabit Unmanaged POE Switch
Out of stock
Description
Description
DS-3E0520HP-E Hikvision 16 Port Gigabit Unmanaged POE Switch
This listing includes:
-  (1) ACCESSORIES: DS-3E0520HP-E
DS-3E0520HP-E  view data sheet
16 Port Gigabit Unmanaged POE Switch
- 12 ? gigabit PoE ports, 4 ? gigabit Hi-PoE ports, 2 ? gigabit RJ45 ports, and 2 ? gigabit fiber optical ports.
- IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Gigabit network access design.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
16 Port Gigabit Unmanaged POE Switch
- 12 ? gigabit PoE ports, 4 ? gigabit Hi-PoE ports, 2 ? gigabit RJ45 ports, and 2 ? gigabit fiber optical ports.
- IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Gigabit network access design.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- General
- ShellMetal material
- Net Weight2.79 kg (6.15 lb)
- Gross Weight3.60 kg (7.94 lb)
- Dimensions (W ? H ? D)440.0 mm ? 44.0 mm ? 220.8 mm (17.3'' ? 1.7'' ? 8.7'')
- Operating Temperature0 ?C to 45 ?C (32 ?F to 113 ?F)
- Storage Temperature-40 ?C to 85 ?C (-40 ?F to 185 ?F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply100~240 VAC, 50/60 Hz, Max. 4 A
- Max. Power Consumption250 W
- Power Consumption In Idle25 W
- Installation ModeRack (equipped with mounting ears)
- Surge Protection6 KV
- Network Parameters
- Ports16 ? Gigabit PoE port,2 ? Gigabit RJ45 port,2 ? Gigabit fiber optical port
- MAC Address Table8 K
- Switching Capacity40 Gbps
- Packet Forwarding Rate29.76 Mpps
- Internal Cache4.10 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
- PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE Port
Hi-PoE: Ports 1 to 4
PoE: Ports 5 to 16;
- Max. Port Power30 W
- PoE Power Budget225 W
- Dialing Function
- Long Range
Ports 13 to 16: up to 300 m
Long range performance may vary depend on camera model or cable condition.
- Port Isolation
Ports 1 to 16: port isolation mode to improve network security.
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- PoE WatchdogPorts 1 to 16: auto detect and restart the cameras that do not respond.
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU)
