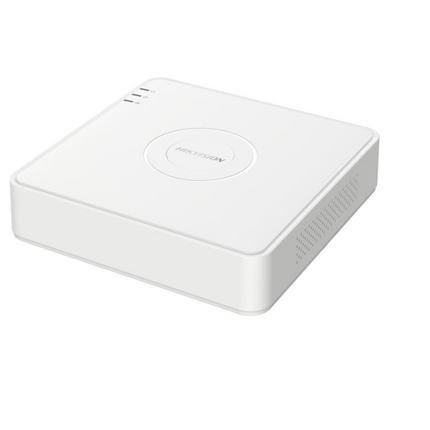

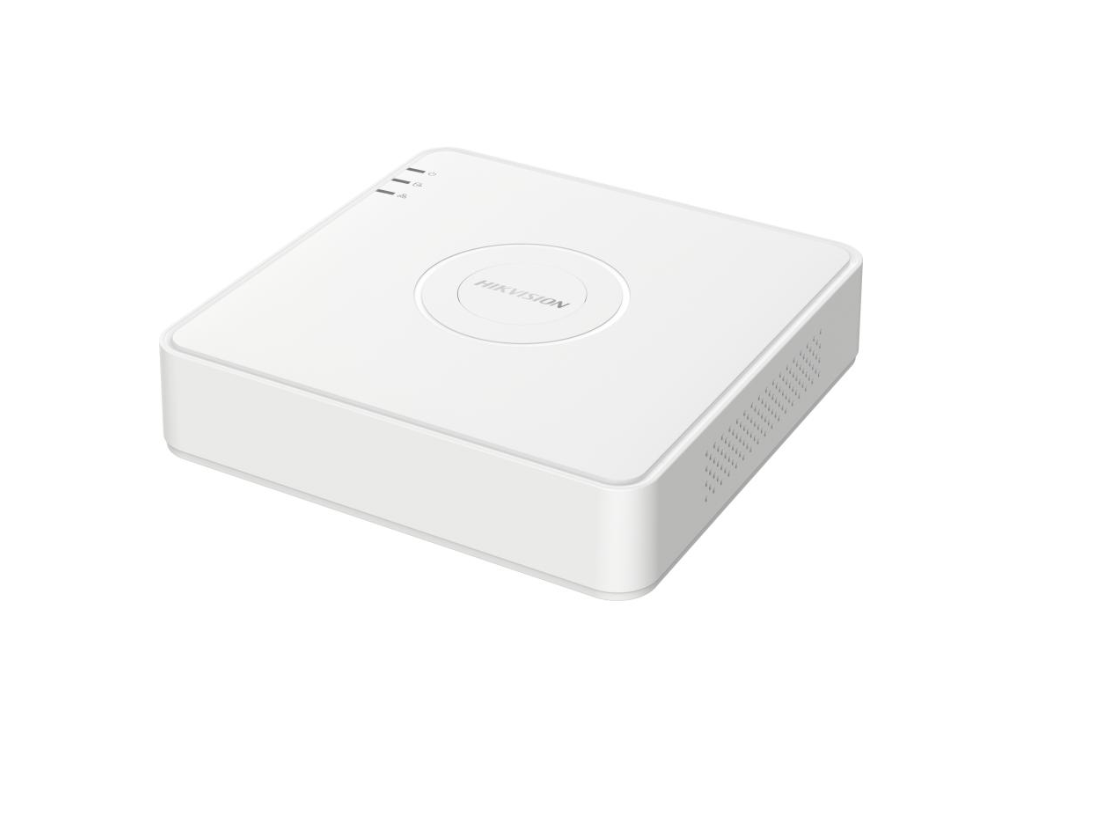

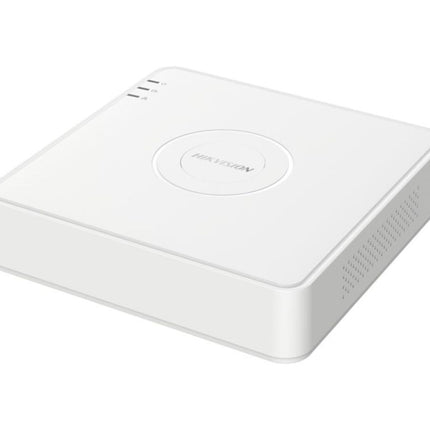

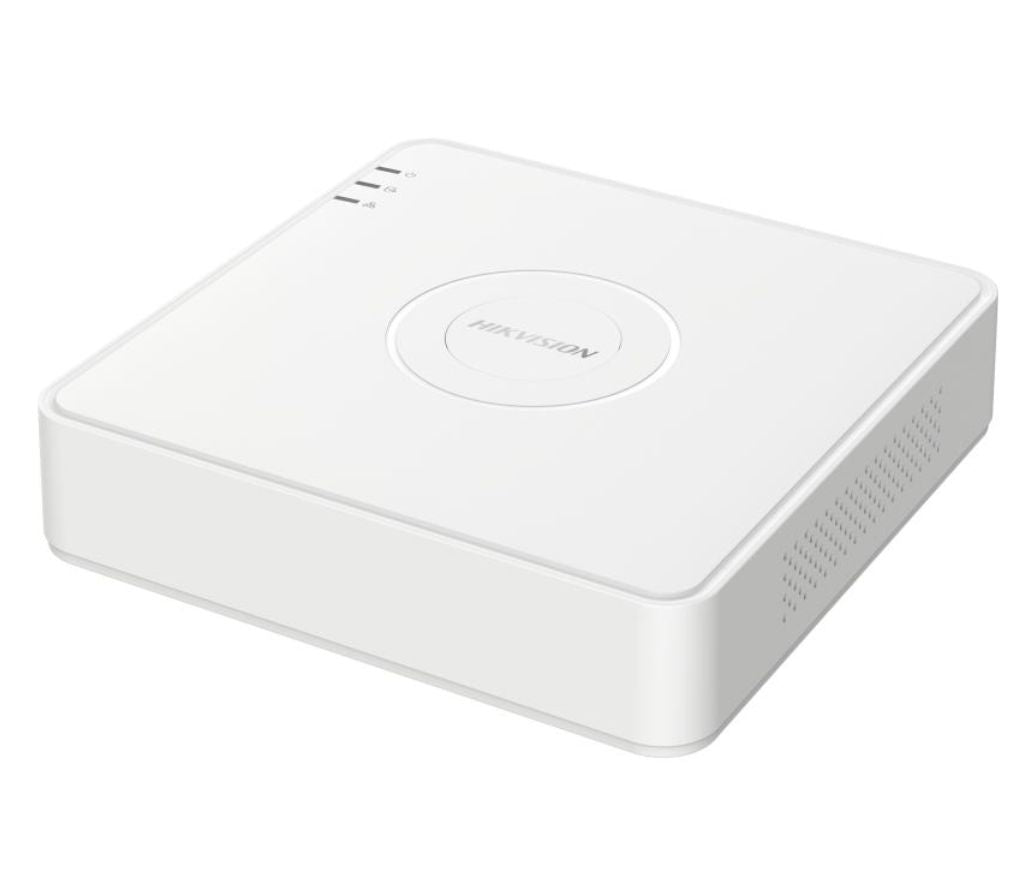

Hikvision DS-7104HGHI-M1 4-Channel H.265 DVR with Smart Motion Detection

The DS-7104HGHI-M1 is a 4-channel DVR for analog video input, using BNC connections for up to 4 analog cameras. It also supports 1 IP channel by default and can expand up to 5 IP camera inputs, with IP cameras supported up to 1080p resolution and up to 2 MP. That makes it useful if you want a compact recorder that can handle a small analog setup now while still giving you some room to add IP cameras later. For many buyers, that flexibility matters because it can reduce the need to replace the recorder when the system grows.

According to the datasheet, this DVR supports HDTVI, AHD, HDCVI, CVBS, and IP video inputs. On the analog side, it accepts 1080p25, 1080p30, 720p25, and 720p30 for HDTVI, AHD, and HDCVI, and it also supports CVBS input. That is helpful because it gives you more freedom when mixing older and newer camera types, instead of locking you into a single signal format. If you are upgrading an existing surveillance system, this kind of compatibility can make the transition much easier and less expensive.

Yes. The datasheet states that deep learning-based Motion Detection 2.0 is enabled by default for all analog channels, and it can classify human and vehicle targets. It is specifically designed to reduce false alarms caused by objects like leaves and lights, and it also supports quick search by object or event type. That matters in real-world use because fewer false alerts means less wasted time checking recordings that do not actually matter. For a home or small business owner, this can make the system feel far more practical day to day.

The DS-7104HGHI-M1 has 1 SATA interface and supports up to 4 TB capacity for each disk. The datasheet also notes that H.265 Pro+ and related compression formats are supported, which helps improve encoding efficiency and reduce storage costs. That combination is important because storage size alone is only part of the story; better compression can help you keep recordings longer without filling the drive as quickly. For buyers trying to balance budget and recording retention, that is one of the more useful details in the spec sheet.

Yes. The datasheet lists Hik-Connect and DDNS for easy network management, and it supports network protocols including TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, UPnP, and HTTPS. It also includes a single RJ45 10/100 Mbps self-adaptive Ethernet interface and supports up to 32 remote connections. That matters if you want to check cameras off-site, give access to multiple users, or manage the recorder over a network without being physically in front of it. For many buyers, remote access is one of the main reasons to choose a modern DVR over an older standalone recorder.

Yes. The DS-7104HGHI-M1 supports audio via coaxial cable, and the datasheet specifies 1 RCA audio input plus 4 channels via coaxial cable. It also includes 1 RCA audio output and supports two-way audio by reusing the first audio input. This is useful if you want video along with sound in supported setups, or if you need basic audio communication capability in addition to recording. For buyers comparing entry-level DVRs, audio support can make a meaningful difference in how complete the overall system feels.

This DVR includes 1 HDMI output and 1 VGA output, and both support 1920 × 1080/60Hz, 1280 × 1024/60Hz, and 1280 × 720/60Hz. The datasheet also states that HDMI and VGA can work in simultaneous output mode. That matters if you want flexibility in how you connect a local monitor, whether you are using a newer display over HDMI or an older monitor over VGA. Simultaneous output is especially helpful in small offices or service areas where you may want mirrored viewing on more than one screen type.

The datasheet lists smart search for efficient playback and supports synchronous playback on 4 channels. It also mentions quick search by object or event type as part of Motion Detection 2.0. In practice, that means you are not limited to manually scrubbing through hours of footage just to find one important event. For buyers who care about saving time after an incident happens, these playback and search tools can be just as important as the recording specs themselves.

The recorder supports multiple encoding resolutions depending on the incoming stream, including 1080p Lite, 720p Lite, 720p, WD1, 4CIF, VGA, and CIF. For main stream recording, the datasheet lists up to 25 fps (PAL) or 30 fps (NTSC), depending on the stream type and resolution, and the sub-stream supports 4CIF at 15 fps plus CIF/QVGA at 25/30 fps. That gives buyers flexibility to balance image quality, smoothness, and storage usage based on the cameras they are using. It is a practical benefit when you want decent recording performance without overspending on a higher-tier recorder that may offer features you do not actually need.

The datasheet lists a 12 VDC, 1.5 A power supply and power consumption of ≤ 16 W without an HDD. It measures 200 × 200 × 48 mm and weighs ≤ 0.8 kg without a hard drive, and it includes 2 rear USB 2.0 ports. Those details matter if you are planning where to install it, how much space you need, or whether you want a compact recorder for a desk, cabinet, or small equipment shelf. For buyers working with limited space, the mini 1U form factor is one of the reasons this model is often considered for smaller surveillance setups.
