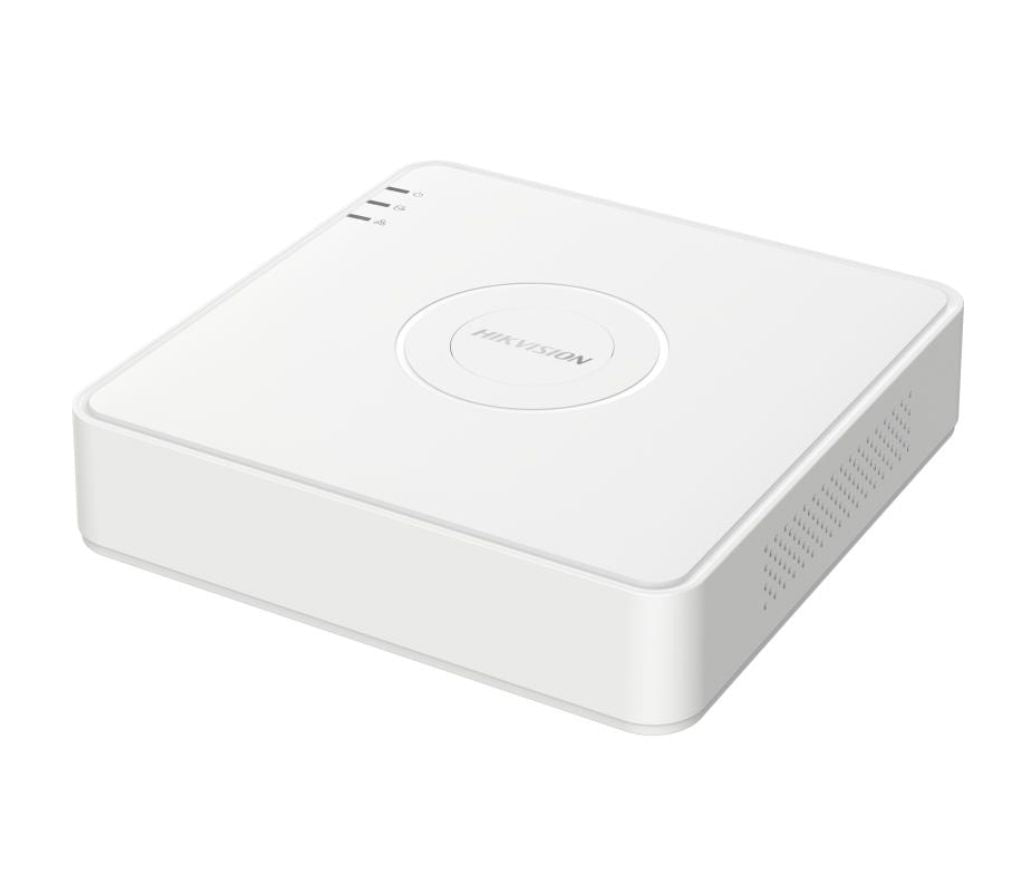

DS-7104HQHI-K1 Hikvision 4ch CCTV Recorder w/ HDD 1080p Mini 1U H.265 DVR
DS-7104HQHI-K1 Hikvision 4ch CCTV Recorder w/ HDD 1080p Mini 1U H.265 DVR
Out of stock
Description
Description
DS-7104HQHI-K1 Hikvision 4ch CCTV Recorder w/ HDD 1080p Mini 1U H.265 DVR
This listing includes:
-  (1) HARD DRIVE OPTION: NO HARD DRIVE;1TB;2TB;3TB;4TB;6TB;8TB
- (1) DIGITAL VIDEO RECORDER: DS-7104HQHI-K1
DS-7104HQHI-K1  view data sheet
4ch 1080p Mini 1U H.265 DVR
- 4chs and 1 HDD mini size DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively ("Hybrid")
- Up to 6 network cameras can be connected
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
4ch 1080p Mini 1U H.265 DVR
- 4chs and 1 HDD mini size DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively ("Hybrid")
- Up to 6 network cameras can be connected
Specification
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
When 1080p Lite mode is not enabled:
4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame Rate
Main stream:
When 1080p Lite mode is not enabled:
For 4 MP stream access:
4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access:
1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode is enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate32 Kbps to 6 Mbps
- Dual-StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
- IP Video Input
1-ch (up to 5-ch)
Enhanced IP mode on:
2-ch (up to 6-ch), each up to 4 Mbps
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Incoming Bandwidth24 Mbps
- Analog Video Input
4ch
BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
- HDTVI Input
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
*: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1.
- AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS InputSupport
- VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- HDMI Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- Audio Input
1-ch, RCA (2.0 Vp-p, 1 K?)
4ch via coaxial cable
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
- Synchronous Playback4ch
- Network
- Total Bandwidth72 Mbps
- Remote Connection32
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
- Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 6 TB capacity for each disk
- Alarm In/OutN/A
- USB InterfaceReal panel: 2 ? USB 2.0
- General
- Power Supply12 VDC, 1.5 A
- Consumption? 8 W
- Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
- Working Humidity10% to 90%
- Dimension (W ? D ? H)200 ? 200 ? 45 mm (7.9 ? 7.9 ? 1.8 inch)
- Weight? 1 kg (2.2 lb)
