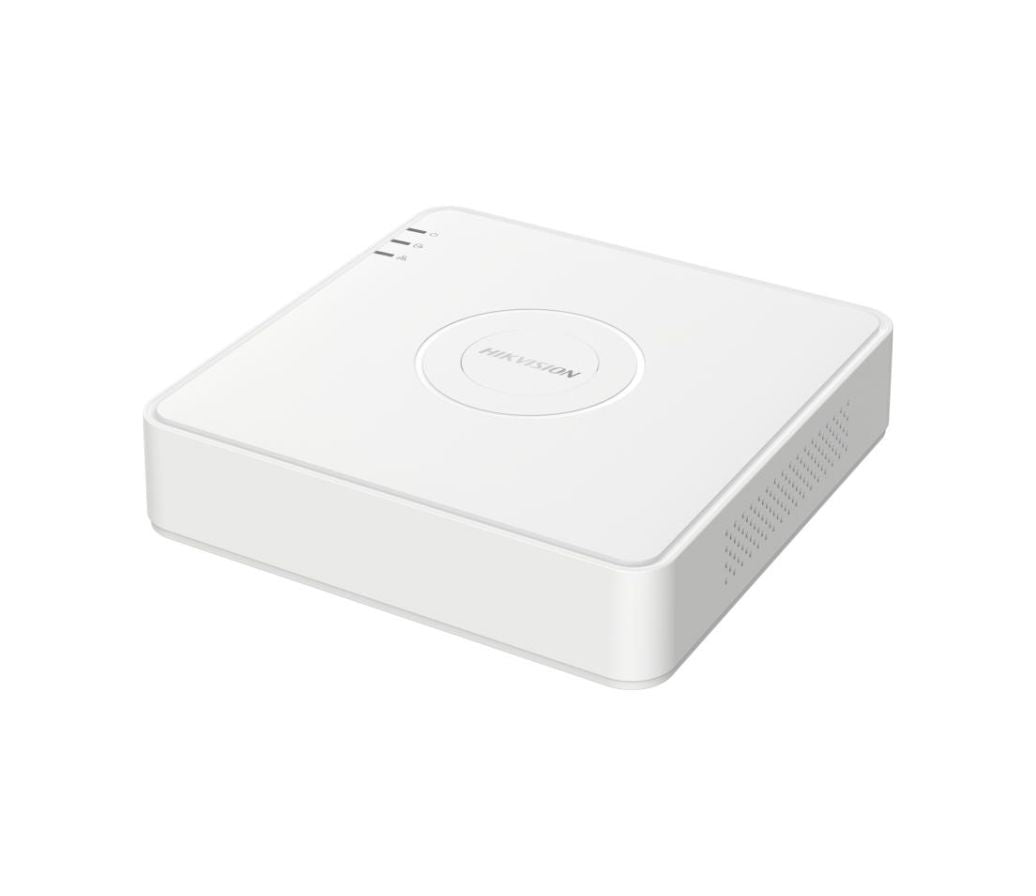

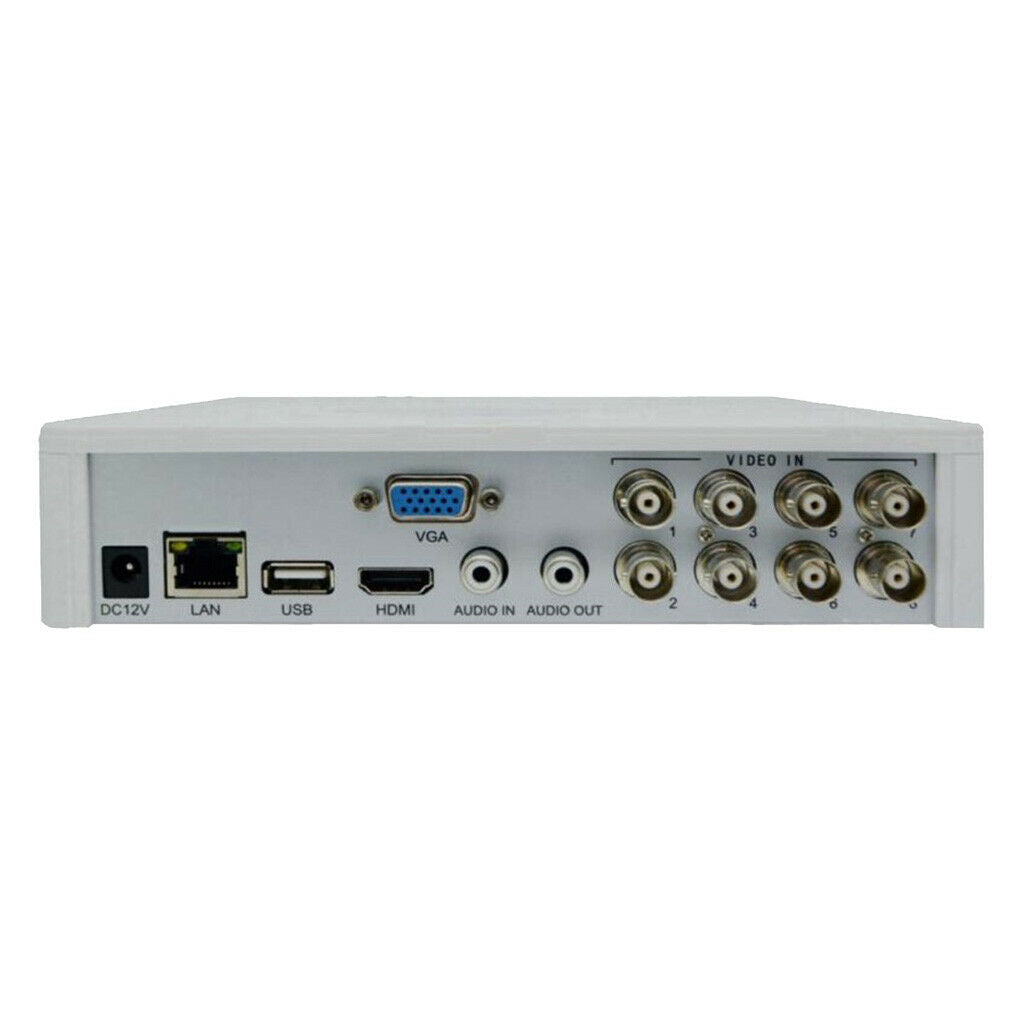

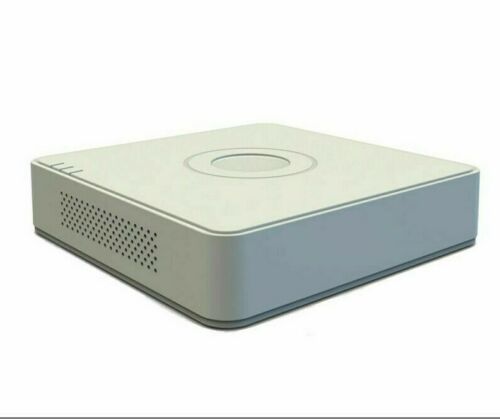

DS-7108HUHI-K1 HIKVISION 4K 8CH 8 MEGAPIXEL CHANNEL DVR AHD-TVI OPTIONAL HDD
DS-7108HUHI-K1 HIKVISION 4K 8CH 8 MEGAPIXEL CHANNEL DVR AHD-TVI OPTIONAL HDD
Out of stock
Description
Description
DS-7108HUHI-K1 HIKVISION 4K 8CH 8 MEGAPIXEL CHANNEL DVR AHD-TVI OPTIONAL HDD
This listing includes:
-  (1) HARD DRIVE OPTION: NO HARD DRIVE;1TB;2TB;3TB;4TB;6TB;8TB
- (1) DIGITAL VIDEO RECORDER: DS-7108HUHI-K1
DS-7108HUHI-K1  view data sheet
8ch 5 MP Mini 1U H.265 DVR
- 8chs and 1 HDD mini size DVR
- Efficient H.265 pro+ compression technology
- Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively ("Hybrid")
- Up to 16 network cameras can be connected.
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
8ch 5 MP Mini 1U H.265 DVR
- 8chs and 1 HDD mini size DVR
- Efficient H.265 pro+ compression technology
- Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively ("Hybrid")
- Up to 16 network cameras can be connected.
Specification
- Perimeter Protection
- Line Crossing Detection/Intrusion Detection
2-ch
Enhanced VCA mode on: 8ch
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
When 8 MP Lite mode is not enabled:
8 MP/5 MP/3k/5MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
When 8 MP Lite mode is enabled:
8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
When 8 MP Lite mode is not enabled:
8 MP@8 fps/5 MP@12 fps/3k/5MP@12 fps/4 MP@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1 of DS-7104HUHI-K1.
When 8 MP Lite mode is enabled:
8 MP Lite/3 MP/1080P/720P/WD1/4CIF/VGA/CIF@15 fps
*: 8 MP Lite is only available for DS-7104HUHI-K1.
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
- Video Bitrate32 Kbps to 10 Mbps
- Dual-StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
- IP Video Input
4ch (up to 12-ch)
Enhanced IP mode on:
8ch (up to 16ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
8ch
BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
- Incoming BandwidthUp to 64 Mbps
- HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
- AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- HDMI Output1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- Audio Input
1-ch, RCA (2.0 Vp-p, 1 K?)
8ch via coaxial cable
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
- Synchronous Playback8ch
- Network
- Total Bandwidth128 Mbps
- Remote Connection64
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
- Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 6 TB capacity for each disk
- USB Interface2 ? USB 2.0
- Alarm In/OutN/A
- General
- Power Supply12 VDC, 1.8 A
- Consumption? 15 W
- Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
- Working Humidity10% to 90%
- Dimension (W ? D ? H)200 ? 200 ? 45 mm (7.9 ? 7.9 ? 1.8 inch)
- Weight? 2 kg (4.4 lb)
