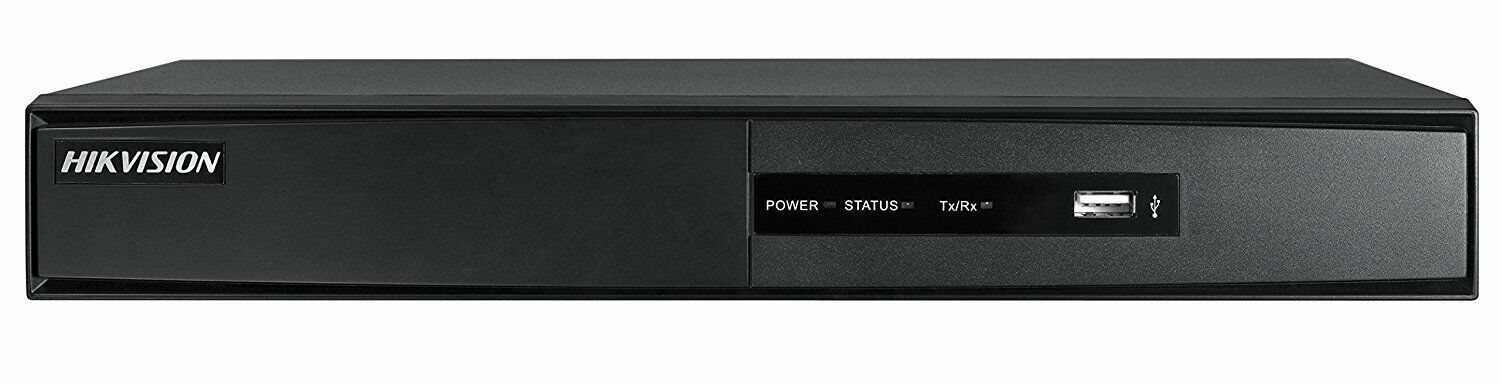

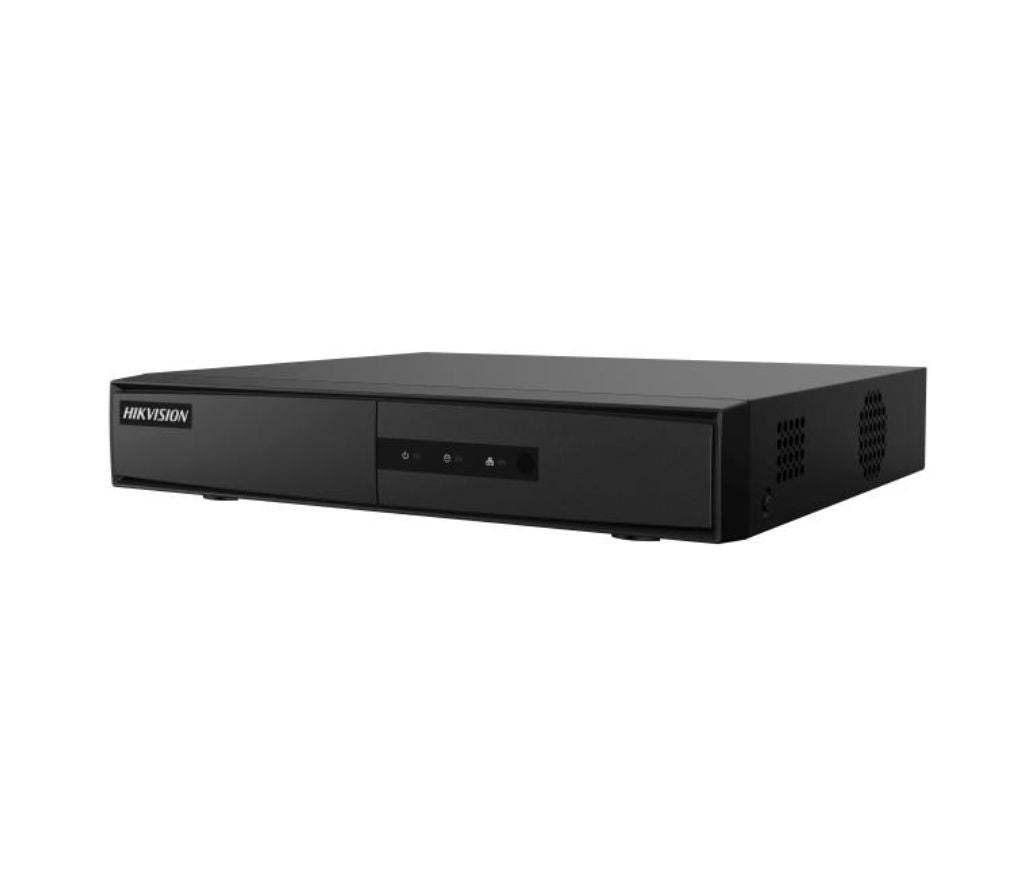

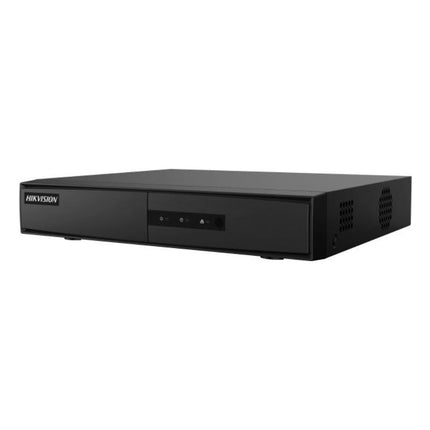

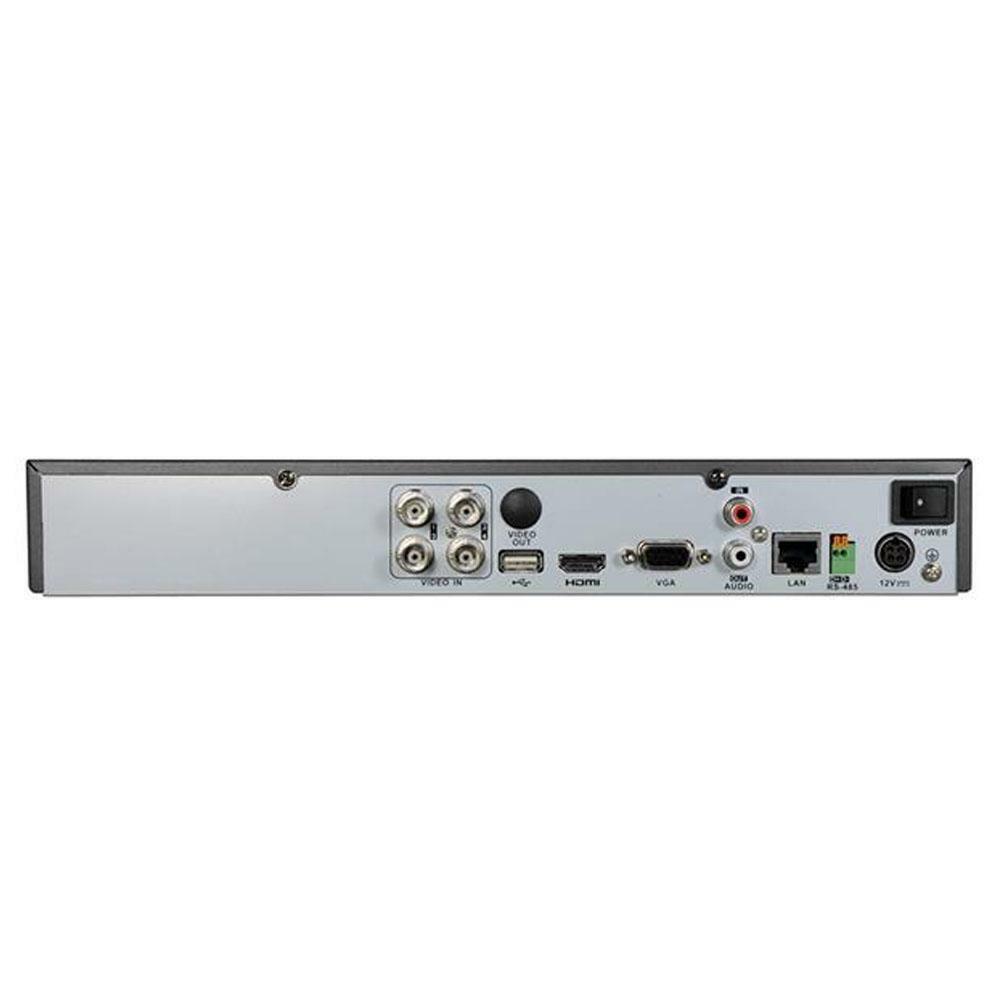

DS-7204HGHI-F1 HIKVISION 4CH DVR 4 CHannel Turbo HD 1080P
DS-7204HGHI-F1 HIKVISION 4CH DVR 4 CHannel Turbo HD 1080P
Out of stock
Description
Description
DS-7204HGHI-F1 HIKVISION 4CH DVR 4 CHannel Turbo HD 1080P
This listing includes:
-  (1) HARD DRIVE OPTION: NO HARD DRIVE;1TB;2TB;3TB;4TB;6TB;8TB
- (1) DIGITAL VIDEO RECORDER: DS-7204HGHI-F1
DS-7204HGHI-F1  view data sheet
4ch 1080p Lite 1U H.264 DVR
- 4chs and 1 HDD 1U DVR
- H.264+ / H.264 video compression
- Encoding ability up to 1080p lite @ 25/30 fps
- 5 signals input adaptively ("Hybrid")
- Up to 5 network cameras can be connected
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
4ch 1080p Lite 1U H.264 DVR
- 4chs and 1 HDD 1U DVR
- H.264+ / H.264 video compression
- Encoding ability up to 1080p lite @ 25/30 fps
- 5 signals input adaptively ("Hybrid")
- Up to 5 network cameras can be connected
Specification
- Recording
- Video CompressionH.264+/H.264
- Encoding ResolutionWhen 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF,When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
- Frame RateMain stream: ,When 1080p Lite mode not enabled:,For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled:,1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N),
- Video Bit Rate32 Kbps to 4 Mbps
- Dual StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bit Rate64 Kbps
- Video And Audio
- IP Video Input1-ch (up to 5-ch) Up to 960p resolution Support H.264+/H.264 IP cameras
- Analog Video Input4ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
- Turbo HD Input1080p25, 1080p30, 720p25, 720p30
- AHD Input1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputSupport
- Audio Input1-ch, RCA (2.0 Vp-p, 1 K?)
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way AudioReuse the first audio input
- Synchronous Playback4ch
- VGA/HDMI Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- Network
- Remote Connections32
- Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS
- Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 6 TB capacity for each disk
- Alarm In/OutN/A
- USB InterfaceRear panel: 2 ? USB 2.0
- General
- Power Supply12 VDC
- Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
- Working Humidity10% to 90%
- Weights (Without HDD)? 1 kg (2.2 lb)
- Consumption(Without HDD)? 8 W
- Dimensions(W ? D ? H)260 ? 222 ? 45 mm (10.2 ? 8.7 ? 1.8 inch)
