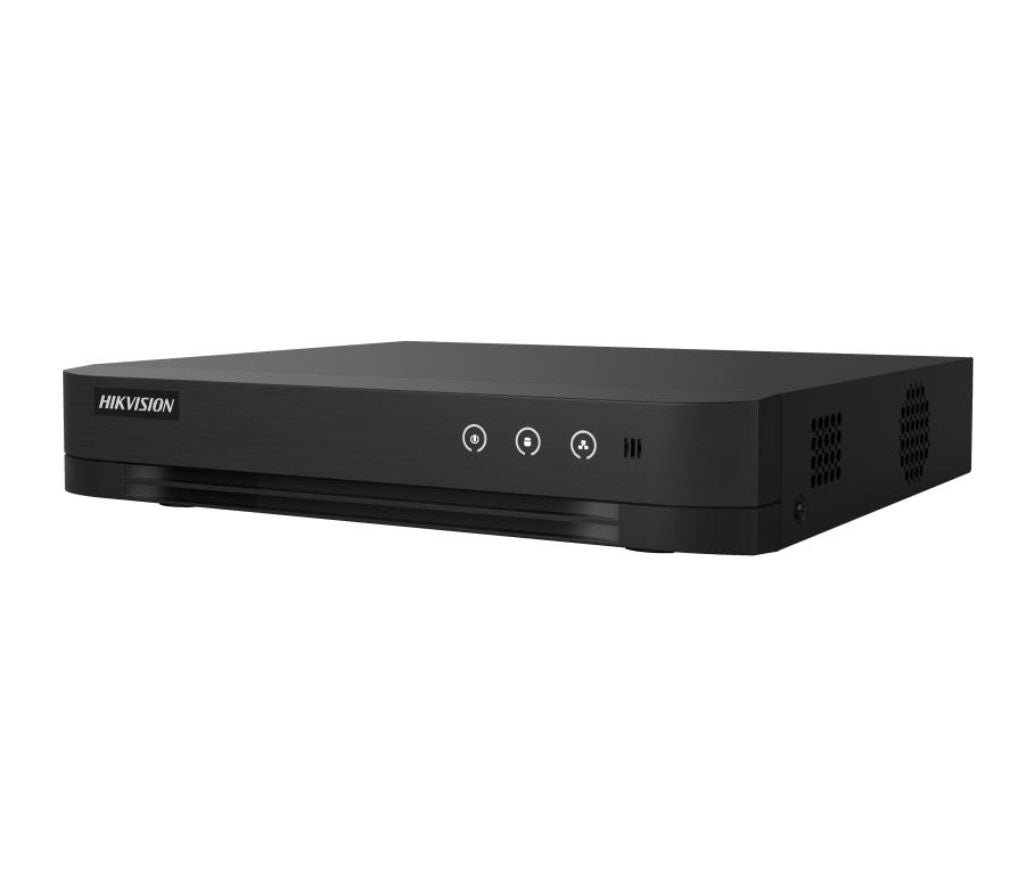

DS-7204HGHI-K1 Hikvision 4ch CCTV Recorder w/ HDD 1080p Lite 1U H.265 DVR

Data sheet PDF

Product Description

4ch 1080p Lite 1U H.265 DVR

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265 video compression
• "Hybrid" video input
• Audio via coaxial cable
• Up to 5-ch IP camera inputs (up to 2 MP)
• Up to 1080p Lite@15 fps encoding capability
• Max. 1200 m for 720p HDTVI signal

Specification

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF

  For SD stream access: WD1/4CIF/VGA/CIF

• Frame Rate

  Main stream:

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)

  For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 4 Mbps
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Video And Audio
• IP Video Input

  1-ch (up to 5-ch)

  Up to 1080p resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  4ch

  BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection

• HDMI Output

  1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz

• VGA Output

  1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz

• CVBS InputSupport
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• Synchronous Playback4ch
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• Video Output ModeHDMI/VGA simultaneous output
• Audio Output1-ch, RCA (Linear, 1 K?)
• Audio Input

  1-ch RCA (2.0 Vp-p, 1 K?)

  4ch via coaxial cable

• Two-Way AudioReuse the first audio input
• Network
• Total Bandwidth64 Mbps
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP?, HTTPS
• Remote Connection32
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 4 TB capacity for each disk
• USB InterfaceRear panel: 2 ? USB 2.0
• Alarm In/OutN/A
• General
• Power Supply12 VDC, 1.5 A
• Consumption? 16 W (without HDD)
• Working Temperature-10 ?C to 55 ?C (14 ?F to +31 ?F)
• Working Humidity10% to 90%
• Dimension (W ? D ? H)260 ? 222 ? 45 mm (10.2 ? 8.7 ? 1.8 inch)
• Weight? 0.8 kg (without HDD, 1.8 lb.)
