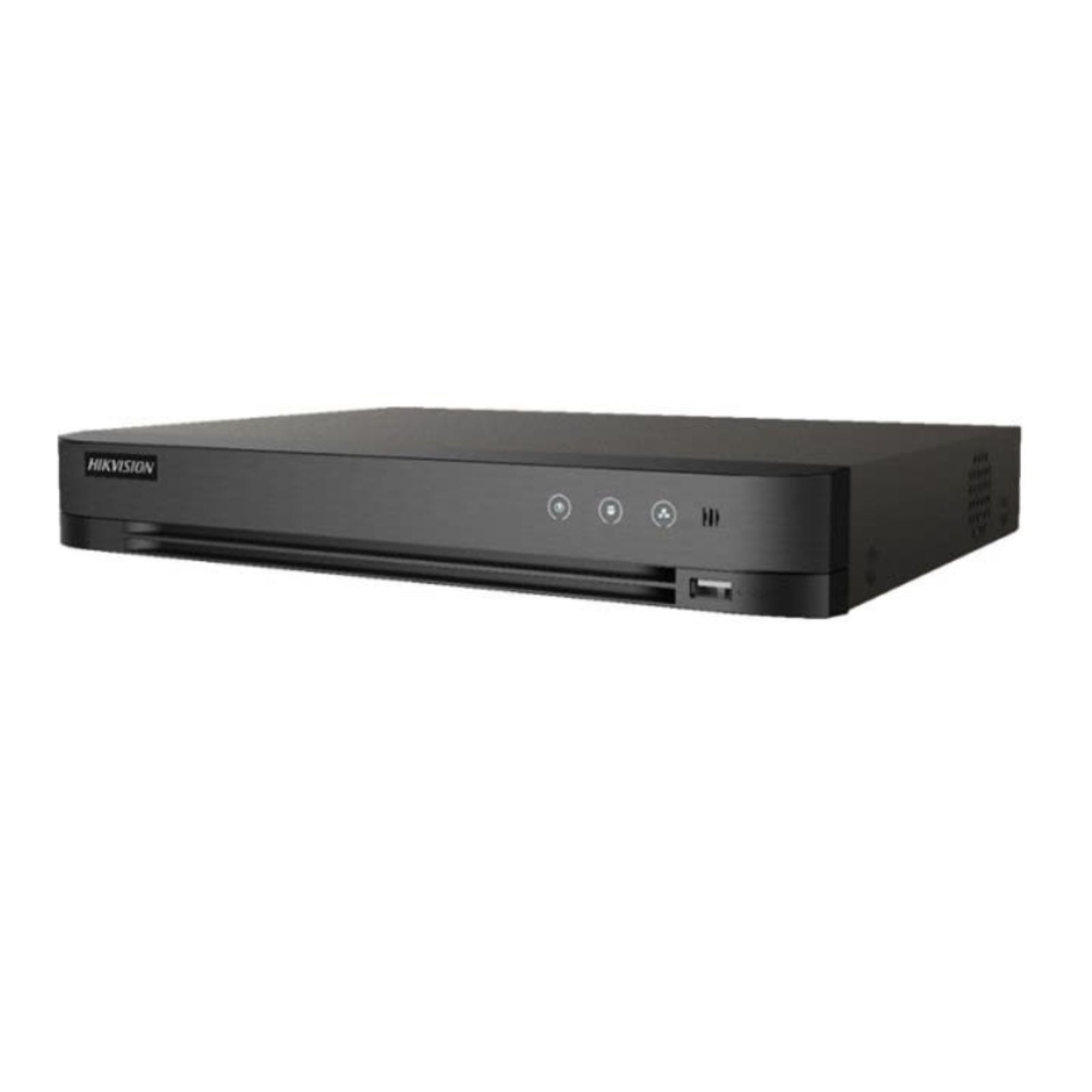

The DS-7204HGHI-M1 is a 4-channel DVR for analog video input, so it is built to handle four direct analog camera connections. The datasheet also states 1-channel IP video input, expandable up to 5 channels total, with support for IP cameras up to 1080p resolution. That gives buyers a little more flexibility if they want a compact recorder now but still want the option to add IP cameras later. For a small business, office, or home setup, that can make the system easier to grow without replacing the recorder too quickly.

This model supports HDTVI, AHD, CVI, CVBS, and IP video input. That matters because many buyers already have existing cameras and want to upgrade the recorder without replacing every part of the system. The datasheet also confirms support for H.265+, H.265, H.264+, and H.264 IP cameras. In practical terms, this gives you more freedom to work with mixed camera formats and makes upgrades less disruptive.

Yes, this DVR includes deep learning-based Motion Detection 2.0 on all analog channels. According to the datasheet, it can classify human and vehicle targets and greatly reduce false alarms caused by objects like leaves and lights. It also supports quick search by object or event type, which helps speed up footage review later. That is especially helpful if you want alerts that feel more relevant instead of constantly reacting to motion that does not matter.

The datasheet lists H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression. It also states support for 1080p Lite on all channels, and when 1080p Lite is enabled, the image effect is described as similar to 1080p. For 1080p stream access, the recorder supports 1080p Lite, 720p Lite, WD1, 4CIF, VGA, and CIF, with frame rates up to 25 fps (P) or 30 fps (N). That gives buyers a practical balance between image quality and storage efficiency.

This model has 1 SATA interface for internal storage. The datasheet lists capacity up to 4 TB for each disk, while the feature summary on page 1 mentions up to 6 TB capacity per HDD. Because of that mismatch, the safest reading is that the datasheet contains conflicting storage references and buyers should verify the exact supported maximum before purchase. Even so, the recorder is clearly designed as a compact single-drive unit for smaller surveillance systems.

Yes, the DS-7204HGHI-M1 includes both HDMI and VGA video outputs. The datasheet lists each output at up to 1920 × 1080 at 60 Hz, along with support for 1280 × 1024 and 1280 × 720. It also supports HDMI and VGA simultaneous output, which can be useful if you need to display video on two screens at once. For buyers, that means setup is more flexible whether you are using a modern monitor, an older display, or both.

Yes, audio support is included. The datasheet lists 1 audio output through RCA, 1 audio input through RCA, and 4-channel audio via coaxial cable. It also states that two-way audio reuses the first audio input. That is useful if you want more context than video alone and need a simple way to add audio capability to a compact DVR setup.

Yes, the datasheet lists Hik-Connect and DDNS for easy network management. It also includes network protocols such as TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, UPnP, and HTTPS. The recorder uses 1 RJ45 10/100 Mbps self-adaptive Ethernet interface and supports up to 32 remote connections. That means it is designed for users who want network access and remote monitoring without moving to a much larger recorder platform.

The DS-7204HGHI-M1 supports synchronous playback on 4 channels. That means you can review footage from all four analog channels at the same time, which is useful when you are trying to track movement across more than one camera view. The datasheet also highlights smart search for efficient playback, making it easier to find important events. For users reviewing incidents, that saves time and makes the recorder feel much more practical in real use.

This DVR uses 12 VDC, 1.5 A power and has a power consumption of ≤ 16 W without HDD. Its listed dimensions are 260 × 222 × 45 mm, and the weight is ≤ 0.8 kg without HDD, or 1.8 lb. The working temperature range is -10 °C to 55 °C, with working humidity from 10% to 90%. Those numbers matter because they help you decide if the recorder fits your available space, power setup, and installation environment before you buy.
