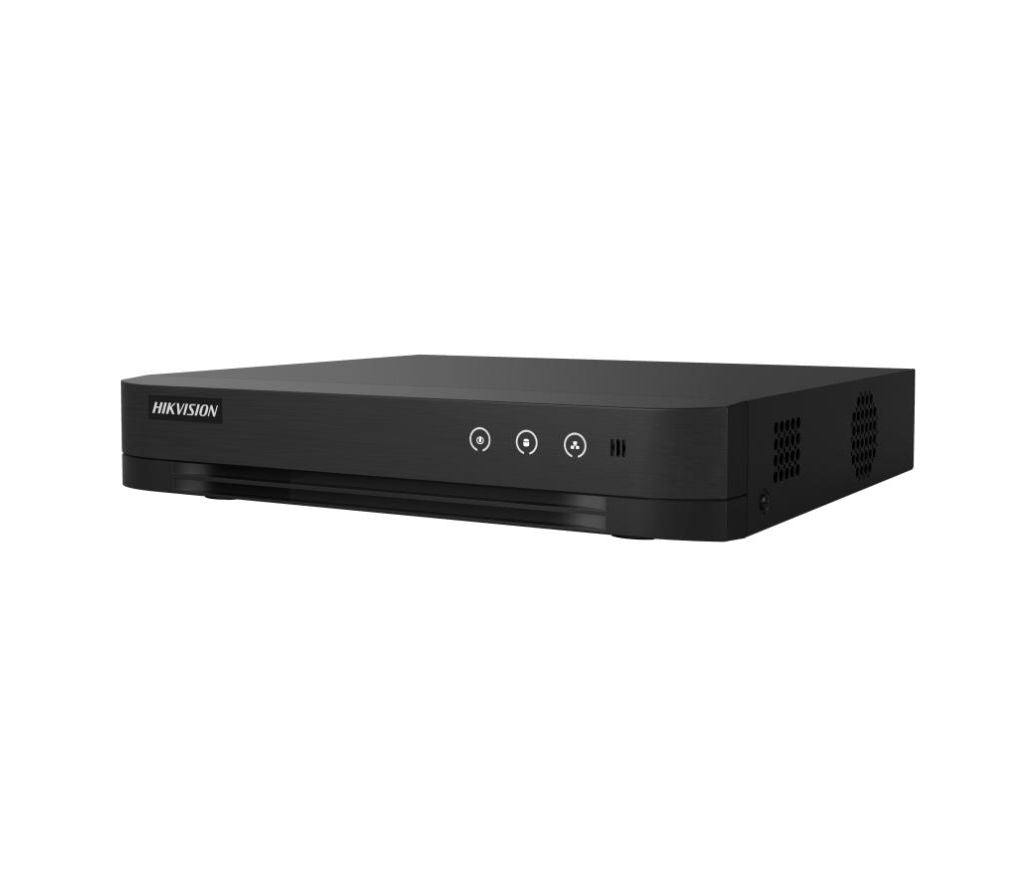

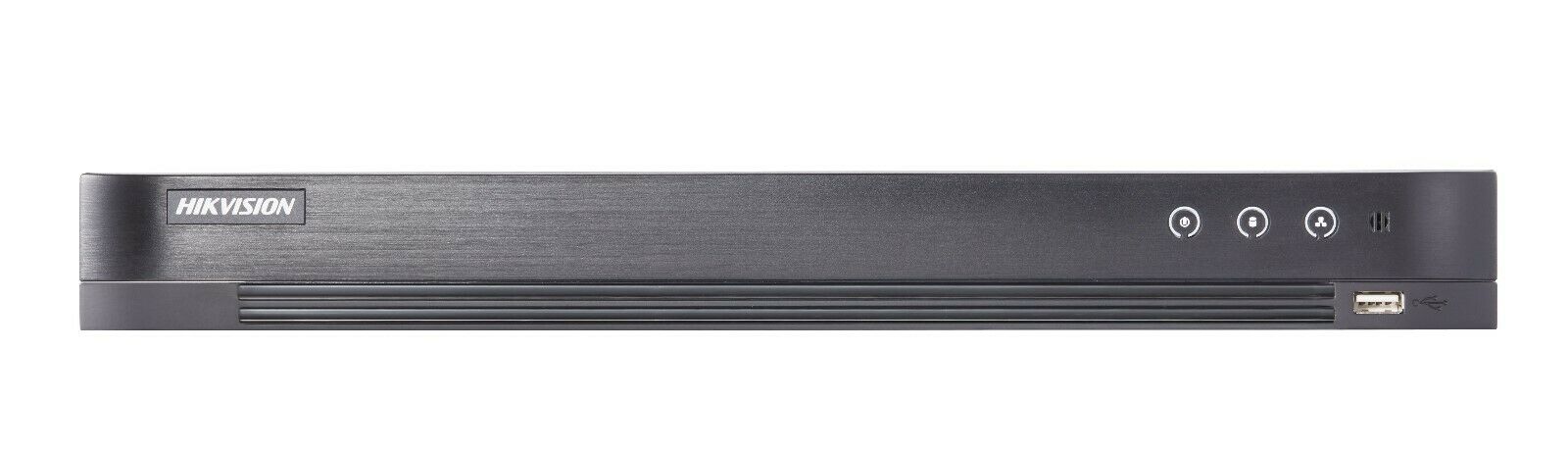

Hikvision DS-7208HGHI-K1 Turbo HD DVR

The Hikvision DS-7208HGHI-K1 is an 8-channel Turbo HD DVR built for homes, offices, retail stores, small warehouses, and mixed-camera security upgrades. It supports HDTVI, AHD, CVI, CVBS, and IP video input, so buyers can keep existing cameras while adding newer IP cameras when needed. With Motion Detection 2.0, H.265 Pro+ compression, Hik-Connect, and smart search, it helps make everyday surveillance easier, cleaner, and more cost-effective.

Key Features

  • Deep learning-based human and vehicle target classification of Motion Detection 2.0
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 10-ch IP camera inputs, up to 5 MP
  • Up to 1080p Lite@15 fps encoding capability
  • Max. 1200 m for 720p HDTVI signal
  • 1 SATA interface, up to 4 TB capacity
  • Smart search for efficient playback
  • Hik-Connect & DDNS for easy network management

Motion Detection 2.0

Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Recording

Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF; For 720p stream access: 720p/WD1/4CIF/VGA/CIF; For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate
Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps; For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps; For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N). Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15 fps; For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate
32 Kbps to 4 Mbps
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps

Video and Audio

IP Video Input
2-ch (up to 10-ch); Up to 5 MP resolution; Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
8-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input
1080p25, 1080p30, 720p25, 720p30
AHD Input
1080p25, 1080p30, 720p25, 720p30
HDCVI Input
1080p25, 1080p30, 720p25, 720p30
CVBS Input
Support
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode
HDMI/VGA simultaneous output
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ); 8-ch via coaxial cable
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
Reuse the first audio input
Synchronous Playback
8-ch

Network

Total Bandwidth
72 Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
Remote Connection
64
Network Interface
1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA
1 SATA interface
Capacity
Up to 4 TB capacity for each disk
USB Interface
Rear panel: 2 × USB 2.0
Alarm In/Out
N/A

General

Power Supply
12 VDC, 1.5 A
Consumption
≤ 17 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight
≤ 1 kg (without HDD, 2.2 lb.)

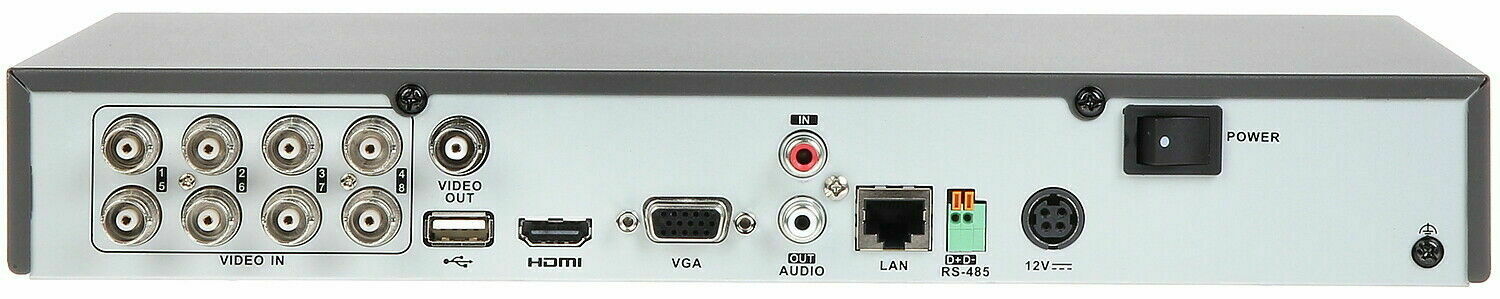

Physical Interface

1
Video and coaxial audio in
2
HDMI interface
3
VGA interface
4
AUDIO OUT, RCA connector
5
AUDIO IN, RCA connector
6
LAN network interface and USB interface
7
12 VDC power input
8
GND

Available Model

Available Model
DS-7208HGHI-K1

Accessories Found

Accessories
No accessories listed in the datasheet.
