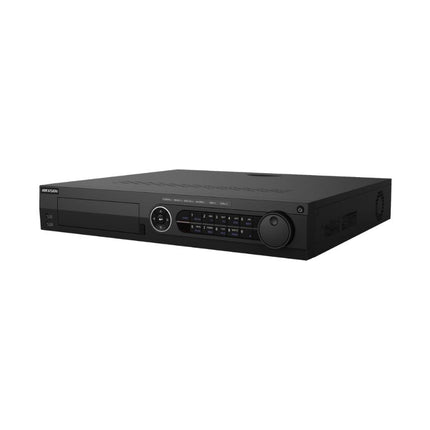

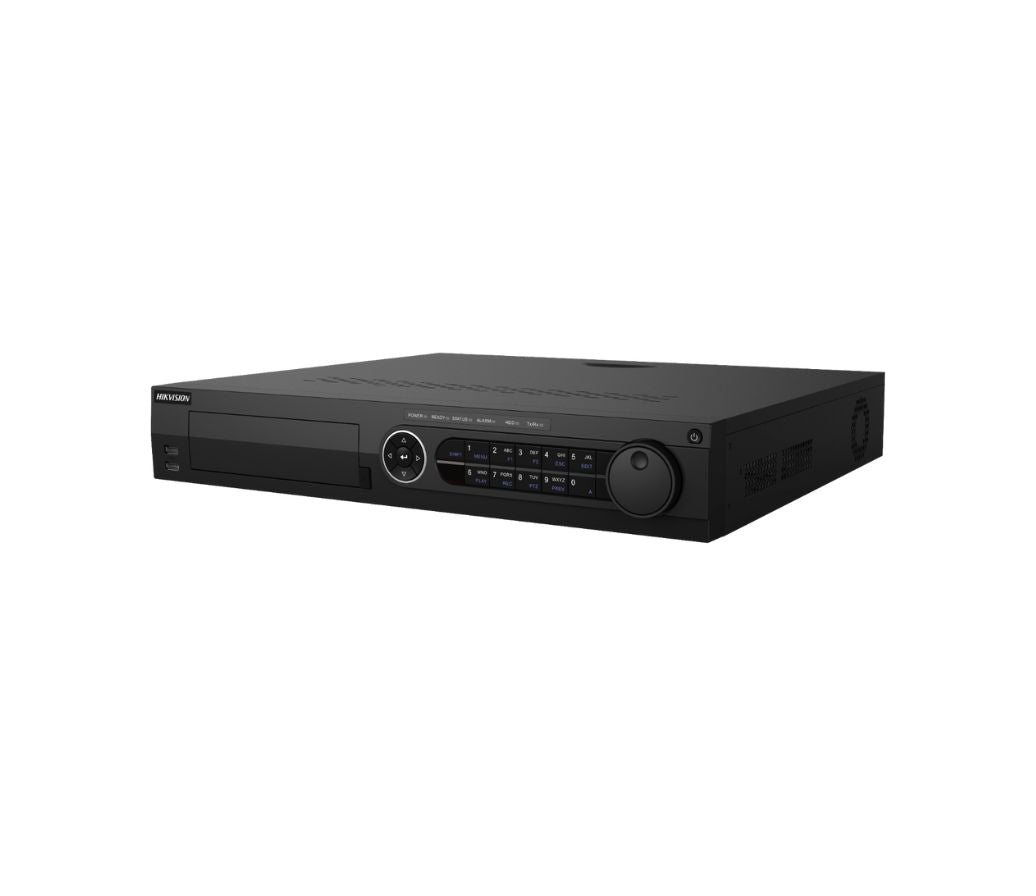

DS-7332HUHI-K4 Hikvision 32ch CCTV Recorder w/ HDD 5 MP 1.5U H.265 DVR
DS-7332HUHI-K4 Hikvision 32ch CCTV Recorder w/ HDD 5 MP 1.5U H.265 DVR
Out of stock
Description
Description
DS-7332HUHI-K4 Hikvision 32ch CCTV Recorder w/ HDD 5 MP 1.5U H.265 DVR
This listing includes:
-  (1) HARD DRIVE OPTION: NO HARD DRIVE;4TB;8TB;12TB;16TB;32TB;40TB
- (1) DIGITAL VIDEO RECORDER: DS-7332HUHI-K4
DS-7332HUHI-K4  view data sheet
32ch 5 MP 1.5U H.265 DVR
- 32chs and 4 HDDs 1.5U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively ("Hybrid")
- Up to 48 network cameras can be connected
- Supports POS triggered recording and POS information overlay
- Supports RAID mode for even more reliable data storage, effectively avoiding data loss risks
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
32ch 5 MP 1.5U H.265 DVR
- 32chs and 4 HDDs 1.5U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively ("Hybrid")
- Up to 48 network cameras can be connected
- Supports POS triggered recording and POS information overlay
- Supports RAID mode for even more reliable data storage, effectively avoiding data loss risks
Specification
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame RateMain stream:,8 MP@8fps/5 MP@12fps; 4 MP@15fps; 3 MP@18fps;,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream:,WD1/4CIF/CIF@25fps (P)/30fps (N),
- Video Bitrate32 Kbps to 10 Mbps
- Dual-StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
- IP Video Input16ch (up to 48ch);Up to 8 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input32ch;BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
- HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
- AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
- HDMI 1 Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- HDMI 2 Output1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- Audio Input4ch, RCA (2.0 Vp-p, 1 K?)
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (independent)
- Synchronous Playback16ch
- Network
- Remote Connection128
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF, SNMP
- Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary Interface
- SATA4 SATA interfaces
- ESATASupport
- CapacityUp to 10 TB capacity for each disk
- Serial InterfaceRS-232, RS-485 (full-duplex), Keyboard
- Alarm In/Out16/4
- USB InterfaceFront panel: 2 ? USB 2.0, Rear panel: 1 ? USB 3.0
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz, 1.3 A
- Consumption? 74 W
- Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
- Working Humidity10% to 90%
- Dimension (W ? D ? H)440 ? 390 ? 70 mm (17.3 ? 15.4 ? 2.8 inch)
- Weight? 7 kg (15.4 lb, without HDD)
