Technical Specifications

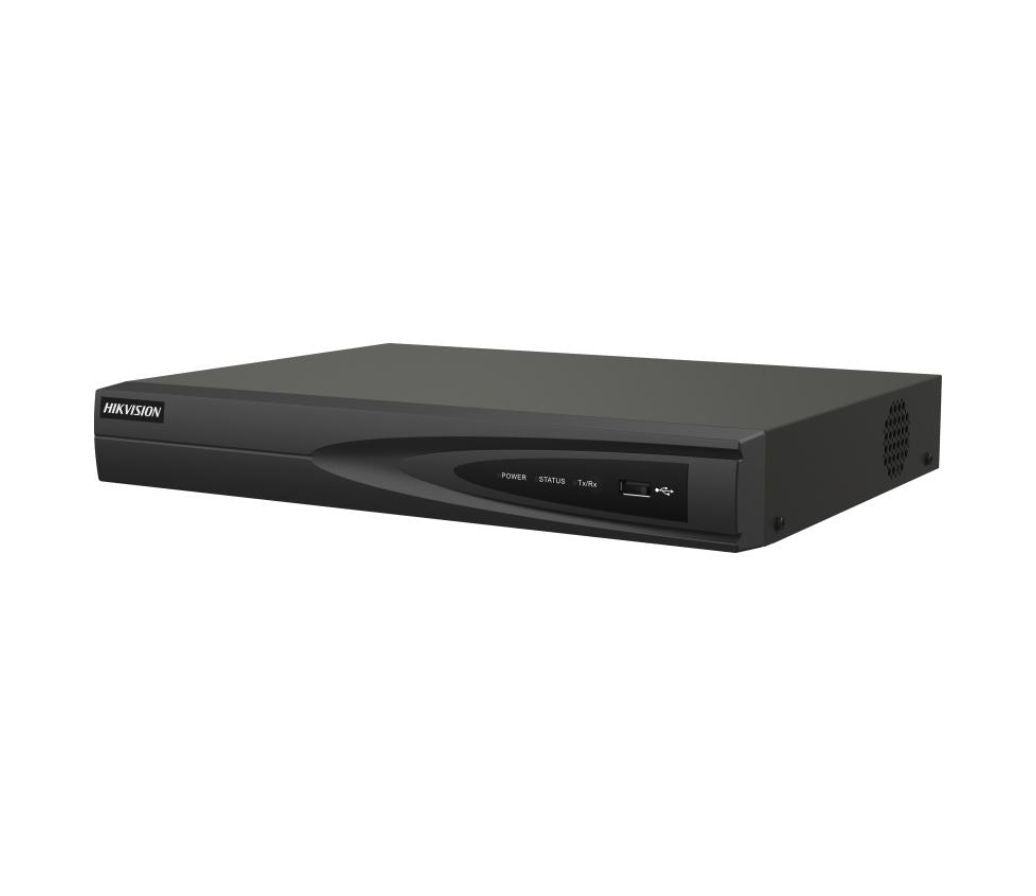

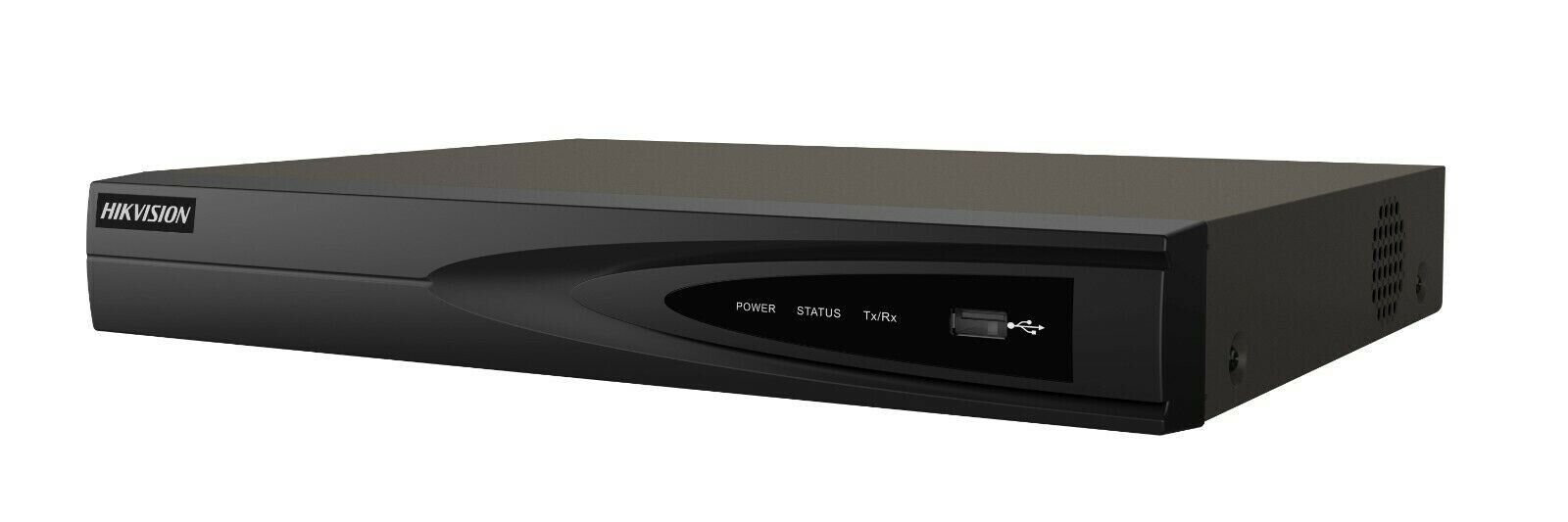

Hikvision DS-7608NI-Q1/8P NVR

The Hikvision DS-7608NI-Q1/8P is a reliable 8-channel network video recorder designed for small to mid-sized surveillance setups. With 4K HDMI output, efficient H.265+ compression, and built-in PoE ports, this NVR makes installation simple and cost-effective. Whether you’re safeguarding a business, office, or home, it delivers professional-grade security with ease of use.

Key Features

  • 8 IP Camera Channels — Supports up to 8 cameras with smooth integration.
  • H.265+ Compression — Reduces storage needs by up to 75%, saving HDD space.
  • 4K HDMI Output — Crystal-clear video monitoring at Ultra HD resolution.
  • Built-in 8 PoE Ports — Simplified installation with power and data over a single cable.
  • Smart Functions — Includes motion detection, human/vehicle analysis, and VCA events for smarter security.
  • Compact & Efficient — Lightweight design with low power consumption, ideal for continuous operation.

Video & Audio

IP Video Input
8-ch
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
80 Mbps
HDMI Output
Up to 4K (4096x2160 / 3840x2160)
VGA Output
Up to 1080p
Audio I/O
1 RCA in, 1 RCA out, 2-way audio supported

Decoding & Recording

Supported Formats
H.265+/H.265/H.264+/H.264
Recording Resolution
8 MP to QCIF
Decoding Capacity
1×8MP / 3×4MP / 6×1080p @ 30fps
Synchronous Playback
8-ch

Networking

PoE Interfaces
8 independent RJ-45 (10/100 Mbps)
Network Interface
1 RJ-45 10/100 Mbps Ethernet
Remote Connections
Up to 32
Protocols
TCP/IP, DHCP, RTSP, NTP, UPnP™, HTTPS, etc.

Storage & Interfaces

SATA
1 × up to 8 TB HDD
USB
2 × USB 2.0
Alarm In/Out
Not available (optional on “/ALARM” models)

General

Power Supply
48 VDC, 1.88 A
Consumption
≤ 10 W (without HDD & PoE off)
Working Temperature
-10°C ~ 55°C (14°F ~ 131°F)
Dimensions
320 × 240 × 48 mm (12.4 × 9.4 × 1.9 in)
Weight
≤ 1 kg (2.2 lb, without HDD)
Certifications
FCC, CE, EN standards

Included Accessories

  • Power adapter
  • Quick start guide
  • Mounting hardware
  • USB mouse

Ideal Applications

Perfect for small businesses, retail shops, offices, and home security where reliable video recording and easy setup are key. The built-in PoE makes it especially suitable for first-time CCTV setups, eliminating complex wiring and keeping costs low.
