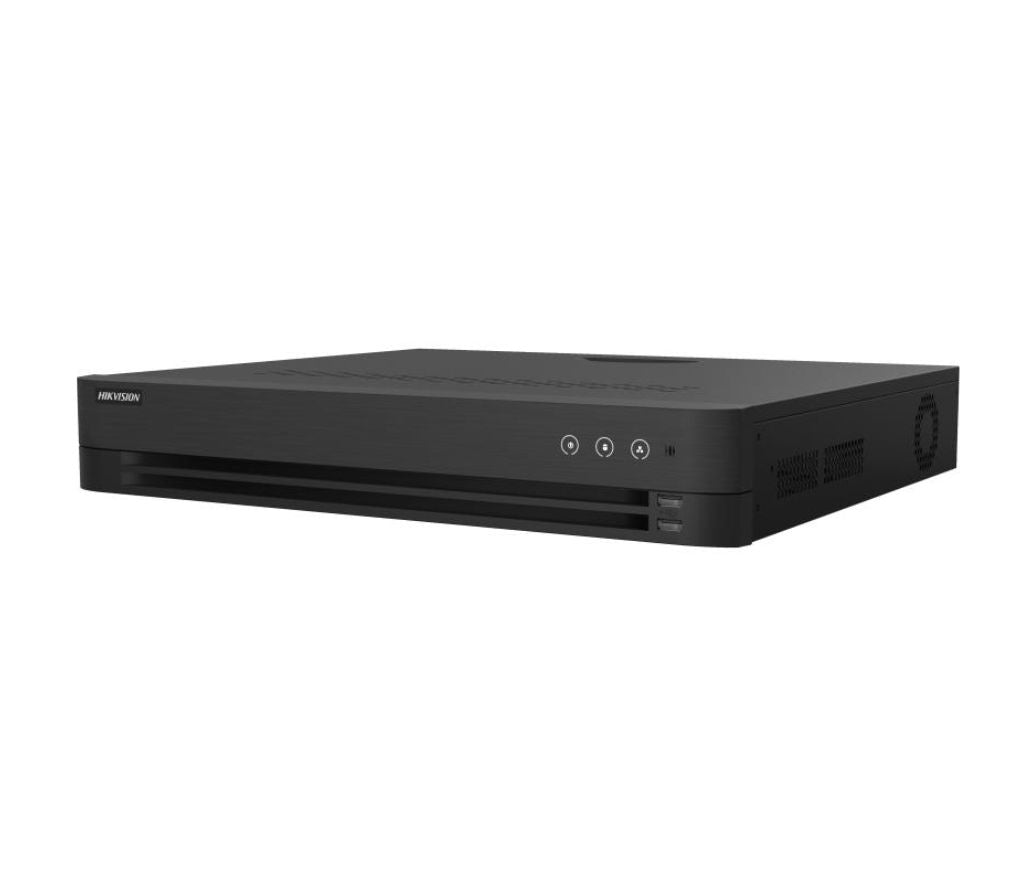

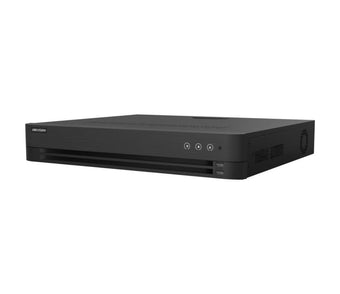

DS-7716NI-Q4 Hikvision 16ch IP PoE Recorder w/ HDD 1.5U 4K NVR Up to
DS-7716NI-Q4 Hikvision 16ch IP PoE Recorder w/ HDD 1.5U 4K NVR Up to
Out of stock
Description
Description
DS-7716NI-Q4 Hikvision 16ch IP PoE Recorder w/ HDD 1.5U 4K NVR Up to
This listing includes:
-  (1) HARD DRIVE OPTION: NO HARD DRIVE;4TB;8TB;12TB;16TB;32TB;40TB
- (1) NETWORK RECORDER: DS-7716NI-Q4
DS-7716NI-Q4  view data sheet
16ch 1.5U 4K NVR
- Up to 16ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 2-ch @ 4MP or 6-ch @ 1080P decoding capacity
- 1 HDMI and 1 VGA interfaces: simultaneous video output
- Up to 160 Mbps incoming bandwidth
- 4 HDDs for continuous video recording
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
16ch 1.5U 4K NVR
- Up to 16ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 2-ch @ 4MP or 6-ch @ 1080P decoding capacity
- 1 HDMI and 1 VGA interfaces: simultaneous video output
- Up to 160 Mbps incoming bandwidth
- 4 HDDs for continuous video recording
Specification
- Video And Audio
- IP Video Input
16ch
Up to 8 MP resolution
- Incoming Bandwidth160 Mbps
- Outgoing Bandwidth80 Mbps
- HDMI Output1-ch, 4K (3840 ? 2160)/30Hz, 1920 ? 1080p/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?)
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous Playback16ch
- Decoding Capability
1-ch@8 MP (30 fps)/6-ch@1080p (30 fps)
*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.726
- Network
- Remote Connection64
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- Serial Interface1 RS-485 (half-duplex), 1 RS-232
- SATA4, SATA interface
- CapacityUp to 8 TB capacity for each disk
- USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 1 ? USB 2.0
- Alarm In/Out16/4
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption? 15 W (without HDD)
- Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
- Working Humidity10 % to 90 %
- Dimension (W ? D ? H)440 ? 397 ? 75 mm (17.3" ? 15.6" ? 3.0")
- Weight? 5 kg (without HDD, 11 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
