Description

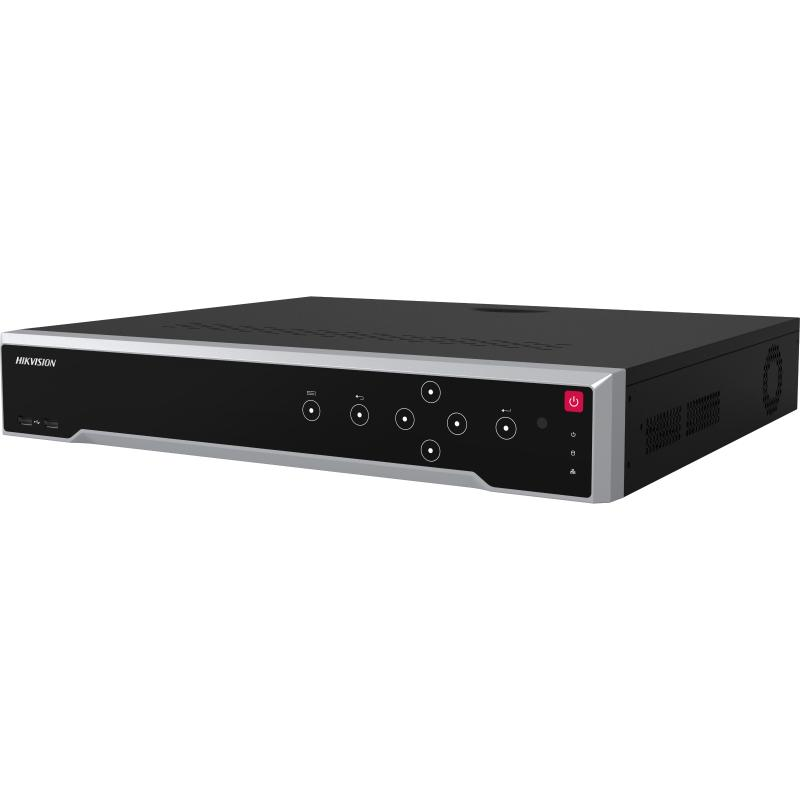

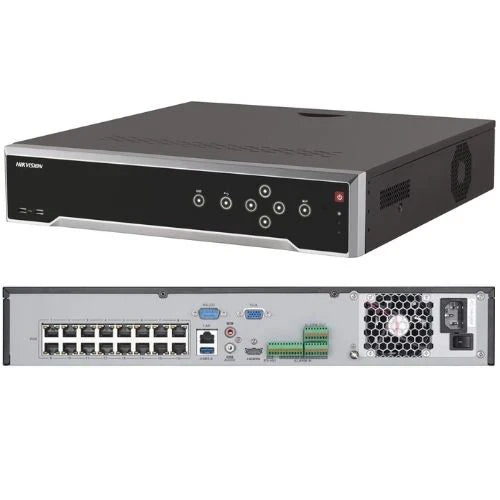

Original DS-7732NI-M4/16P 32-Channel 8K PoE NVR (16-Port)

The DS-7732NI-M4/16P is a high-performance M-Series 8K network video recorder designed for advanced surveillance systems. It supports up to 32 MP IP camera inputs, offers 16 integrated PoE ports, and delivers ultra-HD monitoring with dual HDMI outputs. Ideal for large venues, critical infrastructure, and enterprise installations requiring scalable reliability, smart analytics, and seamless local or remote access.

Key Features

  • 8K HDMI Output – Supports up to 7680 × 4320 resolution for ultra-clear display.
  • 32-MP IP Camera Support – Handles up to 32 channels, including up to 8 at 32 MP resolution.
  • 16 PoE Ports – IEEE 802.3af/at PoE with combined power ≤ 200 W.
  • Dual-Stream Recording – Saves bandwidth while maintaining high image quality.
  • Smart VCA & POS – Includes heat maps, ANPR, people counting, POS overlay, and alarm triggering.
  • Robust HDD Support – Four SATA interfaces, eSATA port, each SATA supports up to 16 TB.
  • Advanced Compression & Security – H.265+/H.265/H.264+/H.264; TLS streaming encryption and double verification.

Technical Specifications

Category Details
Video Formats H.265+/H.265/H.264+/H.264
IP Video Input 32-ch, up to 32 MP (8-ch at 32 MP when ultra-HD mode enabled)
Bandwidth (Incoming/Outgoing) 320 Mbps / 400 Mbps
Decoding Capability 2-ch @32 MP + 2-ch @8 MP (30 fps), or 10-ch @8 MP, 20-ch @4 MP, 40-ch @1080p
HDMI Outputs HDMI 1: up to 8K/30 Hz; HDMI 2: up to 4K/60 Hz (max 1080p when HDMI1 is 8K)
VGA Output 1920 × 1080 @ 60 Hz
CVBS Output 1-ch BNC, PAL: 704 × 576; NTSC: 704 × 480
Audio 1-ch RCA out & 1-ch RCA two-way audio
Network Interface 1 × RJ-45 10/100/1000 Mbps; ONVIF, HTTPs, etc.
PoE Ports 16 × RJ-45 10/100 Mbps; ≤ 200 W total; IEEE 802.3af/at
Storage 4 × SATA (up to 16 TB each), 1 eSATA
Aux Interfaces 2 × RS-485, 1 × RS-232, Alarm In/Out: 16/9; Ctrl 12 VDC, 1 A
USB Front: 2 × USB 2.0; Rear: 1 × USB 3.0
Playback 16-ch synchronous playback
Smart VCA & POS Motion, line crossing, intrusion, heat map, ANPR, people counting, POS overlay
Reliability & Security Dual-stream, TLS encryption, double verification, RAID (0/1/5/6/10)
Environmental Oper. Temp: -10 °C to 55 °C; Humidity: 10–90%
Dimensions & Weight 445 × 400 × 75 mm; ≤ 5 kg (no HDD)


Accessories & Compatible Mounts

  • No accessories listed in the datasheet

Ideal Applications

  • Large-scale surveillance deployment (e.g., campuses, malls, transportation hubs)
  • Enterprise environments needing high-resolution recording and smart analytics
  • Retail or POS systems with video overlay and triggered alarms

Engineered for high reliability, intelligent performance, and scalable capacity, the DS-7732NI-M4/16P provides exceptional uptime and ROI in demanding security environments.

Original DS-7732NI-M4/16P 32-Channel 8K PoE NVR (16-Port)

Product form
Condition: New 30-Day Free Returns 3-Year Warranty

SKU: 558026842077-EN1


⏳
This item is available for pre-order!
Ships as soon as stock arrives.

Out of stock

$739.99 $709.99

    • Guaranteed secure & safe checkout.

      paypal

    Description

    Original DS-7732NI-M4/16P 32-Channel 8K PoE NVR (16-Port)

    The DS-7732NI-M4/16P is a high-performance M-Series 8K network video recorder designed for advanced surveillance systems. It supports up to 32 MP IP camera inputs, offers 16 integrated PoE ports, and delivers ultra-HD monitoring with dual HDMI outputs. Ideal for large venues, critical infrastructure, and enterprise installations requiring scalable reliability, smart analytics, and seamless local or remote access.

    Key Features

    • 8K HDMI Output – Supports up to 7680 × 4320 resolution for ultra-clear display.
    • 32-MP IP Camera Support – Handles up to 32 channels, including up to 8 at 32 MP resolution.
    • 16 PoE Ports – IEEE 802.3af/at PoE with combined power ≤ 200 W.
    • Dual-Stream Recording – Saves bandwidth while maintaining high image quality.
    • Smart VCA & POS – Includes heat maps, ANPR, people counting, POS overlay, and alarm triggering.
    • Robust HDD Support – Four SATA interfaces, eSATA port, each SATA supports up to 16 TB.
    • Advanced Compression & Security – H.265+/H.265/H.264+/H.264; TLS streaming encryption and double verification.

    Technical Specifications

    Category Details
    Video Formats H.265+/H.265/H.264+/H.264
    IP Video Input 32-ch, up to 32 MP (8-ch at 32 MP when ultra-HD mode enabled)
    Bandwidth (Incoming/Outgoing) 320 Mbps / 400 Mbps
    Decoding Capability 2-ch @32 MP + 2-ch @8 MP (30 fps), or 10-ch @8 MP, 20-ch @4 MP, 40-ch @1080p
    HDMI Outputs HDMI 1: up to 8K/30 Hz; HDMI 2: up to 4K/60 Hz (max 1080p when HDMI1 is 8K)
    VGA Output 1920 × 1080 @ 60 Hz
    CVBS Output 1-ch BNC, PAL: 704 × 576; NTSC: 704 × 480
    Audio 1-ch RCA out & 1-ch RCA two-way audio
    Network Interface 1 × RJ-45 10/100/1000 Mbps; ONVIF, HTTPs, etc.
    PoE Ports 16 × RJ-45 10/100 Mbps; ≤ 200 W total; IEEE 802.3af/at
    Storage 4 × SATA (up to 16 TB each), 1 eSATA
    Aux Interfaces 2 × RS-485, 1 × RS-232, Alarm In/Out: 16/9; Ctrl 12 VDC, 1 A
    USB Front: 2 × USB 2.0; Rear: 1 × USB 3.0
    Playback 16-ch synchronous playback
    Smart VCA & POS Motion, line crossing, intrusion, heat map, ANPR, people counting, POS overlay
    Reliability & Security Dual-stream, TLS encryption, double verification, RAID (0/1/5/6/10)
    Environmental Oper. Temp: -10 °C to 55 °C; Humidity: 10–90%
    Dimensions & Weight 445 × 400 × 75 mm; ≤ 5 kg (no HDD)


    Accessories & Compatible Mounts

    • No accessories listed in the datasheet

    Ideal Applications

    • Large-scale surveillance deployment (e.g., campuses, malls, transportation hubs)
    • Enterprise environments needing high-resolution recording and smart analytics
    • Retail or POS systems with video overlay and triggered alarms

    Engineered for high reliability, intelligent performance, and scalable capacity, the DS-7732NI-M4/16P provides exceptional uptime and ROI in demanding security environments.
