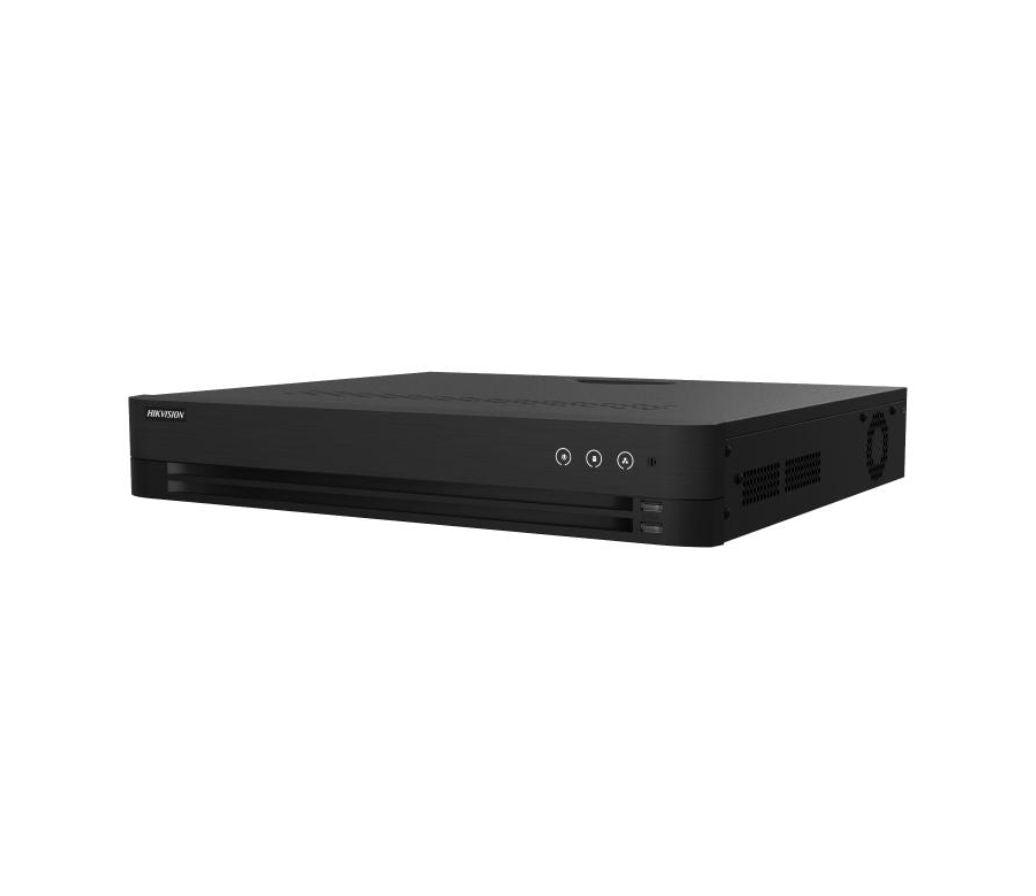

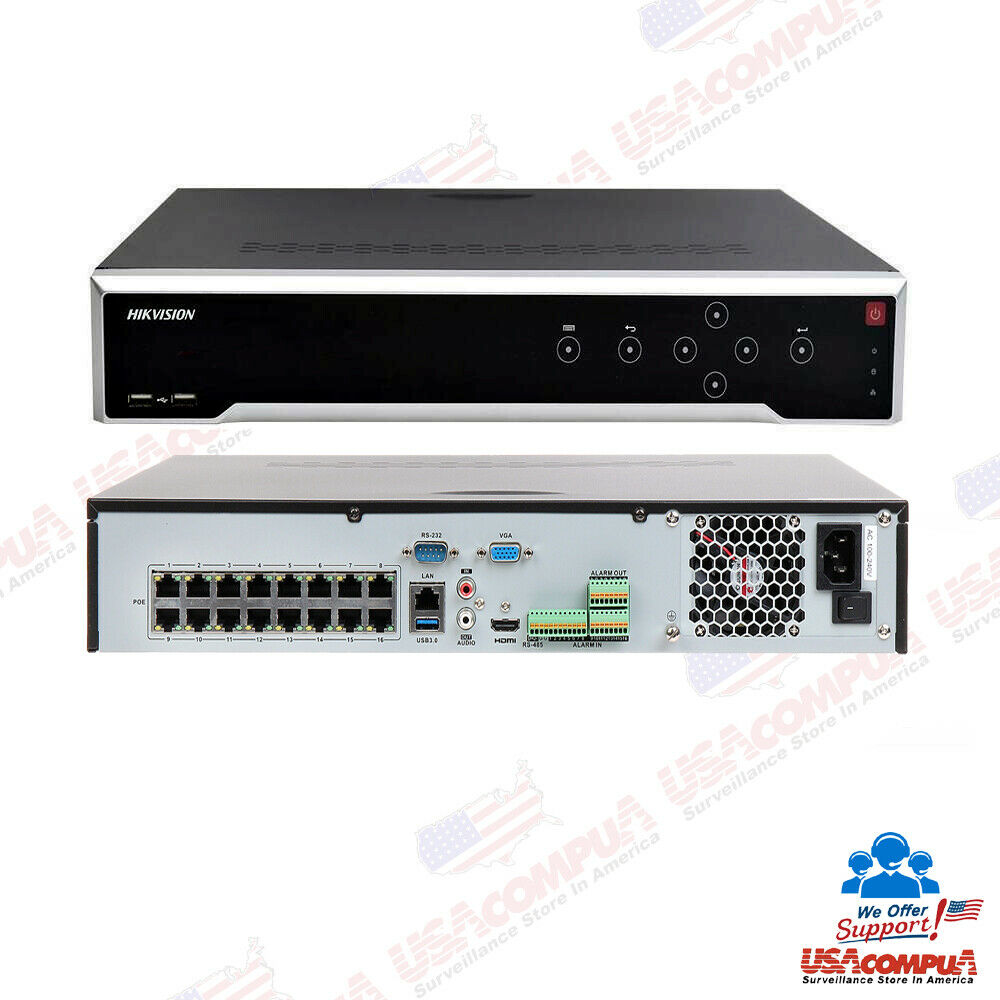

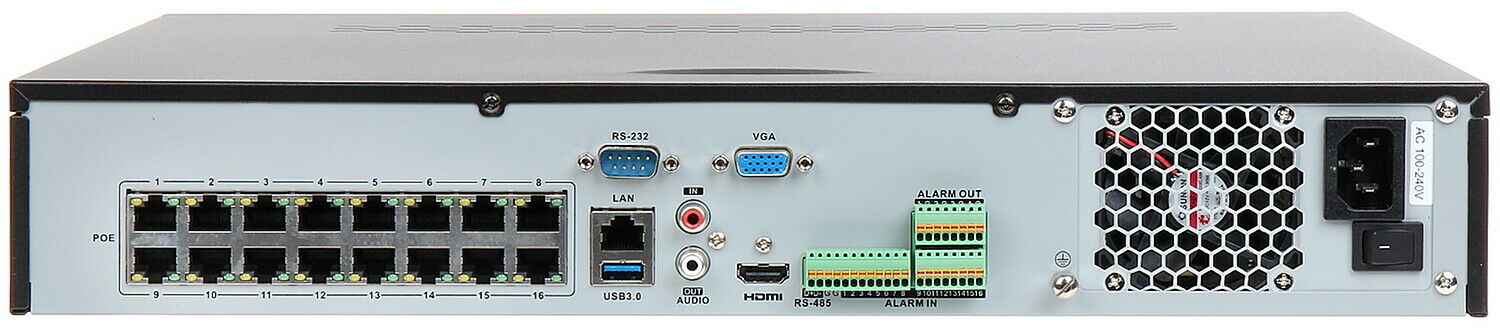

DS-7732NI-Q4/16P No Hard Drive H265 Hikvision 32 Channel 4K 8MP NVR w/ 16 CH POE
DS-7732NI-Q4/16P No Hard Drive H265 Hikvision 32 Channel 4K 8MP NVR w/ 16 CH POE
Out of stock
Description
Description
DS-7732NI-Q4/16P No Hard Drive H265 Hikvision 32 Channel 4K 8MP NVR w/ 16 CH POE
This listing includes:
-  (1) HARD DRIVE OPTION: NO HARD DRIVE;4TB;8TB;12TB;16TB;32TB;40TB
- (1) NETWORK RECORDER: DS-7732NI-Q4/16P
DS-7732NI-Q4/16P  view data sheet
16ch 1.5U 16 PoE 4K NVR
- Up to 16ch IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4K high-definition live view, storage and playback
- Up to 8ch @ 1080p decoding capacity
- Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 4 HDDs for continuous video recording
- Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
16ch 1.5U 16 PoE 4K NVR
- Up to 16ch IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4K high-definition live view, storage and playback
- Up to 8ch @ 1080p decoding capacity
- Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 4 HDDs for continuous video recording
- Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
Specification
- Video And Audio
- IP Video Input16ch
- Incoming Bandwidth160 Mbps
- Outgoing Bandwidth80 Mbps
- HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- VGA Output1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?)
- Decoding
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.726
- Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
- Decoding Capability
1-ch@8 MP (30 fps)/6-ch@1080p (30 fps)
*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
- Synchronous Playback16ch
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Network
- Remote Connection64
- Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power? 150 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA4, SATA interface
- CapacityUp to 6 TB capacity for each disk
- Serial Interface1 RS-485 (half-duplex), 1 RS-232
- USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 1 ? USB 2.0
- Alarm In/Out16/4 (16/8 optional)
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption? 15 W (without HDD and PoE off)
- Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
- Working Humidity10 % to 90 %
- Dimension (W ? D ? H)445 ? 400 ? 75 mm (17.5" ? 15.7" ? 3.0")
- Weight? 5 kg (without HDD, 11 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
