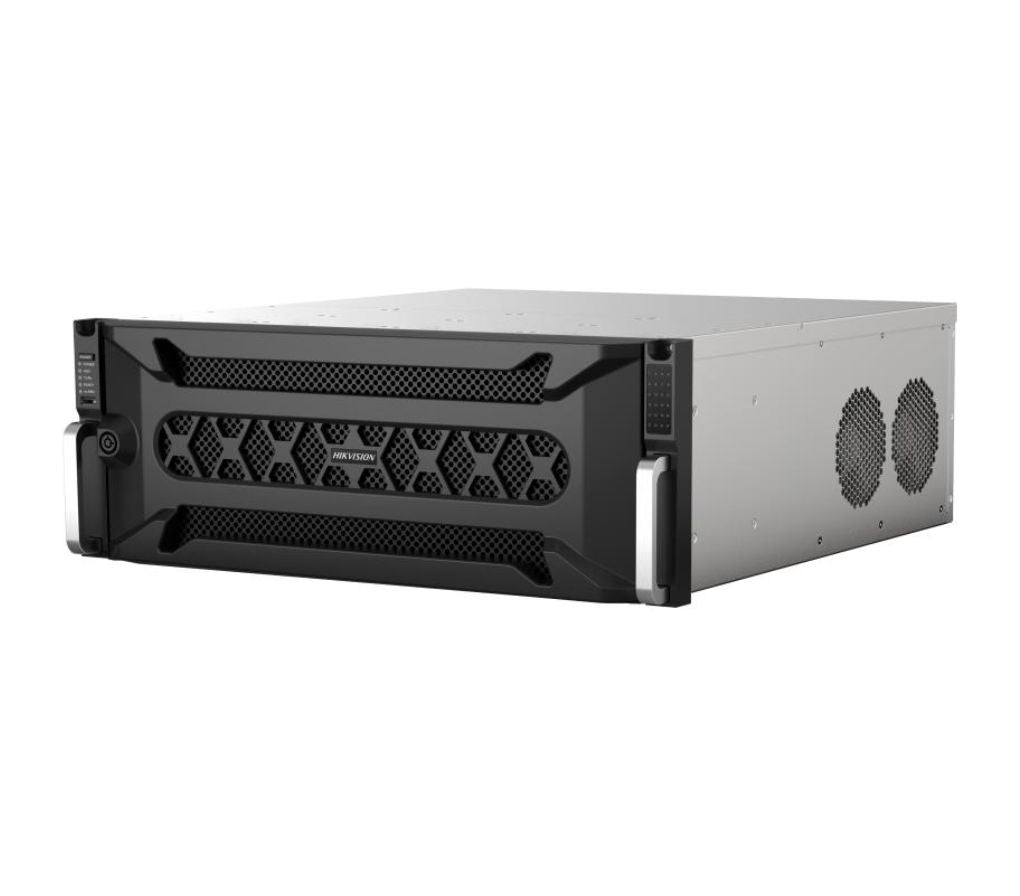

DS-96128NI-I24 Hikvision 8ch IP PoE Recorder w/ HDD 128ch 4U 4K Super NVR Up
DS-96128NI-I24 Hikvision 8ch IP PoE Recorder w/ HDD 128ch 4U 4K Super NVR Up
Hurry up, only 1 item left in stock.
Description
Description
DS-96128NI-I24 Hikvision 8ch IP PoE Recorder w/ HDD 128ch 4U 4K Super NVR Up
This listing includes:
-  (1) HARD DRIVE OPTION: NO HARD DRIVE;16TB;32TB;64TB;80TB;128TB;160TB
- (1) NETWORK RECORDER: DS-96128NI-I24
DS-96128NI-I24  view data sheet
128ch 4U 4K Super NVR
- Up to 128ch IP cameras can be connected
- Up to 576 Mbps high incoming bandwidth ensures IP cameras can be connected
- 2 HDMI (different source) and 1 VGA interfaces
- 24 HDD can be used for continuous video recording
- Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
- Advanced streaming technology enables smooth live view in poor network conditions
- Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
128ch 4U 4K Super NVR
- Up to 128ch IP cameras can be connected
- Up to 576 Mbps high incoming bandwidth ensures IP cameras can be connected
- 2 HDMI (different source) and 1 VGA interfaces
- 24 HDD can be used for continuous video recording
- Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
- Advanced streaming technology enables smooth live view in poor network conditions
- Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
- Video And Audio
- IP Video Input128ch
- Incoming Bandwidth576 Mbps
- Outgoing Bandwidth512 Mbps
- Incoming Bandwidth (RAID Mode)576 Mbps
- Outgoing Bandwidth (RAID Mode)512 Mbps
- TLS Outgoing Bandwidth128 Mbps, or 64 Mbps (when RAID is enabled)
- HDMI OutputTwo independent HDMI outputs of 4K resolution. Resolution: 4K (4096 ? 2160), 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1080p (1920 ? 1080)/60Hz, UXGA (1600 ? 1200)/60Hz, SXGA (1280 ? 1024)/60Hz, 720p (1280 ? 720)/60Hz, XGA (1024 ? 768)/60Hz
- VGA Output1-ch. Resolution: 1080p (1920 ? 1080) /60Hz, UXGA (1600 ? 1200) /60Hz, SXGA (1280 ? 1024) /60Hz, 720p (1280 ? 720) /60Hz, XGA (1024 ? 768) /60Hz
- LCD OutputOptional: One 7 inch LCD
- Audio Output1-ch. RCA (2.0 Vp-p, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?)
- Decoding
- Decoding FormatH.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
- Recording Resolution
32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF
*: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.
- Synchronous PlaybackUp to 16chs
- Decoding Capability
1-ch@32 MP (8160 ? 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps)
*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
- Network
- Network ProtocolIPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
- Camera Access ProtocolHIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
- Network Interface4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- RAID
- RAID TypeRAID0, RAID1, RAID5, RAID 6, and RAID10
- Auxiliary Interface
- SATA24 SATA interfaces supporting hot-plug
- CapacityUp to 10 TB for each HDD
- Serial InterfaceRS-232; RS-485; Keyboard
- USB InterfaceFront Panel: 2 ? USB 2.0; Rear Panel: 2 ? USB 3.0
- Alarm In/Out16/8
- ESATA1 ? eSATA interface
- Mini SASOptional: 2 ? mini SAS interface
- Extension BoardOptional: One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.
- General
- Power Supply100 to 240 VAC, 50 to 60Hz
- Consumption? 140 W (without HDD)
- Working Temperature0 ?C to + 50 ?C (32 ?F to 122 ?F)
- Working Humidity10% to 90%
- Dimension (W ? D ? H)447 ? 528 ? 172mm (17.6 ? 20.8 ? 6.8 inch)
- Weight? 23 kg (50.7 lb)
