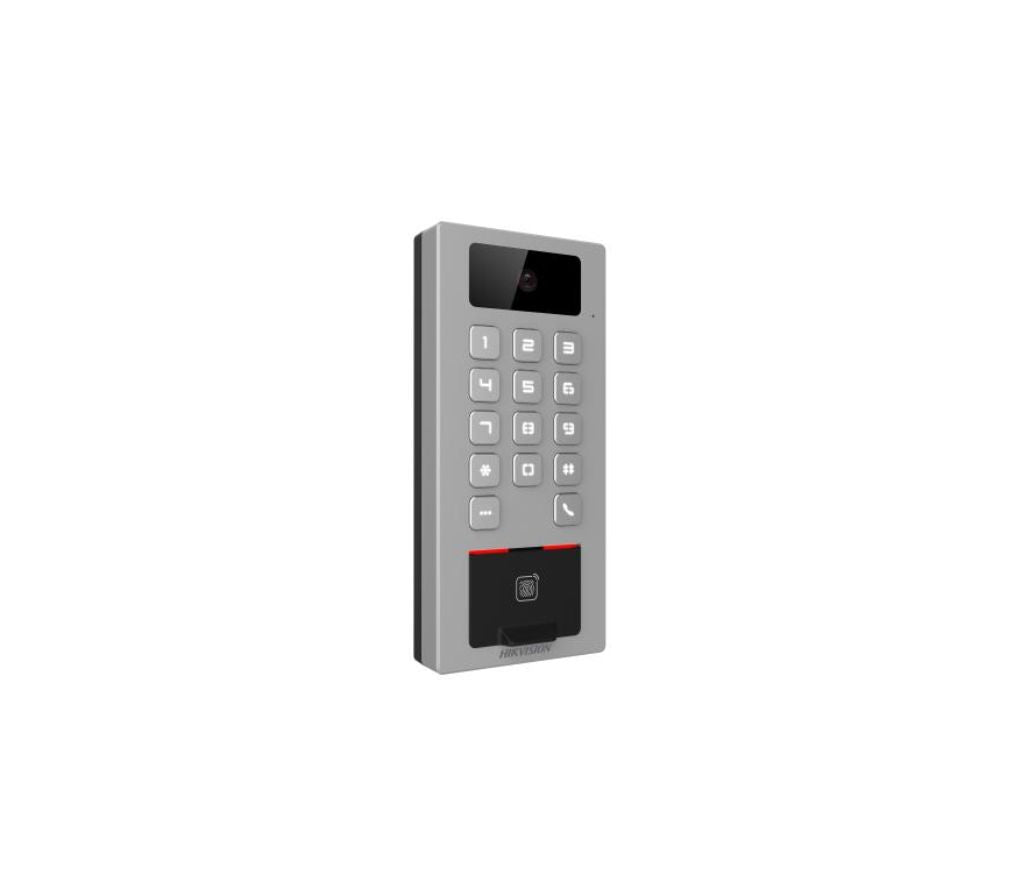

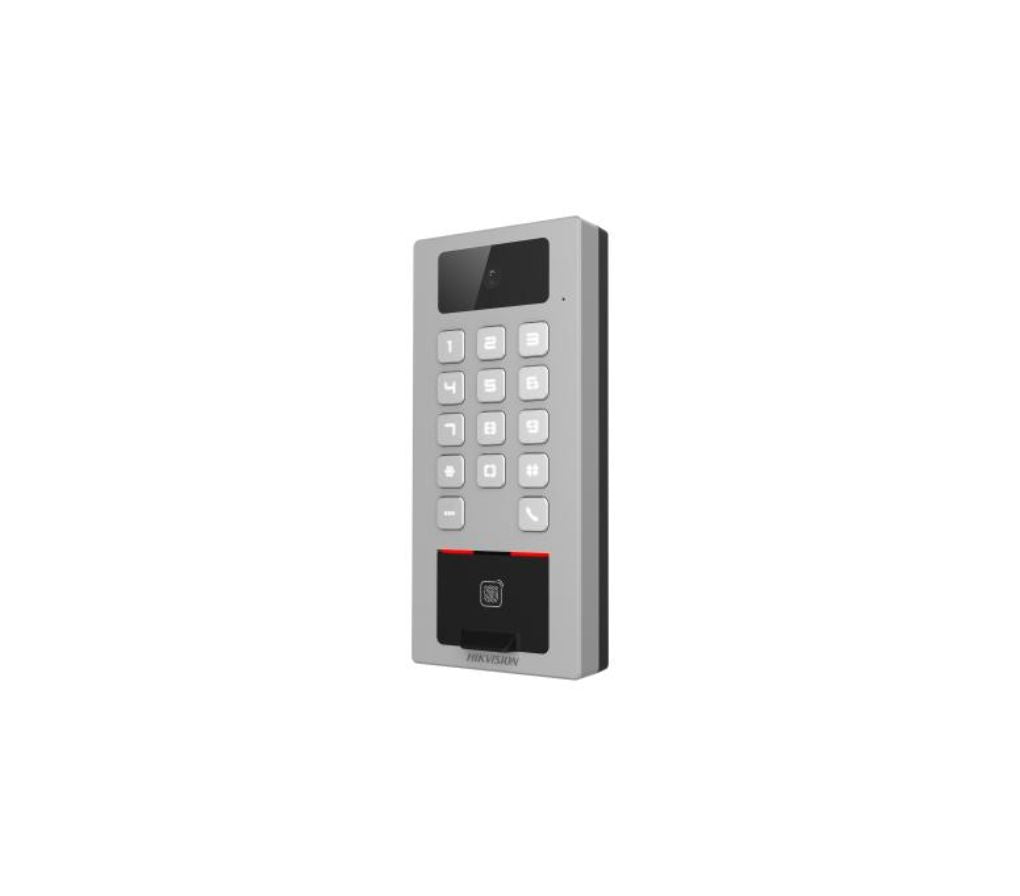

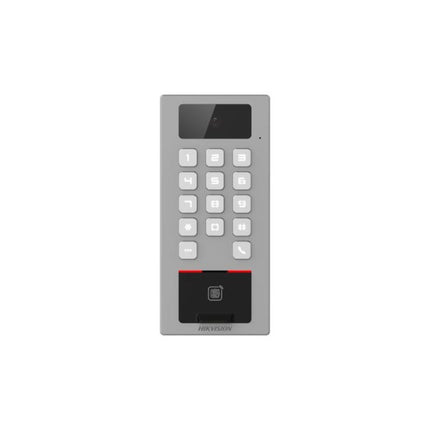

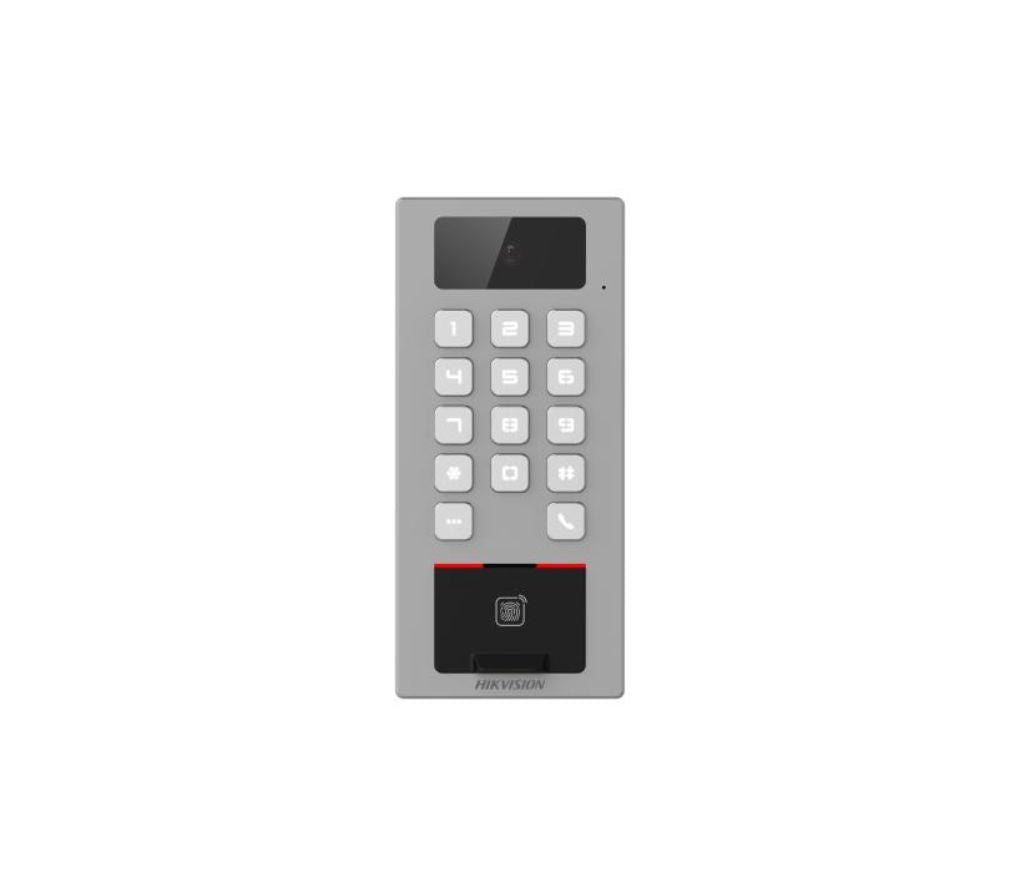

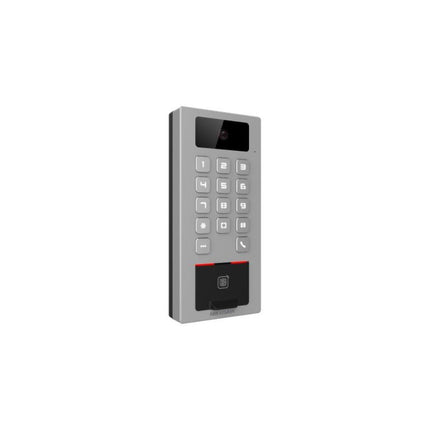

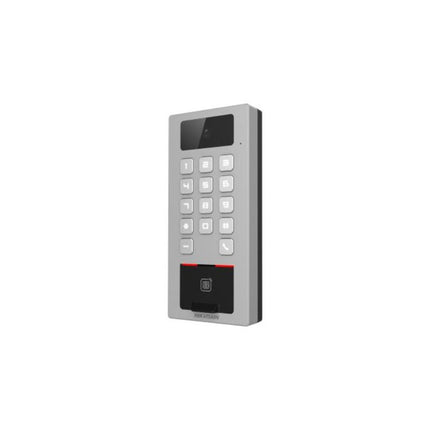

DS-KIT502DBFWX-C Hikvision Access Control Terminal Manage and intercom

Description

DS-KIT502DBFWX-C Hikvision Access Control Terminal > Manage and intercom


This listing includes:

  • ¬†(1) ACCESSORIES:¬†DS-KIT502DBFWX-C


DS-KIT502DBFWX-C  view data sheet

Access Control Terminal

  • Manage access control and intercom functions in one device
  • IP65 & IK09 protections, as well as increased stability with zinc alloy materials
  • Supports multiple authentication methods (card, fingerprint, PIN, etc.)
  • Remote control via the Hik-Connect mobile app
  • Connects to external access controller via Wiegand protocol
  • Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
  • RS-485 communication for connecting external card reader and calling elevator
  • Supports AP mode
  • Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
  • Supports up to 256 GB SD card memory
  • Supports PIN settings under platform mode and local mode
  • Setting the priority of wired network and wireless network is available









DS-KIT502DBFWX-C Hikvision Access Control Terminal Manage and intercom

Product form

SKU: 736364715462-EN1

$411.47 $380.99

Out of stock

      • Guaranteed secure & safe checkout.

        paypal

      Description

      DS-KIT502DBFWX-C Hikvision Access Control Terminal > Manage and intercom


      This listing includes:

      • ¬†(1) ACCESSORIES:¬†DS-KIT502DBFWX-C


      DS-KIT502DBFWX-C  view data sheet

      Access Control Terminal

      • Manage access control and intercom functions in one device
      • IP65 & IK09 protections, as well as increased stability with zinc alloy materials
      • Supports multiple authentication methods (card, fingerprint, PIN, etc.)
      • Remote control via the Hik-Connect mobile app
      • Connects to external access controller via Wiegand protocol
      • Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
      • RS-485 communication for connecting external card reader and calling elevator
      • Supports AP mode
      • Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
      • Supports up to 256 GB SD card memory
      • Supports PIN settings under platform mode and local mode
      • Setting the priority of wired network and wireless network is available









      Data sheet PDF

      Product Description

      Access Control Terminal

      • Manage access control and intercom functions in one device
      • IP65 & IK09 protections, as well as increased stability with zinc alloy materials
      • Supports multiple authentication methods (card, fingerprint, PIN, etc.)
      • Remote control via the Hik-Connect mobile app
      • Connects to external access controller via Wiegand protocol
      • Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
      • RS-485 communication for connecting external card reader and calling elevator
      • Supports AP mode
      • Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
      • Supports up to 256 GB SD card memory
      • Supports PIN settings under platform mode and local mode
      • Setting the priority of wired network and wireless network is available








        Specification

        System

          Video

            Network

              Interface

                Capacity

                  Authentication

                    General

                      Function

                        • System
                        • Operating SystemLinux
                        • Video
                        • Lens1
                        • Video Compression StandardH.264 and H.265
                        • Resolution2 MP
                        • FOVHFOV = 110?; VFOV = 81?; DFOV = 122?
                        • Video StandardPAL (Default) and NTSC
                        • Network
                        • Wired Network10 M/100 M self-adaptive
                        • Wi-FiSupport
                        • Interface
                        • Network Interface1
                        • Lock Control1
                        • Exit Button1
                        • Door Contact Input1
                        • Alarm Input1
                        • Alarm Output1
                        • TAMPER1
                        • RS-4851
                        • Wiegand1 (output)
                        • SD Card Slot1
                        • Capacity
                        • Fingerprint Capacity10,000
                        • Card Capacity100,000
                        • Event Capacity300,000
                        • Authentication
                        • Fingerprint ModuleCapacitive fingerprint recognition
                        • Card TypeM1 card;DESfire card
                        • Card Reading Distance0 ~ 3 cm
                        • General
                        • Power Supply1 A (12 VDC to 24 VDC)
                        • Power Consumption?12 W
                        • Working Temperature-40 ?C to +70 ?C (-40 ?F to +158 ?F)
                        • Protective LevelIK09, IP65
                        • LanguageArabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish
                        • Function
                        • Two-Way AudioSupport
                        • Video IntercomSupport
                        • Hik-ConnectSupport
