Product Description

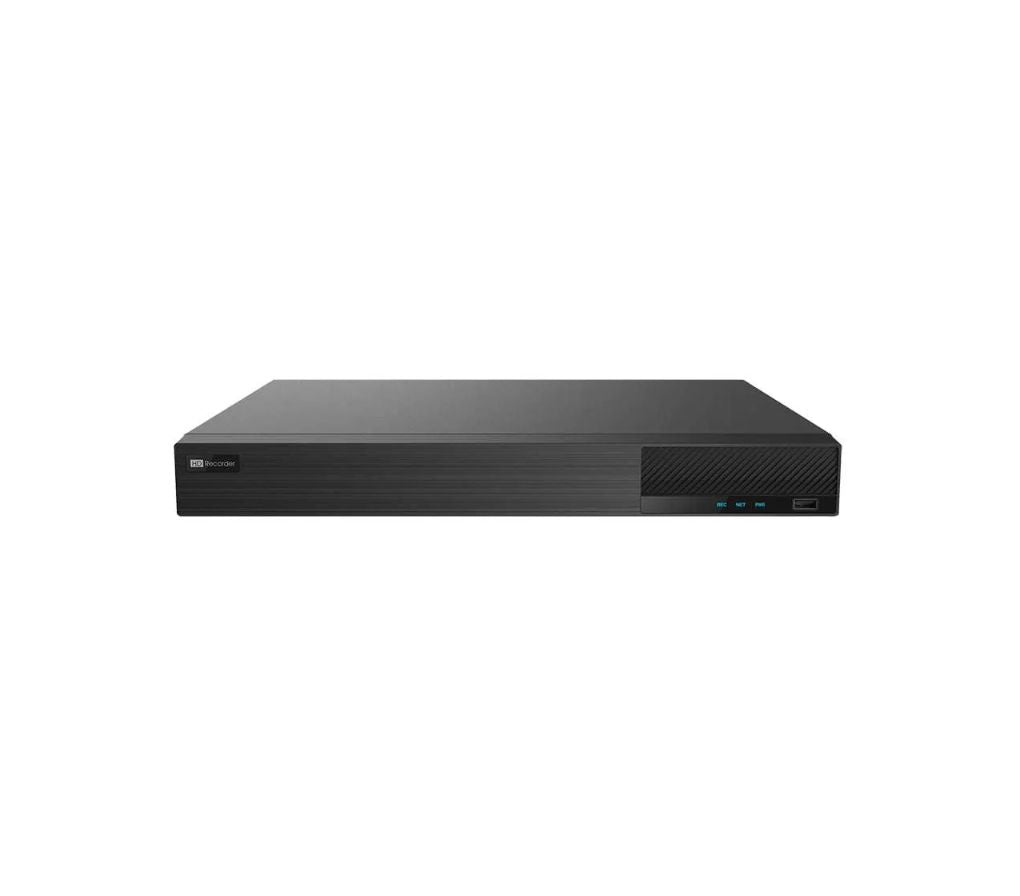

8CH Channel Hybrid 4k DVR ED8208H5-FN

? Max Recording Resolution: 8MP Lite
? Channels: 8CH
? LAN Ports: 1
? SATA: 2X SATA PORTS
? Video Outputs: HDMI / VGA
? NDAA Compliant: Yes

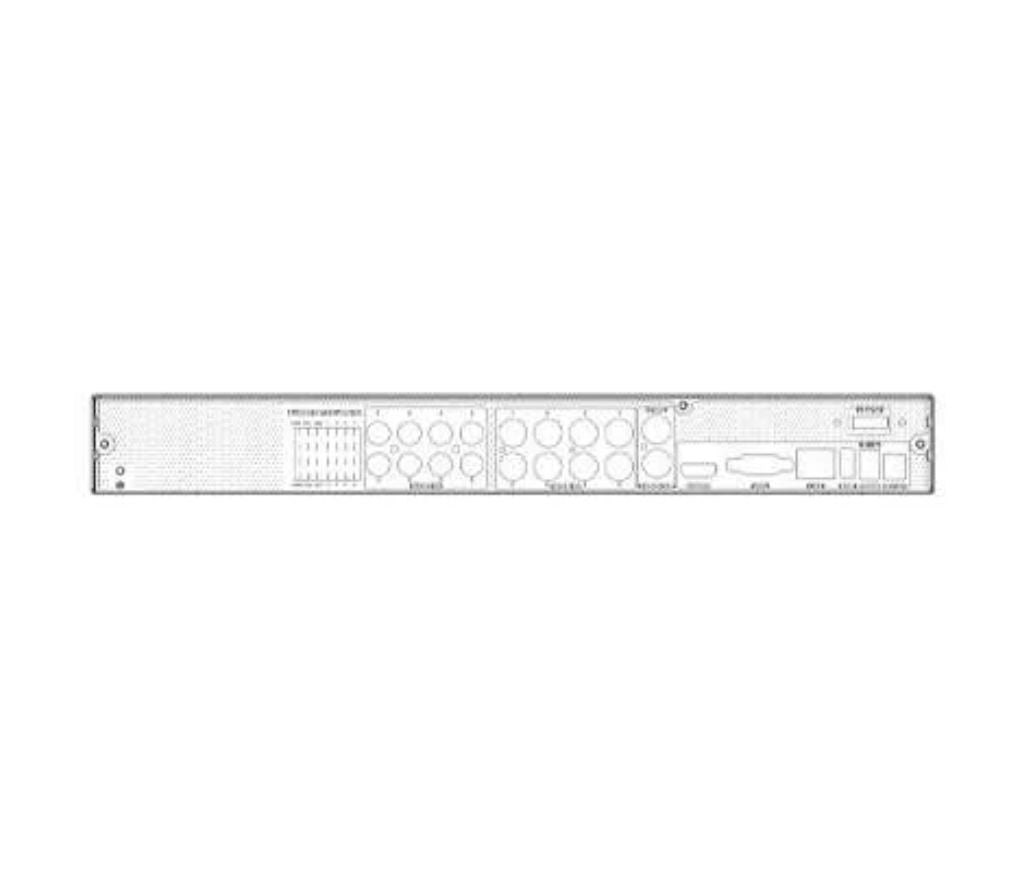

? Hardware Features: Alarm in, Alarm out, Audio in, Audio out, BNC Video Out



  • Downloads

  • Accessories

  • Configuration

  • Advanced Configuration

  • Features

  • 8ch TVI / AHD /CVI 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1
  • Adopt standard H.265 high profile compression format to get high-quality video at a much lower bit rate
  • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
  • Multi-mode recording: manual / timer / motion
  • Playback: 8ch simultaneously playback
  • Search: time slice, time, event, tag, and smart search
  • Express and flexible backup via USB, network, and so on
  • Pentaplex: preview, record, playback, backup, and remote access
  • DHCP, DDNS, PPPoE network protocol
  • Remote control via Web Client or CMS: preview, playback, backup, PTZ, and configuration
  • Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with the mobile device
  • Authorization management, log review, and device status review
  • HDMI 4K output, true high-resolution display
  • Support pan tilt zoom(PTZ) preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phones
  • Powerful mobile surveillance by smartphones with iOS and Andriod OS
  • This Titanium Digital Video Recorder (DVR) works with: Coaxial/ Analog Security Camera

    Weight 6.239075 lbs
    Dimensions 20.078751 ? 4.4094512 ? 13.6614247 in
