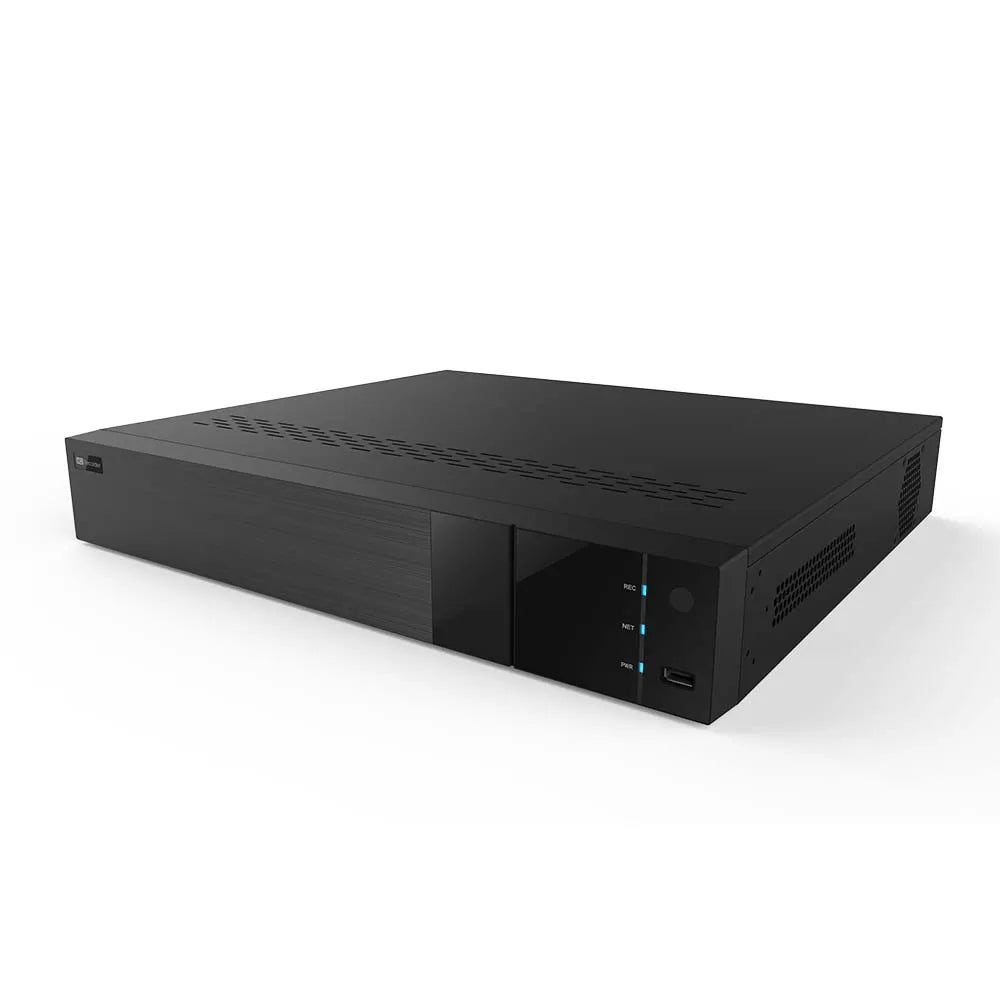

ED8432H5-DN || Titanium, DVR, 5MP Lite, 32CH, 4X SATA PORTS
ED8432H5-DN || Titanium, DVR, 5MP Lite, 32CH, 4X SATA PORTS
One Way Audio
Hurry up, only 1 item left in stock.
Description
Description
32CH 5MP 4SATA Hybrid DVR Titanium ED8432H5-DN Features:
- 32 CH TVI/AHD/CVI  video input
- 32 CH DVRs support 8 CH IP video input
- 16CH Analog video input can be switched to 16CH IP video input
- Alarm in/Alarm out: 16CH/4CH
- Adopt standard H.265 high profile compression format to get high-quality video at a much lower bit rate
- Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
- Search: time slice, time, event, tag, and smart search
- Express and flexible backup via USB, network, and so on
- Pentaplex: preview, record, playback, backup, and remote access
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web Client or CMS: preview, playback, backup, PTZ, and configuration
- Authorization management, log review, and device status review
- 1080P output, true high-resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smartphones with iOS and Andriod OS
General:
- Power Supply: ATX-250W
- Consumption: ? 30W ( without HDD )
- Dimensions (mm): 440 √ó 390 √ó 70 ( W √ó D √ó H )
- Working Environment: -10~50°C, 10%~90% (humidity)
- Certificate: CE, FCC
- Environmental Protection: Comply with Directive EU RoHS, WEEE, REACH
This 32CH 5MP 4SATA Hybrid DVR Titanium ED8432H5-DN is highly recommended to work with:
IP Network Cameras – TITANIUM IPC
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
ED8432H5-DN || Titanium, DVR, 5MP Lite, 32CH, 4X SATA PORTS
? Max Recording Resolution: 5MP Lite
? Channels: 32CH
? LAN Ports: 1
? SATA: 4X SATA PORTS
? Video Outputs: HDMI / VGA
? NDAA Compliant: Yes
? Hardware Features: Alarm in, Alarm out, Audio in, Audio out, BNC Video Out
Product Description
32CH 5MP 4SATA Hybrid DVR Titanium ED8432H5-DN Features:
32 CH TVI/AHD/CVI video input
32 CH DVRs support 8 CH IP video input
16CH Analog video input can be switched to 16CH IP video input
Alarm in/Alarm out: 16CH/4CH
Adopt standard H.265 high profile compression format to get high-quality video at a much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Search: time slice, time, event, tag, and smart search
Express and flexible backup via USB, network, and so on
Pentaplex: preview, record, playback, backup, and remote access
DHCP, DDNS, PPPoE network protocol
Remote control via Web Client or CMS: preview, playback, backup, PTZ, and configuration
Authorization management, log review, and device status review
1080P output, true high-resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smartphones with iOS and Andriod OS
General:
Power Supply: ATX-250W
Consumption: ? 30W ( without HDD )
Dimensions (mm): 440 ? 390 ? 70 ( W ? D ? H )
Working Environment: -10~50?C, 10%~90% (humidity)
Certificate: CE, FCC
Environmental Protection: Comply with Directive EU RoHS, WEEE, REACH
This 32CH 5MP 4SATA Hybrid DVR Titanium ED8432H5-DN is highly recommended to work with:
IP Network Cameras ? TITANIUM IPC
Coaxial Cameras ? Titanium HD Cameras
Weight 13.448182 lbs
Dimensions 21.653555 ? 5.511814 ? 18.2677264 in
Product Specifications
ENS Titanium Series | ED8432H5-DN
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Port
RS 485 Yes (full-duplex), connect to PTZ or keyboard
USB USB 2.0 ? 1; USB 3.0 ? 1
Remote Controller Optional
Video and Audio
IP Video Input 8CH (up to 24CH), Up to 5MP@30fps
Total Input 40CH
AI Search
HDMI ? 1 : 1920?1080 /1280?1024 /1024?768
VGA ? 1 : 1920?1080 /1280?1024 /1024?768
BNC ? 1 : CVBS ( used as the main or spot output )
Input/Output
H.264/H.265
1/4/6/8/9/13/16/25/32/36
RCA ? 16
RCA ? 1 (linear, 600?)
Two-way audio Take up channel one audio input
Compression G.711(U/A)
Alarm
Input/Output
Manual, motion, exception, smart event
16CH/ 4CH
Playback
Playback 16CH
Search Time slice / time / event / tag /smart search
Smart Search Play, pause, FF, FB, digital zoom, etc.
TVI Camera Input
CVBS Camera Input PAL/NTSC
IP Camera Input 32 channels, each channel up to 12MP
Audio In/Out 4/1, BNC
Two-way Talk Yes
Recording
Bit Rate 32Kbps ~ 5Mbps
Resolution 5MP Lite/4MP Lite / 1080P/1080P Lite/720P/
WD1/D1
Frame Rate
Analog Channel:
5MP Lite@10fps (PAL / NTSC)
4MP Lite/1080P@12fps(PAL) / 15fps (NTSC)
1080P Lite/720P/WD1/D1@25fps (PAL) /30fps
IP Channel: 25fps (PAL) / 30fps (NTSC)
Interface RJ 45 1000Mbps ? 1
Protocol
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP,
HTTP, HTTPs, NTP, SMTP
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 160Mbps
Client Connection Max. 15users access
OS iOS, Andriod
Storage and Backup
HDD SATA?4, up to 10TB per HDD; E-SATA?1
Local Backup U disk, USB mobile HDD
Yes
RS 485 Yes (full-duplex), connect to PTZ or keyboard
OSD Camera title, Time, Video loss, Camera lock,
Motion detection, Recording
General
Power Supply ATX-250W
Consumption
Working Environment -10~50?C, 10%~90% (humidity)
Certificate CE, FCC
Environmental Protection Comply with Directive EU RoHS, WEEE, REACH
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP,
Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 ? 18), Video
Loss, Tampering and Diagnosis
Alarm input 16
Relay Output 6
Playback and Backup
Playback 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search
(accurate to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play,
Next File, Previous File, Next Camera, Previous
Camera, Full Screen, Repeat, Shuffle, Backup
Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 4 SATA Ports, up to 10TB capacity for each disk
eSATA
