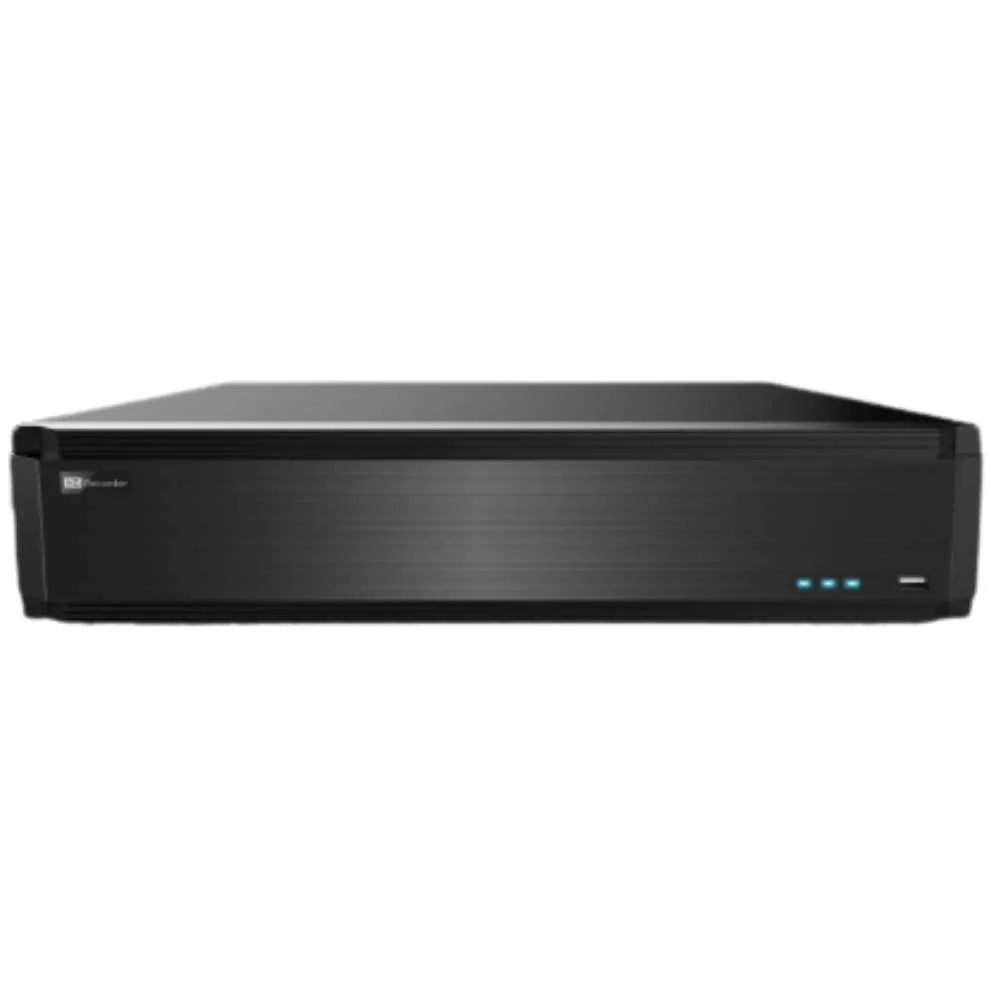

ED8632H5-FN Tvt 32ch CCTV Recorder w/ HDD || Titanium DVR 8MP
ED8632H5-FN Tvt 32ch CCTV Recorder w/ HDD || Titanium DVR 8MP
One Way Audio
Out of stock
Description
Description
ED8632H5-FN Tvt 32ch CCTV Recorder w/ HDD || Titanium DVR 8MP
This listing includes:
-  (1) HARD DRIVE OPTION: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB
- (1) DIGITAL VIDEO RECORDER: ED8632H5-FN
ED8632H5-FN  view data sheet
ED8632H5-FN || Titanium, DVR, 8MP, 32CH, 8X SATA PORTS
? Max Recording Resolution: 8MP
? Channels: 32CH
? LAN Ports: 2
? SATA: 8X SATA PORTS
? Video Outputs: HDMI / VGA, HDMI 2
? NDAA Compliant: Yes
? Hardware Features: Alarm in, Alarm out, Audio in, Audio out, BNC Video Out, Raid.
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
ED8632H5-FN || Titanium, DVR, 8MP, 32CH, 8X SATA PORTS
? Max Recording Resolution: 8MP
? Channels: 32CH
? LAN Ports: 2
? SATA: 8X SATA PORTS
? Video Outputs: HDMI / VGA, HDMI 2
? NDAA Compliant: Yes
? Hardware Features: Alarm in, Alarm out, Audio in, Audio out, BNC Video Out, Raid.
Product Specification Description
- 32 CH TVI / AHD/CVI 8MP/5MP/ 4MP/ 3MP / 1080P / 720P / WD1 video input
- 32 CH DVRs support 8 CH 8MP/5MP / 4MP / 3MP / 1080P / 960P / 720P IP video input
- 8CH analog video input can be switched to 8CH IP video input
- Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
- Multi-type recording: manual / timed / sensor / motion /AI recording
- Playback : 16 CH simultaneously playback
- Search: time slice, time, event, tag and smart search
- Express and flexible backup via USB, network and so on
- Supports local preview, record, playback and backup
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
- Multi-user online simultaneously
- Authorization management, log review and device status review
- 4K output, true high resolution display
- Supports PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Supports RAID 0, 1, 5, 6, 10
- Supports NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Andriod OS
| Dimensions | 6 ? 6 ? 6 in |
|---|
Specifications
445 ? 436 ? 90( W ? D ? H )
ATX-200W
Playback
Network
-10~50?C, 10%~90% (humidity)
HDMI 1 : 3840 ? 2160 / 1920 ? 1080 / 1280 ? 1024
HDMI 2 : 1920 ? 1080 / 1280 ? 1024 / 1024 ? 768( HDMI1 and HDMI2 output different video sources)
VGA ? 1 : 1920 ? 1080 / 1280 ? 1024 (VGA and HDMI1 output the same video source)
BNC ? 1 : CVBS ( used as the main or spot output )
? 50W ( without HDD )
RCA ? 16
RCA ? 1 (linear, 600?)
16CH
8CH
32Kbps ~ 5Mbps
USB 2.0 ? 2; USB 3.0 ? 1
Model ED8632H5-FN
Audio
Working Environment
System
Video
OS
Analog Video Input
IP Video Input
Total Input
Output
Input
Output
Two-way audio
Resolution
Frame Rate
Bit Rate
Playback
Search
Smart Search
Function
Input
Output
Interface
Protocol
Incoming Bandwidth
OS
HDD
RAID
Local Backup
Network Backup
RS 485
USB
Remote Controller
Power Supply
Consumption
Dimensions(mm)
Embedded Linux
BNC ? 32
8CH (up to 16CH)
16CH
TVI/AHD/CVI : 4K@15fps; 5MP@20fps; 4MP/3MP/1080P/720P/WD1@25fps/30fps (live)
Take up channel one audio input
4K/4K Lite / 5MP/5MP Lite/4MP/4MP Lite/3MP/1080P/1080P Lite/720P/WD1/D1
Time slice / time / event / tag /smart search
Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Play, pause, FF, FB, digital zoom, etc.
RJ 45 1000Mbps ? 2
TCP / IP, HTTP, HTTPS, 802.1x, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP
48Mbps (max. 96Mbps)
iOS, Andriod
SATA?8, up to 10TB per HDD
U disk, USB mobile HDD
Yes
Yes (full-duplex), connect to PTZ or keyboard
Optional
Record
Alarm
MobileDevice
Storage
Backup
Port
Others
Up to 8MP@30fps
40CH
Compression
Compression
H.264/H.265
G.711(U/A)
BNC interface (1.0Vp-p; 75?)
Outgoing Bandwidth 192Mbps
Multi-screen Display
Main output: 1/4/6/8/9/13/16/25/32/36
AUX. output:1/4/6/8/9
Total output: 36+9
Client Connection Max. 20 users access
Comply with Directive EU RoHS, WEEE, REACH
