Technical Specifications

Data sheet PDF

Product Description

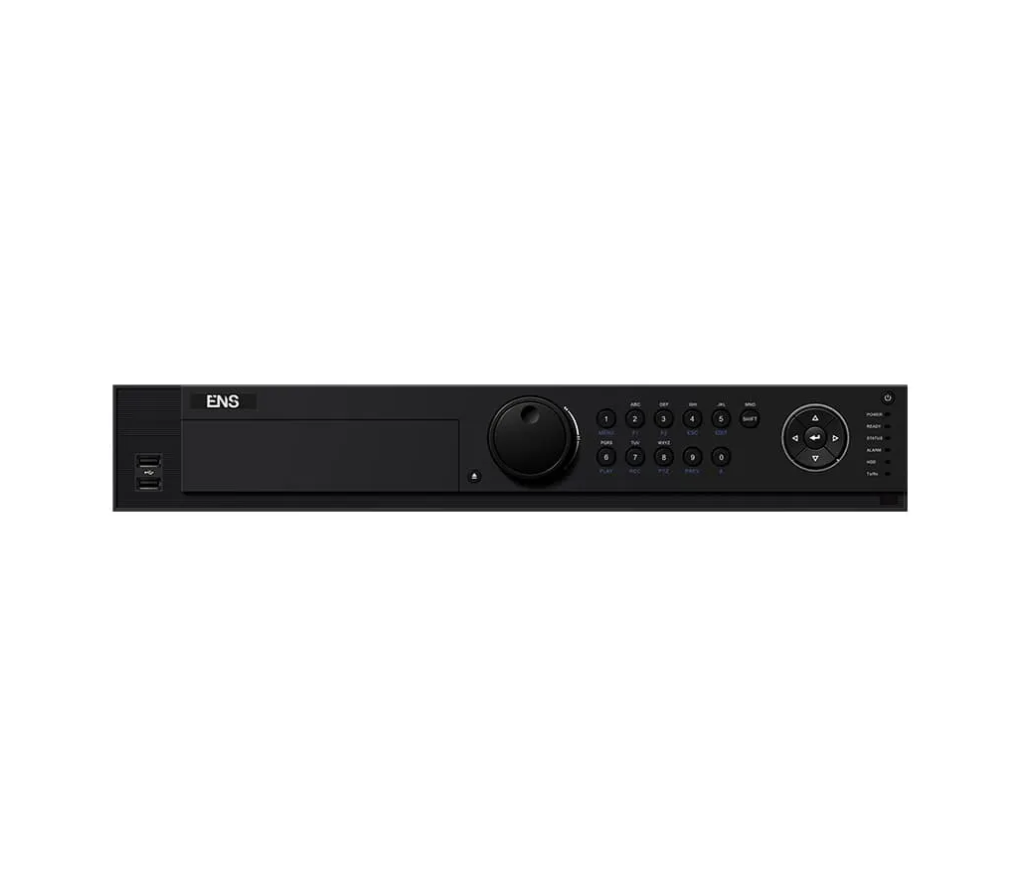

32CH All-in-One Super High Definition DVR SD5432/48I-K

32CH DVR(Enhanced: Max. 48CH, Upto 32CH BNC, Upto 48CH IP), H.265, 8MP@8FPS, 5MP@12FPS, HDMI/VGA/CVBS,4SATA,4K Output,alarm I/O: 16/4


  • SPECIFICATIONS

  • Downloads

  • Accessories

  • Configuration

  • Advanced Configuration

  • Features

    • H.265 Pro /H.265 Pro/H.265 video compression
    • "Hybrid" video input
    • Up to 48ch IP camera inputs (up to 8 MP)
    • Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
    • Up to 10 TB capacity per HDD
    • Support POS triggered recording and POS information overlay.
    • H.265 Pro can be enabled to improve encoding efficiency and reduce data storage costs
    • Recording at up to 8 MP resolution
    • 4 SATA interfaces and 1 eSATA interface.
    • Smart search for efficient playback
    • Support the third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
    • Hot-swappable HDD supporting RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme.
    • Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
    • Support line crossing detection and intrusion detection, sudden scene change detection; Only support 2MP(or less than 2) signal input 2K/4K output will be unavailable.
    • Vision & DDNS (Dynamic Domain Name System) for easy network management
    • Output bandwidth limit configurable
    Weight 17.02 lbs
    Dimensions 19.488 ? 6.22 ? 19.764 in
