HCC3150T-IR/36 Tvt CCTV Camera || Diamond COAX 5MP Bullet ? Housing:

Data sheet PDF

Product Description

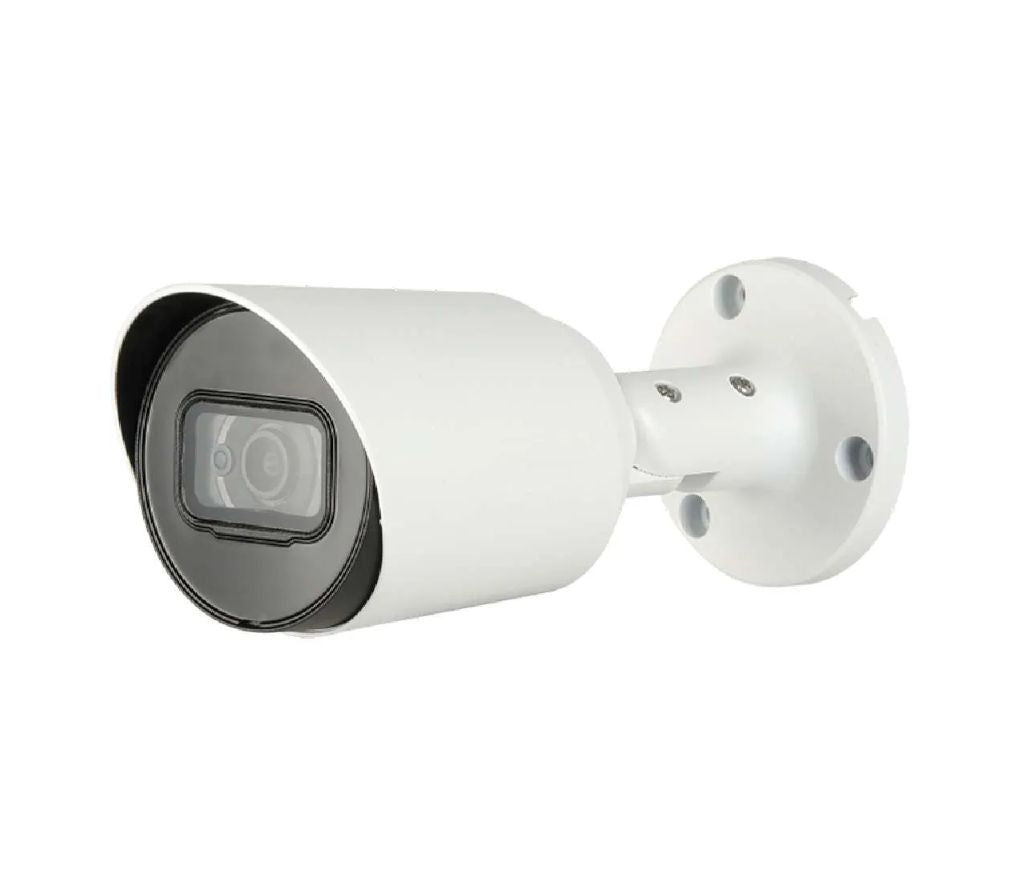

HCC3150T-IR/36 || Diamond, COAX, 5MP, Bullet, Fixed

? Housing: Bullet
? Resolution: 5MP
? Signal: TVI/CVI/CVBS/AHD
? Lens Category: Fixed
? Night Vision: Infrared / IR
? WDR: DWDR
? Water Resistance Rating : IP67
? NDAA Compliant: No
? Hardware Features:

5MP

Smart IR

IP67

DC 12V

Key Features

Diamond Series HD over Coax supports 5MP @ 20fps video output.

Large FOV-V

5MP Diamond Series Coaxial Security Cameras feature large FOV, especially in vertical field of view.

Up to 71? FOV-V

Image Performance | Color

5MP Coaxial Security Camera Series.

Competitors

5MP Coaxial Security Camera Series

Image Performance | B/W

Competitors

5MP Coaxial Security Camera Series

Competitors

5MP Coaxial Security Camera Series

Features

Broadcast Quality Audio

Available models with built in mic.

HCC3150R-IRL-ZA

HCC3350T-IR-ZA

HCC3350T-IRA/28

HCC3359T-AN1/28

HCC3159T-AN1/36

Motorized Lens

Before

• Manual Adjustment
• Remote and centralized control
• Time and labor intensive

After

• Simple mouse clicks
• Remote and centralized control
• Time and labor saving

4-in-1

Diamond 5MP coaxial security camera series supports switchable CVI/TVI/AHD/CVBS output. Users can switch over between different video modes via OSD menu or UTC by default. DIP switch is available for customization.

Hardware

Power Input

Diamond 5MP Coaxial Security Camera Series ? 30% input voltage tolerance, which is even wider than ? 25%. Therefore, it is better suited for unstable power supply conditions.

Voltage Alarm

Diamond 5MP Coaxial Security Camera Series supports voltage alarm feature. Once the power is over-high or over-low, a warning icon will appear on the image.

Under-Voltage (12V-30%)

1. Repeated restart
2. ICR Stuck
3. Will fail to work
4. Damaged cable and electrical components

Over-Voltage (12V+30%)

1. Burnt out
2. Reduced reliability and life cycle

Advanced Features

Perimeter Protection:

• Home Entrance and Exit Protection
• Deter Asset Theft and Vandalism
• Clear Images Both Day and Night with Smart IR (98ft)
• Home or Business Perimeter Protection

Smart IR

• Provide Clear Images Both Day and Night with Smart IR Technology (98ft distance)
• Theft and Vandalism Prevention
• Home or business night-time protection

24/7 Monitoring

• Effective Business Asset Protection
• Efficient Home Security Day and Night
• Ensure Safety and Security in Workplace

Application Scenarios

As the challenges have evolved, so to have the solutions. Diamond Series HD over coax security cameras provide broad area surveillance to help combat and solve your challenges! These Include:

Entrance and Exit Monitoring / Home Security

Whether it be entrance/exit, side entrance, backyard, or driveway monitoring, our Diamond Series HD Over Coax security cameras utilize Smart IR technology to provide clear visibility and excellent perimeter protection both day and night for effective home and business security.

SMB Loss Prevention and Asset Protection

24/7 monitoring with Smart IR provides enhanced safety and security for not only business assets, but also customer, patron, and employee safety.

Commercial Property and Tenant Protection

Utilize basic security and Smart IR, providing 24/7 monitoring, day and night, allowing for efficient protection of tenants and property. Provide basic safety and security with Diamond Series HD Over Coax security cameras, in order to detect real threats in real-time, prevent vandalism, theft, and other criminalities.

Features

• Max. 20fps@5MP
• HD and SD output switchable
• fixed lens
• Max. IR length 30m, Smart IR
• IP67, DC12V
