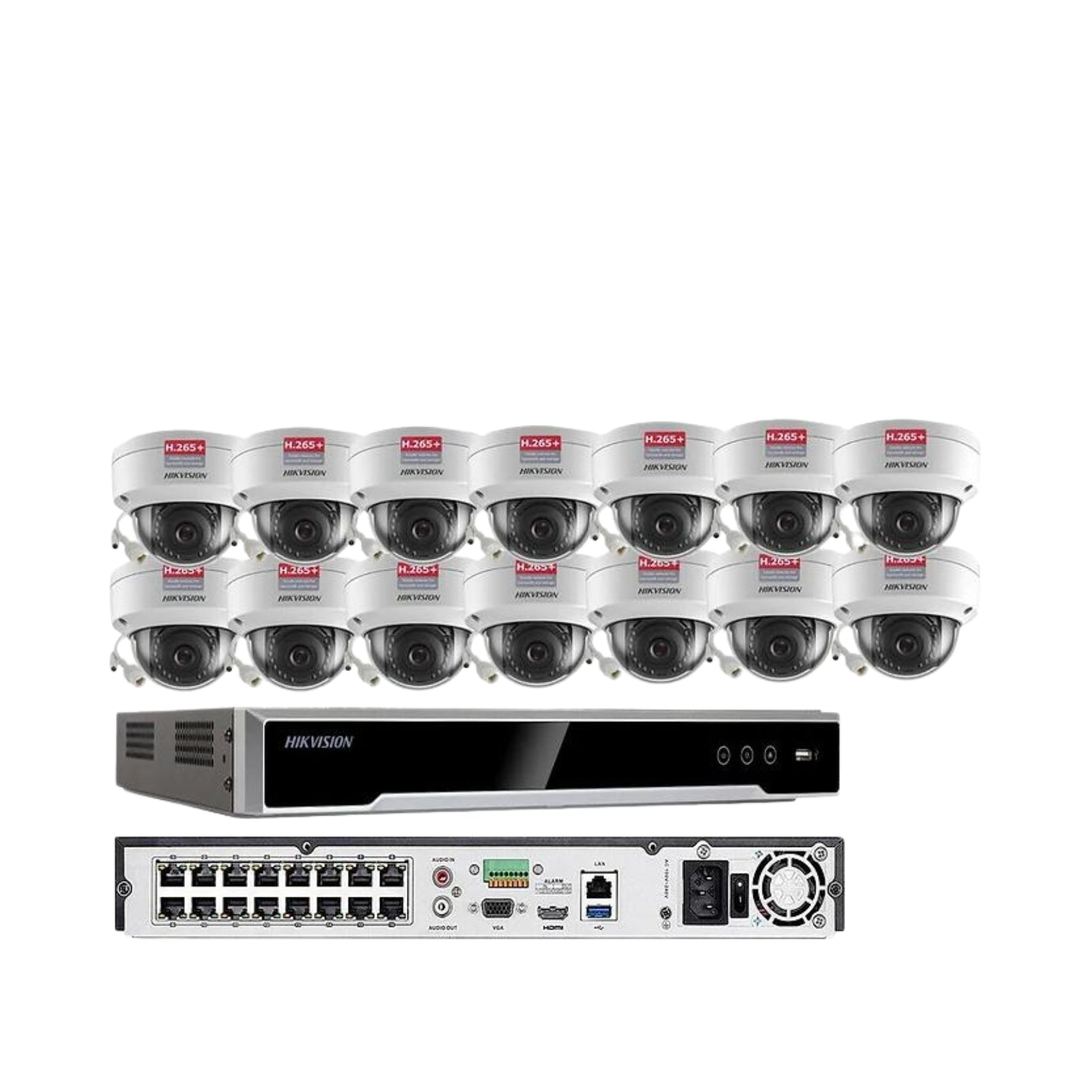

Hikvision 16 Channel 4K 8MP PoE NVR (16)x2MP IP Dome Camera CCTV Security System

Description

Hikvision 16 Channel 4K 8MP PoE NVR (16)x2MP IP Dome Camera CCTV Security System


This listing includes:

  •  CAMERA QUANTITY (DS-2CD1123G0-I): 4;6;8;10;12;14;16
  • HARD DRIVE OPTION FOR RECORDER DS-7616NI-Q2/16P: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB


DS-2CD1123G0-I  view data sheet

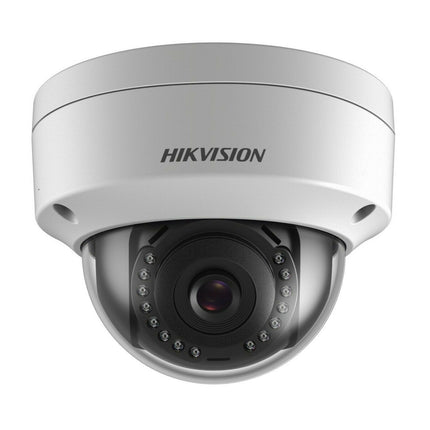

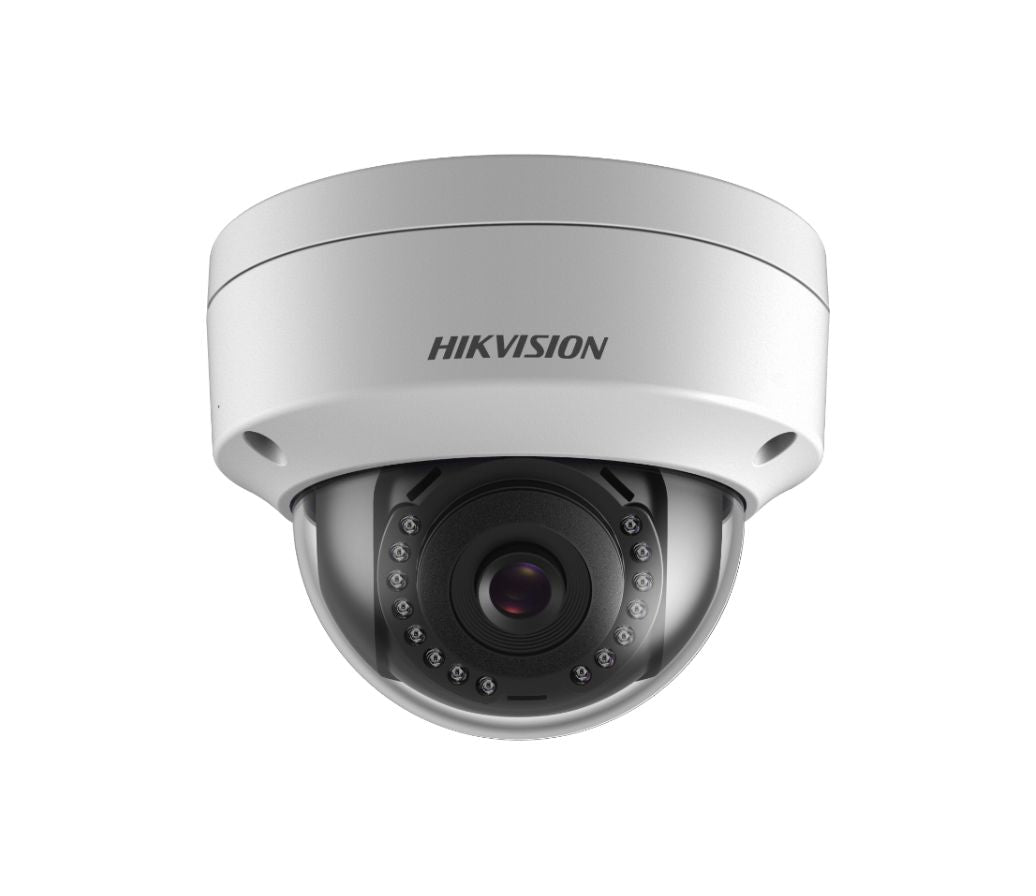

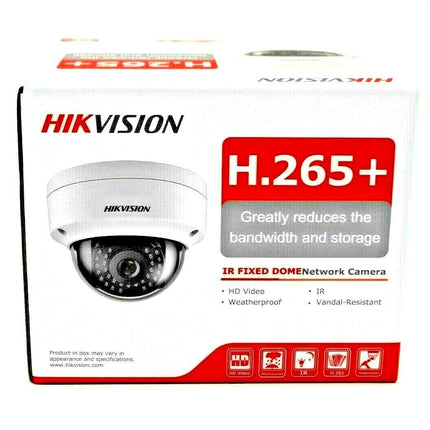

2 MP Fixed Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to DWDR technology
  • Water and dust resistant (IP67), vandal proof (IK10)
  • EXIR 2.0: advanced infrared technology with long IR range


DS-7616NI-Q2/16P  view data sheet

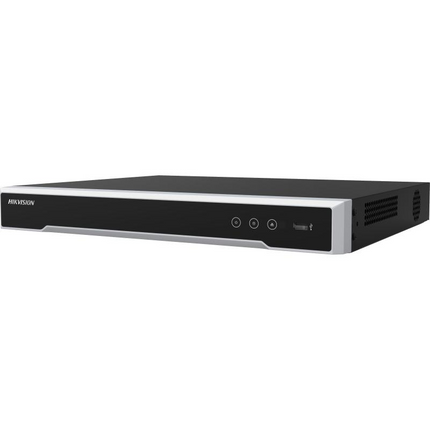

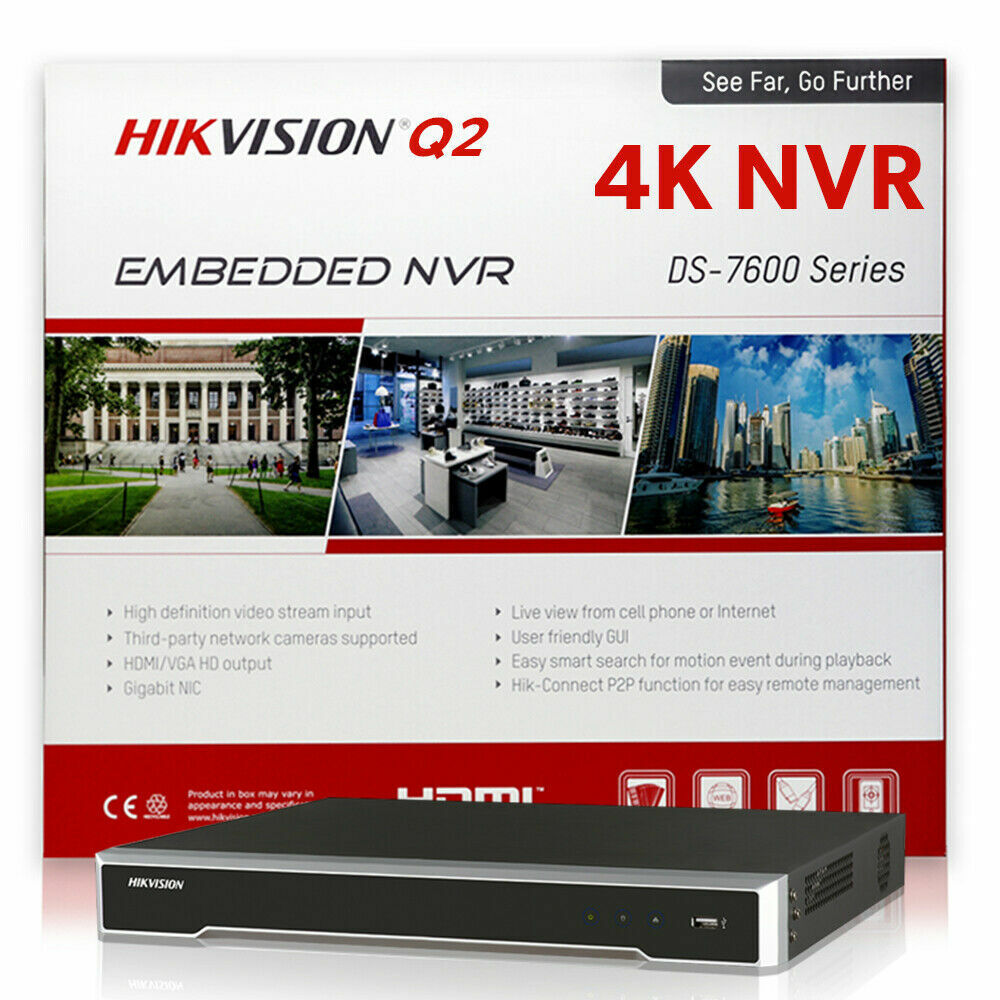

16ch 1U 16 PoE 4K NVR

  • Up to 16ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
  • Up to 160 Mbps incoming bandwidth

Hikvision 16 Channel 4K 8MP PoE NVR (16)x2MP IP Dome Camera CCTV Security System

Product form

SKU: 360343668966-QP4

$594.00 $544.95

Out of stock

      • Guaranteed secure & safe checkout.

        paypal

      Description

      Hikvision 16 Channel 4K 8MP PoE NVR (16)x2MP IP Dome Camera CCTV Security System


      This listing includes:

      •  CAMERA QUANTITY (DS-2CD1123G0-I): 4;6;8;10;12;14;16
      • HARD DRIVE OPTION FOR RECORDER DS-7616NI-Q2/16P: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB

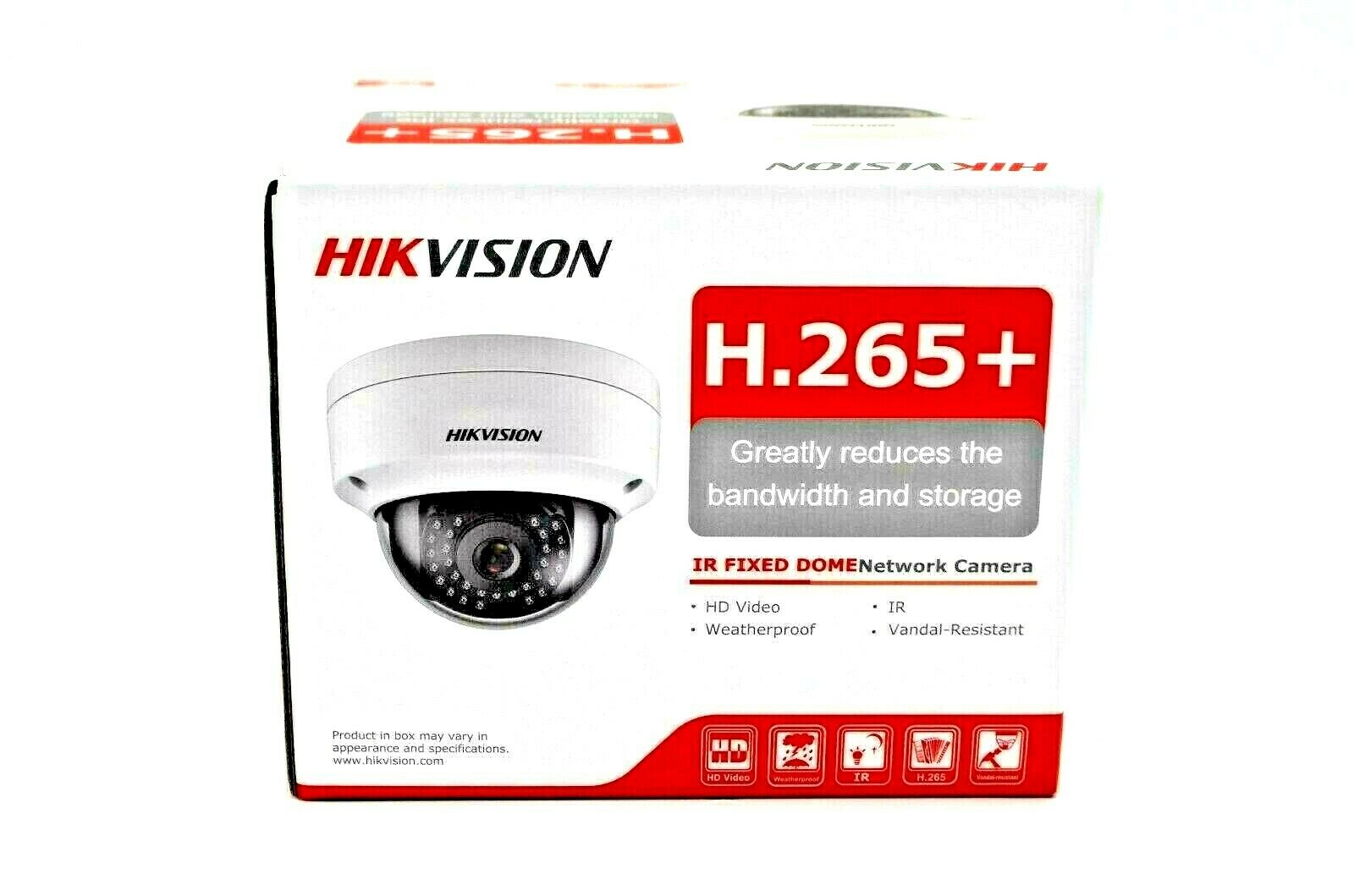

      DS-2CD1123G0-I  view data sheet

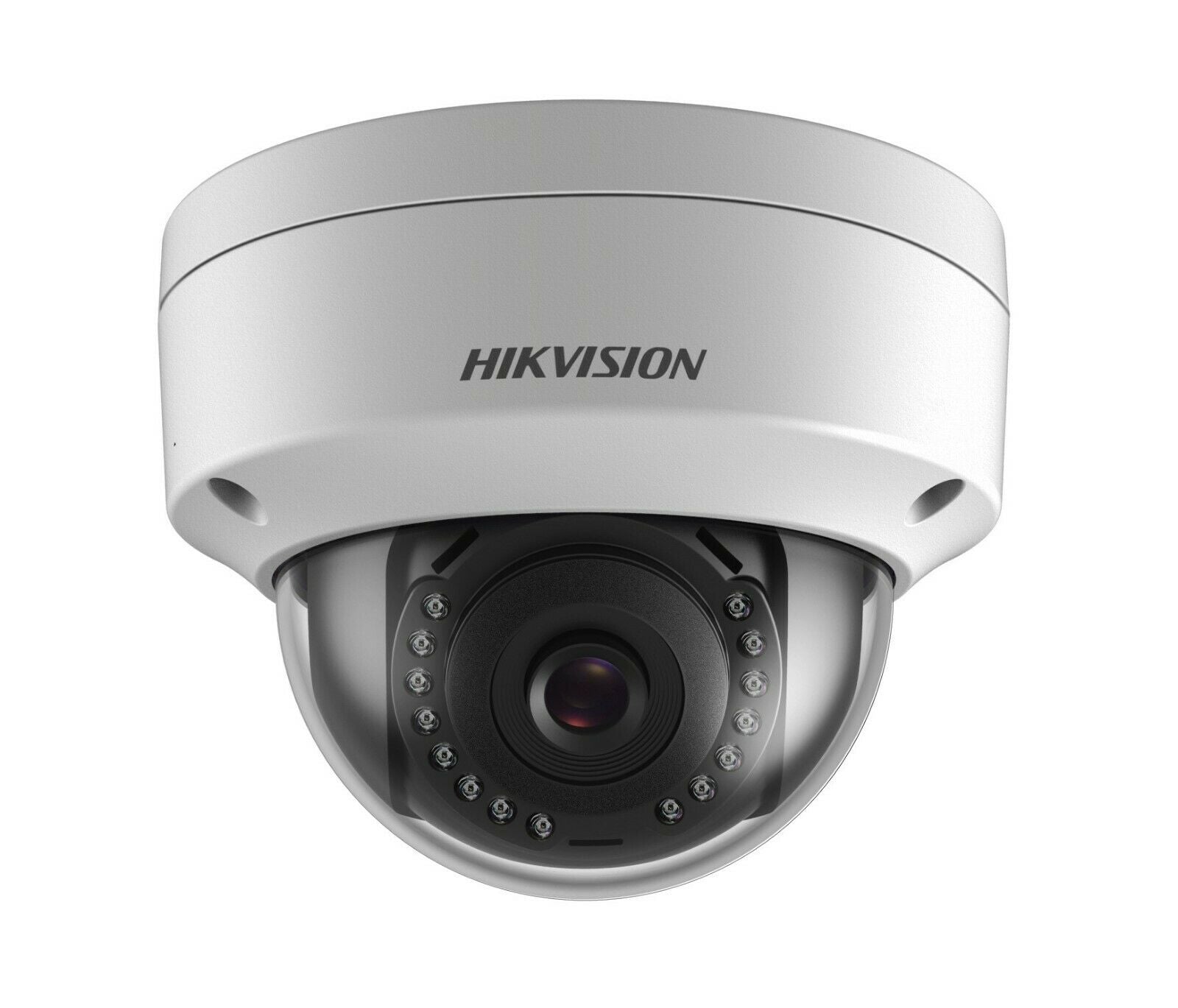

      2 MP Fixed Dome Network Camera

      • High quality imaging with 2 MP resolution
      • Efficient H.265+ compression technology
      • Clear imaging even with strong back lighting due to DWDR technology
      • Water and dust resistant (IP67), vandal proof (IK10)
      • EXIR 2.0: advanced infrared technology with long IR range


      DS-7616NI-Q2/16P  view data sheet

      16ch 1U 16 PoE 4K NVR

      • Up to 16ch IP camera inputs
      • H.265+/H.265/H.264+/H.264 video formats
      • Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
      • Up to 160 Mbps incoming bandwidth
      Total Control, Anywhere

      Total Control, Anywhere

      Mobile app access so you can monitor your home remotely which means you feel in control no matter where you are—whether you're at work, on vacation, or just out for dinner, your home is always just a tap away.

      📑 Product Data Sheet ▸

      Data sheet PDF

      Product Description

      2 MP Fixed Dome Network Camera

      • High quality imaging with 2 MP resolution
      • Efficient H.265+ compression technology
      • Clear imaging even with strong back lighting due to DWDR technology
      • Water and dust resistant (IP67), vandal proof (IK10)
      • EXIR 2.0: advanced infrared technology with long IR range

      Specification

        • Camera
        • Image Sensor1/2.8" progressive scan CMOS
        • Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
        • Shutter Speed1/3 s to 1/100, 000 s
        • Slow ShutterYes
        • Day &NightIR cut filter
        • Wide Dynamic RangeDigital WDR
        • Angle AdjustmentPan: 0? to 355?, tilt: 0? to 70?
        • DNR3D DNR
        • Lens
        • Lens2.8 mm, 4 mm, 6 mm
        • Auto-IrisNo
        • ApertureF2.0
        • FocusNo
        • FOV2.8 horizontal FOV 114?, vertical FOV 62?, diagonal FOV 135?,4 mm, horizontal FOV 86?, vertical FOV 46?, diagonal FOV 102?,6 mm, horizontal FOV 54?, vertical FOV 30?, diagonal FOV 62?
        • Lens MountM12
        • Illuminator
        • IR RangeUp to 30 m
        • Wavelength850 nm
        • Video
        • Max. Resolution1920 ? 1080
        • Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
        • H.264 TypeBaseline Profile/Main Profile/High Profile
        • H.265 TypeMain Profile
        • Video Bit Rate32 Kbps to 8 Mbps
        • Smart Feature-Set
        • Region Of Interest1 fixed region for main stream and sub-stream
        • Image
        • Image EnhancementBLC, 3D DNR
        • Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
        • Day/Night SwitchAuto, scheduled
        • Main Stream Max. Frame Rate50Hz: 25fps (1920 ? 1080, 1280 ? 960, 1280 ? 720),60Hz: 30fps (1920 ? 1080, 1280 ? 960, 1280 ? 720)
        • Sub-Stream Max. Frame Rate50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240),60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240)
        • Network
        • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
        • APIONVIF (PROFILE S, PROFILE G), ISAPI
        • Simultaneous Live ViewUp to 6 channels
        • User/HostUp to 32 users,3 levels: Administrator, Operator, and User
        • ClientiVMS-4200, Hik-Connect, iVMS-5200
        • Web BrowserIIE7+, Chrome18-42, Firefox5.0+, Safari5.02+
        • Alarm TriggerMotion detection, video tampering alarm, illegal login
        • Interface
        • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
        • Compression Standard
        • H.264+Main stream supports
        • H.265+Main stream supports
        • General
        • Firmware Version5.5.2
        • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
        • Startup And Operating Conditions-30 ?C to 50 ?C (-22 ?F to 122 ?F), humidity: 95% or less (non-condensing)
        • Power Supply12 VDC ? 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
        • MaterialMetal & Plastic
        • DimensionsCamera: ? 111 mm ? 82.4 mm ( 4.4" ? 3.2"),With package: 134 mm ? 134 mm ? 108 mm (5.3" ? 5.3" ? 4.3")
        • WeightCamera: Approx. 410 g (0.9 lb.),With package: Approx. 610 g (1.3 lb.)
        • Power Consumption And Current12 VDC, 0.4 A, Max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
        • Interface ProtectionIP67, IK10,TVS 2000V lightning protection, surge protection and voltage transient protection

      Data sheet PDF

      Product Description

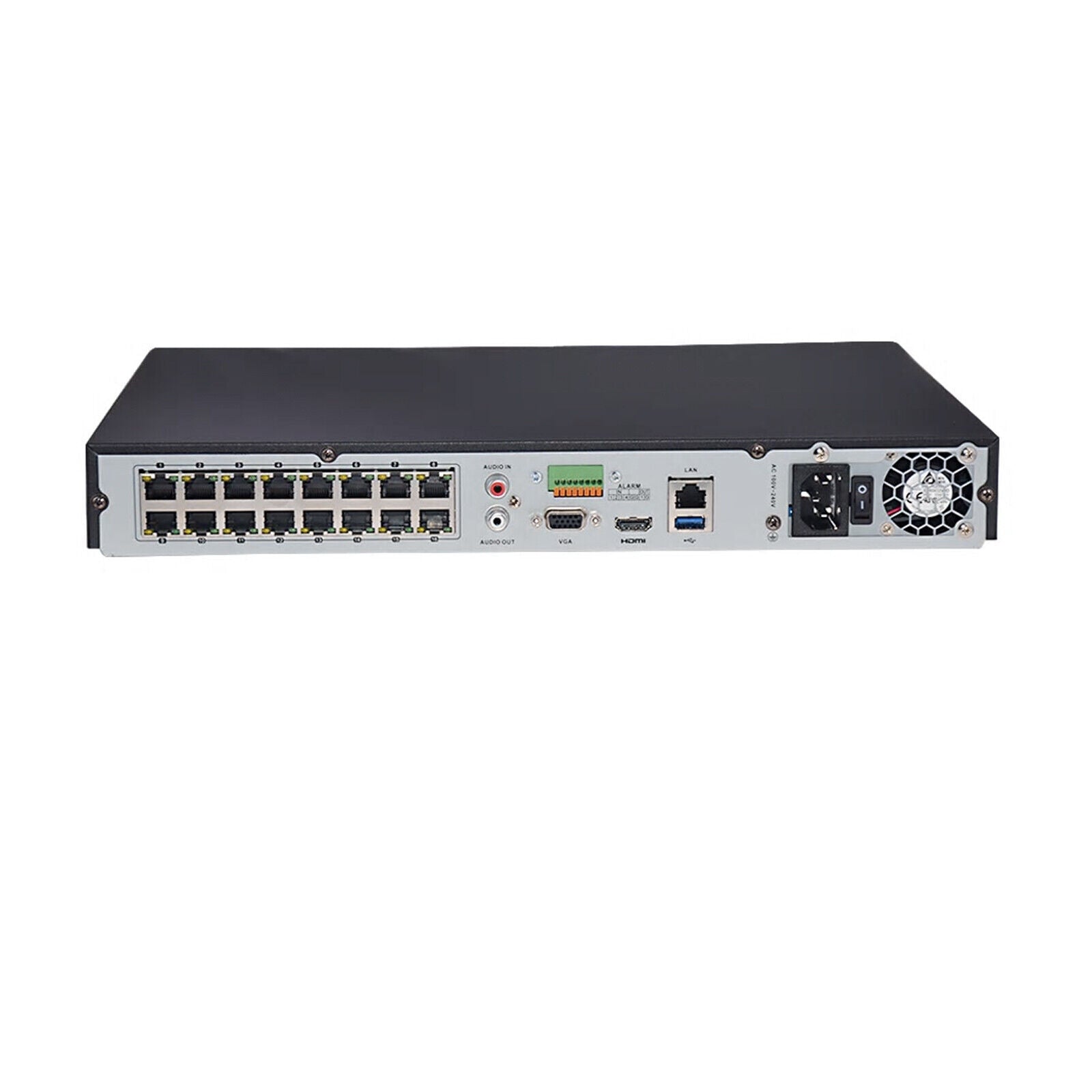

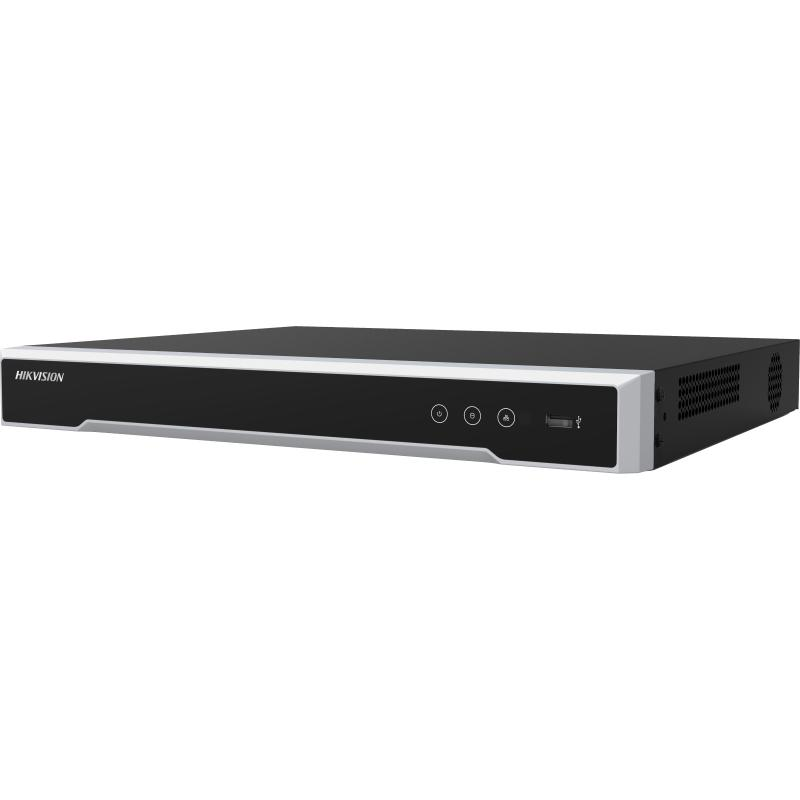

      16ch 1U 16 PoE 4K NVR

      • Up to 16ch IP camera inputs
      • H.265+/H.265/H.264+/H.264 video formats
      • Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
      • Up to 160 Mbps incoming bandwidth

      Specification

        • Motion Detection 2.0
        • Human/Vehicle Analysis4
        • Video And Audio
        • IP Video Input16ch
        • HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
        • VGA Output1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz
        • Video Output ModeHDMI/VGA simultaneous output
        • Incoming Bandwidth160 Mbps
        • Outgoing Bandwidth80 Mbps
        • Audio Output1-ch, RCA (Linear, 1 K?)
        • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?)
        • Decoding
        • Decoding FormatH.265+,H.265,H.264+,H.264
        • Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
        • Synchronous Playback16ch
        • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
        • Network
        • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS
        • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
        • PoE
        • Interface16ch;16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
        • Power? 150W
        • StandardIEEE 802.3 af/at
        • RAID
        • RAID TypeNo
        • Auxiliary Interface
        • SATA2 SATA interfaces
        • CapacityUp to 8TB capacity for each disk
        • USB Interface2 ? USB 2.0
        • General
        • Power Supply100-240V?, 50/60Hz, 3.2A MAX
        • Consumption? 15W
        • Working Temperature-10 to +55? C (+14 to +131? F)
        • Working Humidity10 to 90 %
        • Chassis1U chassis
        • Dimension (W ? D ? H)385 ? 315 ? 52 mm (15.2"? 12.4" ? 2.0")
        • Weight? 2.6 kg (5.7 lb)
