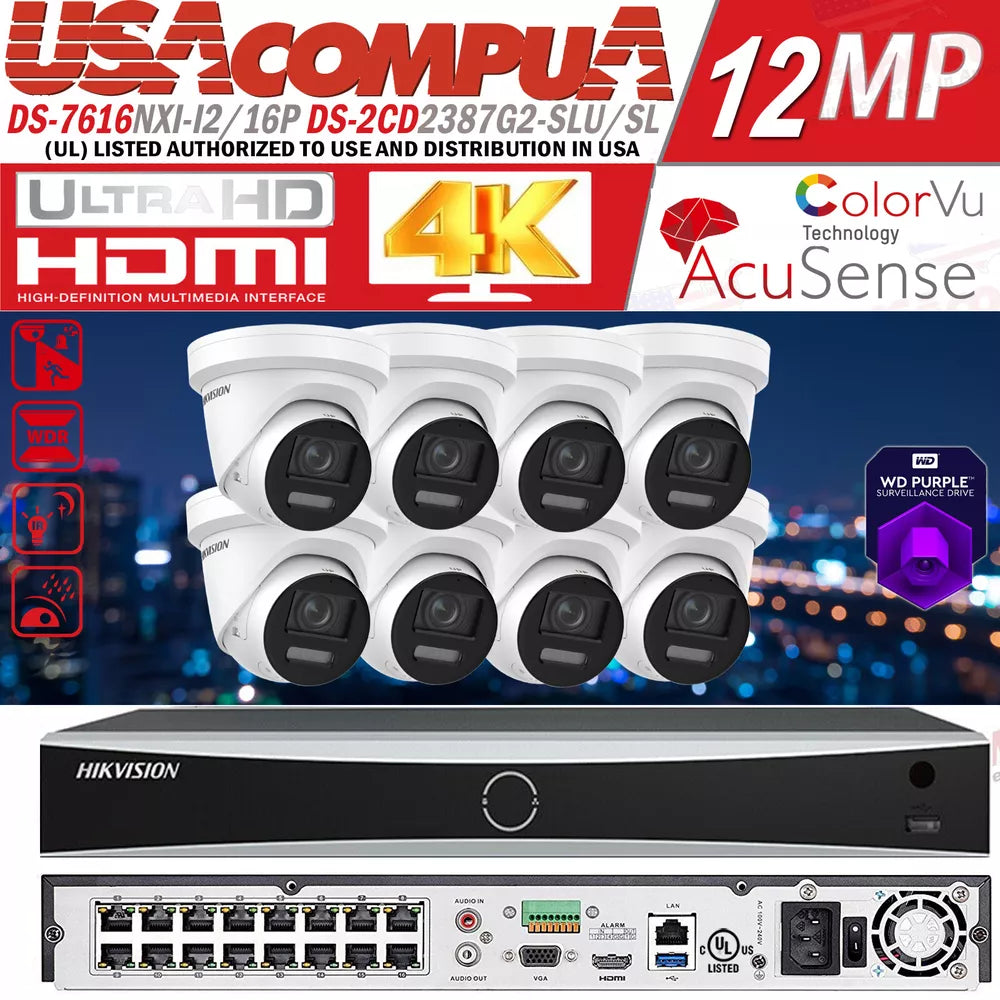

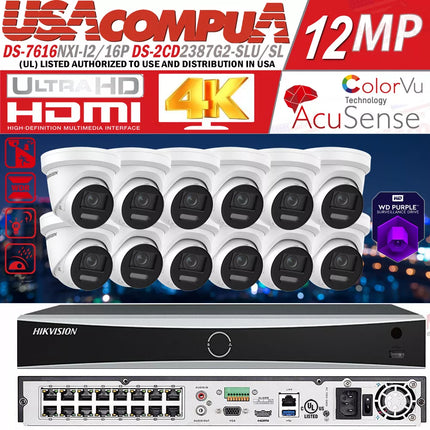

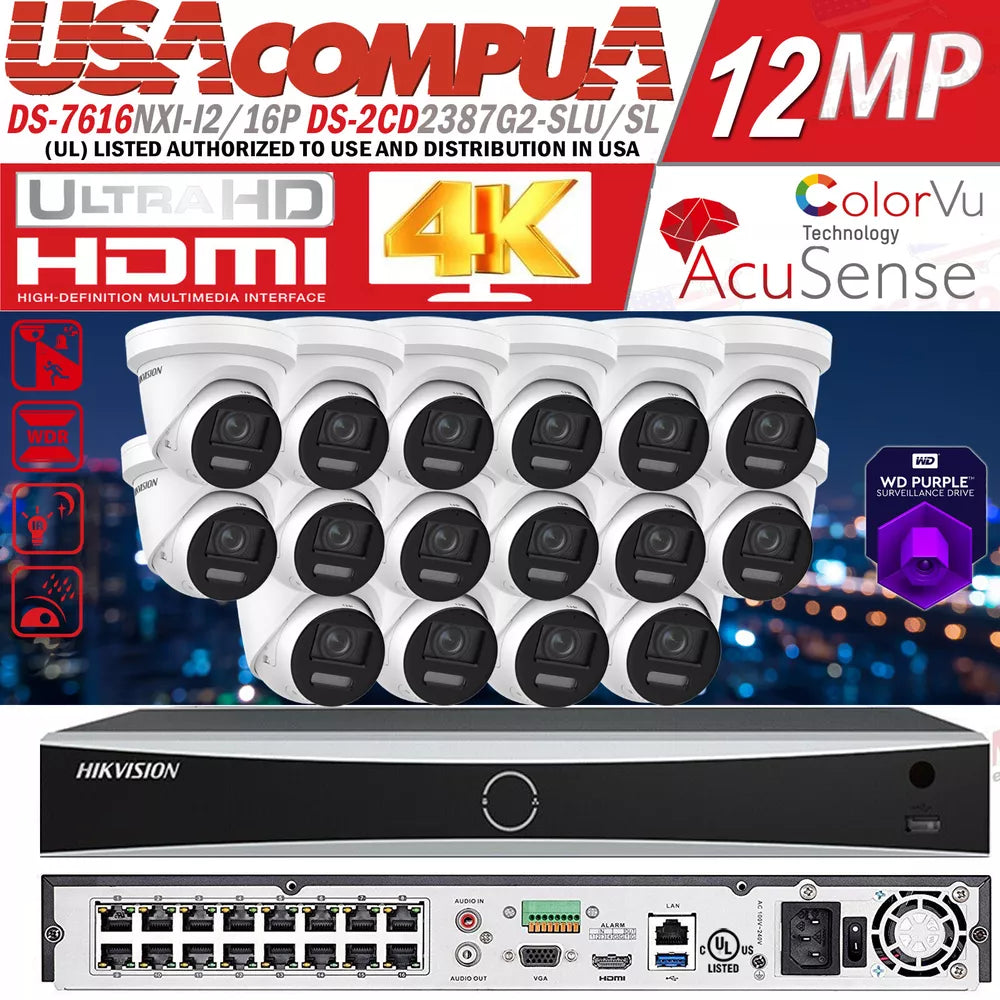

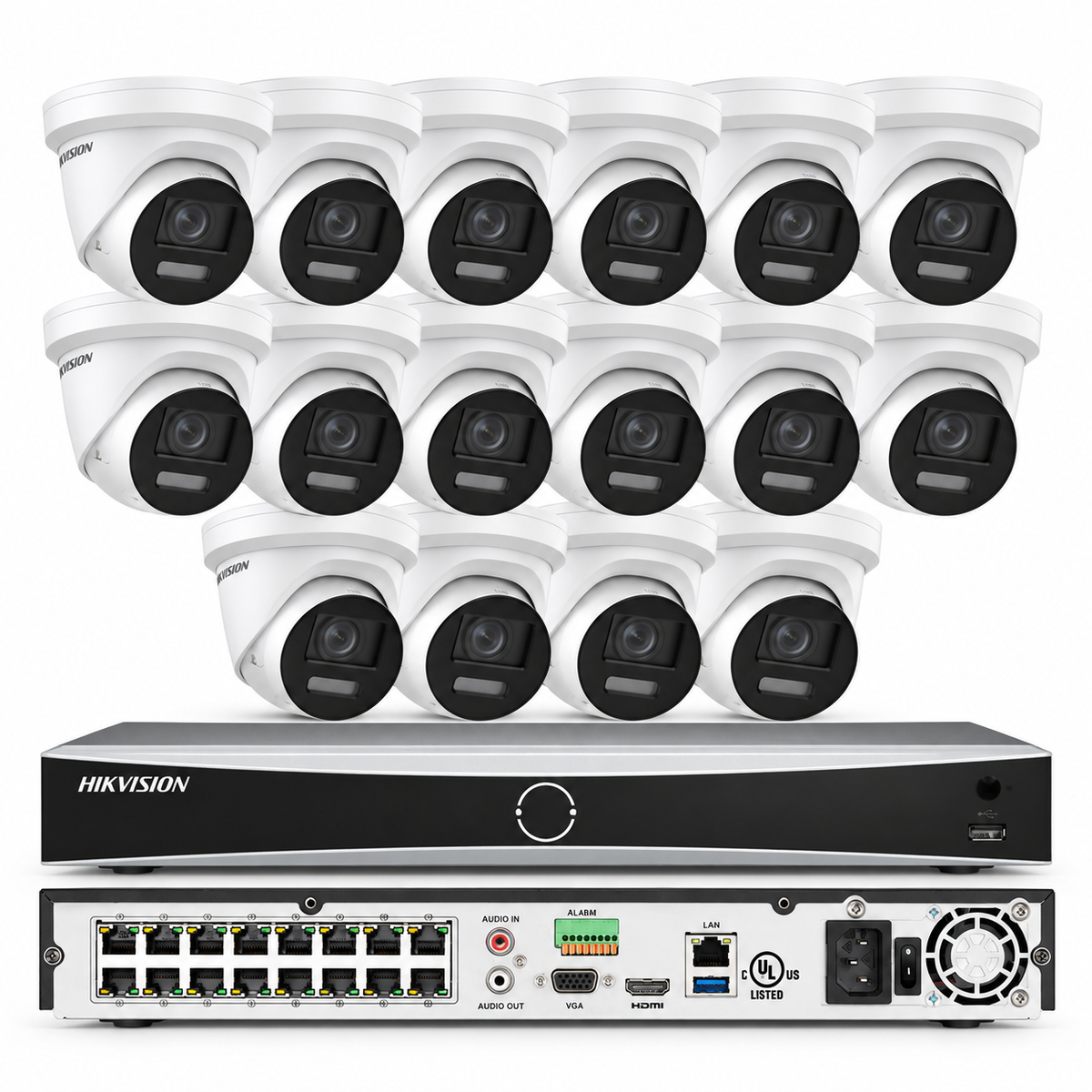

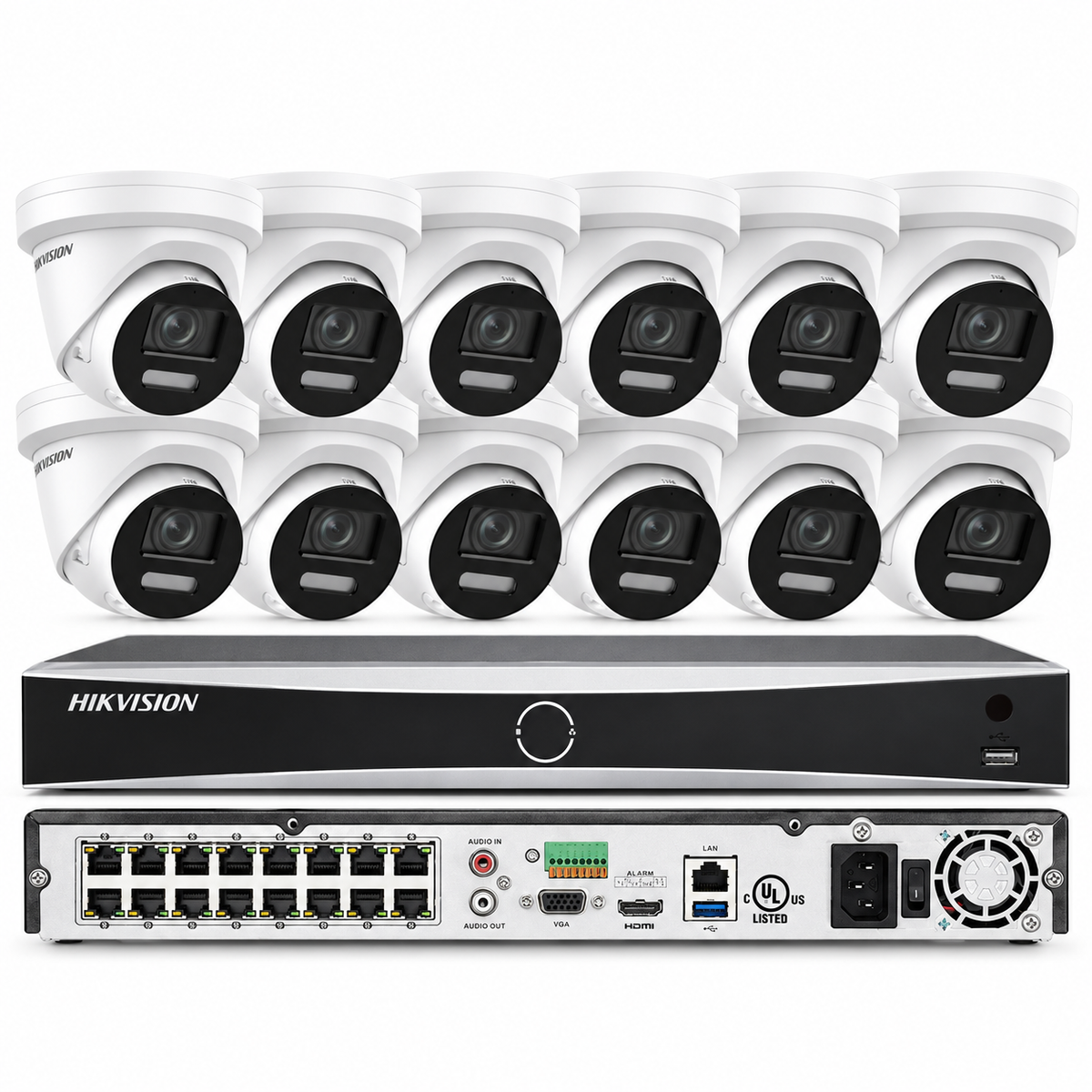

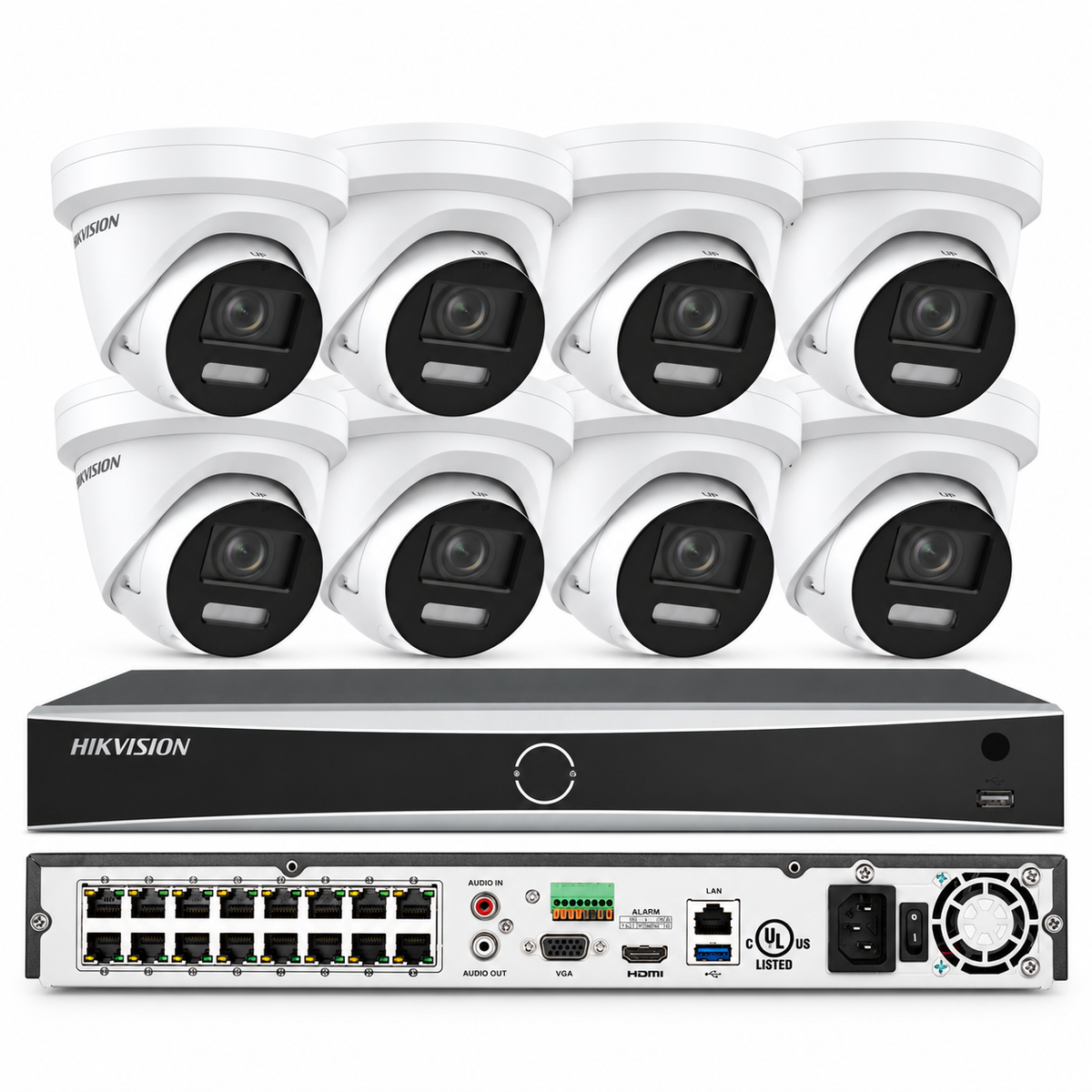

Hikvision 16CH 4K 8MP Colorvu IP Camera MIC Speaker PoE 12MP NVR CCTV System Lo

Data sheet PDF

Product Description

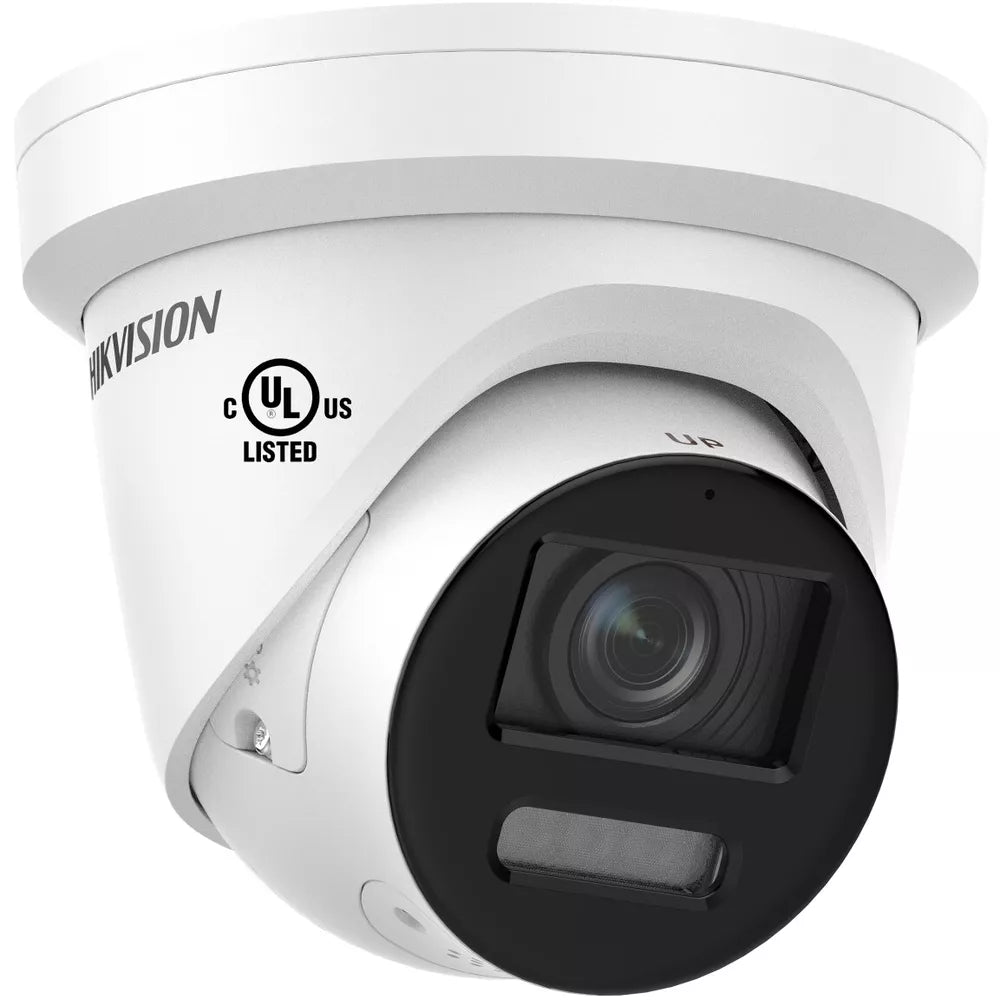

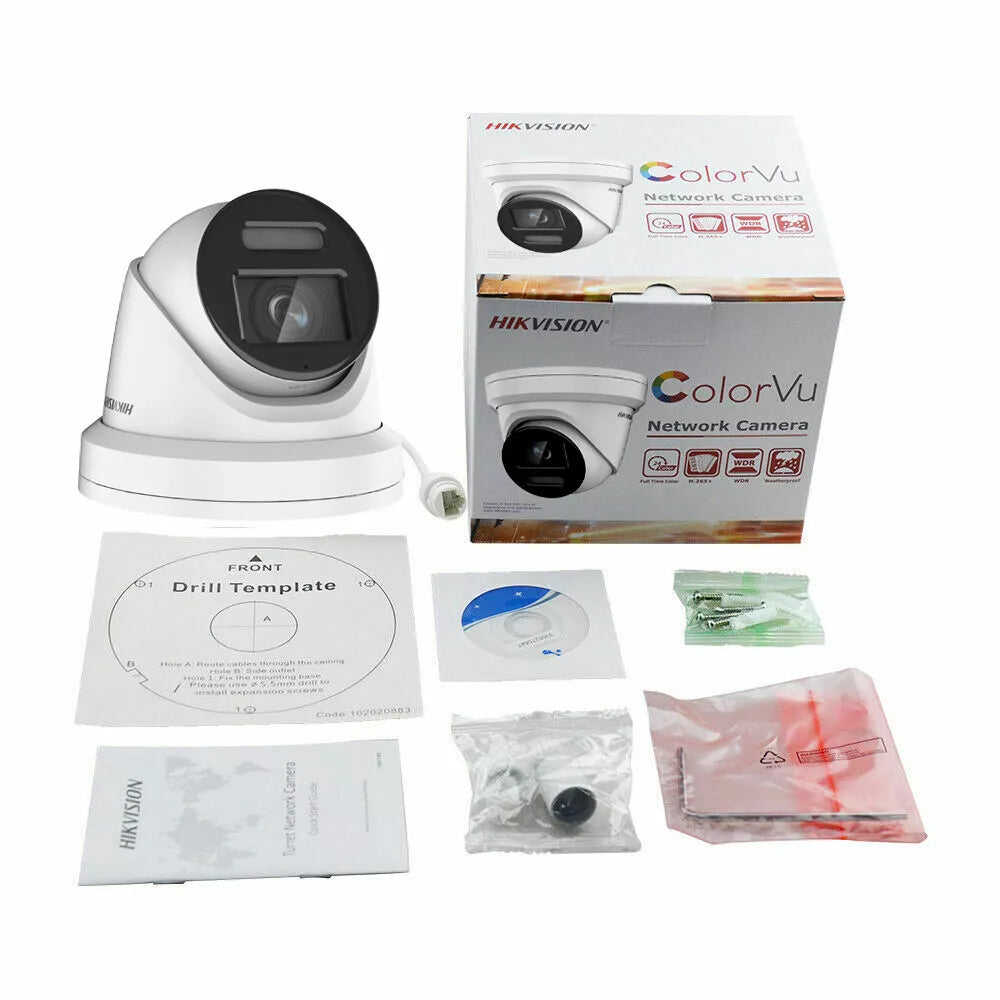

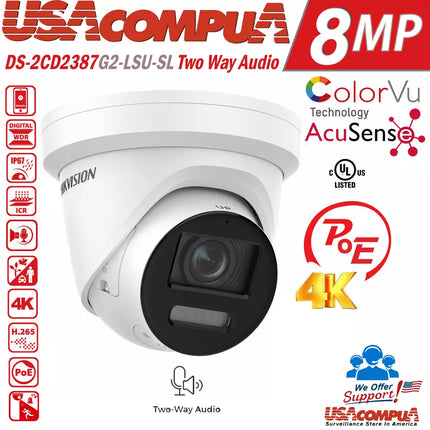

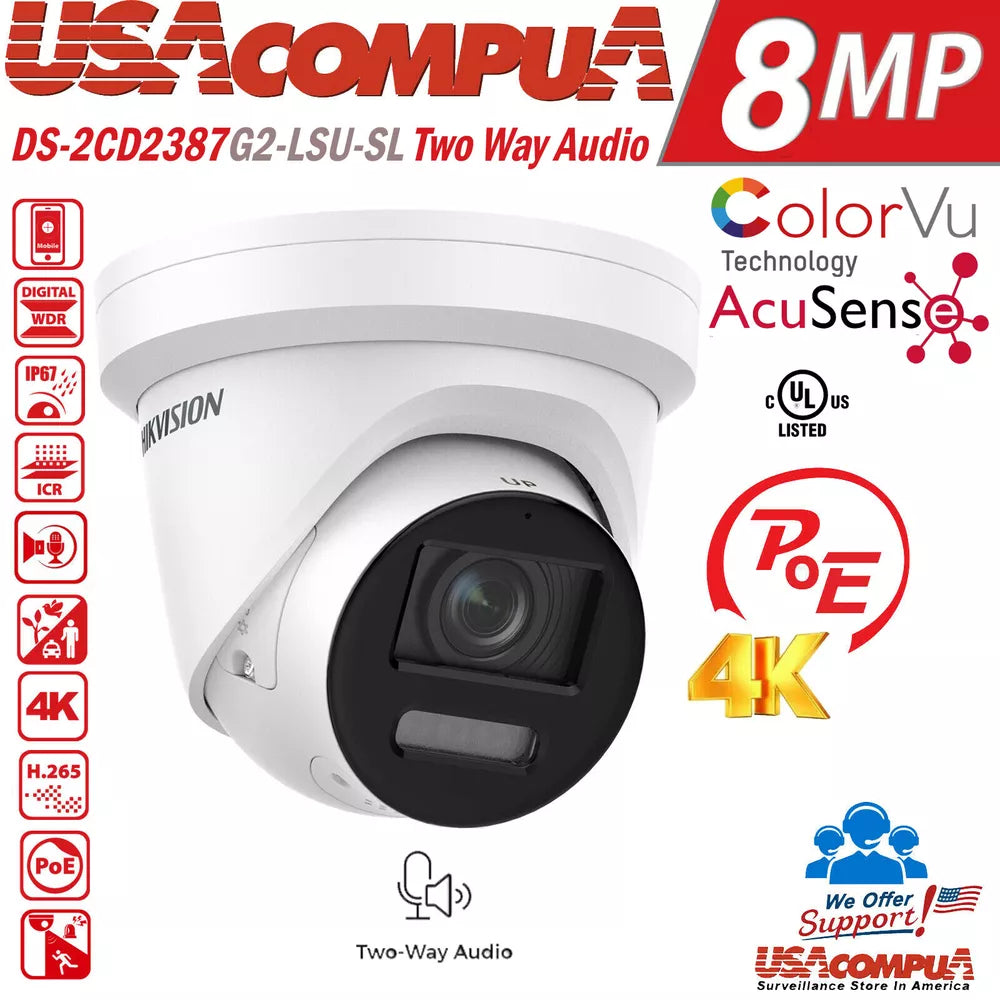

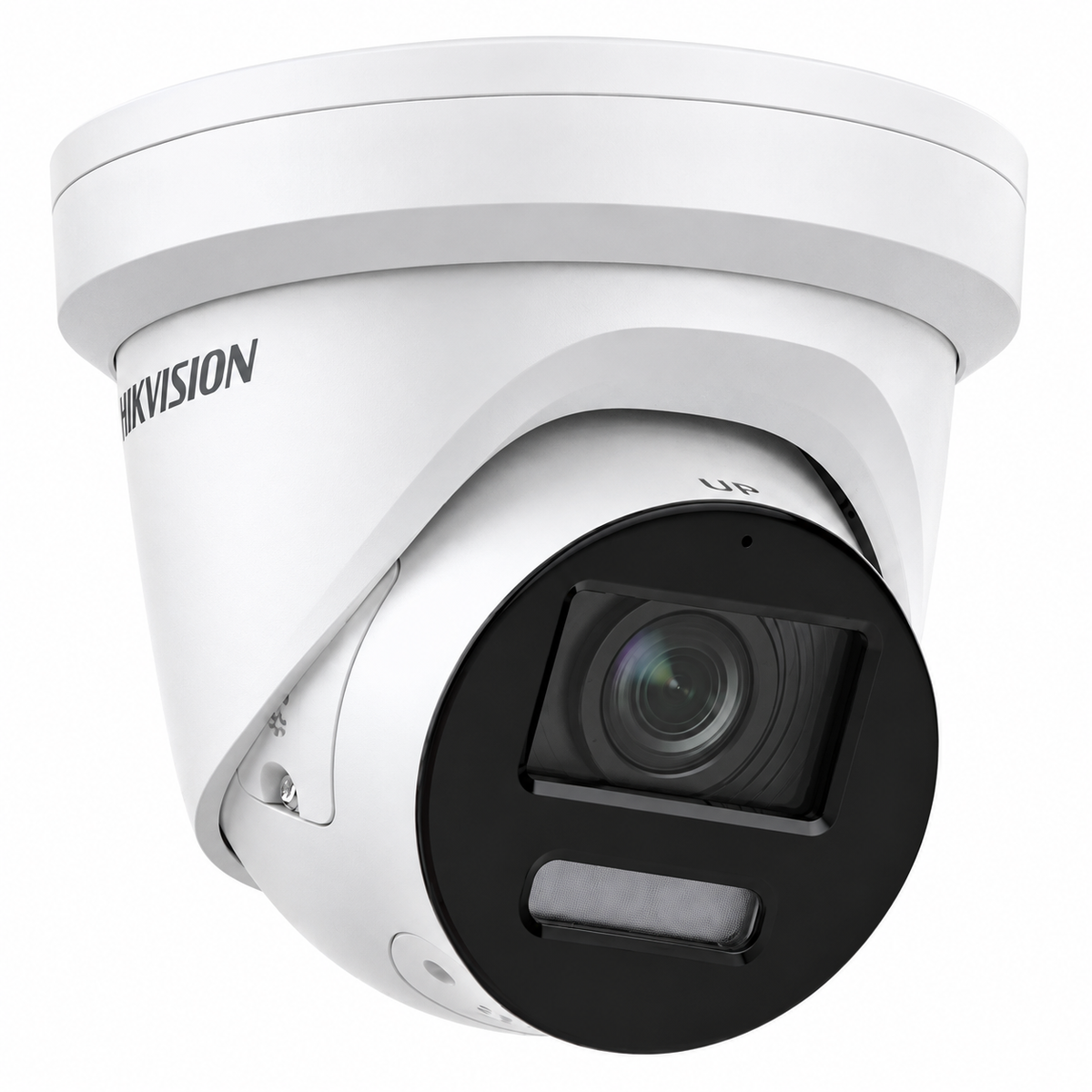

8 MP ColorVu Strobe Light and Audible Warning Fixed Turret Network Camera

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Focus on human and vehicle targets classification
• 24/7 colorful imaging
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Audio and alarm interface available
• Water and dust resistant (IP67)

Camera

Lens

DORI

Illuminator

Video

Audio

Network


Interface

Event

Deep Learning Function

General

Approval

• Camera
• Image Sensor1/1.2? Progressive Scan CMOS
• Max. Resolution3840 ? 2160
• Min. IlluminationColor?0.0005 Lux @ (F1.0, AGC ON)?0 Lux with white light
• Shutter Speed1/3 s to 1/100,000 s
• Day & Night24/7 Color imaging
• Angle AdjustmentPan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360?
• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 102?, vertical FOV 52?, diagonal FOV 124?

  4 mm, horizontal FOV 88?, vertical FOV 47?, diagonal FOV 104?

• Lens MountM mount
• Iris TypeFixed
• ApertureF1.0
• Depth Of Field

  2.8 mm: 4 m to ?

  4 mm: 6.2 m to ?

• DORI
• DORI

  2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m

  4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• Video
• Main Stream

  50 Hz:

  25 fps (3840 ? 2160, 3200 ? 1800 , 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

  60 Hz:

  24 fps (3840 ? 2160)

  30 fps (3200 ? 1800 , 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

• Third Stream

  50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 10 fps (1920 x 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream
• Audio
• Environment Noise Filtering-U: Yes
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Network
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Wide Dynamic Range (WDR)130 dB
• SNR? 52 dB
• Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512 GB
• Built-In MicrophoneYes
• Built-In Speaker1.5 W, 10 cm: 95 dB
• Audio

  1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 K?, interface type: non-equilibrium

  1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium

• Alarm1 input, 1 output (max. 24 VDC, 1 A)
• Reset KeyYes
• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)), scene change detection
• LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email
• Deep Learning Function
• Face CaptureYes
• Gene

  Data sheet PDF

  Product Description

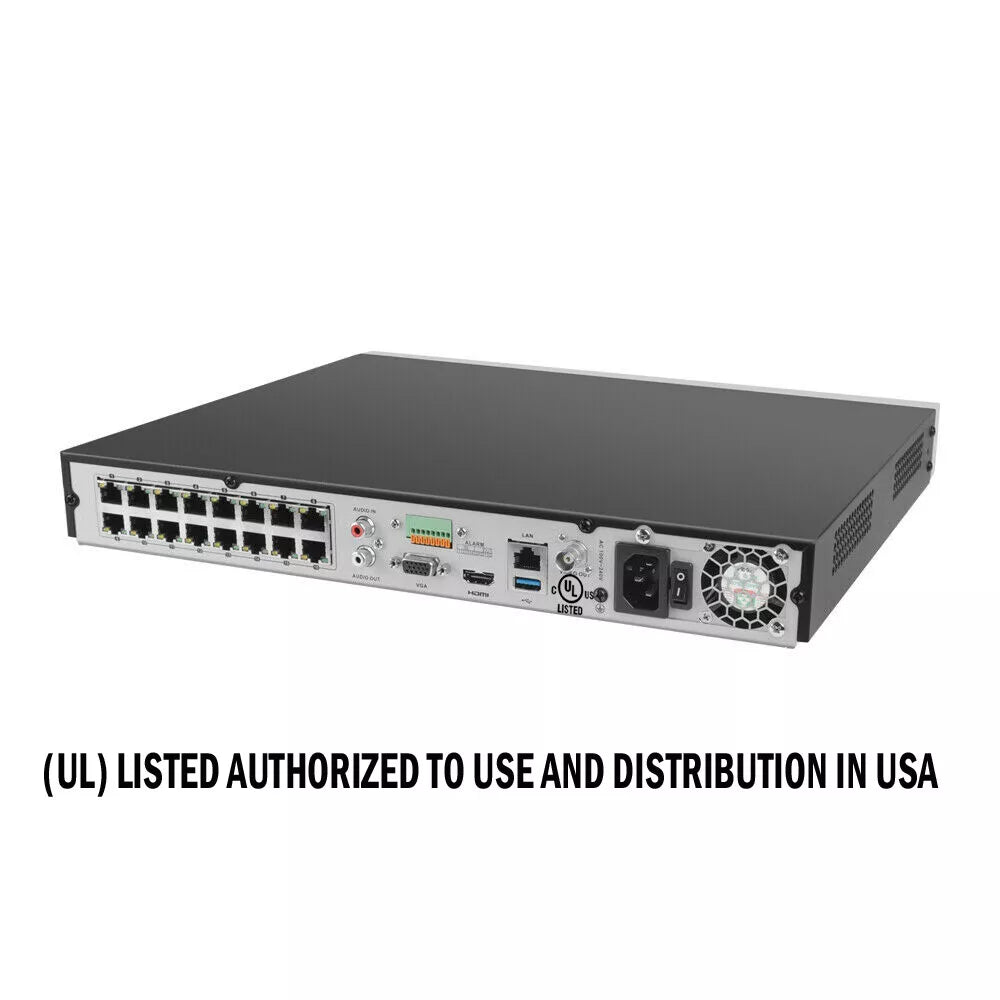

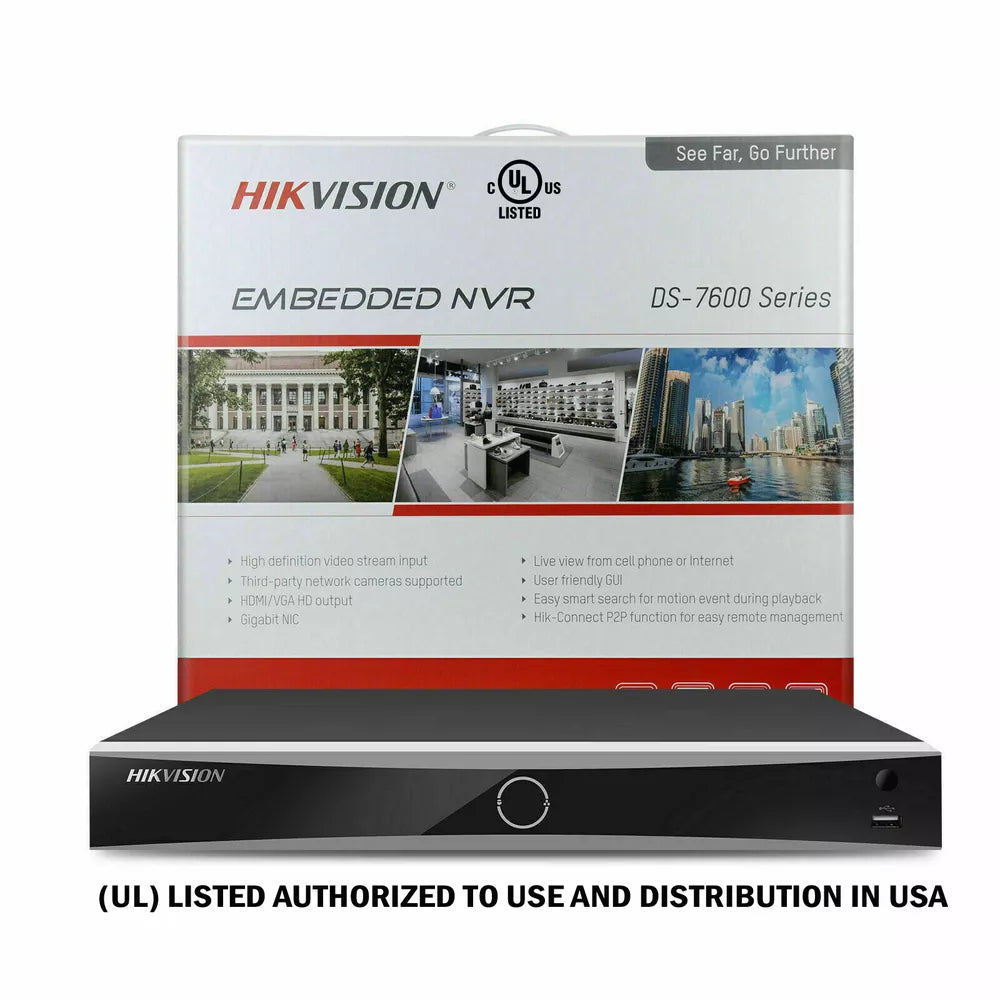

  16ch 1U 16 POE AcuSense 4K NVR

  • H.265+/H.265/H.264+/H.264 video formats
  • Intelligent analytics based on deep learning algorithm
  • Up to 4ch perimeter protection
  • Up to 4ch facial recognition for video stream
  • Up to 8ch facial recognition for face picture
  • Up to 16ch IP camera inputs
  • Up to 32ch 1080p decoding capability
  Specification
  • Intelligent Analytics
  • AI By NVRFacial recognition, perimeter protection, motion detection 2.0
  • AI By CameraFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
  • Engine1, engine mode is adjustable
  • Facial Recognition
  • Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ? 512 KB, total capacity ? 150 MB)
  • Face Picture Comparison4ch face picture comparison alarm
  • Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
  • Facial Detection And Analytics Performance1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
  • Motion Detection 2.0
  • Human/Vehicle Analysis16ch
  • By NVRAll channels for Hikvision cameras
  • By CameraAll channels
  • Perimeter Protection
  • Human/Vehicle Analysis

    Up to 4ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

    Up to 12 rules in total;Up to 4ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

  • By NVR

    4ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;

    Up to 12 rules in total

  • By CameraAll channels
  • ANPR
  • By CameraAll channels
  • Vehicle AttributesPlate number, license plate color, license plate type
  • Plate AttributesVehicle brand, vehicle color, vehicle type
  • Video And Audio
  • IP Video Input16
  • Incoming Bandwidth160 Mbps
  • Outgoing Bandwidth256 Mbps
  • HDMI Output4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
  • VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
  • Video Output ModeHDMI/VGA independent output
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
  • Audio Output1-ch, RCA (Linear, 1 K?)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?)
  • Decoding
  • Decoding FormatH.265,H.265+,H.264,H.264+,MPEG4
  • Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback16ch
  • Live View Window Division1/4/6/8/9/16
  • Aux Port Window Division1/4/6/8/9/16
  • Decoding Capability16ch @ 1080p (30 fps)
  • Audio CompressionG.711ulaw,G.711alaw,G.722,G.726,MP2L2
  • Dual-Stream RecordingSupport
  • Stream TypeVideo, Video & Audio
  • Network
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Remote Connection128
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
  • APIONVIF (profile S/G); SDK; ISAPI
  • Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
  • PoE
  • Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power? 200W
  • StandardIEEE 802.3 af/at
  • Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 10 TB capacity for each disk
  • Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
  • Alarm In/Out4/1
  • USB InterfaceFront panel: 1 ? USB 2.0; Rear panel: 1 ? USB 3.0
  • General
  • GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
  • Power Supply? 280 W
  • Consumption? 15W
  • Working Temperature-10???55?
  • Working Humidity10% to 90%
  • Chassis1U
  • Dimension (W ? D ? H)385 ? 315 ?52 mm ( 11.6"? 9.5" ? 1.6")
  • Weight? 3 kg (6.6 lb)
  • Certification
  • Obtained CertificationCE, CB, REACH, WEEE, UKCA, LOA
  • CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
