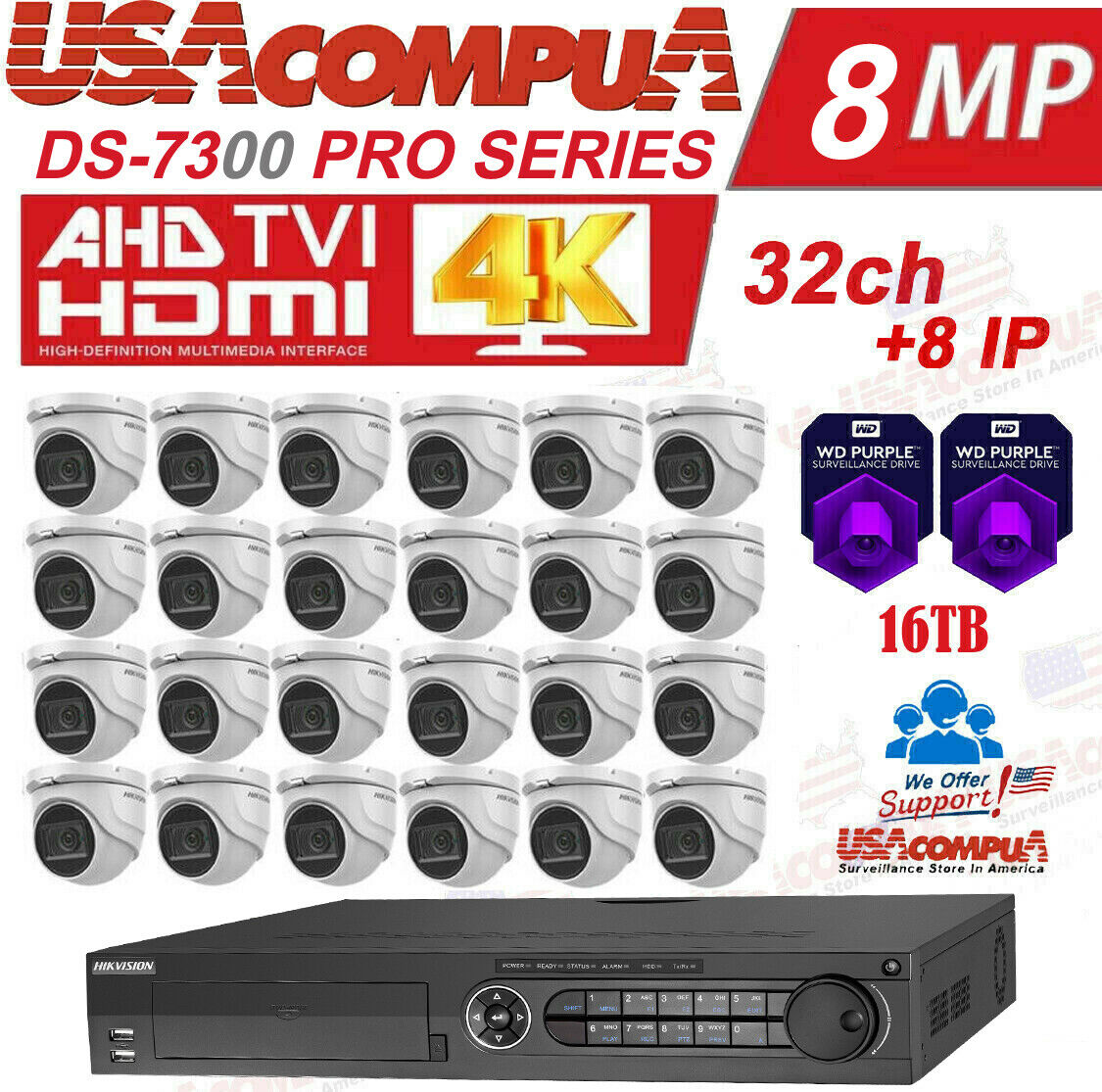

Hikvision 32 CH DVR 24 MINI DOME 8MP SECURITY SYSTEM KIT 16TB HARD DISK

Description

Hikvision 32 CH DVR 24 MINI DOME 8MP SECURITY SYSTEM KIT 16TB HARD DISK


This listing includes:

  •  CAMERA QUANTITY (DS-2CE76H0T-ITMF): 8;12;16;20;24;28;32
  • HARD DRIVE OPTION FOR RECORDER DS-7332HUHI-K4: NO HARD DRIVE;4TB;8TB;12TB;16TB;32TB;40TB


DS-2CE76H0T-ITMF  view data sheet

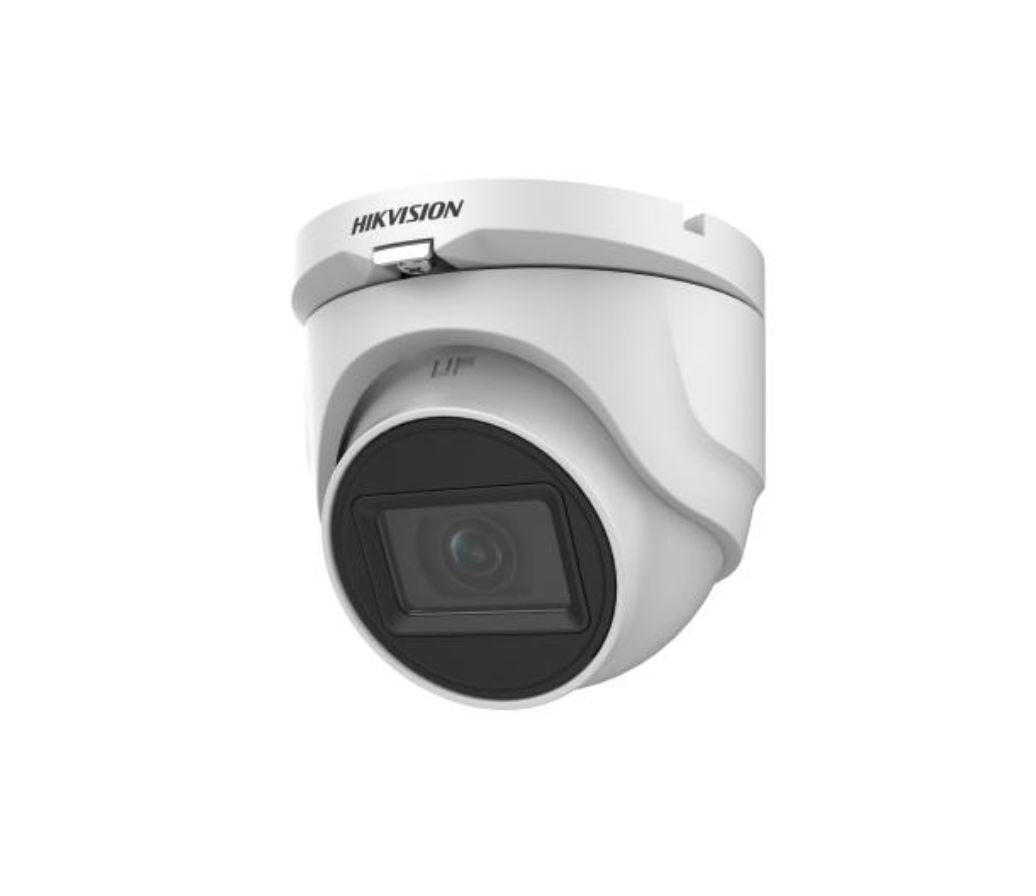

5 MP Fixed Turret Camera

  • 5 MP turret camera
  • EXIR 2.0: advanced infrared technology with 30 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)


DS-7332HUHI-K4  view data sheet

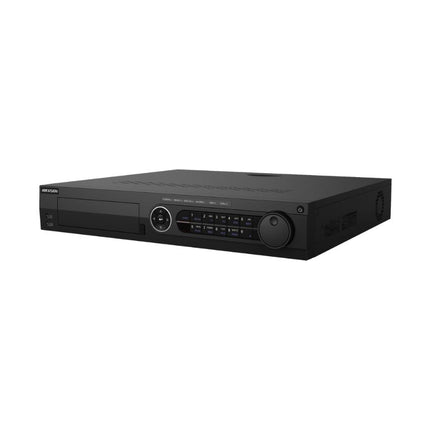

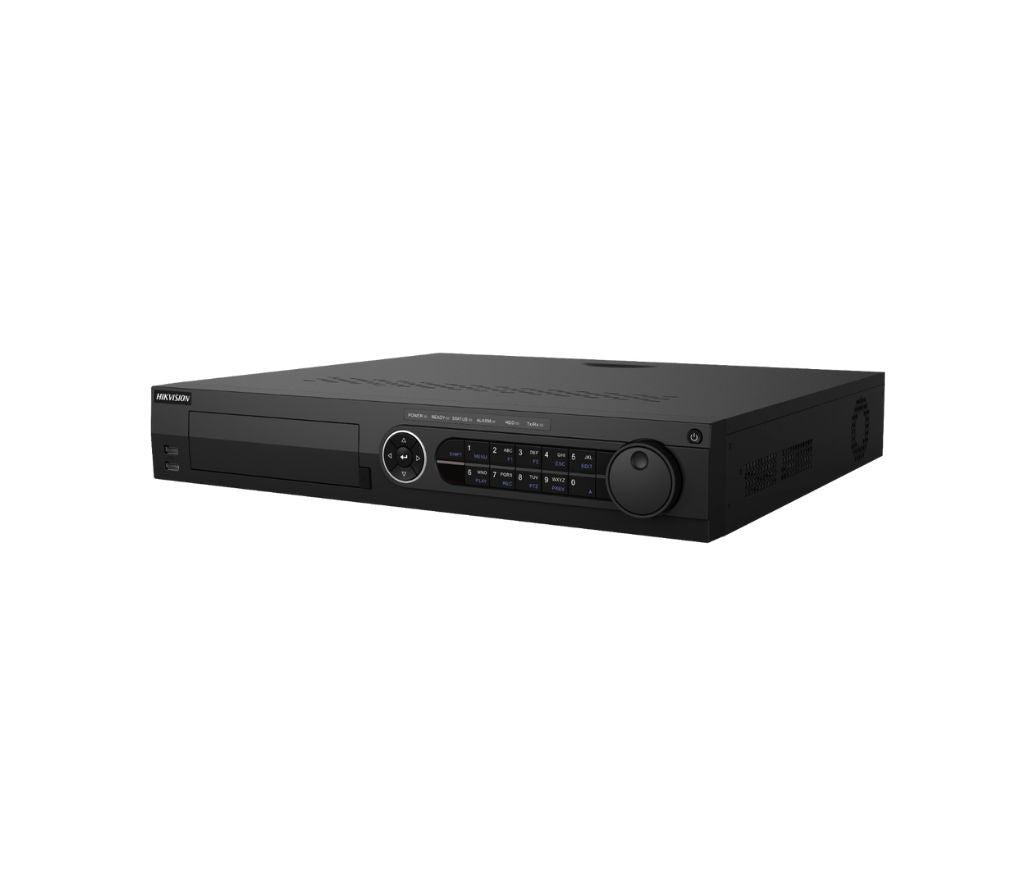

32ch 5 MP 1.5U H.265 DVR

  • 32chs and 4 HDDs 1.5U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
  • 5 signals input adaptively ("Hybrid")
  • Up to 48 network cameras can be connected
  • Supports POS triggered recording and POS information overlay
  • Supports RAID mode for even more reliable data storage, effectively avoiding data loss risks

Hikvision 32 CH DVR 24 MINI DOME 8MP SECURITY SYSTEM KIT 16TB HARD DISK

Product form

SKU: 612326058966-QT8

$1,704.14 $1,577.91

Out of stock

      • Guaranteed secure & safe checkout.

        paypal

      Description

      Hikvision 32 CH DVR 24 MINI DOME 8MP SECURITY SYSTEM KIT 16TB HARD DISK


      This listing includes:

      •  CAMERA QUANTITY (DS-2CE76H0T-ITMF): 8;12;16;20;24;28;32
      • HARD DRIVE OPTION FOR RECORDER DS-7332HUHI-K4: NO HARD DRIVE;4TB;8TB;12TB;16TB;32TB;40TB

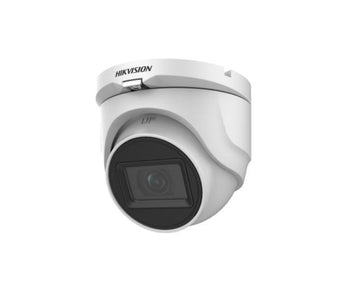

      DS-2CE76H0T-ITMF  view data sheet

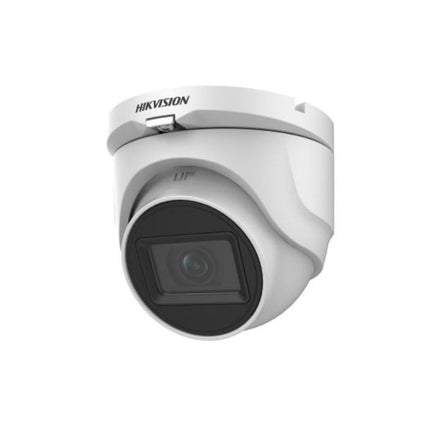

      5 MP Fixed Turret Camera

      • 5 MP turret camera
      • EXIR 2.0: advanced infrared technology with 30 m IR distance
      • Water and dust resistant (IP67)
      • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

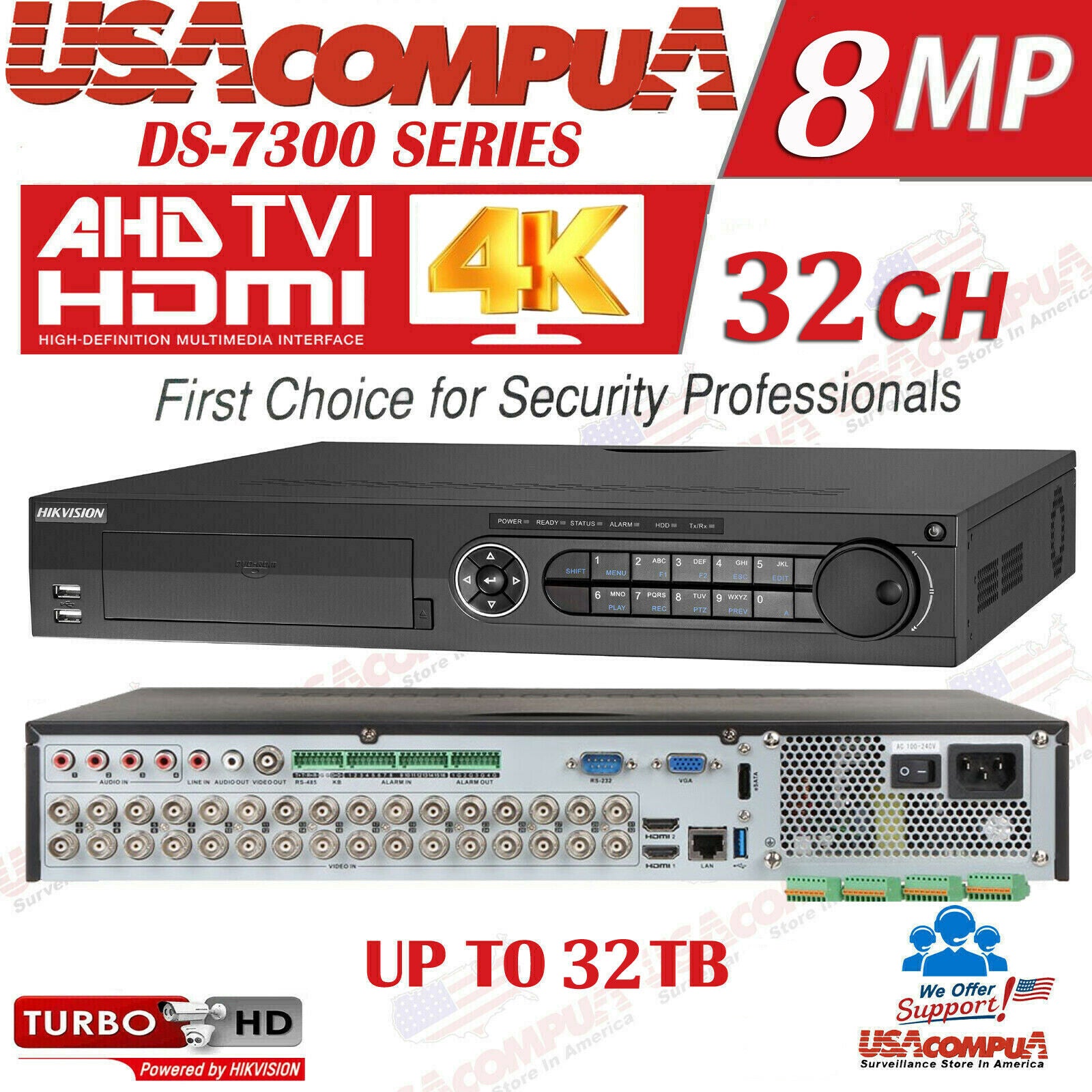

      DS-7332HUHI-K4  view data sheet

      32ch 5 MP 1.5U H.265 DVR

      • 32chs and 4 HDDs 1.5U DVR
      • Efficient H.265 pro+ compression technology
      • Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
      • 5 signals input adaptively ("Hybrid")
      • Up to 48 network cameras can be connected
      • Supports POS triggered recording and POS information overlay
      • Supports RAID mode for even more reliable data storage, effectively avoiding data loss risks
      Total Control, Anywhere

      Total Control, Anywhere

      Mobile app access so you can monitor your home remotely which means you feel in control no matter where you are—whether you're at work, on vacation, or just out for dinner, your home is always just a tap away.

      📑 Product Data Sheet ▸

      Data sheet PDF

      Product Description

      5 MP Fixed Turret Camera

      • 5 MP turret camera
      • EXIR 2.0: advanced infrared technology with 30 m IR distance
      • Water and dust resistant (IP67)
      • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

      Specification

        • Camera
        • Image Sensor5 MP CMOS image sensor
        • Max. Resolution2560 (H) ? 1944 (V)
        • Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
        • Shutter Time

          PAL: 1/25 s to 1/50, 000 s

          NTSC: 1/30 s to 1/50, 000 s

        • Day & NightICR
        • Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 75?, Rotation 0 to 360?
        • Signal SystemPAL/NTSC
        • Lens
        • Lens Type2.4 mm, 2.8 mm, , 6 mm fixed lens
        • Focal Length & FOV

          2.4 mm, horizontal FOV: 110?, vertical FOV: 81?, diagonal FOV:137?

          2.8 mm, horizontal FOV: 85?, vertical FOV: 63?, diagonal FOV:110?

          , horizontal FOV: 80?, vertical FOV: 63?, diagonal FOV:105?

          6 mm, horizontal FOV: 57?, vertical FOV: 43?, diagonal FOV:72?

        • Lens MountM12
        • Image
        • Image Parameters SwitchSTD/HIGH-SAT
        • Image SettingsBrightness, Sharpness, Mirror, Smart IR
        • Frame Rate

          TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

          AHD: 5M@20fps, 4M@30fps, 4M@25fps

          CVI: 4M@30fps, 4M@25fps

          CVBS: PAL/NTSC

        • Day/Night ModeAuto/Color/BW (Black and White)
        • Wide Dynamic Range (WDR)Digital WDR
        • Image EnhancementBLC, HLC
        • White BalanceATW/MANUAL
        • AGCSupport
        • Interface
        • Video OutputSwitchable TVI/AHD/CVI/CVBS
        • General
        • MaterialMetal
        • Dimension? 82.6 mm ? 90 mm ? 79.37 mm (? 3.25" ? 3.54" ? 3.12")
        • WeightApprox. 289 g (0.64 lb.)
        • Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
        • CommunicationHIKVISION-C
        • LanguageEnglish
        • Power Supply12 VDC ?25%
        • Consumption

          Max. 4.3 W

        • IR RangeUp to 30 m
        • Approval
        • ProtectionIP67

      Data sheet PDF

      Product Description

      32ch 5 MP 1.5U H.265 DVR

      • 32chs and 4 HDDs 1.5U DVR
      • Efficient H.265 pro+ compression technology
      • Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
      • 5 signals input adaptively ("Hybrid")
      • Up to 48 network cameras can be connected
      • Supports POS triggered recording and POS information overlay
      • Supports RAID mode for even more reliable data storage, effectively avoiding data loss risks

      Specification

        • Recording
        • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
        • Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
        • Frame RateMain stream:,8 MP@8fps/5 MP@12fps; 4 MP@15fps; 3 MP@18fps;,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream:,WD1/4CIF/CIF@25fps (P)/30fps (N),
        • Video Bitrate32 Kbps to 10 Mbps
        • Dual-StreamSupport
        • Stream TypeVideo, Video & Audio
        • Audio CompressionG.711u
        • Audio Bitrate64 Kbps
        • Video And Audio
        • IP Video Input16ch (up to 48ch);Up to 8 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras

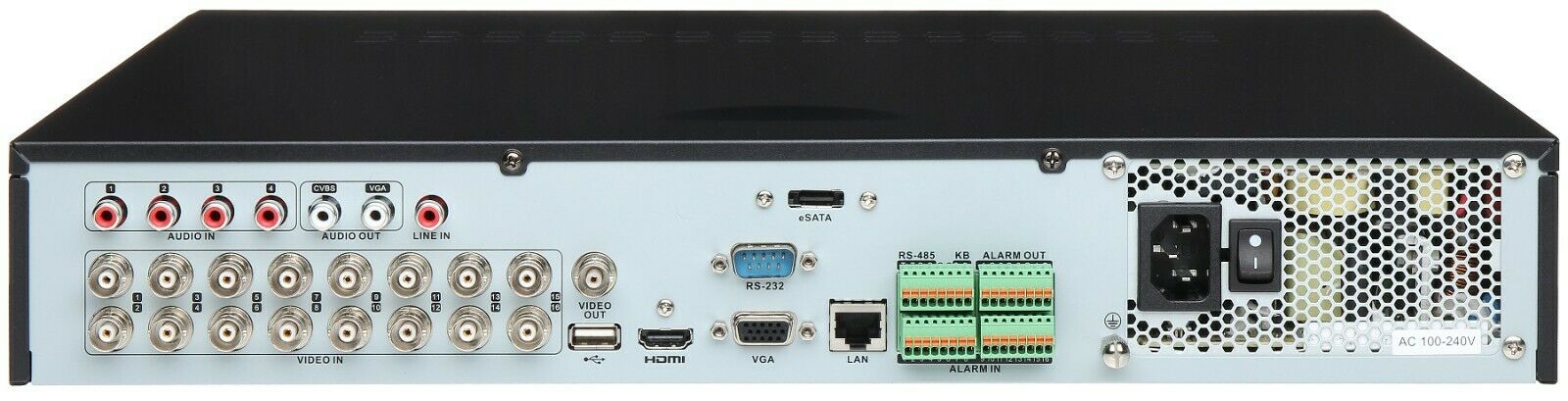

        • Analog Video Input32ch;BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
        • HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
        • AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
        • HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
        • CVBS InputPAL/NTSC
        • CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
        • HDMI 1 Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
        • HDMI 2 Output1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
        • Audio Input4ch, RCA (2.0 Vp-p, 1 K?)
        • Audio Output1-ch, RCA (Linear, 1 K?)
        • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (independent)
        • Synchronous Playback16ch
        • Network
        • Remote Connection128
        • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF, SNMP
        • Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
        • Auxiliary Interface
        • SATA4 SATA interfaces
        • ESATASupport
        • CapacityUp to 10 TB capacity for each disk
        • Serial InterfaceRS-232, RS-485 (full-duplex), Keyboard
        • Alarm In/Out16/4
        • USB InterfaceFront panel: 2 ? USB 2.0, Rear panel: 1 ? USB 3.0
        • General
        • Power Supply100 to 240 VAC, 50 to 60 Hz, 1.3 A
        • Consumption? 74 W
        • Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
        • Working Humidity10% to 90%
        • Dimension (W ? D ? H)440 ? 390 ? 70 mm (17.3 ? 15.4 ? 2.8 inch)
        • Weight? 7 kg (15.4 lb, without HDD)
