Technical Specifications

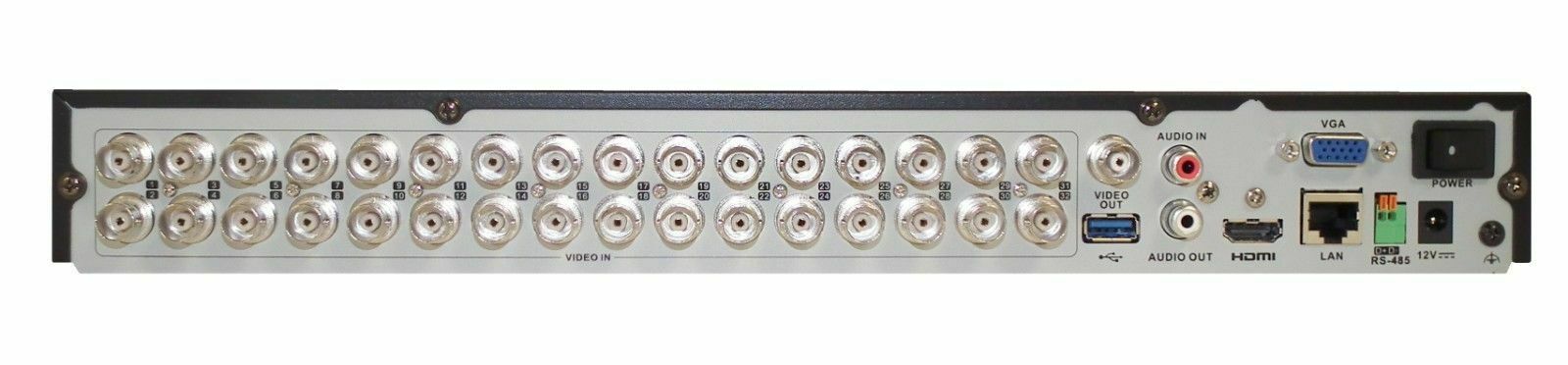

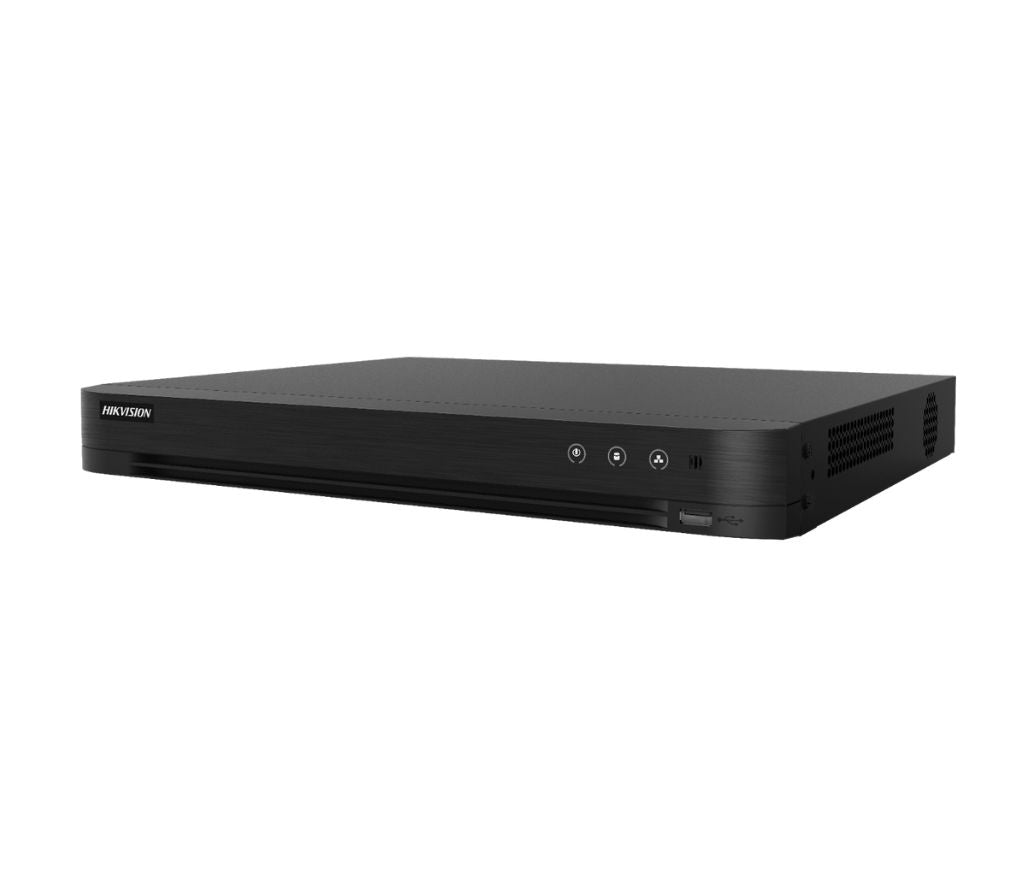

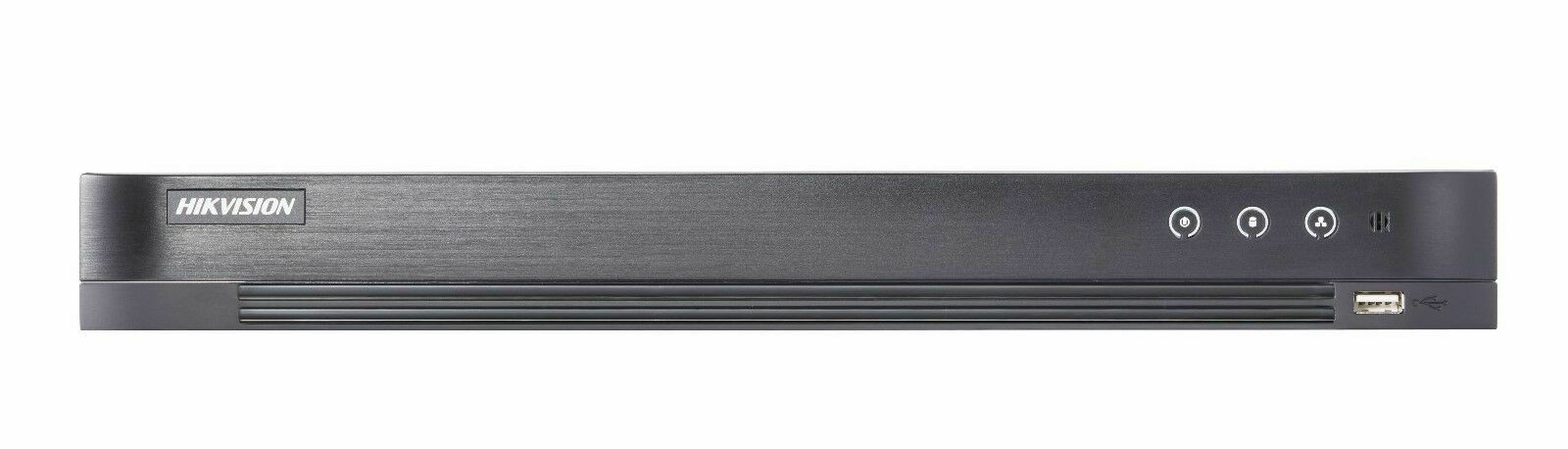

Hikvision DS-7232HGHI-K2 Turbo HD DVR

The Hikvision DS-7232HGHI-K2 gives you peace of mind with reliable 32-channel video recording, flexible camera compatibility, and long-distance HDTVI transmission. Designed for businesses and security-conscious homeowners, it keeps your footage safe, accessible, and crystal clear—without adding complexity to your setup.

Why Buyers Choose This Model

  • H.265 Pro+ Compression — reduces storage costs while keeping video sharp and detailed.
  • 32-Channel Input — connect up to 32 analog cameras plus 18 IP cameras for hybrid setups.
  • Long Transmission Range — up to 800m at 1080p, 1200m at 720p for flexible placement without signal loss.
  • Remote Viewing — easy access with Hik-Connect & DDNS to monitor your property anytime, anywhere.
  • Large Storage Capacity — up to 10TB per drive with dual SATA ports for extended recording history.

Compression & Recording

Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
1080p lite / 720p / VGA / WD1 / 4CIF / CIF
Max Frame Rate
Up to 15fps (1080p/720p), 25fps/30fps (CIF/SD)
Video Bit Rate
32 Kbps – 4 Mbps
Dual Stream
Supported

Video & Audio

Analog Video Input
32-ch BNC, HDTVI/AHD/CVI/CVBS supported
IP Video Input
2-ch default, up to 18-ch (max 5MP)
Audio Compression
G.711u
Audio Input / Output
1-ch RCA In, 1-ch RCA Out
Two-way Audio
1-ch, RCA

Video Output

HDMI/VGA Output
1-ch, up to 1920×1080 @ 60Hz
CVBS Output
1-ch BNC (N/A on some models)
Synchronous Playback
16-ch

Storage & Interfaces

SATA Interfaces
2 × SATA
Capacity
Up to 10TB per disk
USB
1 × USB 2.0 (front), 1 × USB 3.0 (rear)

Network

Protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DDNS, NTP, HTTPS, ONVIF
Remote Connections
128
Network Interface
1 × RJ45 10M/100M/1000M

General

Power Supply
12 VDC
Consumption
≤ 18 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Dimensions
380 × 320 × 48 mm
Weight
≤ 2.2 kg (4.9 lb, without HDD)

Included Accessories

  • Power adapter
  • Remote control
  • Quick start guide
  • Mounting hardware

Ideal Applications

Perfect for small-to-medium businesses, retail stores, schools, and residential properties that need reliable multi-camera coverage. Whether you’re monitoring entrances, protecting inventory, or ensuring safety at home, the DS-7232HGHI-K2 delivers a balance of flexibility, storage, and remote access.
