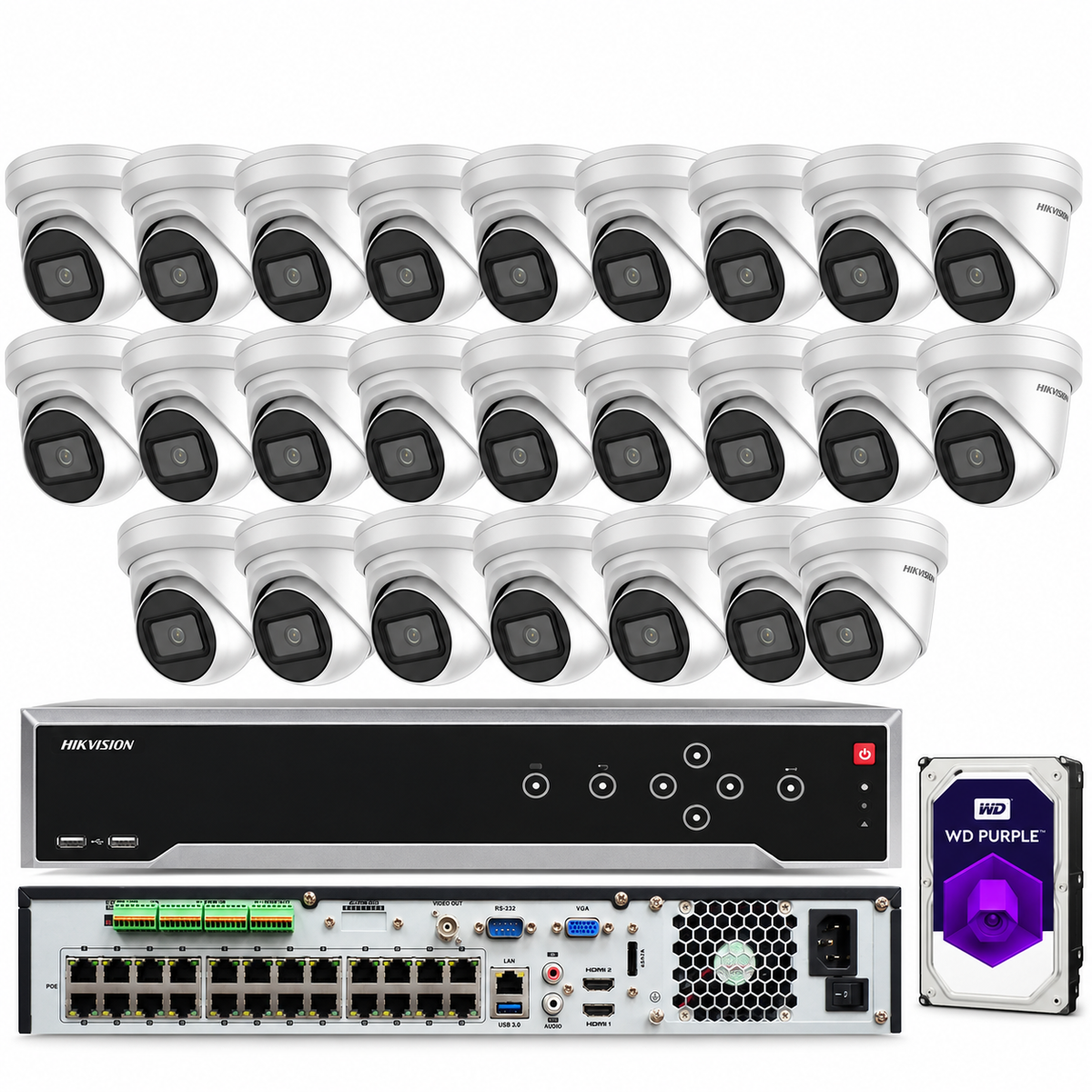

HIKVISION 32CH 12MP SECURITY SYSTEM 24 POE TURRET DARKFIGTER 4K 8 MP HDD OPTION

Data sheet PDF

Product Description

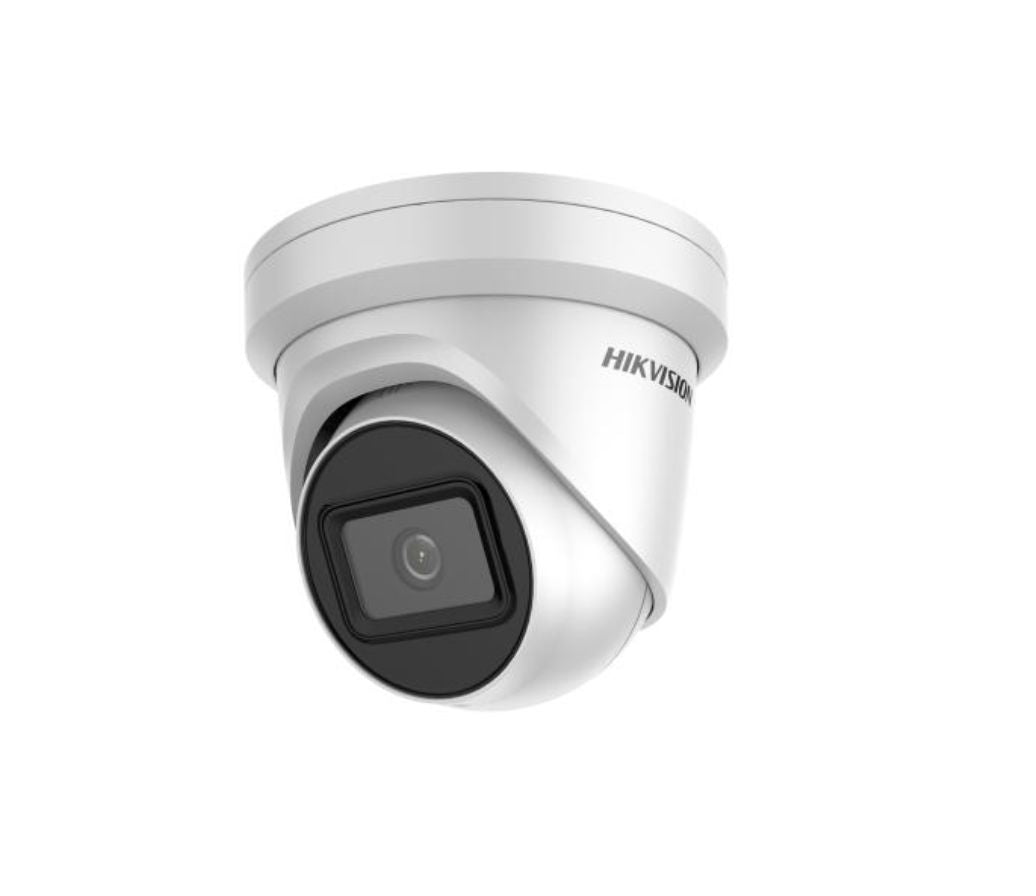

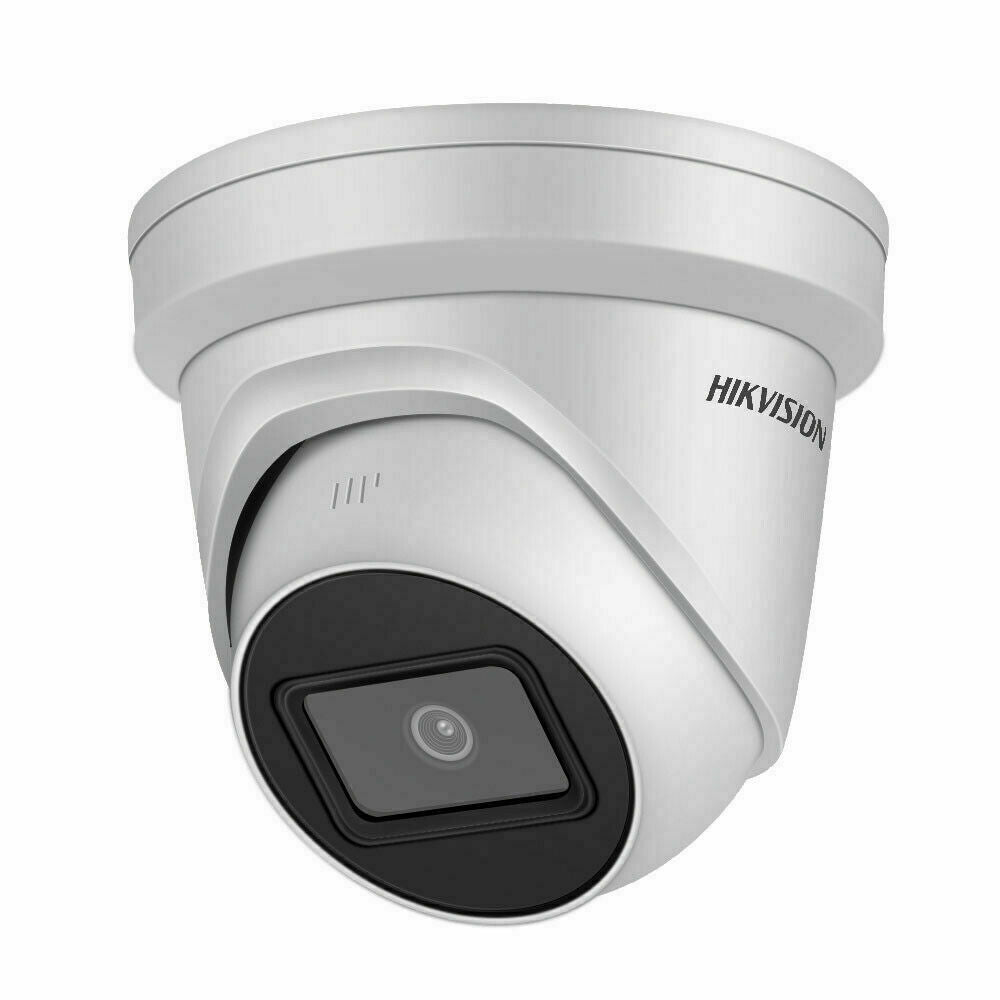

4K Powered-by-DarkFighter Fixed Turret Network Camera

• High quality imaging with 8 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67)
• Robust structure design with full metal materials

• Camera
• Image Sensor1/2" Progressive Scan CMOS
• Min. IlluminationColor: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120dB
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360?
• Lens
• FocusFixed
• Lens Type2.8/4/6 mm
• FOV

  2.8 mm, horizontal FOV: 110.7?, vertical FOV: 59.1?, diagonal FOV: 131?

  4 mm, horizontal FOV: 87.1?, vertical FOV: 47.4?, diagonal FOV: 101.8?

  6 mm, horizontal FOV: 50.8?, vertical FOV: 27.6?, diagonal FOV: 60?

• ApertureF1.6
• Lens MountM16
• Illuminator
• IR RangeUp to 30 m
• Wavelength850 nm
• Video
• Max. Resolution3840 ? 2160
• Main Stream50Hz: 20 fps (3840 ? 2160), 25 fps (3072 ? 1728, 2560 ? 1440, 1920 ? 1080, 1280 ? 720),60Hz: 20 fps (3840 ? 2160), 30fps (3072 ? 1728, 2560 ? 1440, 1920 ? 1080, 1280 ? 720),
• Sub Stream

  50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240)

  60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240)

• Third Stream50Hz: 25fps (1280 ?720, 640 ? 360, 352 ? 288),60Hz: 30fps (1280 ?720, 640 ? 360, 352 ? 240),
• Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.266,
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeMain Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Region Of Interest (ROI)Support 1 fixed region for main stream and sub stream separately
• Network
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/HostUp to 32 users,3 levels: Administrator, Operator and User,
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
• Alarm TriggerMotion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Image
• Day/Night SwitchDay/Night/Auto/Schedule
• DNR3D DNR
• Image EnhancementBLC/3D DNR/HLC
• Image SettingsRotate mode, brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
• Interface
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• Event
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart EventLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
• Face DetectionYes
• Exception DetectionScene change detection
• General
• Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
• Firmware VersionV5.5.61
• Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Startup And Operating Conditions-30 ?C to +60 ?C (-22 ?F to +140 ?F), humidity 95% or less (non-condensing)
• Power Supply12 VDC ? 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3),
• Power Consumption And Current12 VDC, 0.7 A, max: 7.5 W,PoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.2 A, max: 9 W,
• Camera DimensionCamera: ? 138.3 ? 125 mm (5.4? ? 4.9?)
• Camera WeightCamera: 725 g (1.6 lb.),With package: 966 g (2.1 lb.),
• Approval
• ProtectionIP67

Data sheet PDF

Product Description

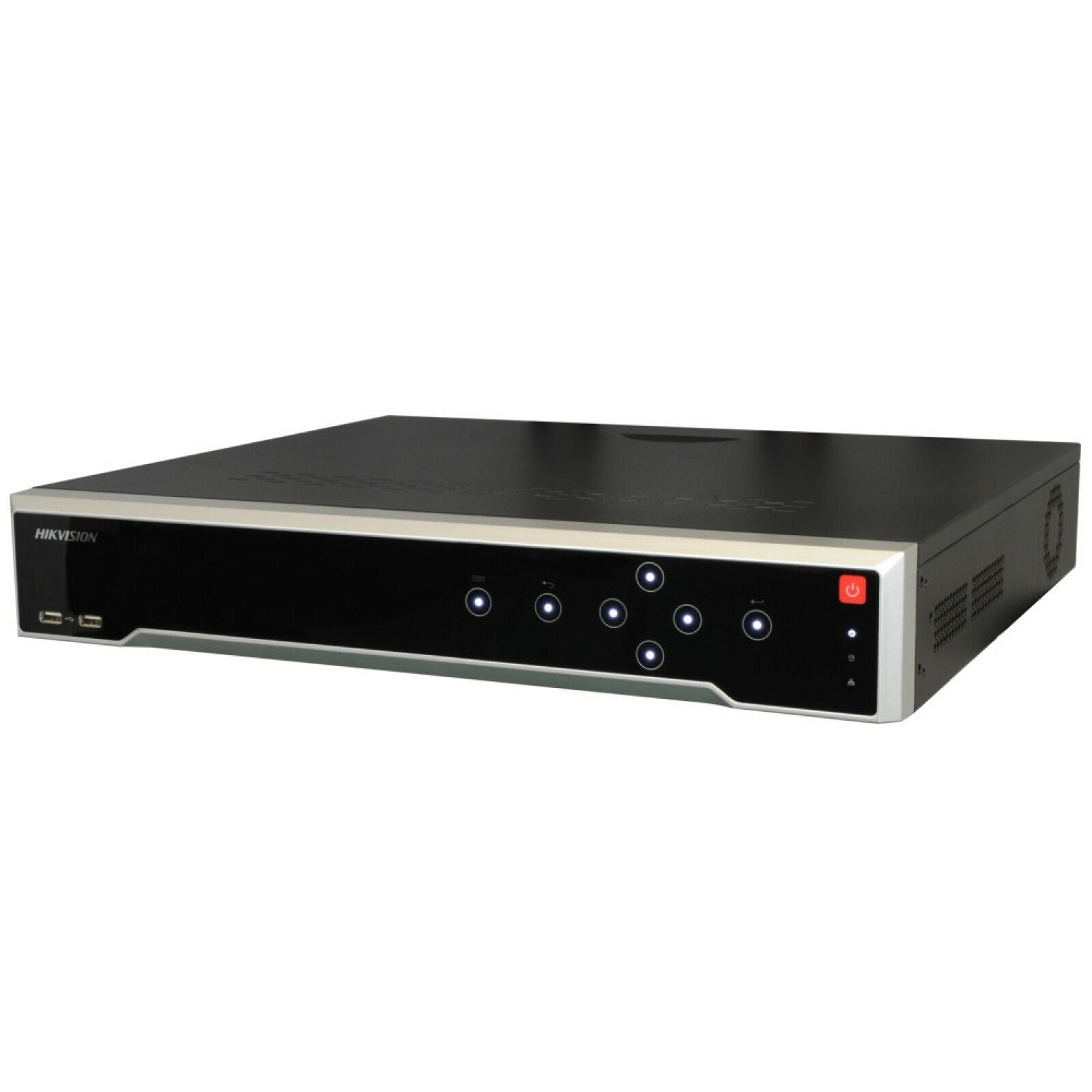

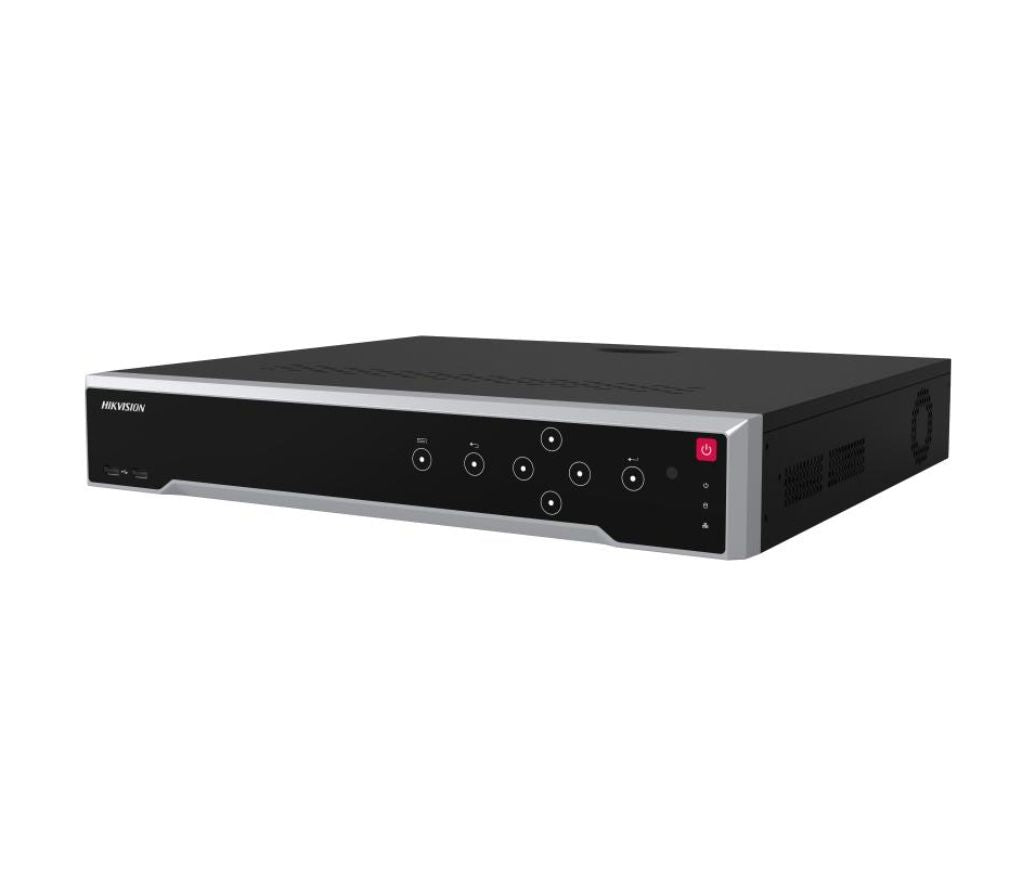

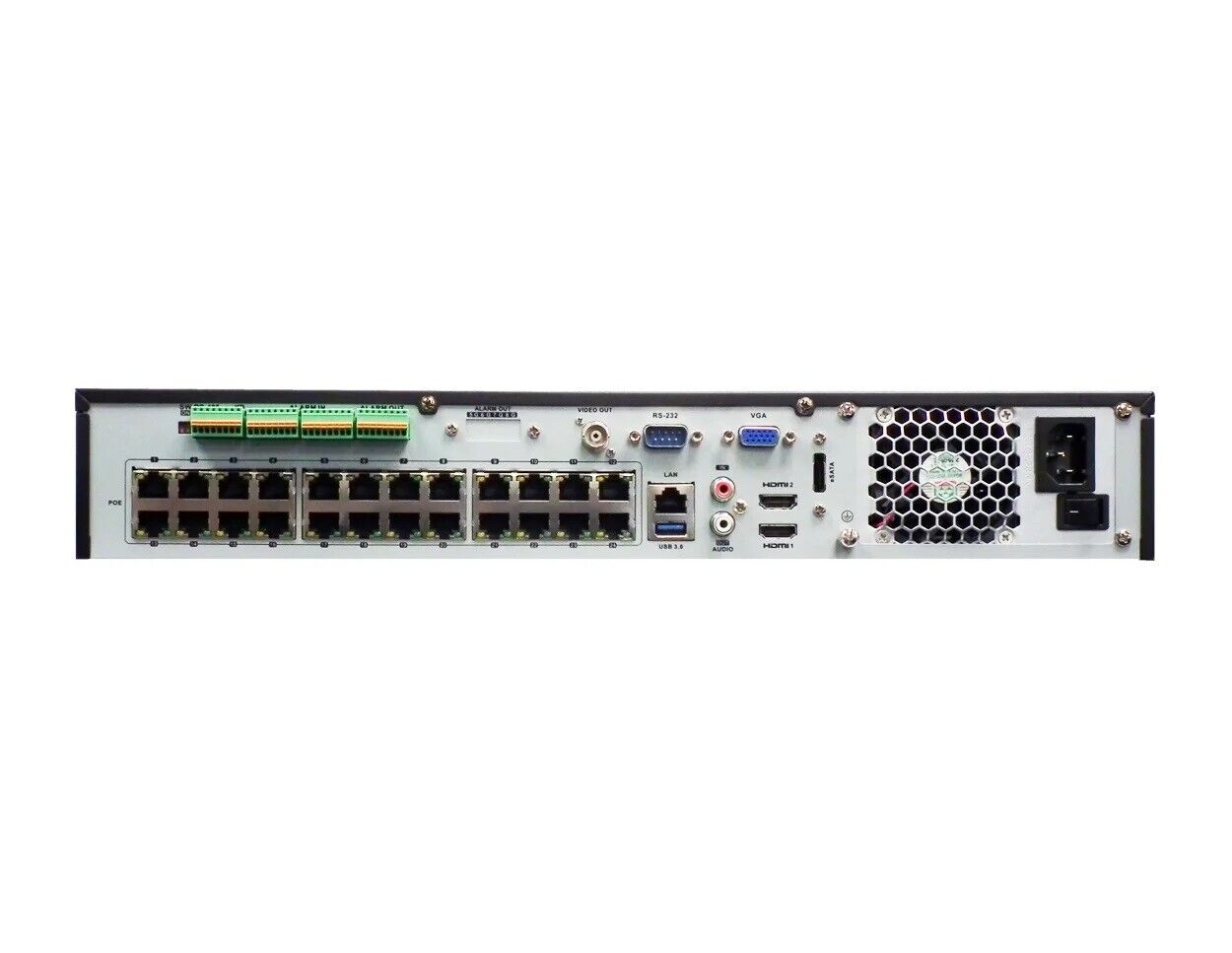

32ch 1.5U 24 PoE 4K NVR

• Up to 32ch IP cameras can be connected
• Up to 2-ch @ 12 MP/16ch @ 1080p decoding capacity
• 2 HDMI and 1 VGA interfaces: HDMI interfaces support independent video output
• 4 HDDs for continuous video recording
• Plug & Play with 24p (PoE) interfaces
• Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
• Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
• Supports dual-stream recording to save time and bandwidth

Specification

Video And Audio

Decoding

Network

PoE

Auxiliary Interface

General

Certification

• Video And Audio
• IP Video Input

  32ch

  Up to 12 MP resolution;32ch,Up to 12 MP resolution

• HDMI 1 Output4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• HDMI 2 Output1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• Outgoing Bandwidth256 Mbps
• VGA Output1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
• Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
• Incoming Bandwidth320 Mbps
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
• Decoding
• Dual-Stream RecordingSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
• Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
• Decoding Capability16ch@1080p;2-ch@12 MP (20 fps)/4ch@8 MP (30 fps)/8ch@4 MP (30 fps)/16ch@1080p (30 fps)
• Synchronous Playback16ch
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF /DCIF/ 2CIF/CIF/QCIF ;12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
• Network
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
• Remote Connection128
• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• PoE
• Interface24 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces;24, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power? 210 W
• StandardIEEE 802.3 af/at
• Auxiliary Interface
• SATA4 SATA interfaces
• ESATA1 eSATA interface
• CapacityUp to 10 TB capacity for each disk
• Serial Interface1 RS-485 (half-duplex), 1 RS-232
• USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0
• Alarm In/Out16/4 (16/8 optional)
• General
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption? 20 W (without HDD and PoE off)
• Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
• Working Humidity10% to 90%
• Dimension (W ? D ? H)445 ? 400 ? 75 mm ( 17.5"? 15.7" ? 3.0")
• Weight? 5 kg (11 lb) (without HDD)
• Certification
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
