Hikvision 32CH 16POE NVR 4K Security IP Camera System 4MP Bullet Colorvu Lot

Data sheet PDF

Product Description

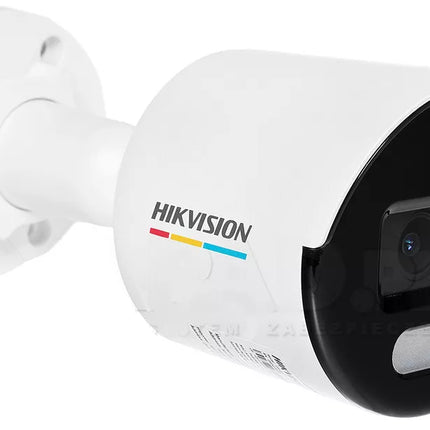

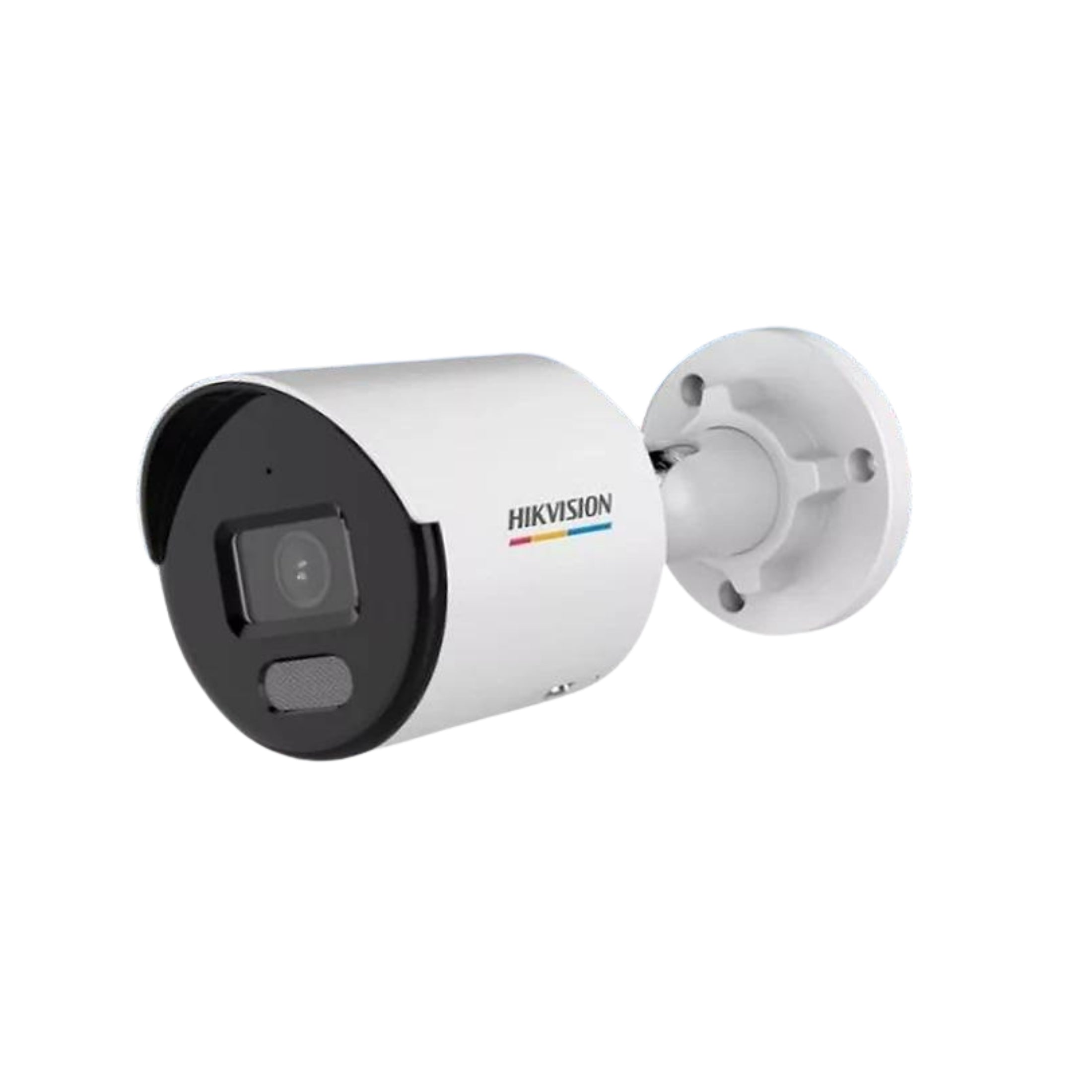

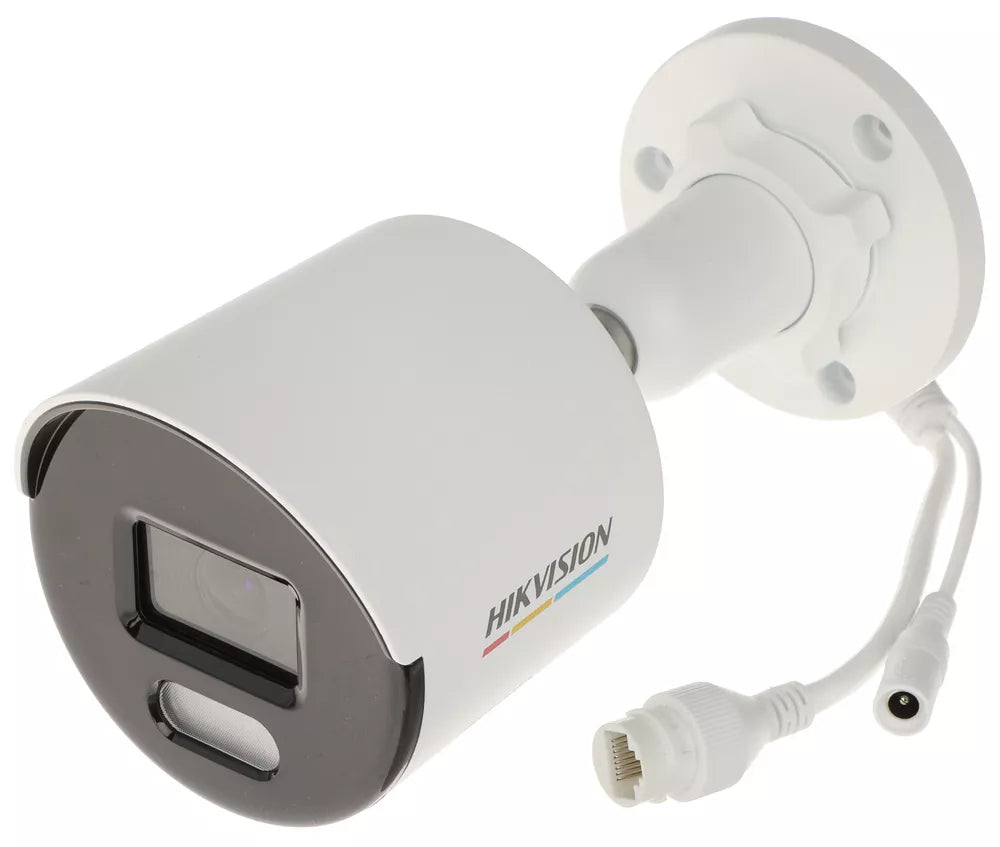

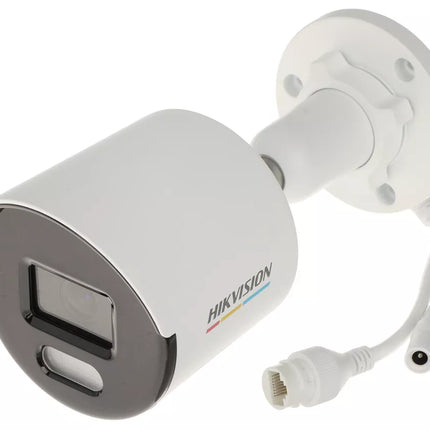

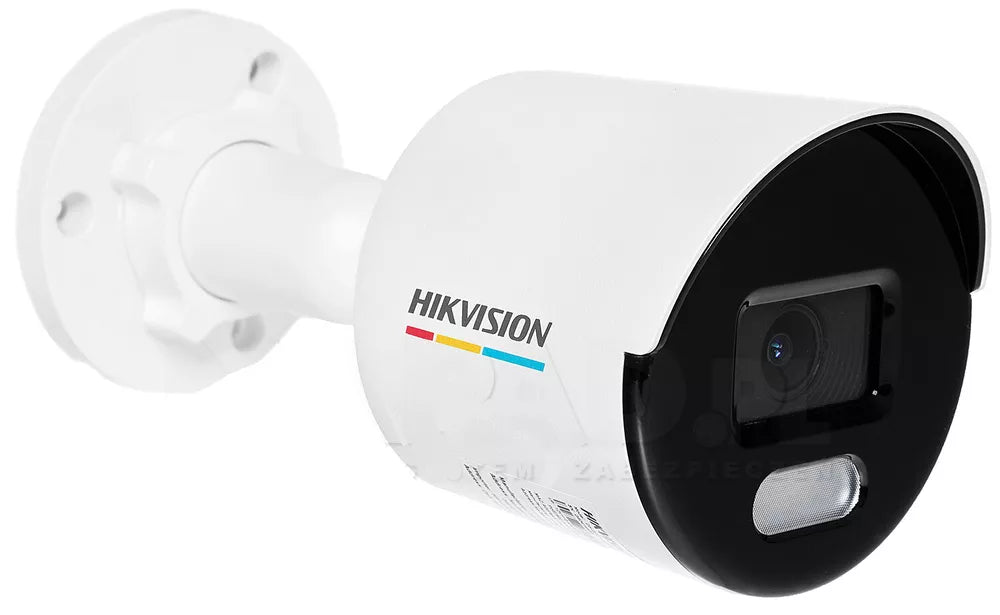

4 MP ColorVu Fixed Bullet Network Camera

• High quality imaging with 4 MP resolution
• Excellent low-light performance
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)
• 24/7 colorful imaging

Specification

• Camera
• Image Sensor1/3" Progressive Scan CMOS
• Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
• Shutter Speed1/3 s to 1/100, 000 s
• Slow ShutterYes
• Wide Dynamic Range120 dB
• Angle AdjustmentPan: 0? to 360?, tilt: 0? to 90?, rotate: 0? to 360?
• Lens
• Focal Length & FOV

  2.8 mm, horizontal FOV 96.5?, vertical FOV 50.8?, diagonal FOV 113.9?

  4 mm, horizontal FOV 75.8?, vertical FOV 40.8?, diagonal FOV 89.1?

• Lens MountM12
• FocusFixed
• ApertureF1.0
• DORI
• DORI

  2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m

  4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m

• Illuminator
• Smart Supplement LightYes
• White Light RangeUp to 30 m
• Video
• Max. Resolution2560 ? 1440
• Main Stream

  50 Hz:

  20 fps (2560 ? 1440),

  25 fps (1920 ? 1080, 1280 ? 720)

  60 Hz:

  20 fps (2560 ? 1440),

  30 fps (1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

• Video Compression

  Main stream: H.265/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Region Of Interest (ROI)1 fixed region for main stream
• Audio
• Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate-UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Sampling Rate-UF: 8 kHz/16 kHz
• Environment Noise Filtering-UF: Yes
• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, 3D DNR
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
• Built-In Microphone-UF: Yes
• Hardware Reset-UF: Yes
• Event
• Basic EventMotion detection, video tampering alarm, exception
• General
• Linkage MethodUpload to FTP/memory card (-UF), notify surveillance center, send email, trigger recording (-UF), trigger capture
• Camera MaterialAluminum alloy body
• Camera Dimension?76.6 mm ? 164.4 mm (?3" ? 6.5")
• Package Dimension234 mm ? 120 mm ? 117 mm (9.2" ? 4.7" ? 4.6")
• Camera WeightApprox. 430 g (0.95 lb.)
• With Package WeightApprox. 648 g (1.42 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
• Web Client LanguageEnglish, Ukrainian
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Firmware VersionV5.5.122
• Power Consumption And Current

  12 VDC, 0.4 A, max. 5 W

  PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W

• Power Supply

  12 VDC ? 25%

  PoE: 802.3af, Class 3

• Power Interface?5.5 mm coaxial power plug
• Approval
• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 60950-1);

  CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

• Environment

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• ProtectionIP67 (IEC 60529-2013)

Data sheet PDF

Product Description

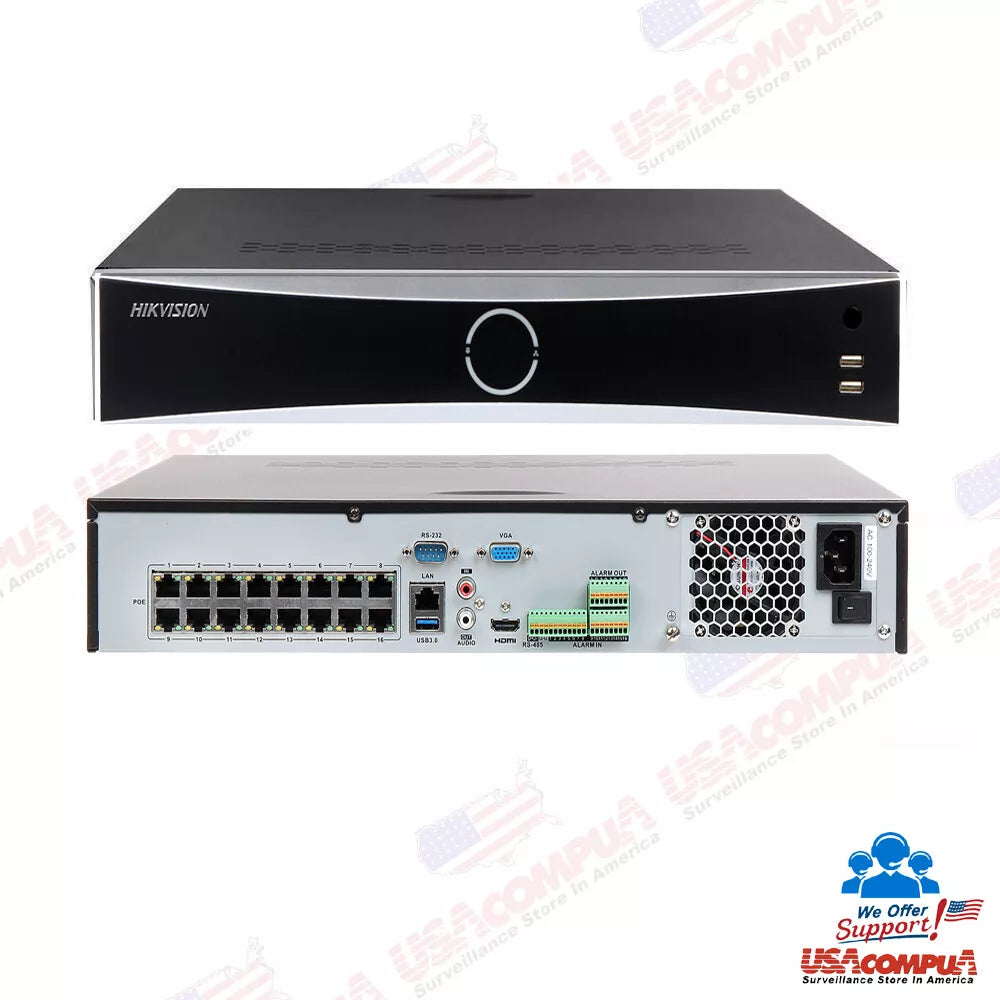

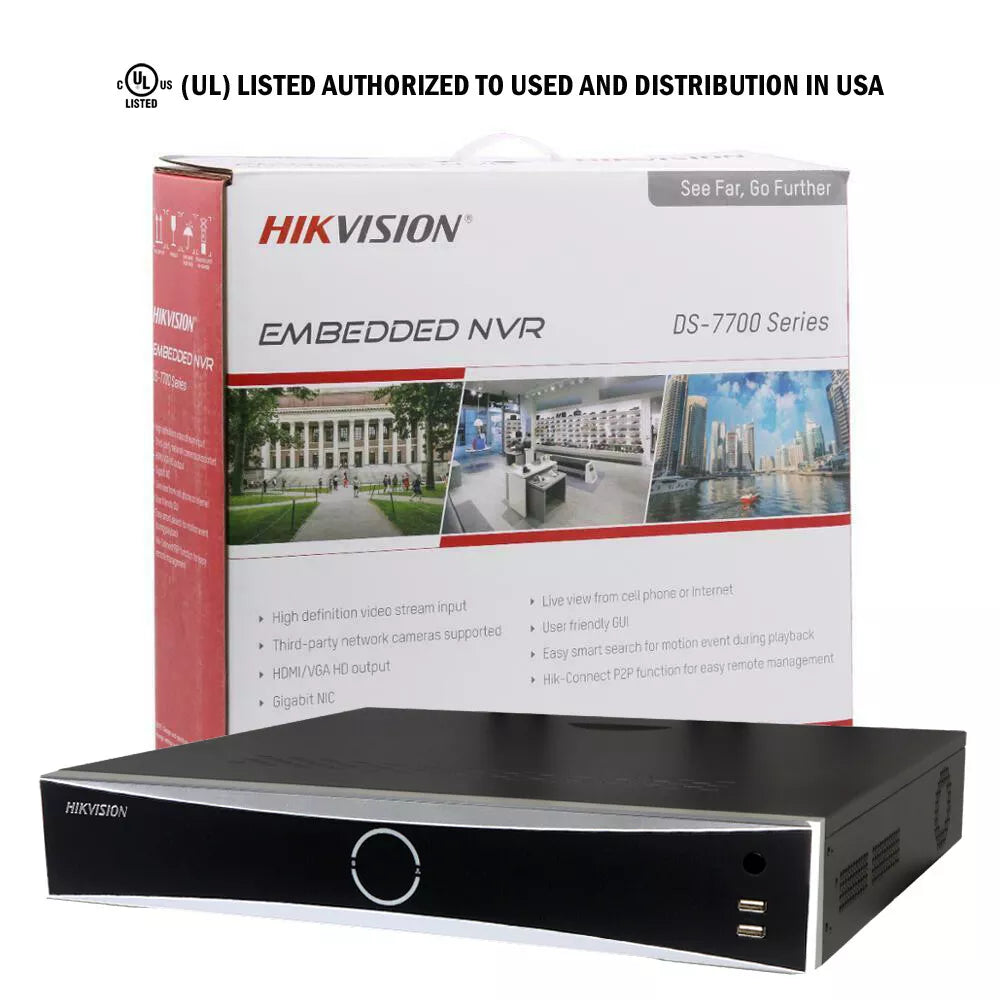

32-ch 1.5U 16 POE K Series AcuSense 4K NVR

• Up to 32-ch IP camera inputs, plug & play with 16 power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
• Up to 256 Mbps incoming bandwidth
• Adopt Hikvision Acusense technology to minimize manual effort and security costs

Specification

• Intelligent Analytics

• Facial Recognition

• Motion Detection 2.0

• Perimeter Protection

• Video And Audio

• Decoding

• Network

• PoE

• Auxiliary Interface

• General

• Certification

• Intelligent Analytics
• AI By DeviceFacial recognition, perimeter protection, motion detection 2.0
• AI By CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

• Facial Recognition
• Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
• Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ? 4 MB, total capacity ? 1 GB)
• Facial Detection And Analytics Performance1-ch, 8 MP
• Face Picture Comparison4-ch

• Motion Detection 2.0
• By DeviceAll channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
• By CameraAll channels

• Perimeter Protection
• By Device2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
• By CameraAll channels

• Video And Audio
• IP Video Input32-ch
• Incoming Bandwidth256 Mbps
• Outgoing Bandwidth160 Mbps
• HDMI Output1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
• Video Output ModeHDMI/VGA independent output
• CVBS OutputN/A
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input )

• Decoding
• Decoding FormatH.265/H.265+/H.264+/H.264
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback16-ch
• Decoding Capability

  AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

  AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)

• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC

• Network
• Remote Connection128
• APIONVIF (profile S/G); SDK; ISAPI
• Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• PoE
• Interface16
• Power? 200 W
• StandardIEEE 802.3af/at

• Auxiliary Interface
• SATA4 SATA interfaces
• CapacityUp to 10 TB capacity for each HDD
• Serial Interface2 RS-485 (half-duplex), 1 RS-232
• Alarm In/Out16/4 (16/9 is optional)
• USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0
• Ctrl 12VN/A (optional to support)
• DC 12VN/A (optional to support)

• General
• GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
• Power Supply100 to 240 VAC, 50 to 60Hz
• Consumption? 20 W (without HDD and PoE off)
• Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
• Working Humidity10 to 90 %
• Dimension (W ? D ? H)445 ? 400 ? 75 mm ( 17.5"? 15.7" ? 3.0")
• Weight? 5 kg (without HDD, 11 lb.)

• Certification
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
• Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
