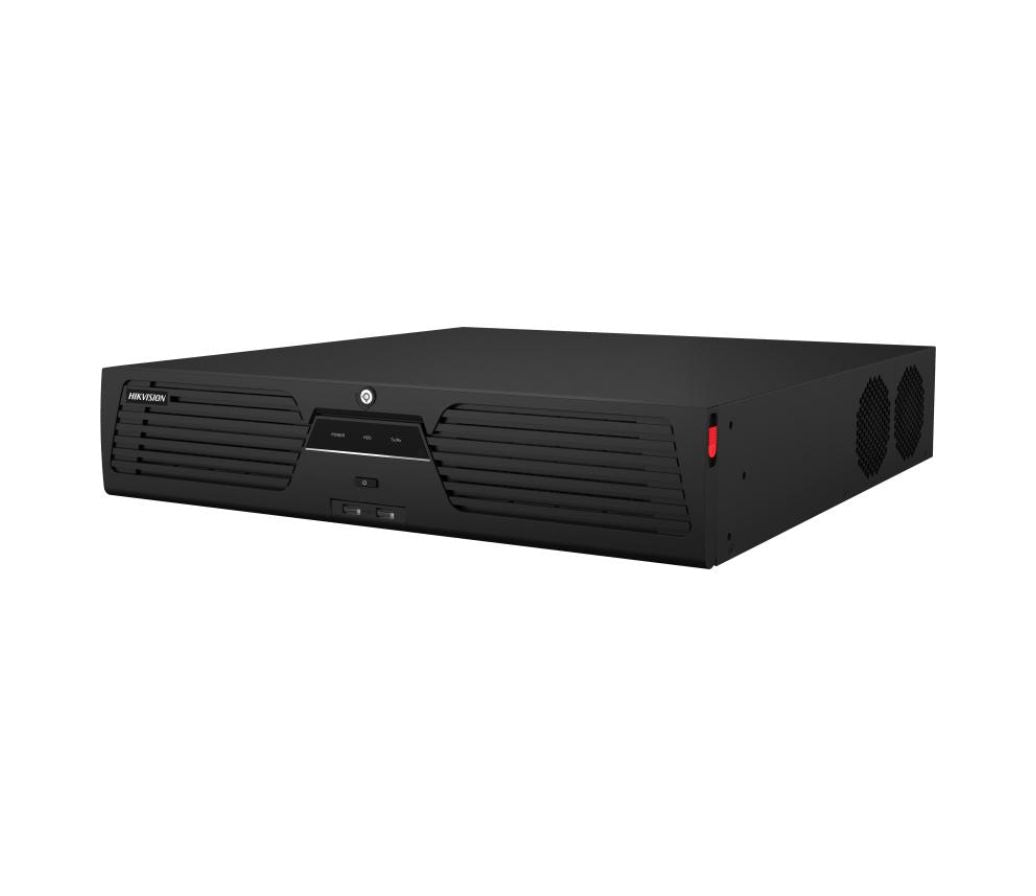

Hikvision 32CH 8K NVR DS-9632NI-M8 UP TO 12MP RESOLUTION PRO SERIES

Data sheet PDF

Product Description

32ch 2U 8K NVR

• Up to 32ch IP camera inputs
• Up to 2-ch@32 MP/2-ch@24 MP/4ch@12 MP/8ch@8 MP/16ch@4 MP/32ch@1080p decoding capacity
• Up to 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
• 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
• Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
• Advanced streaming technology enables smooth live view in poor network conditions
• Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks

Specification

• Video And Audio
• IP Video Input32ch
• Incoming Bandwidth320 Mbps
• Outgoing Bandwidth400 Mbps
• HDMI 1 Output8K (7680 ? 4320)/30 Hz, 4K (3840 ? 2160)/60 Hz, 4K (3840 ? 2160)/30 Hz, 2K (2560 ? 1440)/60 Hz, 1920 ? 1080/60 Hz, 1600 ? 1200/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz, 1024 ? 768/60 Hz
• HDMI 2 Output

  4K (3840 ? 2160)/60 Hz, 4K (3840 ? 2160)/30 Hz, 2K (2560 ? 1440)/60 Hz, 1920 ? 1080/60 Hz, 1600 ? 1200/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz, 1024 ? 768/60 Hz

  *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

• VGA 1 Output1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz, 1024 ? 768/60 Hz
• VGA 2 Output1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz, 1024 ? 768/60 Hz
• Video Output Mode

  HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;

  HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

• CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
• Audio Output2-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
• Decoding
• Decoding FormatH.265+/H.265/H.264+/H.264
• Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback16ch
• Decoding Capability2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
• Network
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• RAID
• RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

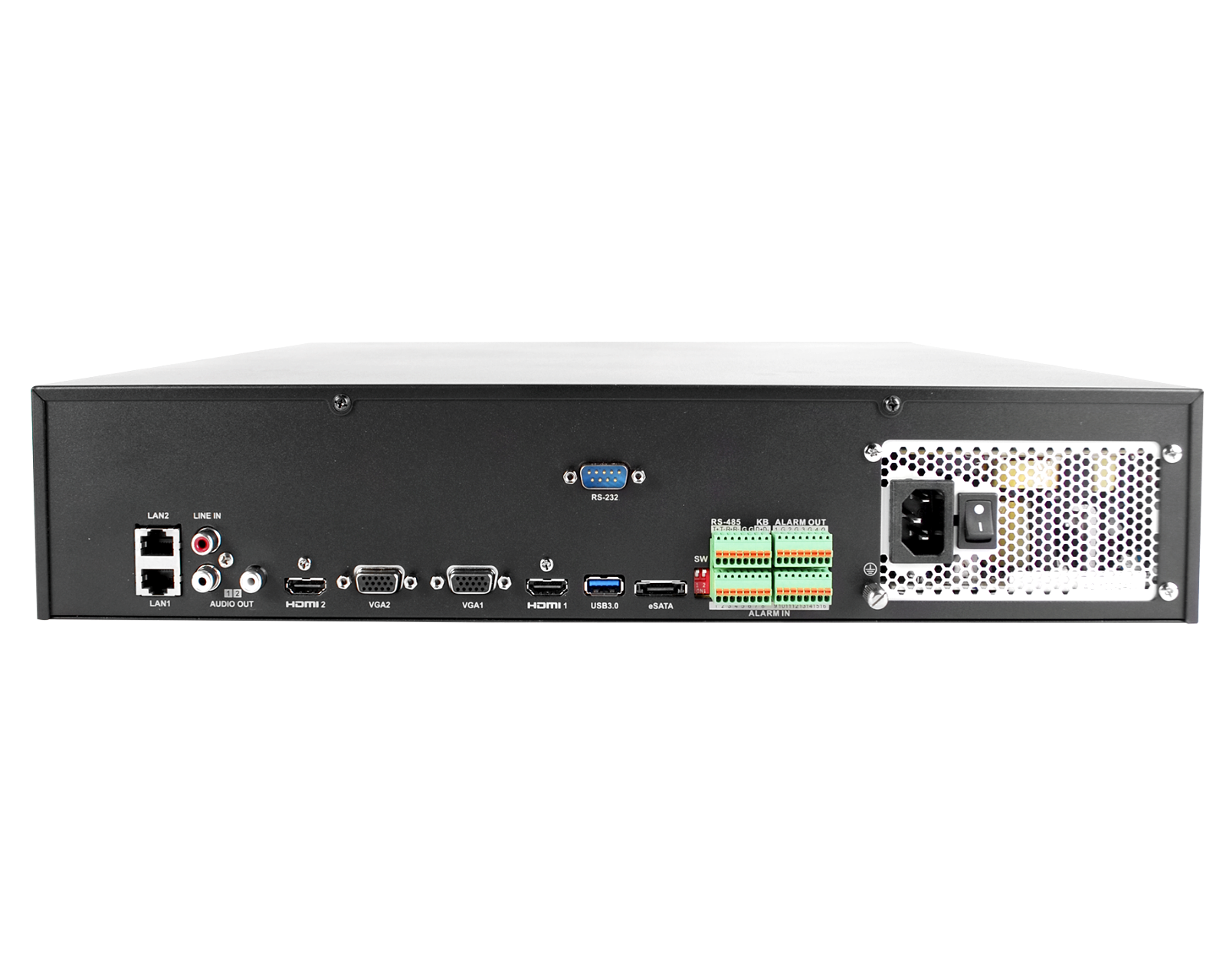

• Auxiliary Interface
• Serial Interface1 RS-485 (full-duplex), 1 RS-232
• SATA8 SATA interfaces supporting hot-plug
• ESATA1 eSATA interface
• CapacityUp to 16 TB capacity for each disk
• Alarm In/Out16/9

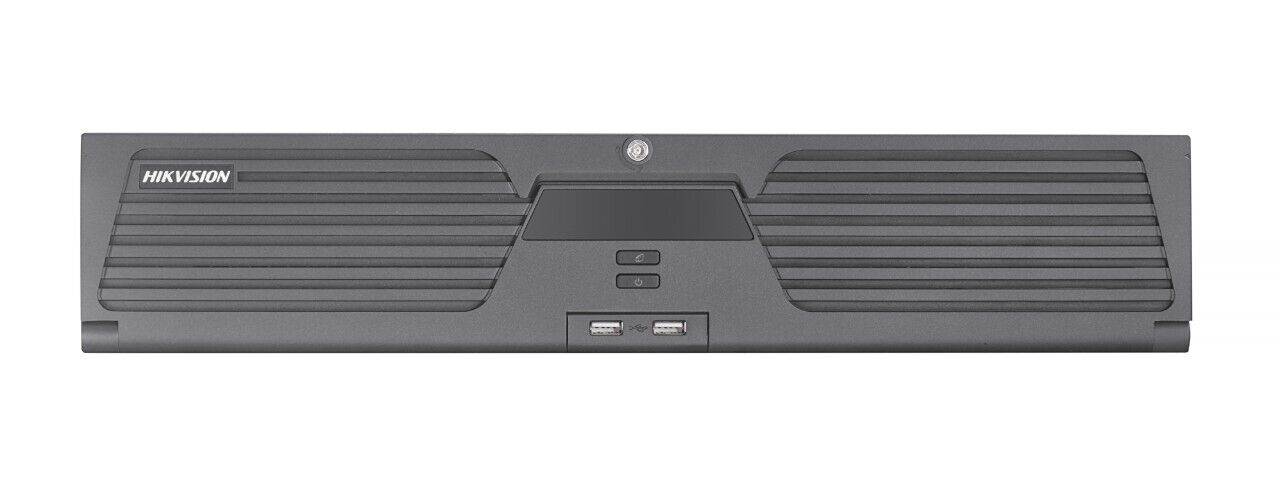

• USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 2 ? USB 3.0
• Ctrl 12V

  Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

  *: The Ctrl 12V power is controlled by alarm output 9.

• DC 12V12 VDC, 1 A power output
• General
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption? 50 W (without HDD)
• Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
• Working Humidity10% to 90%
• Chassis2U chassis
• Dimension (W ? D ? H)445 ? 465 ? 93 mm ( 17.5"? 18.3" ? 3.7")
• Weight? 10 kg (without HDD, 22 lb.)
• Certification
• Obtained CertificationCE, FCC
• CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
