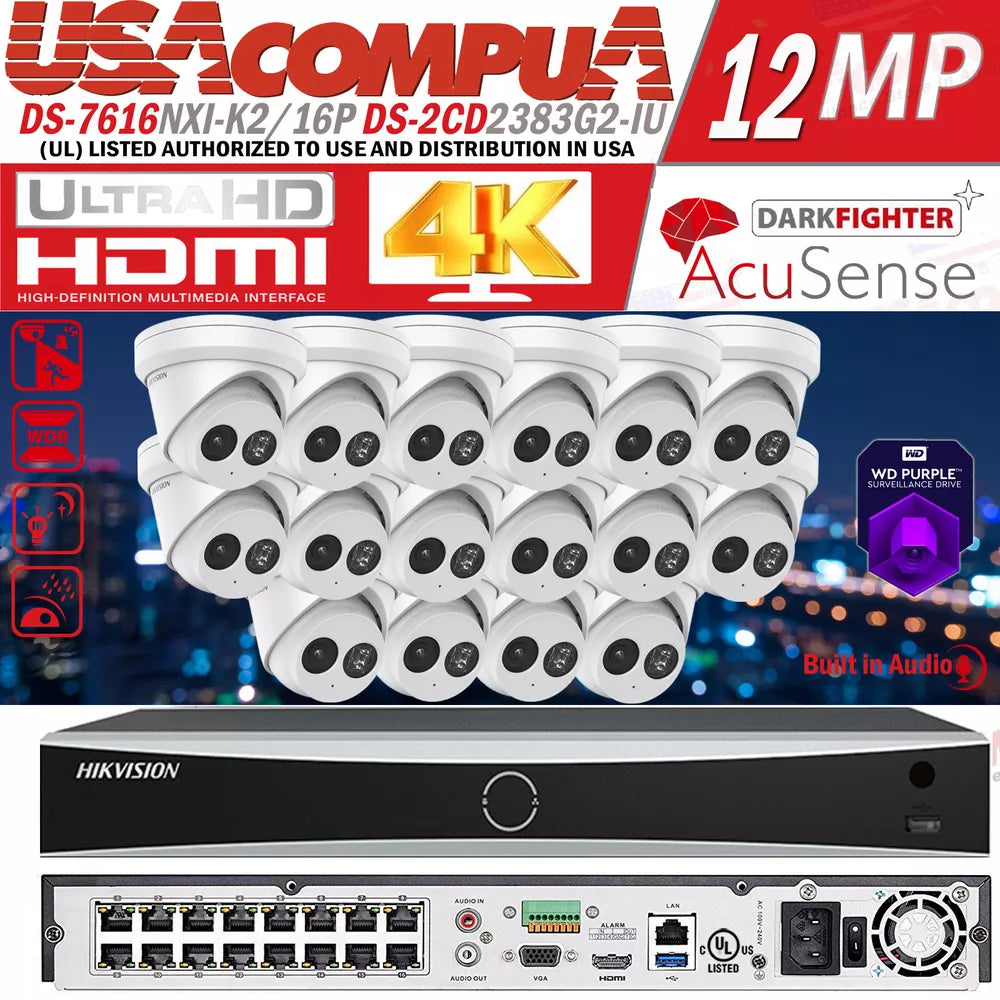

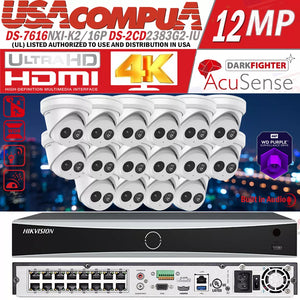

Hikvision 4K 16CH IP Camera system DS-7616NXI-K2-16P darkfigther 8MP W/Audio Lo

Description

Hikvision 4K 16CH IP Camera system DS-7616NXI-K2-16P darkfigther 8MP W/Audio Lo


This listing includes:

  •  CAMERA QUANTITY (DS-2CD2383G2-IU): 4;6;8;10;12;14;16
  • HARD DRIVE OPTION FOR RECORDER DS-7616NXI-K2/16P: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB


DS-2CD2383G2-IU  view data sheet

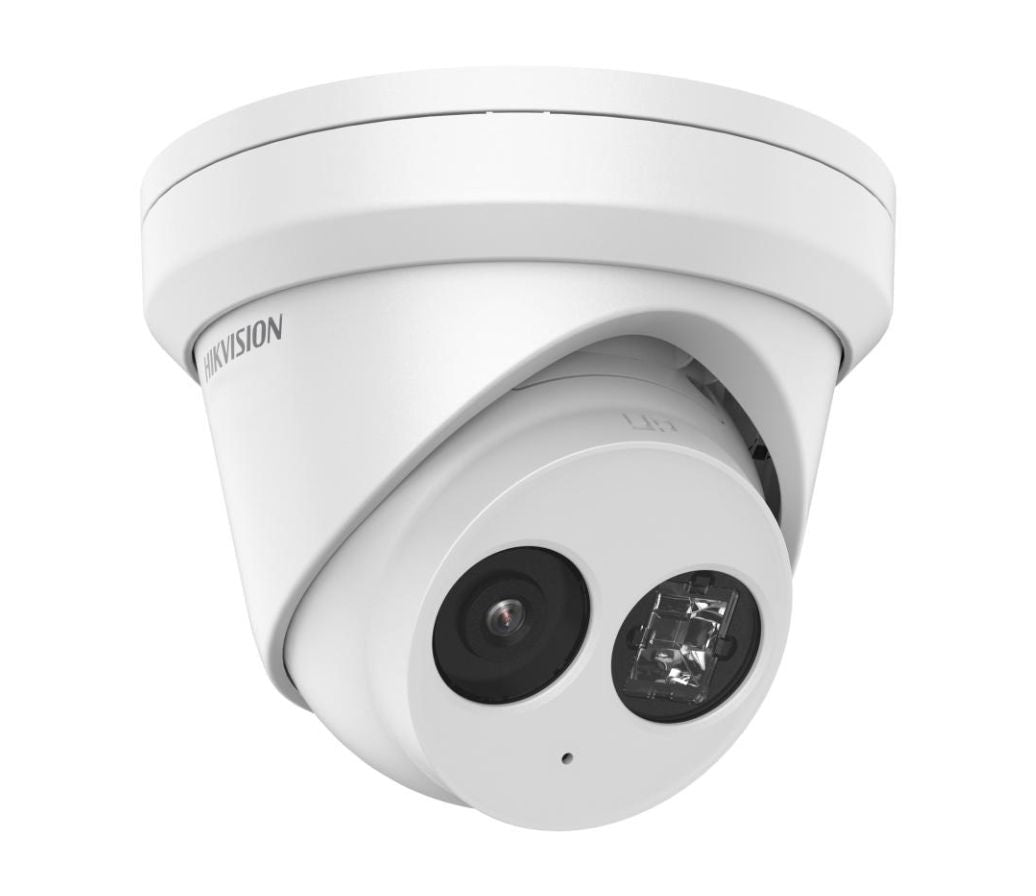

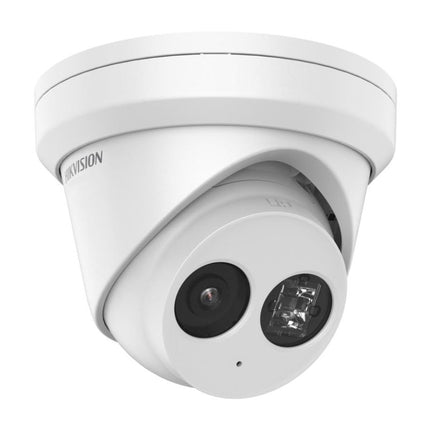

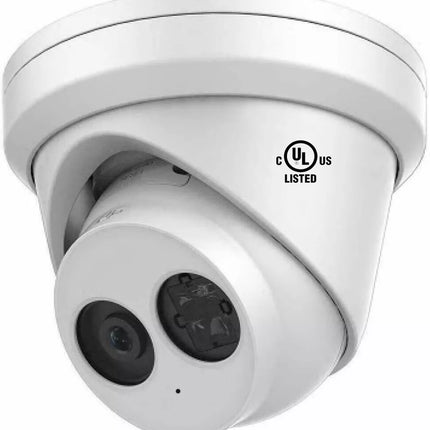

8 MP AcuSense Fixed Turret Network Camera

  • High quality imaging with 8 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Focusing on human and vehicle classification based on deep learning
  • -U: Built-in microphone for real-time audio security
  • Water and dust resistant (IP67)


DS-7616NXI-K2/16P  view data sheet

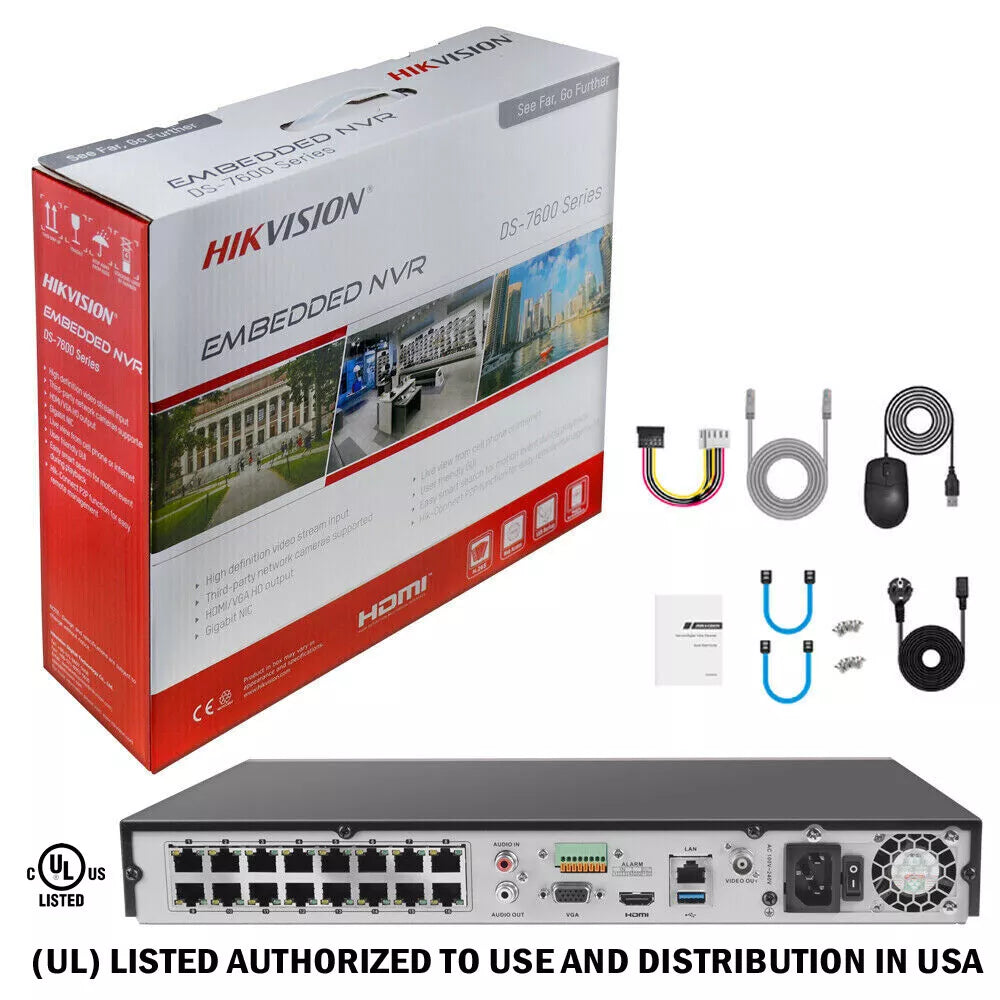

16ch PoE 1U K Series AcuSense 4K NVR

  • Up to 16ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
  • Up to 160 Mbps incoming bandwidth
  • Adopt Hikvision Acusense technology to minimize manual effort and security costs

Hikvision 4K 16CH IP Camera system DS-7616NXI-K2-16P darkfigther 8MP W/Audio Lo

Product form

SKU: 986298518966-QP4

$1,022.87 $955.95

Out of stock

      • Guaranteed secure & safe checkout.

        paypal

      Description

      Hikvision 4K 16CH IP Camera system DS-7616NXI-K2-16P darkfigther 8MP W/Audio Lo


      This listing includes:

      •  CAMERA QUANTITY (DS-2CD2383G2-IU): 4;6;8;10;12;14;16
      • HARD DRIVE OPTION FOR RECORDER DS-7616NXI-K2/16P: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB


      DS-2CD2383G2-IU  view data sheet

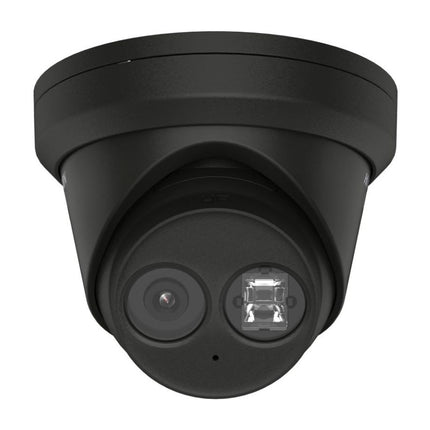

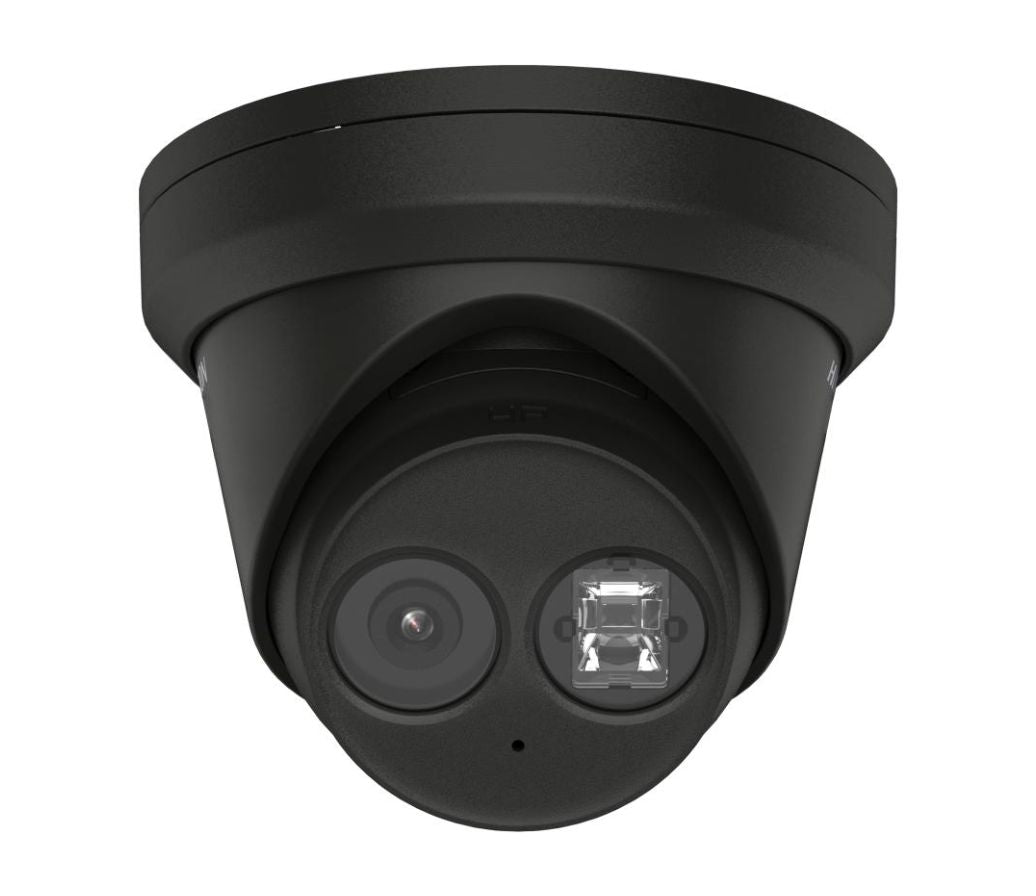

      8 MP AcuSense Fixed Turret Network Camera

      • High quality imaging with 8 MP resolution
      • Efficient H.265+ compression technology
      • Clear imaging against strong backlight due to 120 dB WDR technology
      • Focusing on human and vehicle classification based on deep learning
      • -U: Built-in microphone for real-time audio security
      • Water and dust resistant (IP67)


      DS-7616NXI-K2/16P  view data sheet

      16ch PoE 1U K Series AcuSense 4K NVR

      • Up to 16ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
      • H.265+/H.265/H.264+/H.264 video formats
      • Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
      • Up to 160 Mbps incoming bandwidth
      • Adopt Hikvision Acusense technology to minimize manual effort and security costs

      Data sheet PDF

      Product Description

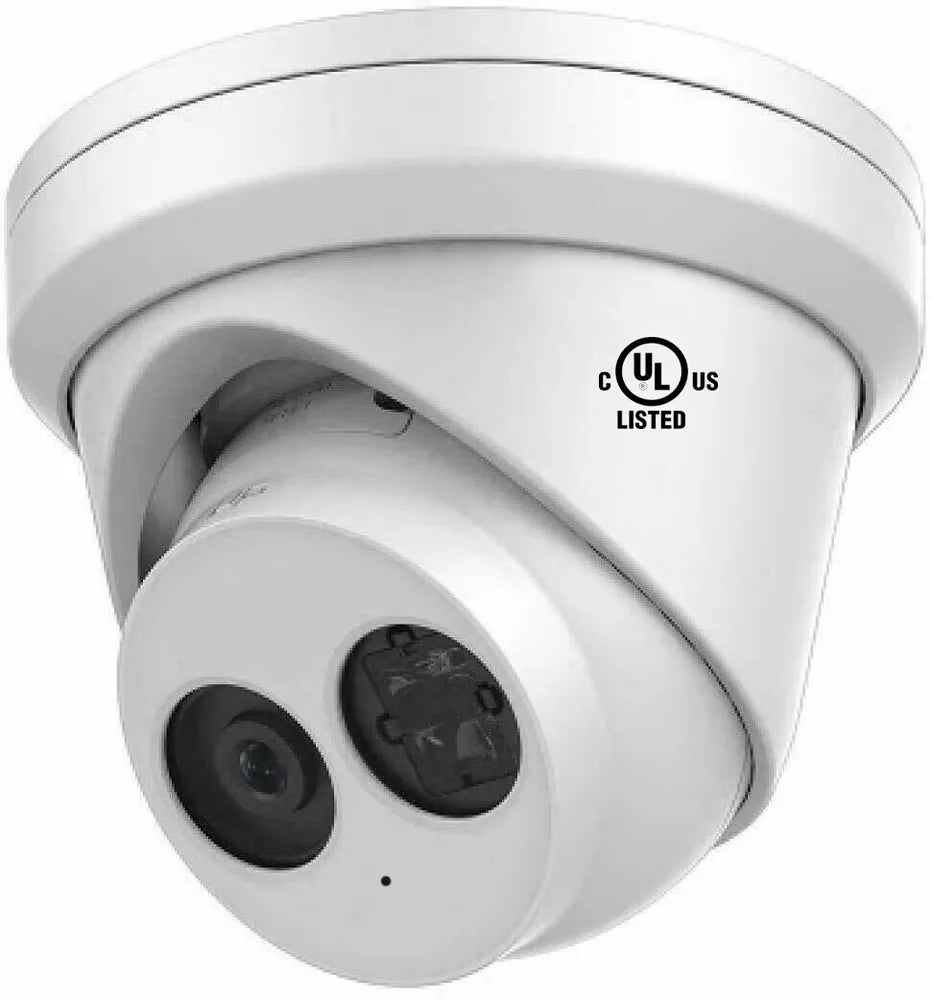

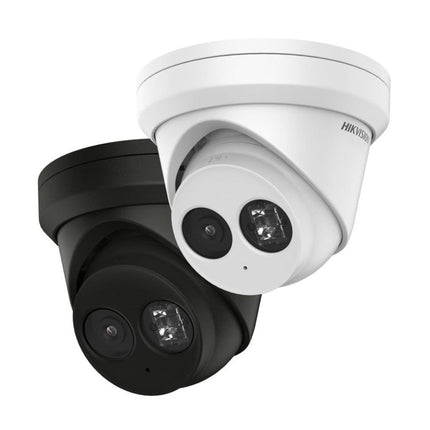

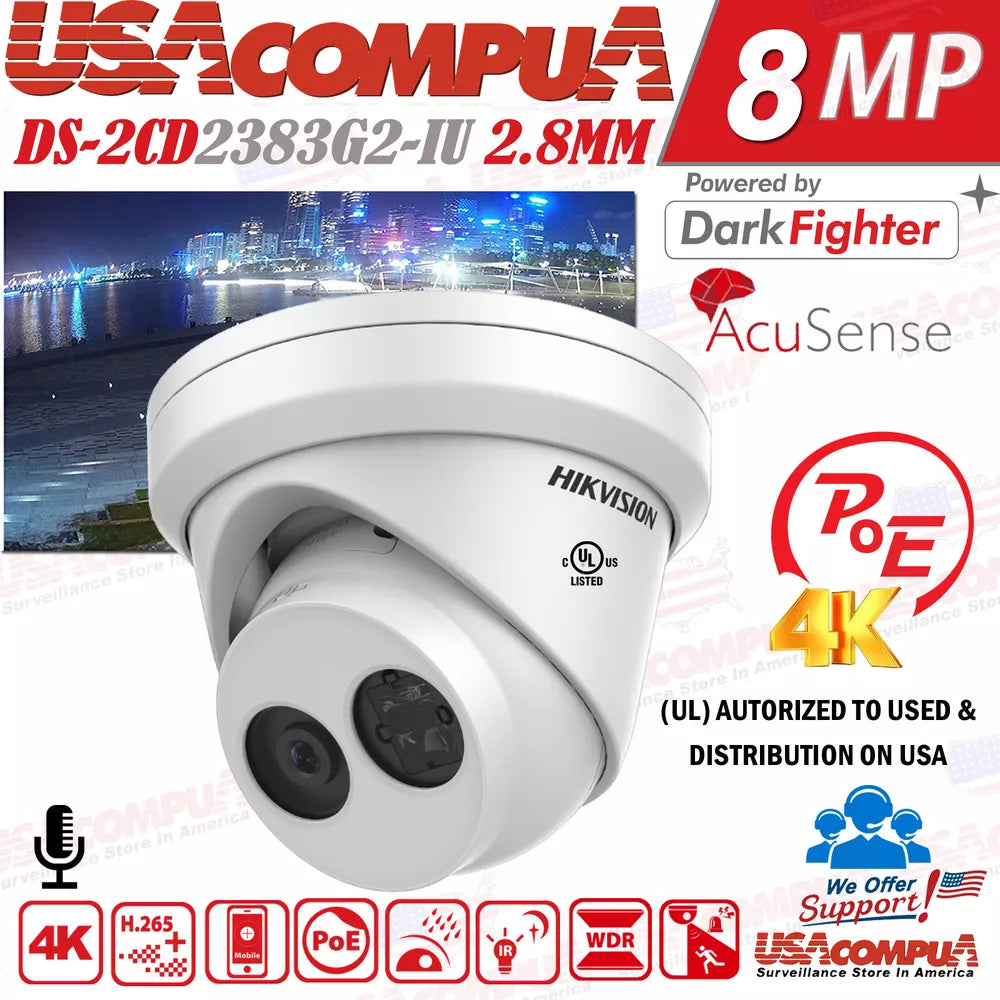

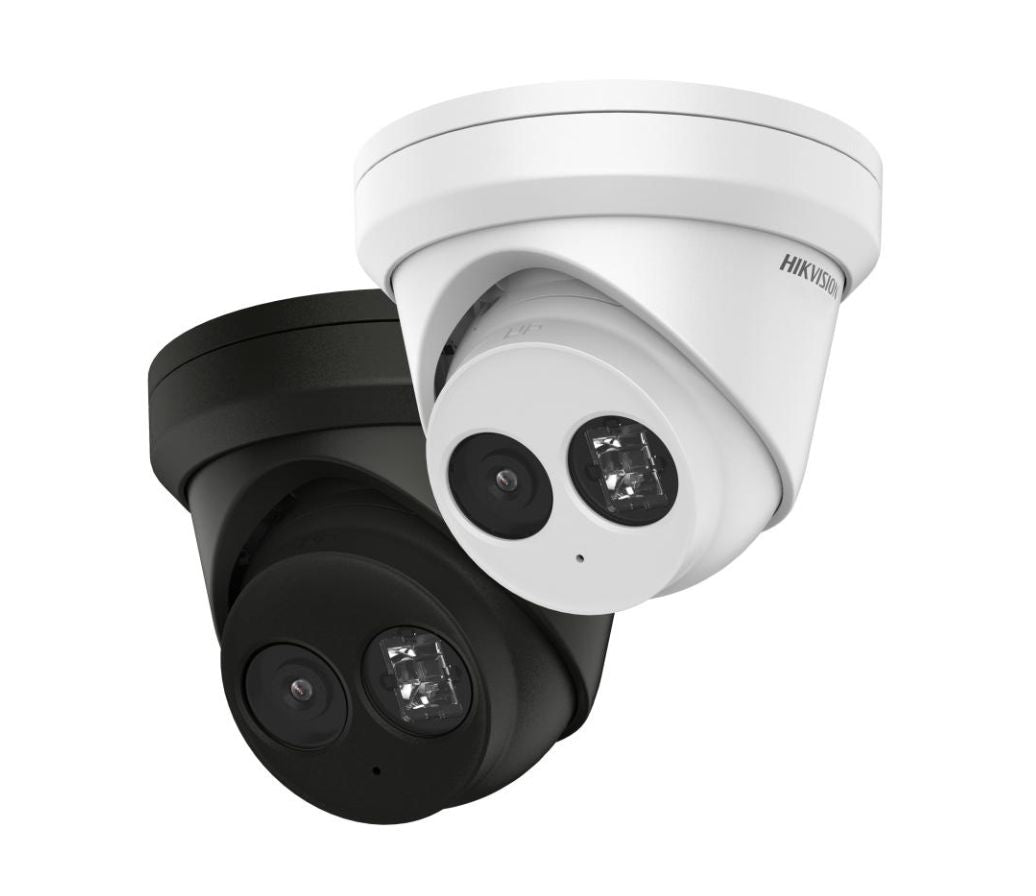

      8 MP AcuSense Fixed Turret Network Camera

      • High quality imaging with 8 MP resolution
      • Efficient H.265+ compression technology
      • Clear imaging against strong backlight due to 120 dB WDR technology
      • Focusing on human and vehicle classification based on deep learning
      • -U: Built-in microphone for real-time audio security
      • Water and dust resistant (IP67)
      Specification
        • Camera
        • Image Sensor1/2.8" Progressive Scan CMOS
        • Max. Resolution3840 ? 2160
        • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
        • Shutter Time1/3 s to 1/100,000 s
        • Day & NightIR cut filter
        • Angle AdjustmentPan: 0? to 360?,tilt: 0? to 75?,rotate: 0? to 360?
        • Lens
        • Lens TypeFixed focal lens, 2.8 and 4 mm optional
        • Focal Length & FOV

          2.8 mm, horizontal FOV 107?, vertical FOV 57?, diagonal FOV 128?

          4 mm, horizontal FOV 87?, vertical FOV 46?, diagonal FOV 105?

        • Lens MountM12
        • Iris TypeFixed
        • ApertureF1.6
        • DORI
        • DORI

          2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m

          4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m

        • Illuminator
        • Supplement Light TypeIR
        • Supplement Light RangeUp to 30 m
        • Smart Supplement LightYes
        • IR Wavelength850 nm
        • Video
        • Main Stream

          50 Hz: 20 fps (3840 ? 2160) 25 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720); 60 Hz: 20 fps (3840 ? 2160) 30 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

        • Sub-Stream

          50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

          60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

        • Third Stream

          50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

          60 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360),

          *Third stream is supported under certain settings.

        • Video Bit Rate32 Kbps to 16 Mbps
        • H.264 TypeBaseline Profile,Main Profile,High Profile
        • H.265 TypeMain Profile
        • Bit Rate ControlCBR,VBR
        • Scalable Video Coding (SVC)H.264 and H.265 encoding
        • Video Compression

          Main stream: H.265+/H.265/H.264+/H.264,

          Sub-stream: H.265/H.264/MJPEG,

          Third stream: H.265/H.264 (*Third stream is supported under certain settings.)

        • Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream
        • Audio
        • Audio Type-U: Mono sound
        • Audio Compression-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
        • Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
        • Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
        • Environment Noise Filtering-U: Yes
        • Network
        • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
        • Simultaneous Live ViewUp to 6 channels
        • APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK
        • User/Host

          Up to 32 users

          3 user levels: administrator, operator, and user

        • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
        • Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
        • ClientiVMS-4200,Hik-Connect,Hik-Central
        • Web Browser

          Plug-in required live view: IE 10, IE 11,

          Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

          Local service: Chrome 57.0+, Firefox 52.0+

        • Image
        • Image Parameters SwitchYes
        • Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
        • Day/Night SwitchDay, Night, Auto, Schedule

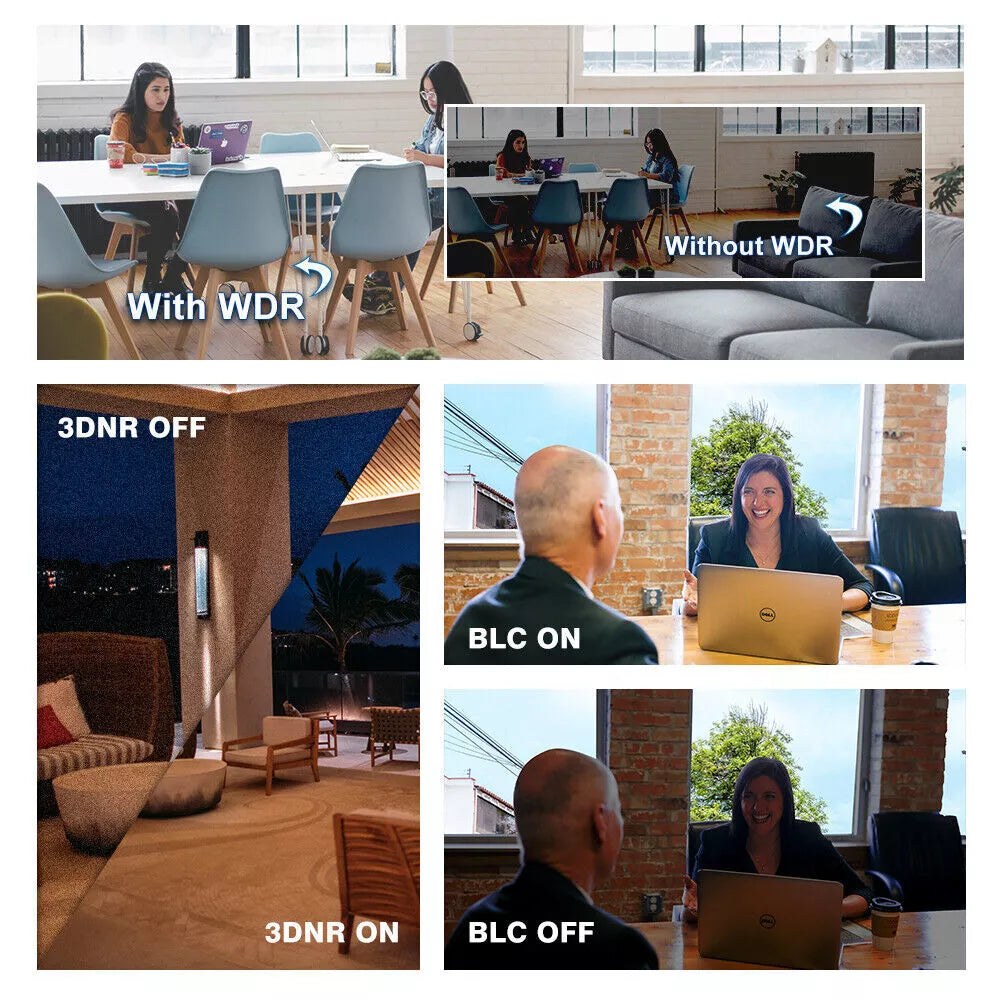

        • Wide Dynamic Range (WDR)120 dB
        • SNR? 52 dB
        • Image EnhancementBLC, HLC, 3D DNR
        • Privacy Mask4 programmable polygon privacy masks
        • Interface
        • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
        • On-Board Storage

          Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

        • Built-In Microphone-U: Yes
        • Reset KeyYes
        • Event
        • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
        • Smart EventLine crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), face detection
        • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
        • General
        • Power

          12 VDC ? 25%, 0.5 A, max. 6 W,?5.5 mm coaxial power plug,reverse polarity protection,

          PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.13 A, max. 7.5 W

        • Dimension

          ?127.3 mm ? 95.9 mm (?5.0 ? 3.8\")"

        • Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6")
        • WeightApprox. 600 g (1.3 lb.)
        • With Package WeightApprox. 891 g (2.0 lb.)
        • Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
        • Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
        • Language

          33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

        • General FunctionHeartbeat,anti-flicker,password reset via email,pixel counter
        • Approval
        • EMC

          FCC: 47 CFR Part 15, Subpart B,

          CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

          RCM: AS/NZS CISPR 32: 2015,

          IC: ICES-003: Issue 7,

          KC: KN32: 2015, KN35: 2015

        • Safety

          UL: UL 62368-1,

          CB: IEC 62368-1: 2014+A11,

          CE-LVD: EN 62368-1: 2014/A11: 2017

        • Environment

          CE-RoHS: 2011/65/EU,

          WEEE: 2012/19/EU,

          Reach: Regulation (EC) No 1907/2006

        • ProtectionIP67: IEC 60529-2013

      Data sheet PDF

      Product Description

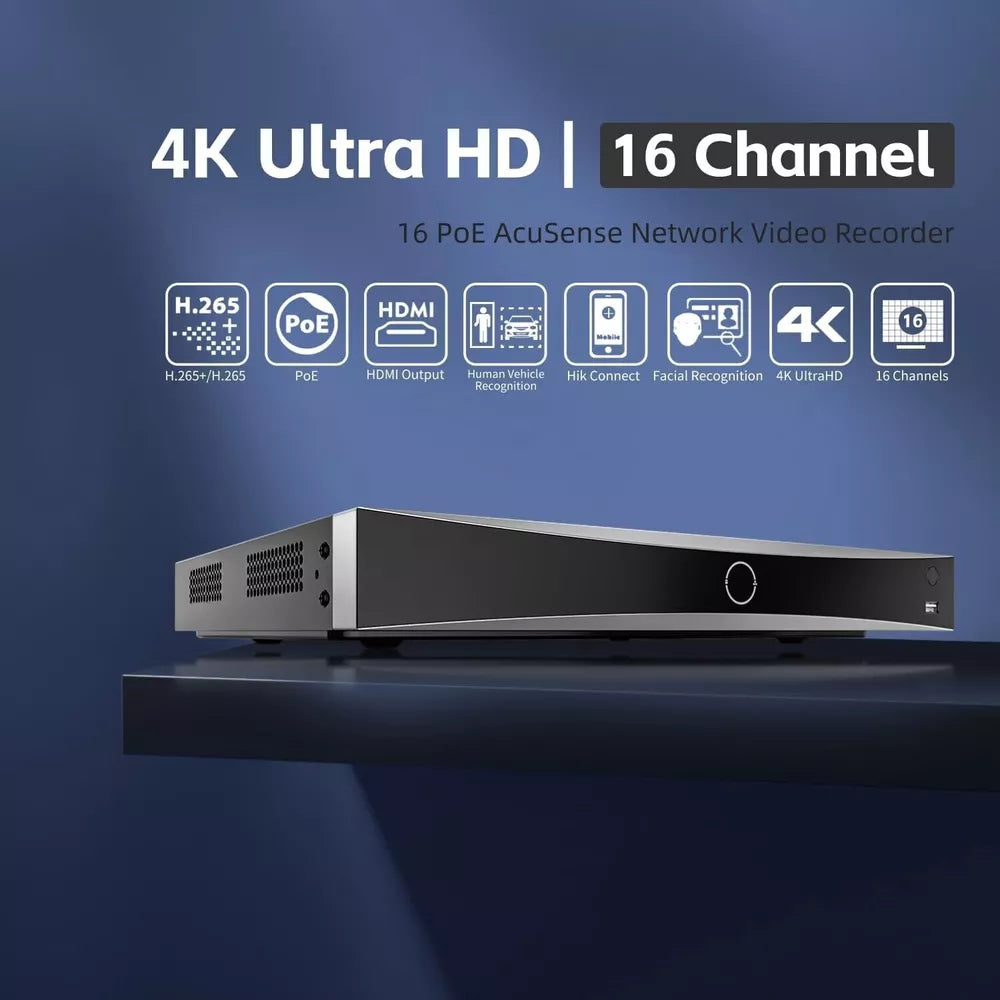

      16ch PoE 1U K Series AcuSense 4K NVR

      • Up to 16ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
      • H.265+/H.265/H.264+/H.264 video formats
      • Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
      • Up to 160 Mbps incoming bandwidth
      • Adopt Hikvision Acusense technology to minimize manual effort and security costs

      Specification

        • Intelligent Analytics
        • AI By DeviceFacial recognition, perimeter protection, motion detection 2.0
        • AI By CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
        • Facial Recognition
        • Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
        • Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ? 4 MB, total capacity ? 1 GB)
        • Facial Detection And Analytics Performance1-ch, 8 MP
        • Face Picture Comparison4ch
        • Motion Detection 2.0
        • By DeviceAll channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
        • By CameraAll channels
        • Perimeter Protection
        • By Device2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
        • By CameraAll channels
        • Video And Audio
        • IP Video Input16ch
        • Incoming Bandwidth160 Mbps
        • Outgoing Bandwidth160 Mbps
        • HDMI Output1-ch, 4K (3840 ? 2160)/30 Hz, 2K (2560 ? 1440)/60 Hz, 1920 ? 1080/60 Hz, 1600 ? 1200/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz, 1024 ? 768/60 Hz
        • VGA Output1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz
        • Video Output ModeHDMI/VGA independent output
        • CVBS OutputN/A
        • Audio Output1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
        • Two-Way Audio1-ch, RCA (Linear, 1 K?)
        • Decoding
        • Decoding FormatH.265/H.265+/H.264+/H.264
        • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
        • Synchronous Playback16ch
        • Decoding Capability

          AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4ch@4 MP (30 fps)/8ch@1080p (30 fps)

          AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)

        • Stream TypeVideo, Video & Audio
        • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC
        • Network
        • Remote Connection128
        • APIONVIF (profile S/G); SDK; ISAPI
        • Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
        • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
        • Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
        • PoE
        • Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
        • Power? 200 W
        • StandardIEEE 802.3af/at
        • Auxiliary Interface
        • SATA2 SATA interfaces
        • CapacityUp to 10 TB capacity for each HDD
        • USB InterfaceFront panel: 1 ? USB 2.0; Rear panel: 1 ? USB 2.0
        • Alarm In/Out4/1
        • General
        • GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
        • Power Supply100 to 240 VAC, 50 to 60 Hz
        • Consumption? 15 W (without HDD and PoE off)
        • Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
        • Working Humidity10% to 90%
        • Dimension (W ? D ? H)385 mm ? 315 mm ? 52 mm (15.2"? 12.4" ? 2.0")
        • Weight? 3 kg (without HDD, 6.6 lb.)
        • Certification
        • FCCPart 15 Subpart B, ANSI C63.4-2014
        • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
        • Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

      Feature Highlight

      Scroll to Explore key features.

      Human and Vehicle Detection

      Human and Vehicle Detection

      Removes unnecessary notifications

      Human and Vehicle Detection

      Removes unnecessary notifications

      One Way Audio

      One Way Audio

      Hear What Matters—Without Saying a WordOne-way audio lets you listen in real time, giving you extra context and aware...

      One Way Audio

      Hear What Matters—Without Saying a WordOne-way audio lets you listen in real time, giving you extra context and awareness during events—perfect for keeping tabs on activity without needing to speak.   Real-Time AwarenessHear what’s happening as it unfolds—footsteps, voices, or unexpected sounds—so you can respond faster. Added ContextVideo shows you what’s going on. Audio tells you more—like tone of voice or background noise—to help you understand the full picture. Silent MonitoringKeep things discreet. One-way audio lets you stay informed without revealing you're listening. Better Incident DocumentationHaving both video and audio helps create a clearer record, which can be useful for reviewing or sharing events. Extra Layer of SecurityAudio can catch things video alone might miss, like someone speaking out of view or activity around a blind spot.

      Advanced Security, Made Simple.



      Accurate Alerts Only

      Accurate Alerts Only

      Human and Vehicle detection so you avoid false alarms which means you feel confident every alert matters. No more unnecessary pings from shadows, animals, or swaying trees—just real notifications when something important happens. It’s security that respects your attention and your time.

      Hear What Matters Most

      Hear What Matters Most

      One-way audio so you can listen in real time which means you stay informed without being seen or heard. Whether checking on activity at the front door or monitoring a concern, you’ll always know what’s happening—without giving away your presence.

      Total Control, Anywhere

      Total Control, Anywhere

      Mobile app access so you can monitor your home remotely which means you feel in control no matter where you are—whether you're at work, on vacation, or just out for dinner, your home is always just a tap away.

      A few more things...

      Scroll to see essential features found in this product and many others across our lineup

      Why Choose Us?

      Frequently Asked Questions

      What makes your surveillance systems premium?+

      Our systems are built with advanced AI features, superior video quality, and long-term reliability—making them ideal for both residential and commercial security.

      Do you offer installation services?+

      Yes, we provide professional installation services in select locations. Contact our support team for availability and scheduling.

      Can I access the system remotely?+

      Absolutely. Our systems support remote viewing via secure mobile apps, allowing you to monitor your property from anywhere.

      What warranty do you offer?+

      All systems come with a standard 2-year warranty, with optional extended coverage for added peace of mind.

      My Recently Viewed Products

      Login

      Forgot your password?

      Don't have an account yet?
      Create account
