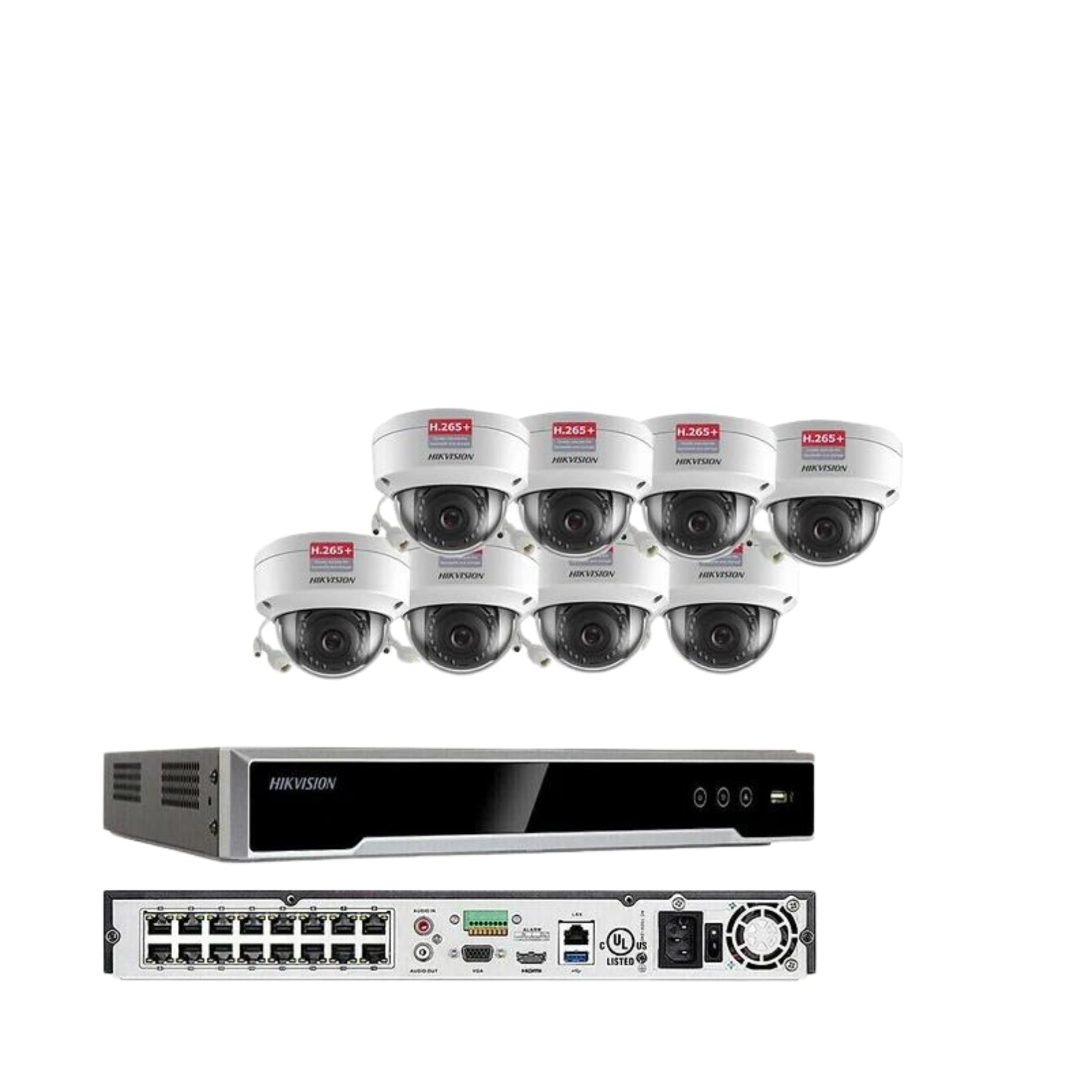

Hikvision 4K 16ch IP PoE Security System 4MP Dome w/ 4 MP resolution

Data sheet PDF

Product Description

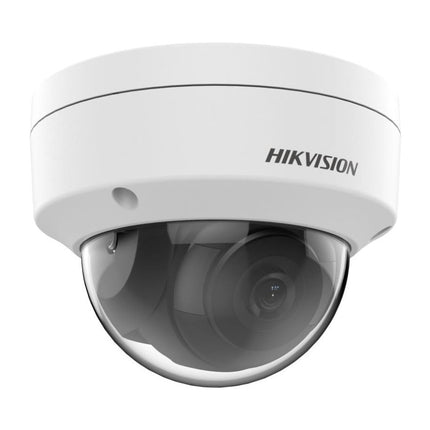

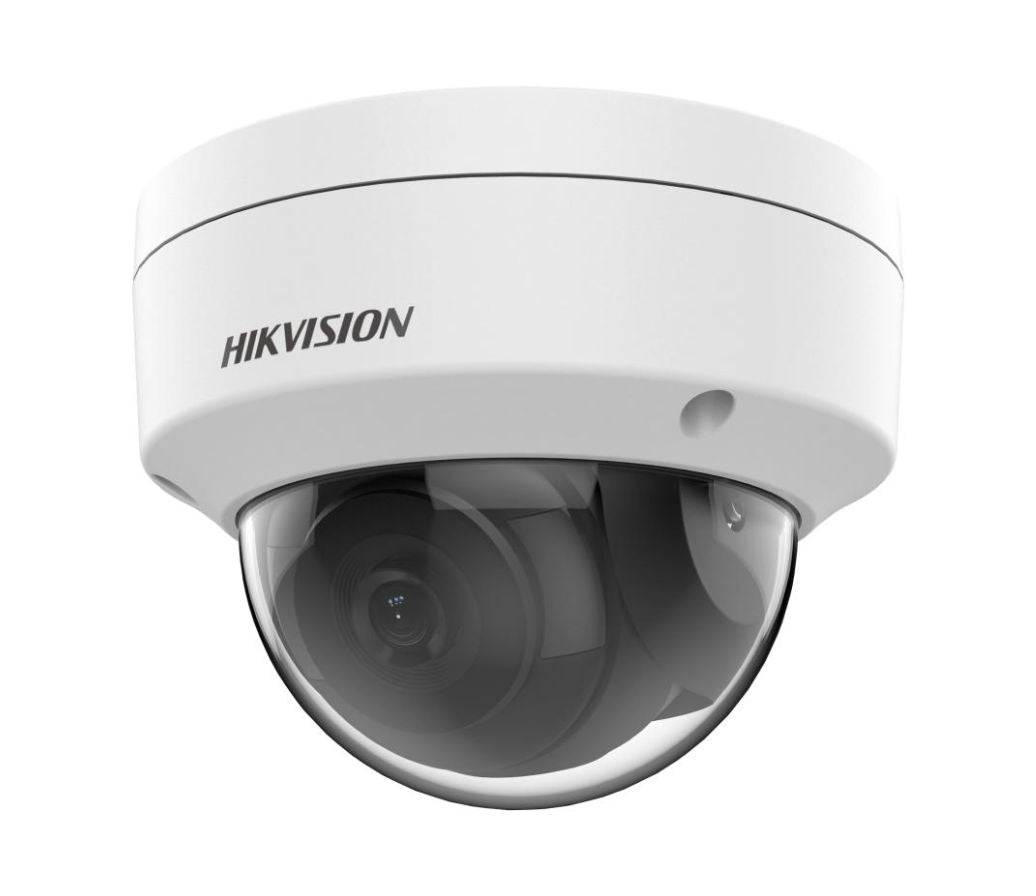

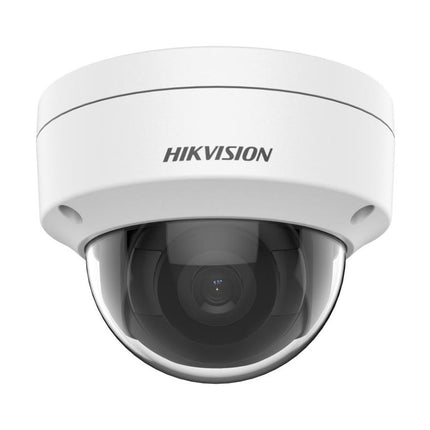

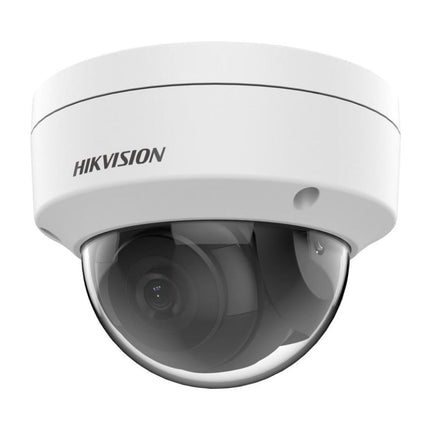

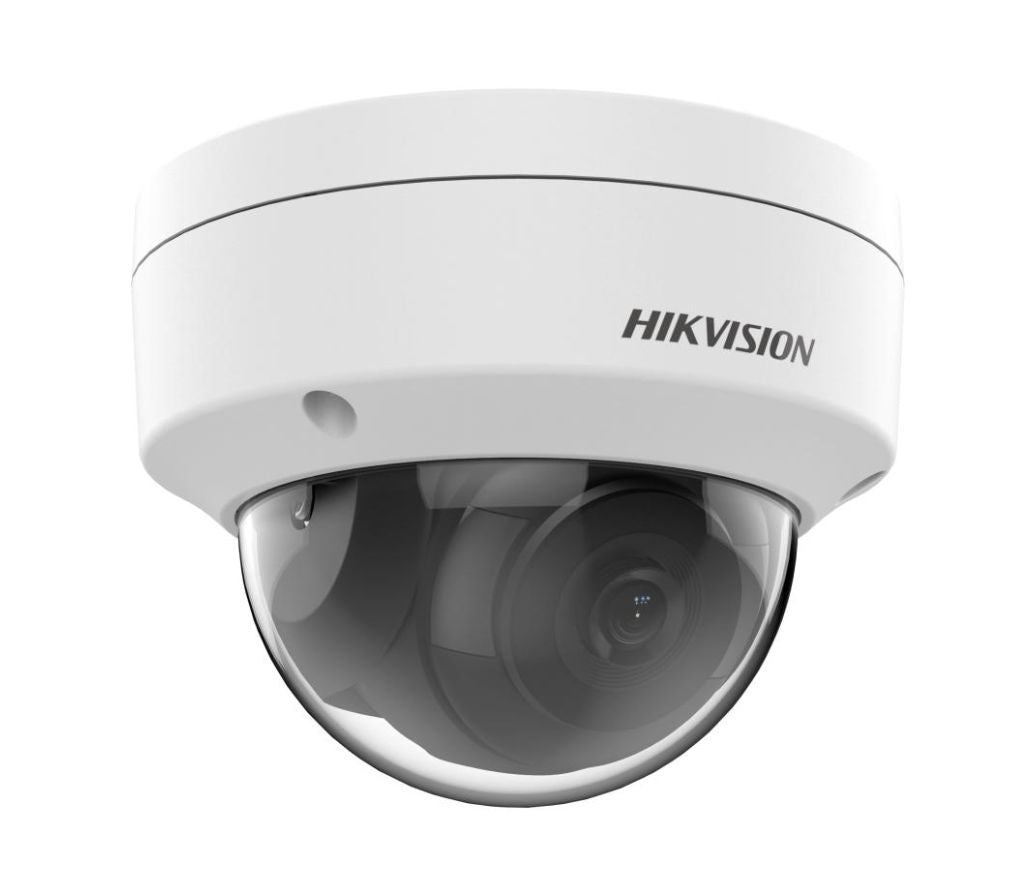

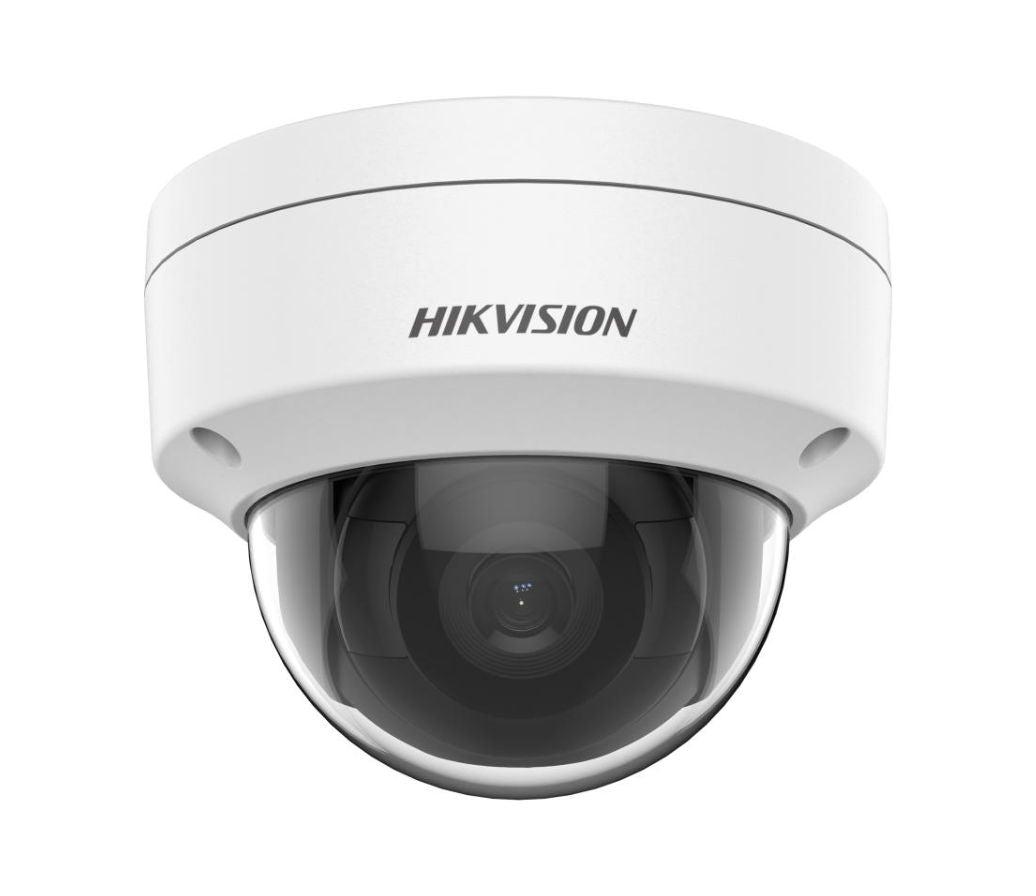

4MP Fixed Dome Network Camera

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR
• Water and dust resistant (IP67) and vandal resistant (IK10)
• EXIR 2.0: advanced infrared technology with long IR range

Specification

• Camera
• Image Sensor1/3" progressive scan CMOS
• Max. Resolution2560 ? 1440
• Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100, 000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0? to 355?, tilt: 0? to 75?
• Lens
• Focal Length & FOV

  2.8 mm, horizontal FOV 98.0?, vertical FOV 53.1?, diagonal FOV 114.7?

  4 mm, horizontal FOV 78.7?, vertical FOV 43.1?, diagonal FOV 92.3?

• Lens MountM12
• FocusFixed
• ApertureF2.0
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Iris TypeFixed
• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• IR Wavelength850 nm
• Smart Supplement LightYes
• Video
• Main Stream

  50 Hz: 20 fps (2560 ? 1440)

  25 fps (1920 ? 1080, 1280 ? 720)

  60 Hz: 20 fps (2560 ? 1440)

  30 fps (1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (640 ? 480, 640 ? 360)

  60 Hz: 30 fps (640 ? 480, 640 ? 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Region Of Interest (ROI)1 fixed region for main stream
• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image Settings

  Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client

  software or web browser

• Day/Night SwitchAuto, Schedule, Day, Night
• Wide Dynamic Range (WDR)120 dB
• Image EnhancementBLC, 3D DNR
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• Event
• Basic EventMotion detection, video tampering alarm, exception
• LinkageUpload to FTP, notify surveillance center, send email
• General
• Power

  12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• Dimension?111 mm ? 82.4 mm (? 4.4" ? 3.2")
• Package Dimension134 mm ? 134 mm ? 108 mm (5.3" ? 5.3" ? 4.3")
• WeightApprox. 360 g (0.8 lb.)
• With Package WeightApprox. 560 g (1.2 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Approval
• EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Data sheet PDF

Product Description

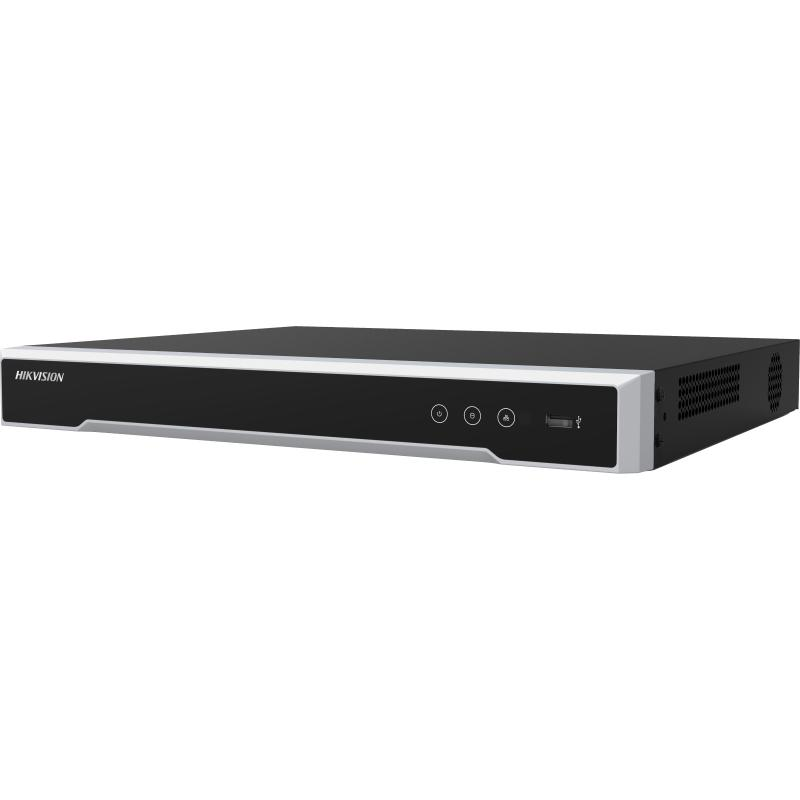

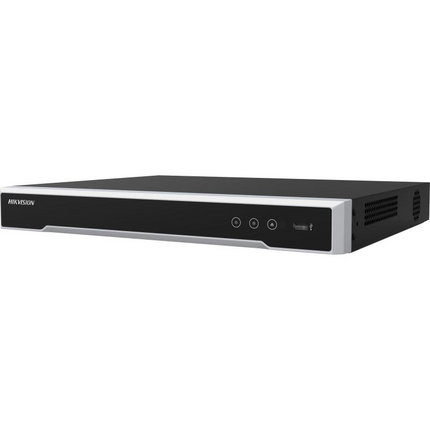

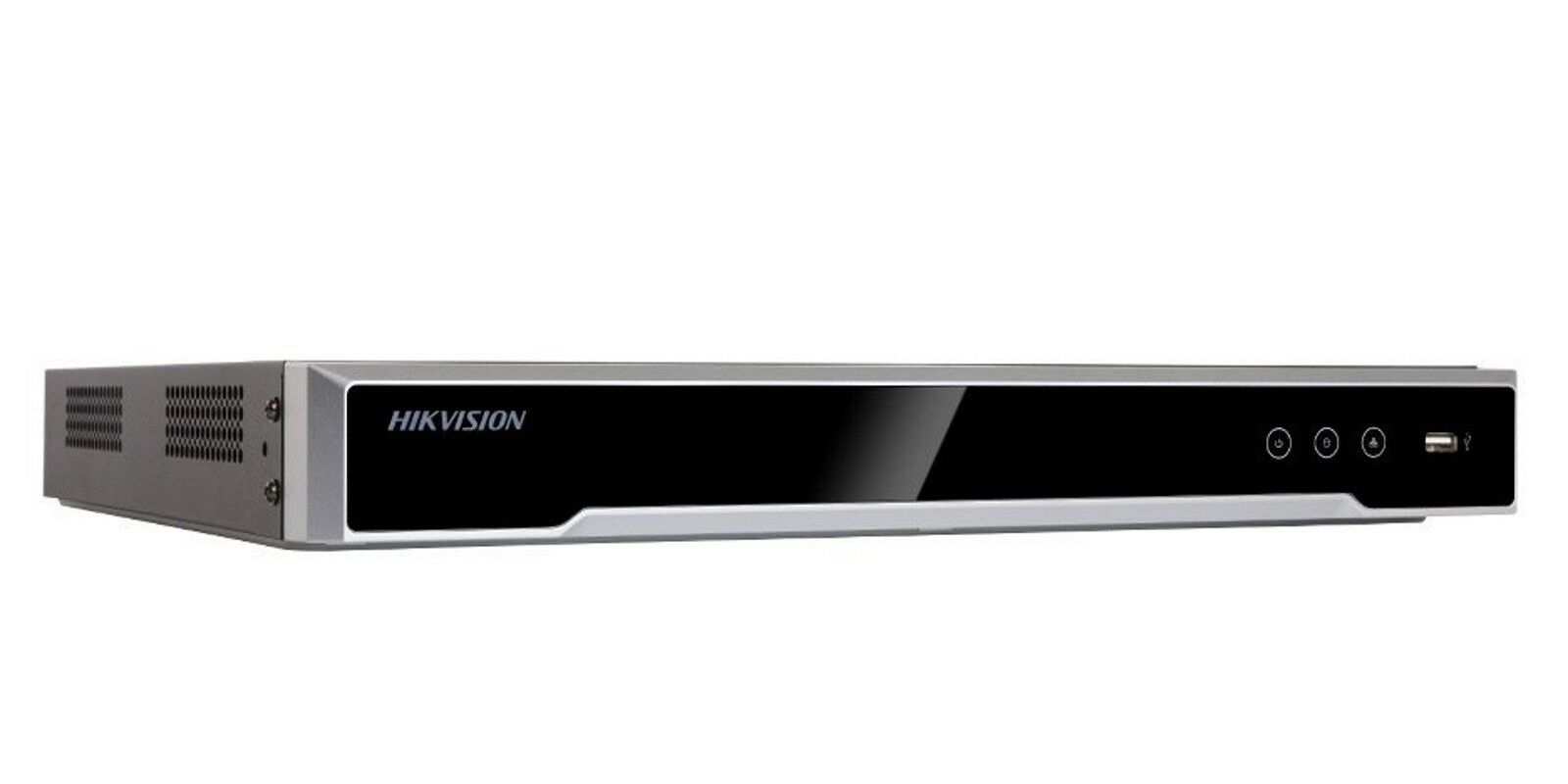

16ch 1U 16 PoE 4K NVR

• Up to 16ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 160 Mbps incoming bandwidth

Specification

• Motion Detection 2.0
• Human/Vehicle Analysis4
• Video And Audio
• IP Video Input16ch
• HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• VGA Output1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Incoming Bandwidth160 Mbps
• Outgoing Bandwidth80 Mbps
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?)
• Decoding
• Decoding FormatH.265+,H.265,H.264+,H.264
• Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
• Synchronous Playback16ch
• Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Network
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS
• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• PoE
• Interface16ch;16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power? 150W
• StandardIEEE 802.3 af/at
• RAID
• RAID TypeNo
• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 8TB capacity for each disk
• USB Interface2 ? USB 2.0
• General
• Power Supply100-240V?, 50/60Hz, 3.2A MAX
• Consumption? 15W
• Working Temperature-10 to +55? C (+14 to +131? F)
• Working Humidity10 to 90 %
• Chassis1U chassis
• Dimension (W ? D ? H)385 ? 315 ? 52 mm (15.2"? 12.4" ? 2.0")
• Weight? 2.6 kg (5.7 lb)
