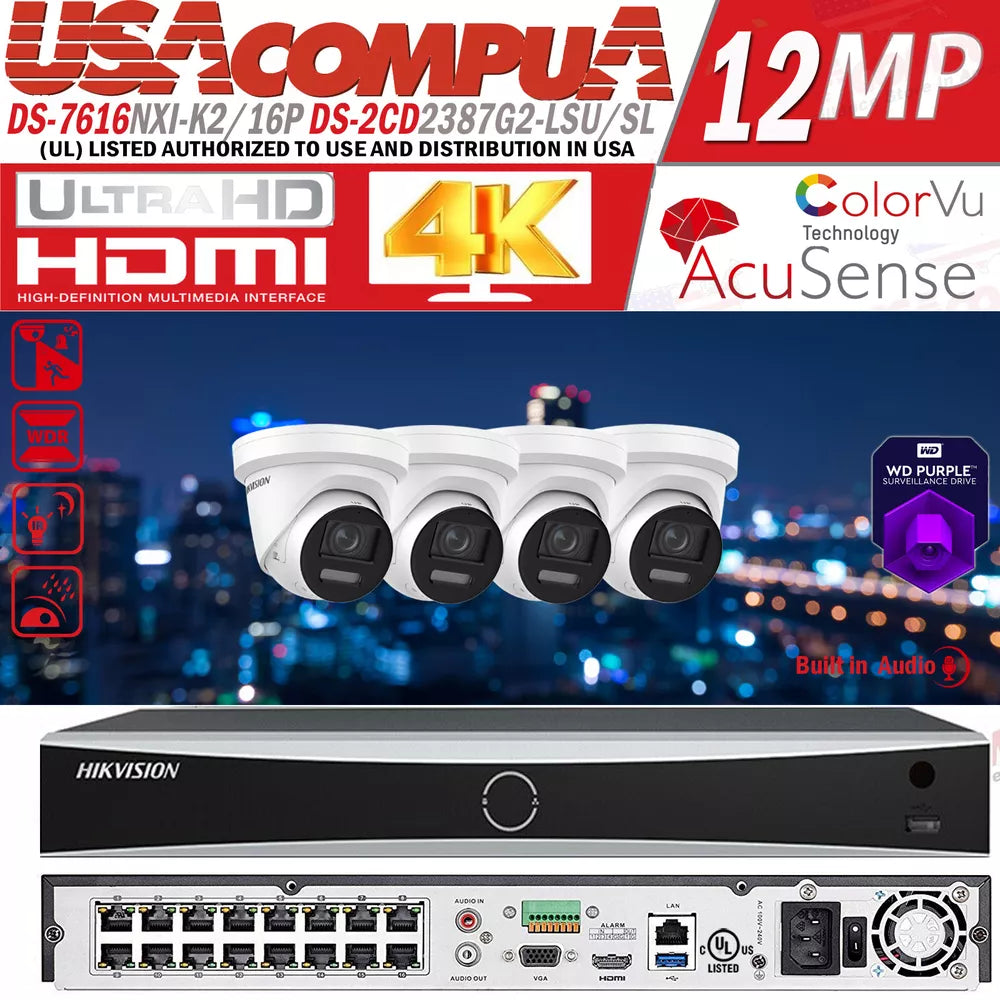

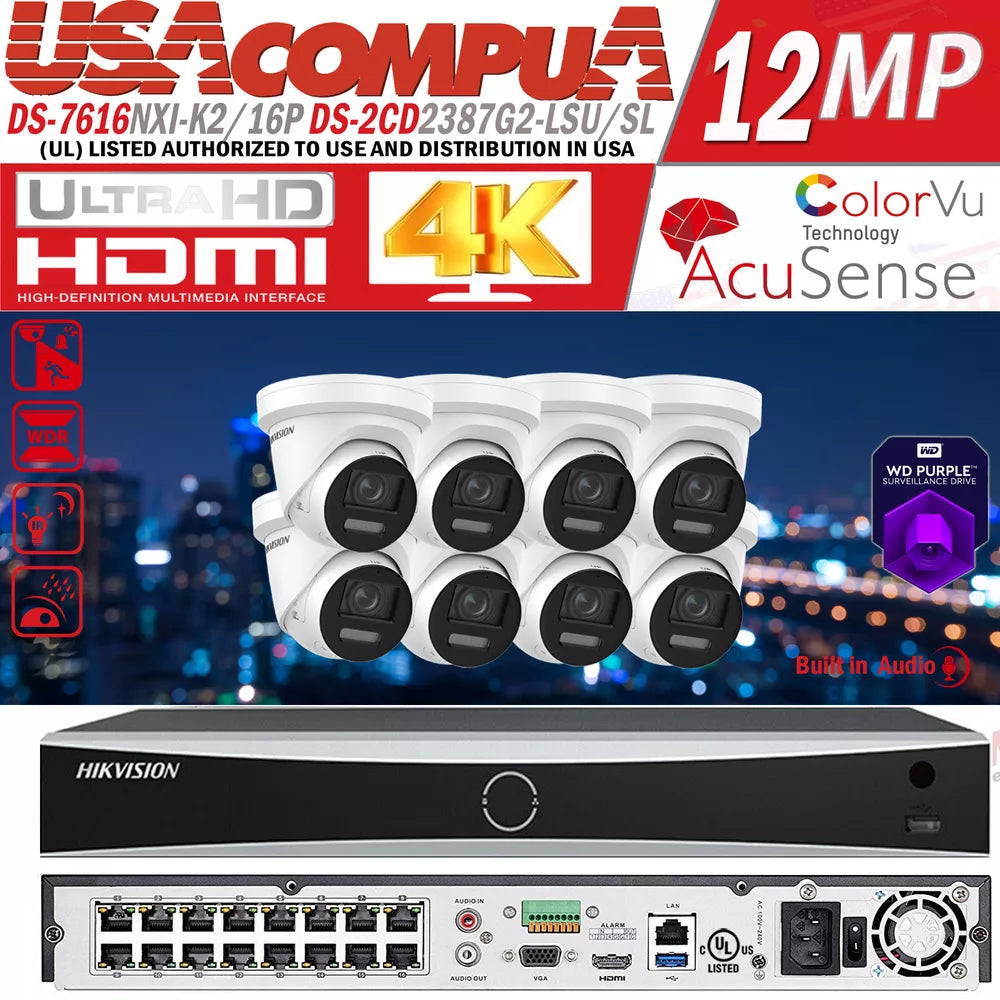

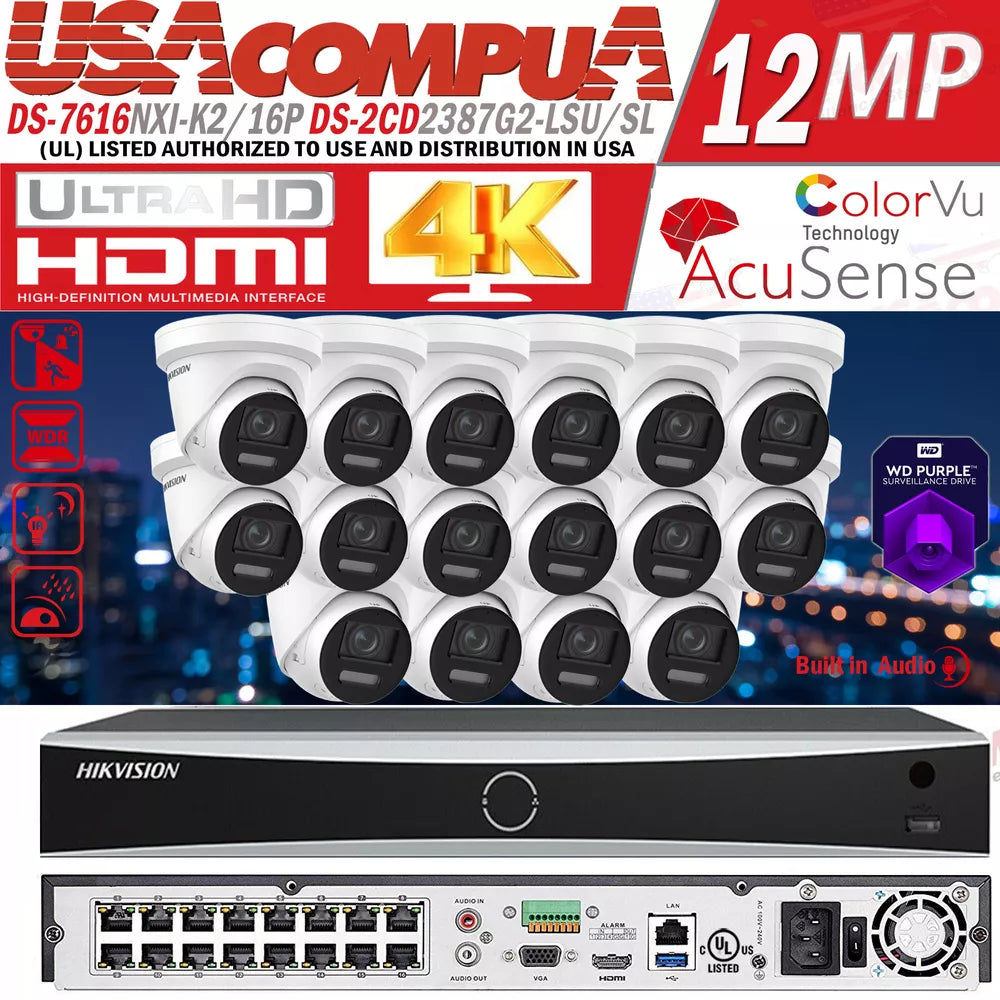

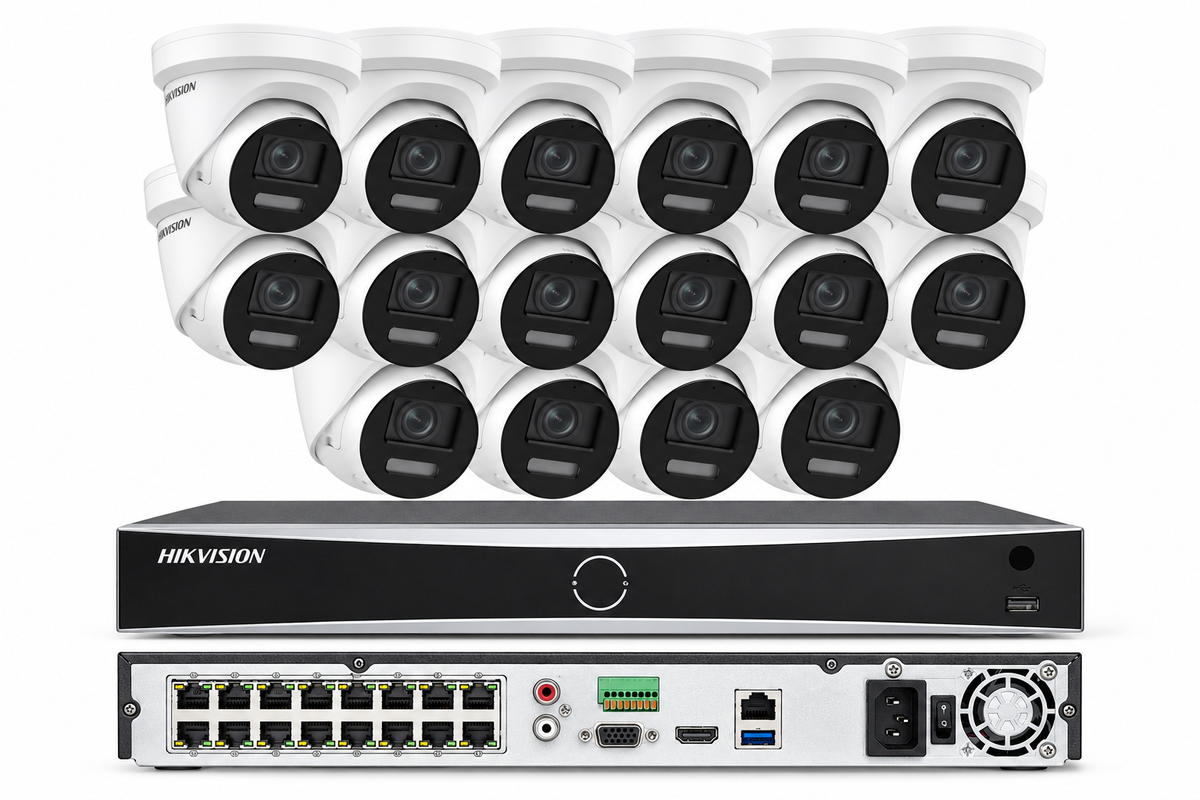

Hikvision 4K 16CH IP Security Camera System Kit 2-Way Audio ColorVu 8MP Lot D3

Data sheet PDF

Product Description

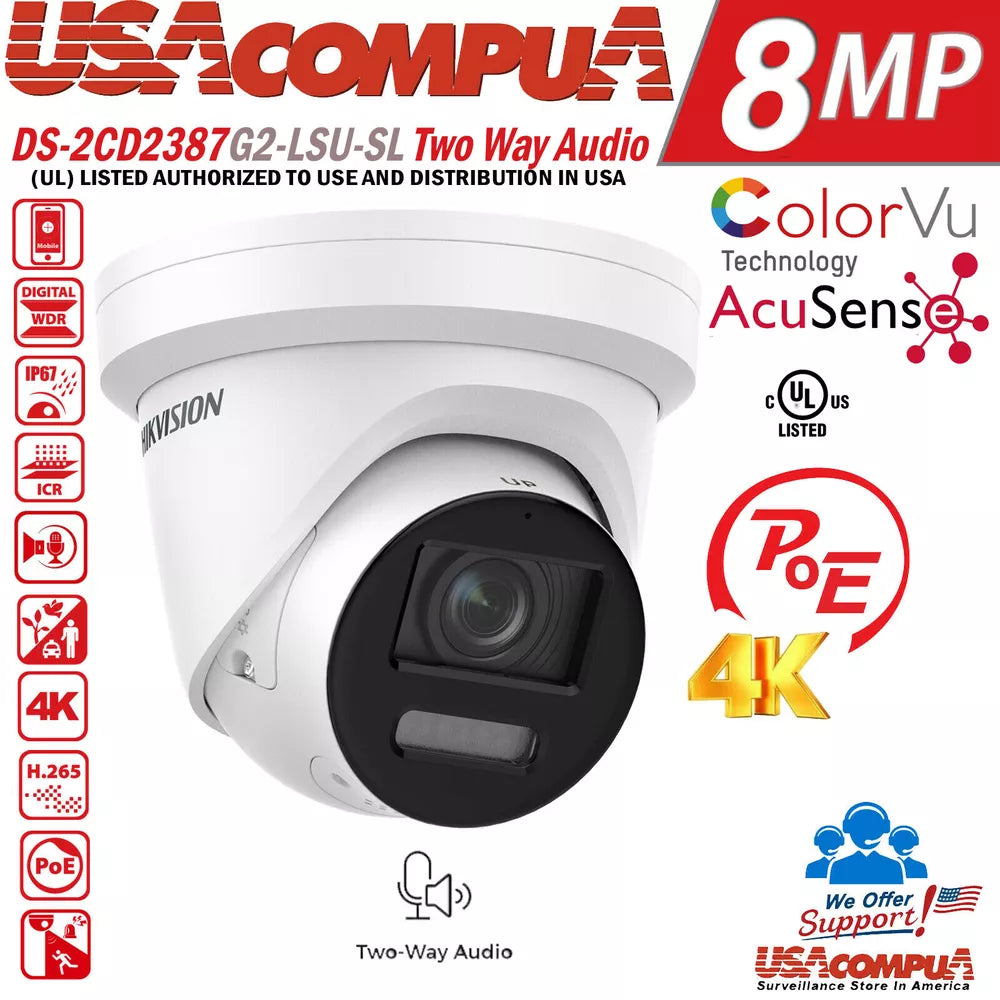

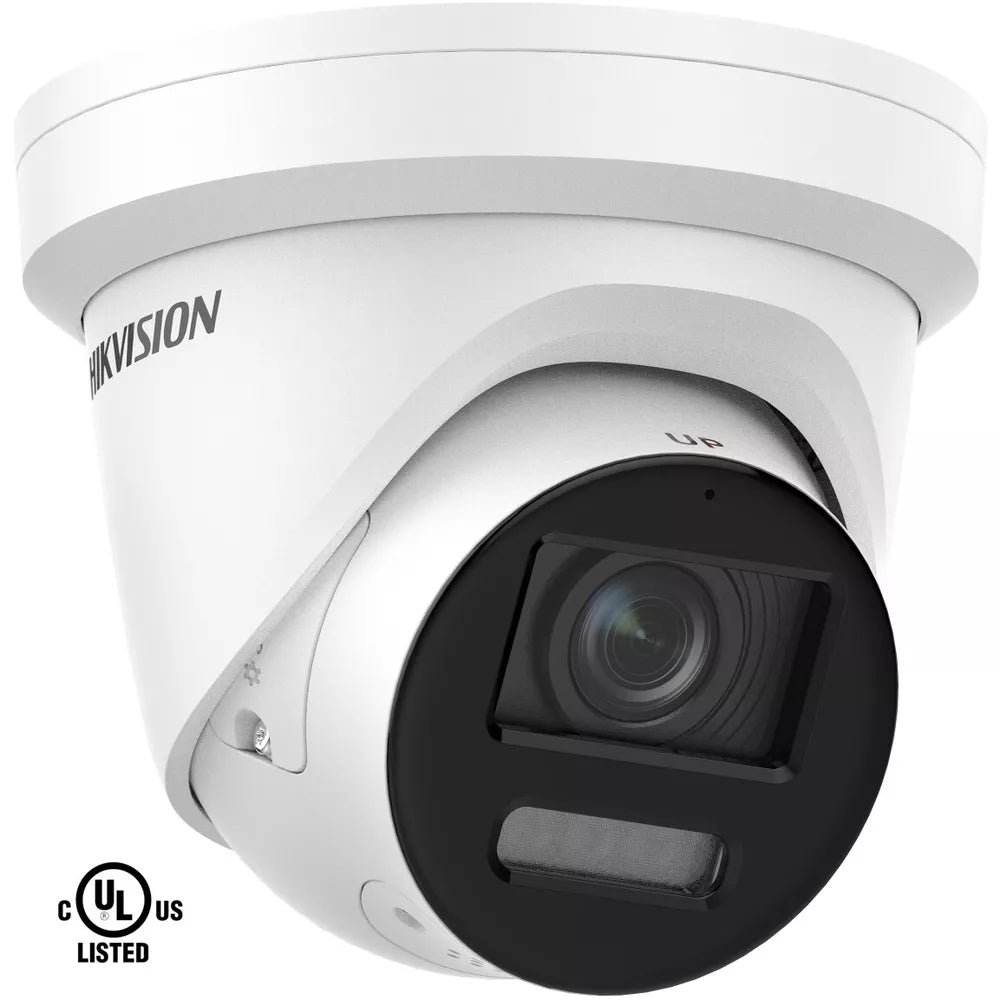

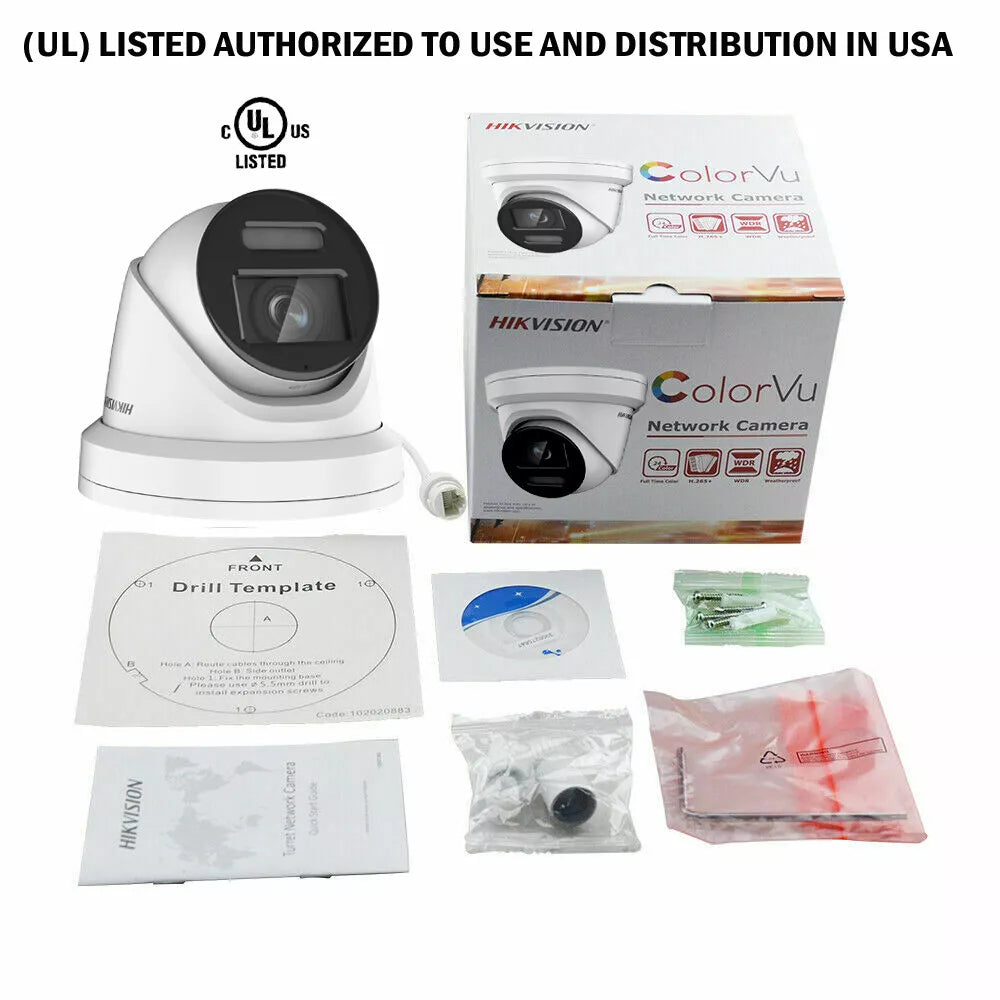

8 MP ColorVu Strobe Light and Audible Warning Fixed Turret Network Camera

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Focus on human and vehicle targets classification
• 24/7 colorful imaging
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Audio and alarm interface available
• Water and dust resistant (IP67)

Camera

Lens

DORI

Illuminator

Video

Audio

Network


Interface

Event

Deep Learning Function

General

Approval

• Camera
• Image Sensor1/1.2? Progressive Scan CMOS
• Max. Resolution3840 ? 2160
• Min. IlluminationColor?0.0005 Lux @ (F1.0, AGC ON)?0 Lux with white light
• Shutter Speed1/3 s to 1/100,000 s
• Day & Night24/7 Color imaging
• Angle AdjustmentPan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360?
• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 102?, vertical FOV 52?, diagonal FOV 124?

  4 mm, horizontal FOV 88?, vertical FOV 47?, diagonal FOV 104?

• Lens MountM mount
• Iris TypeFixed
• ApertureF1.0
• Depth Of Field

  2.8 mm: 4 m to ?

  4 mm: 6.2 m to ?

• DORI
• DORI

  2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m

  4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• Video
• Main Stream

  50 Hz:

  25 fps (3840 ? 2160, 3200 ? 1800 , 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

  60 Hz:

  24 fps (3840 ? 2160)

  30 fps (3200 ? 1800 , 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

• Third Stream

  50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 10 fps (1920 x 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream
• Audio
• Environment Noise Filtering-U: Yes
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Network
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Wide Dynamic Range (WDR)130 dB
• SNR? 52 dB
• Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512 GB
• Built-In MicrophoneYes
• Built-In Speaker1.5 W, 10 cm: 95 dB
• Audio

  1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 K?, interface type: non-equilibrium

  1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium

• Alarm1 input, 1 output (max. 24 VDC, 1 A)
• Reset KeyYes
• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)), scene change detection
• LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email
• Deep Learning Function
• Face CaptureYes
• Gene

  Data sheet PDF

  Product Description

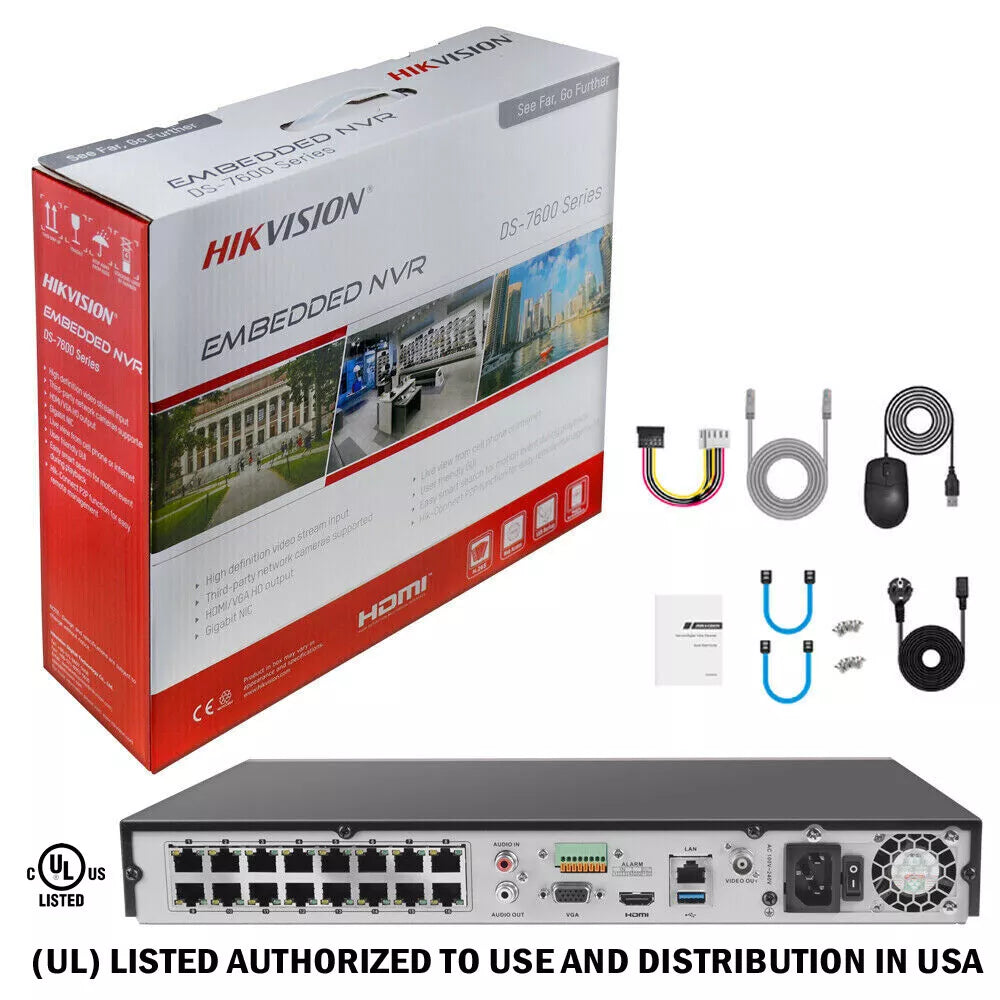

  16ch PoE 1U K Series AcuSense 4K NVR

  • Up to 16ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
  • Up to 160 Mbps incoming bandwidth
  • Adopt Hikvision Acusense technology to minimize manual effort and security costs



  Specification

  • Intelligent Analytics
  • AI By DeviceFacial recognition, perimeter protection, motion detection 2.0
  • AI By CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
  • Facial Recognition
  • Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
  • Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ? 4 MB, total capacity ? 1 GB)
  • Facial Detection And Analytics Performance1-ch, 8 MP
  • Face Picture Comparison4ch
  • Motion Detection 2.0
  • By DeviceAll channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
  • By CameraAll channels
  • Perimeter Protection
  • By Device2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
  • By CameraAll channels
  • Video And Audio
  • IP Video Input16ch
  • Incoming Bandwidth160 Mbps
  • Outgoing Bandwidth160 Mbps
  • HDMI Output1-ch, 4K (3840 ? 2160)/30 Hz, 2K (2560 ? 1440)/60 Hz, 1920 ? 1080/60 Hz, 1600 ? 1200/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz, 1024 ? 768/60 Hz
  • VGA Output1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz
  • Video Output ModeHDMI/VGA independent output
  • CVBS OutputN/A
  • Audio Output1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
  • Two-Way Audio1-ch, RCA (Linear, 1 K?)
  • Decoding
  • Decoding FormatH.265/H.265+/H.264+/H.264
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback16ch
  • Decoding Capability

    AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4ch@4 MP (30 fps)/8ch@1080p (30 fps)

    AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)

  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC
  • Network
  • Remote Connection128
  • APIONVIF (profile S/G); SDK; ISAPI
  • Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
  • Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • PoE
  • Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power? 200 W
  • StandardIEEE 802.3af/at
  • Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 10 TB capacity for each HDD
  • USB InterfaceFront panel: 1 ? USB 2.0; Rear panel: 1 ? USB 2.0
  • Alarm In/Out4/1
  • General
  • GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption? 15 W (without HDD and PoE off)
  • Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
  • Working Humidity10% to 90%

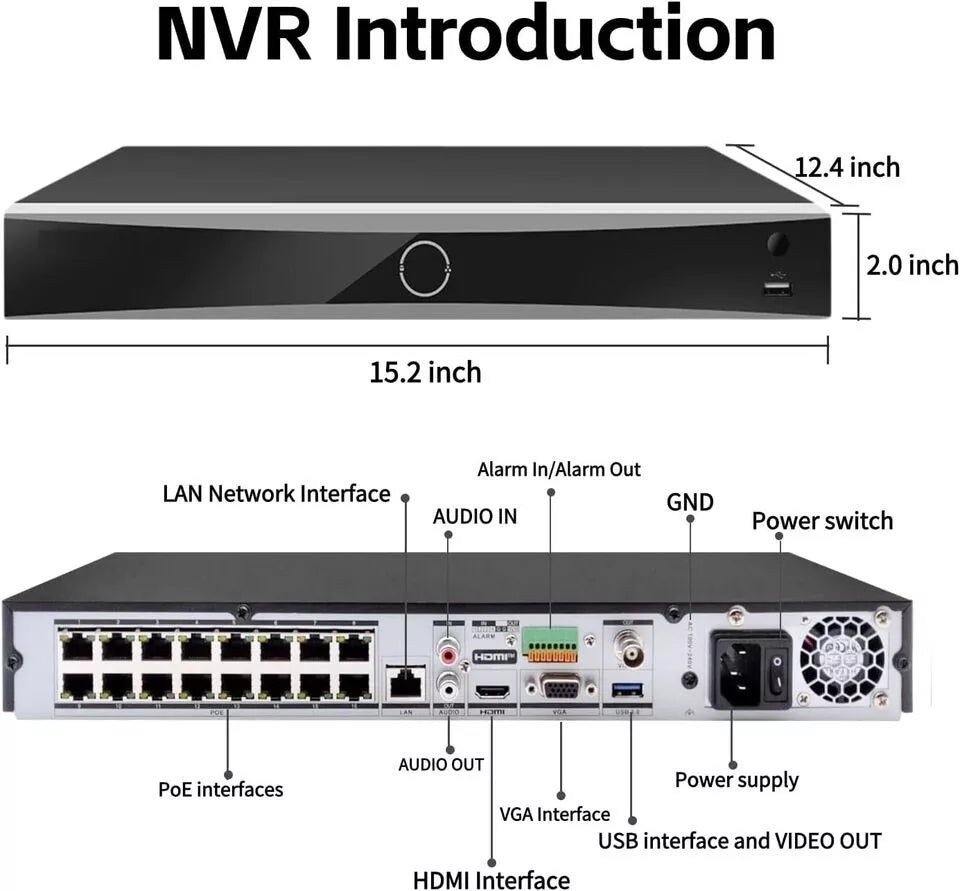

  • Dimension (W ? D ? H)385 mm ? 315 mm ? 52 mm (15.2"? 12.4" ? 2.0")
  • Weight? 3 kg (without HDD, 6.6 lb.)
  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
  • Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
