Hikvision 4k 16ch Security Camera System CCTV 2MP Dual Light Audio Fixed
Hikvision 4k 16ch Security Camera System CCTV 2MP Dual Light Audio Fixed
Hybrid Light
One Way Audio
Out of stock
Description
Description
Hikvision 4k 16ch Security Camera System CCTV 2MP Dual Light Audio Fixed
This listing includes:
- CAMERA QUANTITY (DS-2CE16D0T-LFS): 4;6;8;10;12;14;16
- HARD DRIVE OPTION FOR RECORDER DS-7216HQHI-K2: NO HARD DRIVE;1TB;2TB;3TB;4TB;6TB;8TB
DS-2CE16D0T-LFS view data sheet

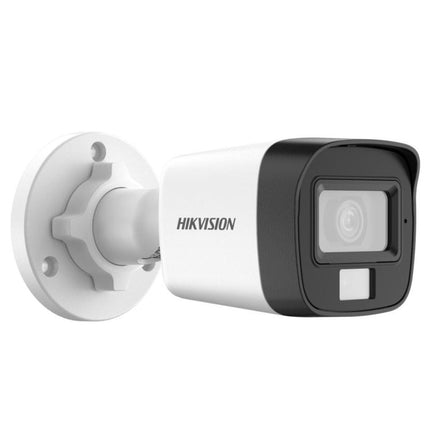

2MP Smart Hybrid Light Audio Fixed Mini Bullet Camera
- High quality imaging with 2 MP, 1920�1080 resolution
- 2.8 mm, fixed focal lens
- Up to 30 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS?
- Up to 20 m white light distance for bright night imaging
- High quality audio with audio over coaxial cable, built-in mic
- Water and dust resistant (IP67)
DS-7216HQHI-K2 view data sheet

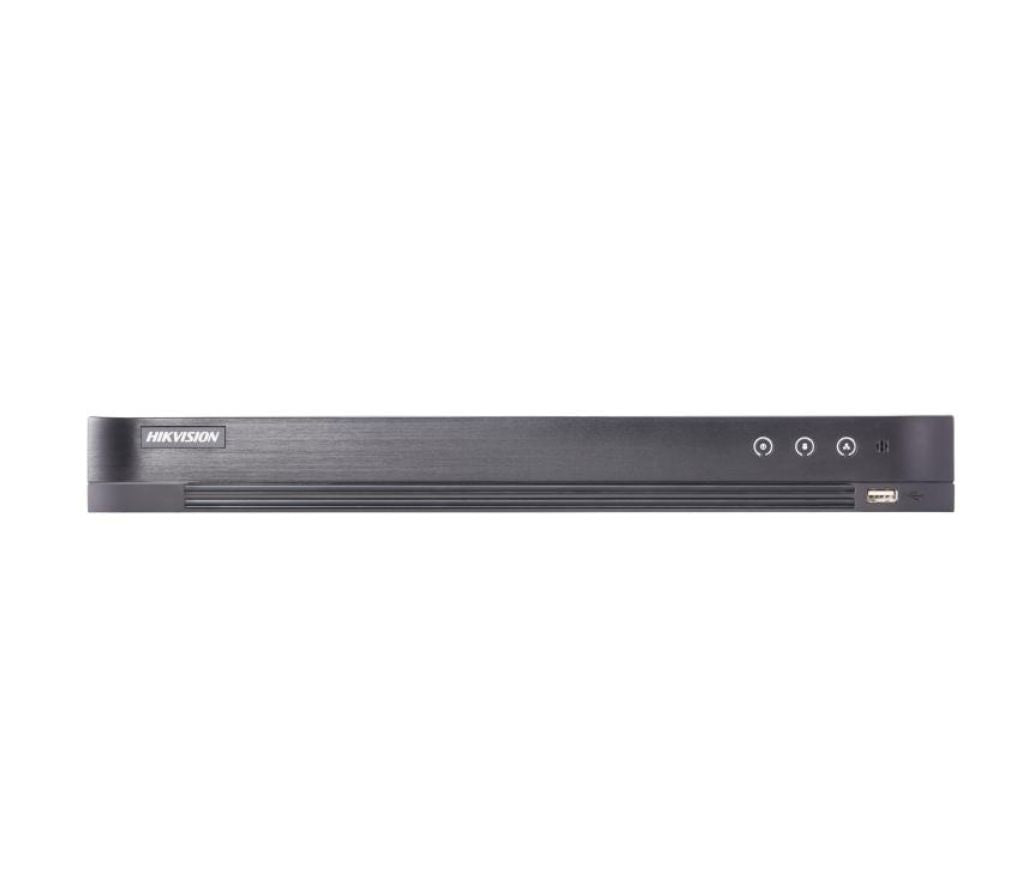

16ch 1080p 1U H.265 DVR
- 16chs and 2 HDDs 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively ("Hybrid")
- Up to 24 network cameras can be connected
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description

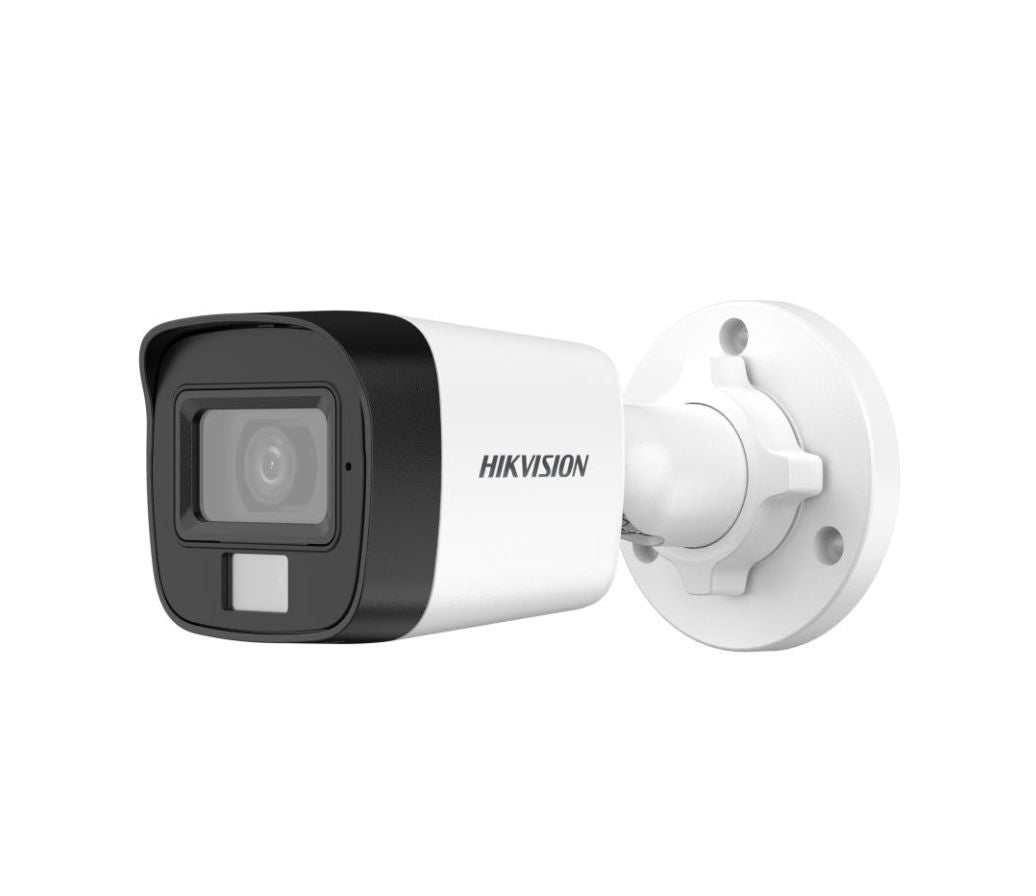

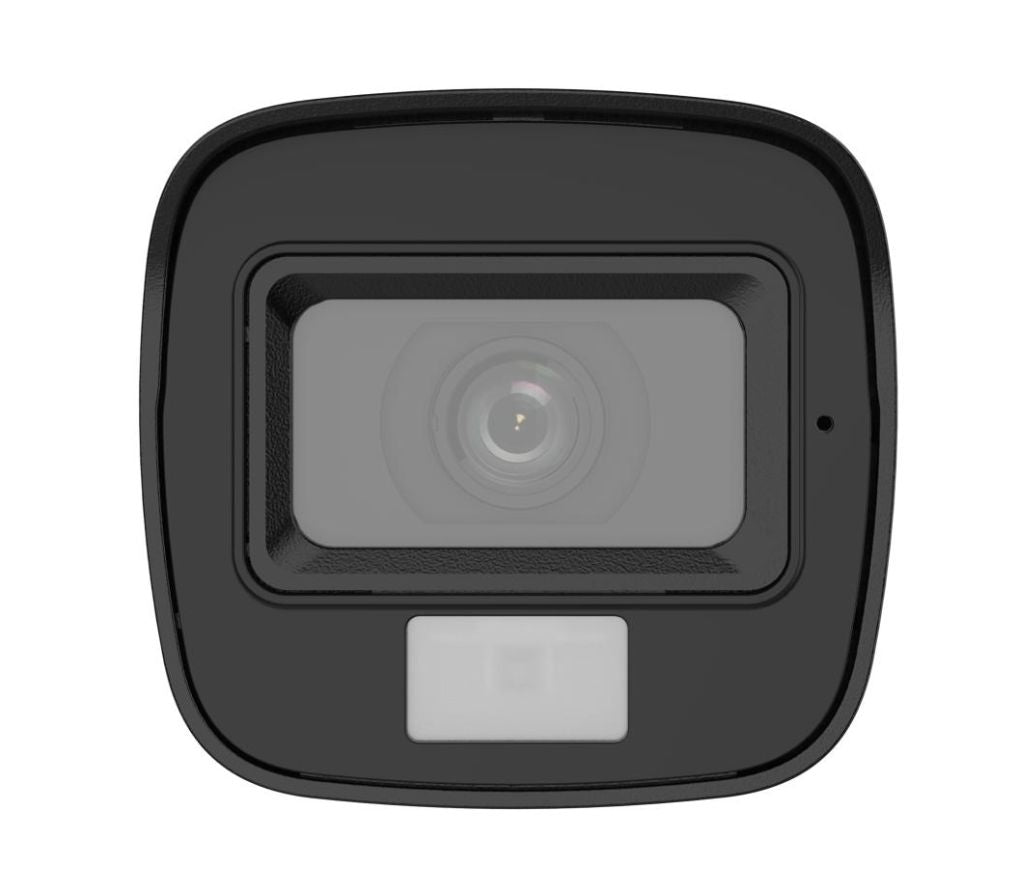

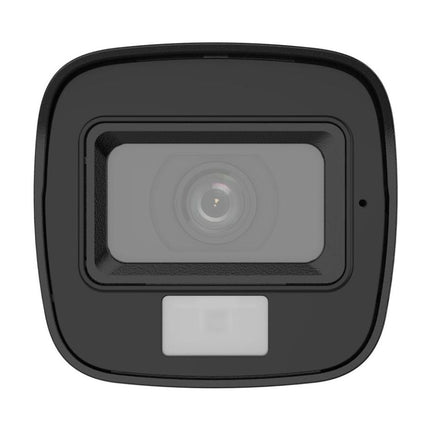

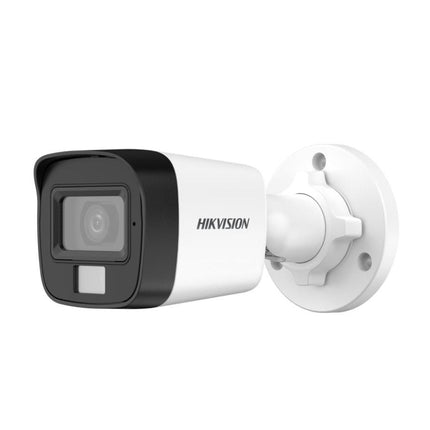

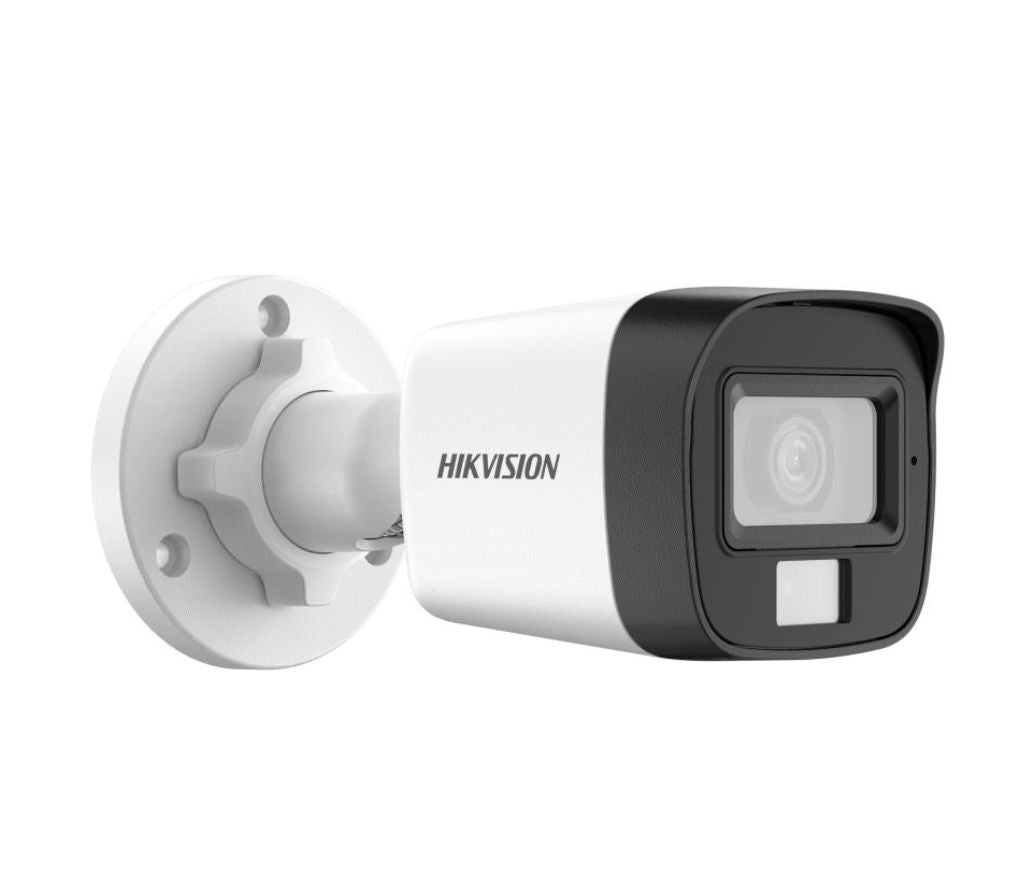

2MP Smart Hybrid Light Audio Fixed Mini Bullet Camera
- High quality imaging with 2 MP, 1920?1080 resolution
- 2.8 mm, fixed focal lens
- Up to 30 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS?
- Up to 20 m white light distance for bright night imaging
- High quality audio with audio over coaxial cable, built-in mic
- Water and dust resistant (IP67)
Specification
- Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) ? 1080 (V)
- Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 180?, Rotation: 0 to 360?
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, fixed focal lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 101?, vertical FOV: 56?, diagonal FOV: 118?
, horizontal FOV: 78?, vertical FOV: 42?, diagonal FOV: 92?
- Lens MountM12
- Illuminator
- Supplement Light TypeWhite Light;IR
- Supplement Light Range
IR : Up to 30 m
White Light : Up to 20 m
- Image
- Image SettingsBrightness, Sharpness, Smart IR
- Frame Rate
TVI: 1080P @ 30 fps, 1080P @ 25 fps
AHD: 1080P @ 30 fps, 1080P @ 25 fps
CVI: 1080P @ 30 fps, 1080P @ 25 fps
CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementDWDR/BLC/HLC/Global
- White BalanceAuto/Manual
- AGCYes
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- MaterialMetal
- Dimension138.8 mm ? 60.9 mm ? 57.9 mm (5.47" ? 2.4 " ? 2.3")
- WeightApprox. 266 g (0.59 lb.)
- Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply
12 VDC ? 25%
*You are recommended to use one power adapter to supply the power for one camera.
- ConsumptionMax. 3.3 W
- Approval
- ProtectionIP67
Data sheet PDF
Product Description

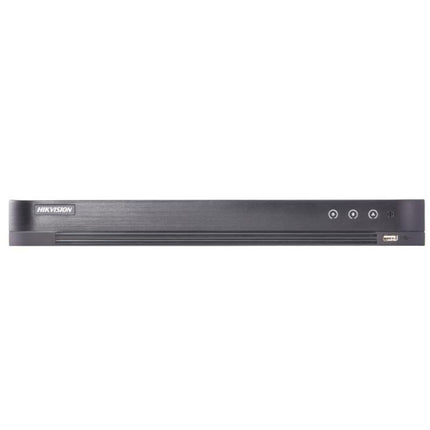

16ch 1080p 1U H.265 DVR
- 16chs and 2 HDDs 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively ("Hybrid")
- Up to 24 network cameras can be connected
Specification
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding ResolutionWhen 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
- Frame RateMain stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
- Video Bit Rate32 Kbps to 6 Mbps
- Dual StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bit Rate64 Kbps
- Video And Audio
- IP Video Input8ch (up to 24ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input16ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
- AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- Audio Input1-ch, RCA (2.0 Vp-p, 1 K?)
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
- Synchronous Playback16ch
- HDTVI Input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1/2 of DS-7208HQHI-K2, and for channel 1/2/3/4 of DS-7216HQHI-K2.,
- VGA/HDMI OutputVGA: 1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz,HDMI: 1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?),
- Network
- Remote Connections128
- Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
- Network Interface1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 10 TB capacity for each disk
- Alarm In/OutN/A
- USB InterfaceFront panel: 1 ? USB 2.0,Rear panel: 1 ? USB 3.0,
- Serial InterfaceRS-485 (half-duplex)
- General
- Power Supply12 VDC
- Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
- Working Humidity10% to 90%
- Dimensions (W ? D ? H)380 ? 320 ? 48 mm (15.0 ? 12.6 ? 1.9 inch)
- Weights (Without HDD)? 2 kg (4.4 lb)
- Consumption (Without HDD)? 25 W
