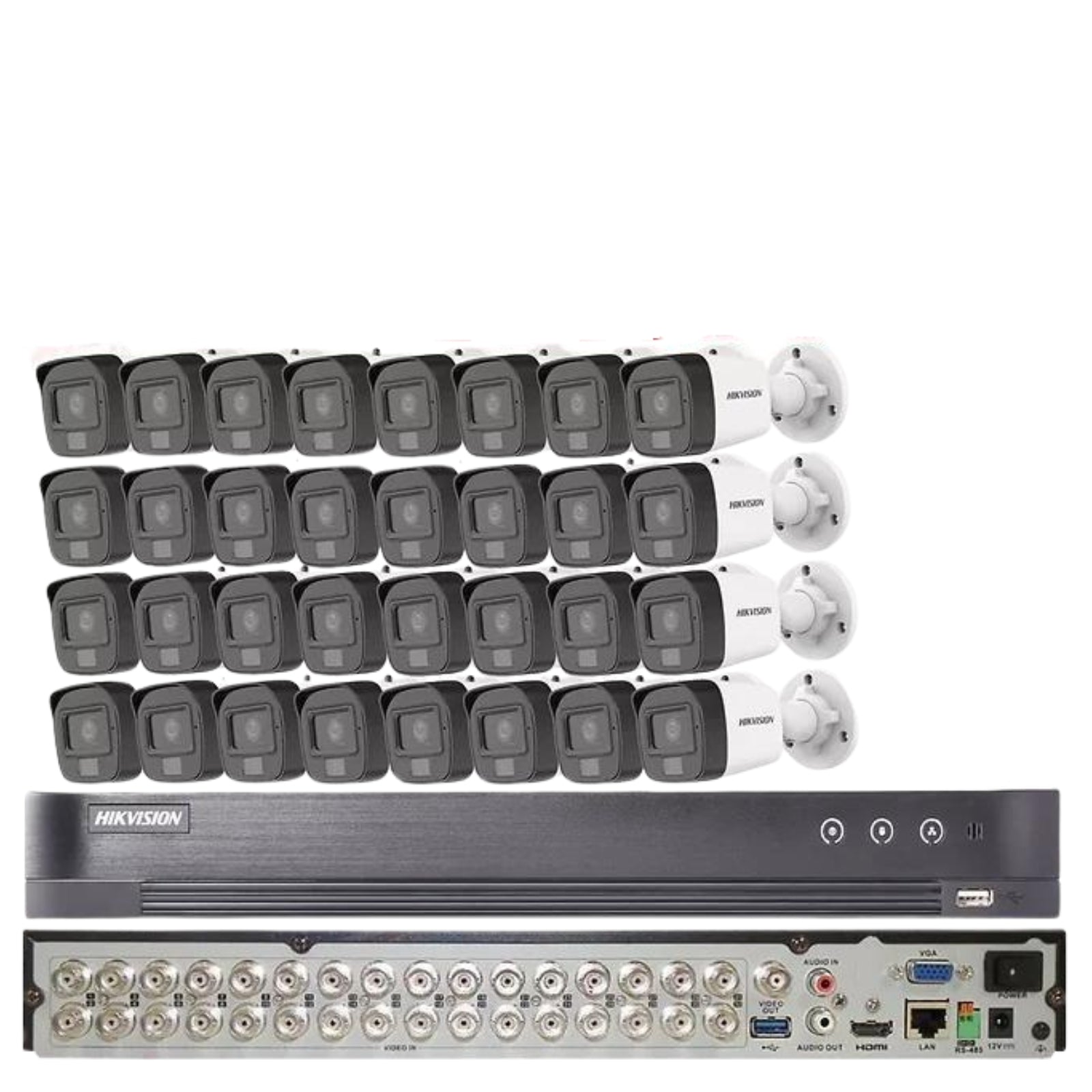

Hikvision 4K 32Ch Cctv Security Camera System 3K Smart Hybrid Light W/Audio Lot

Data sheet PDF

Product Description

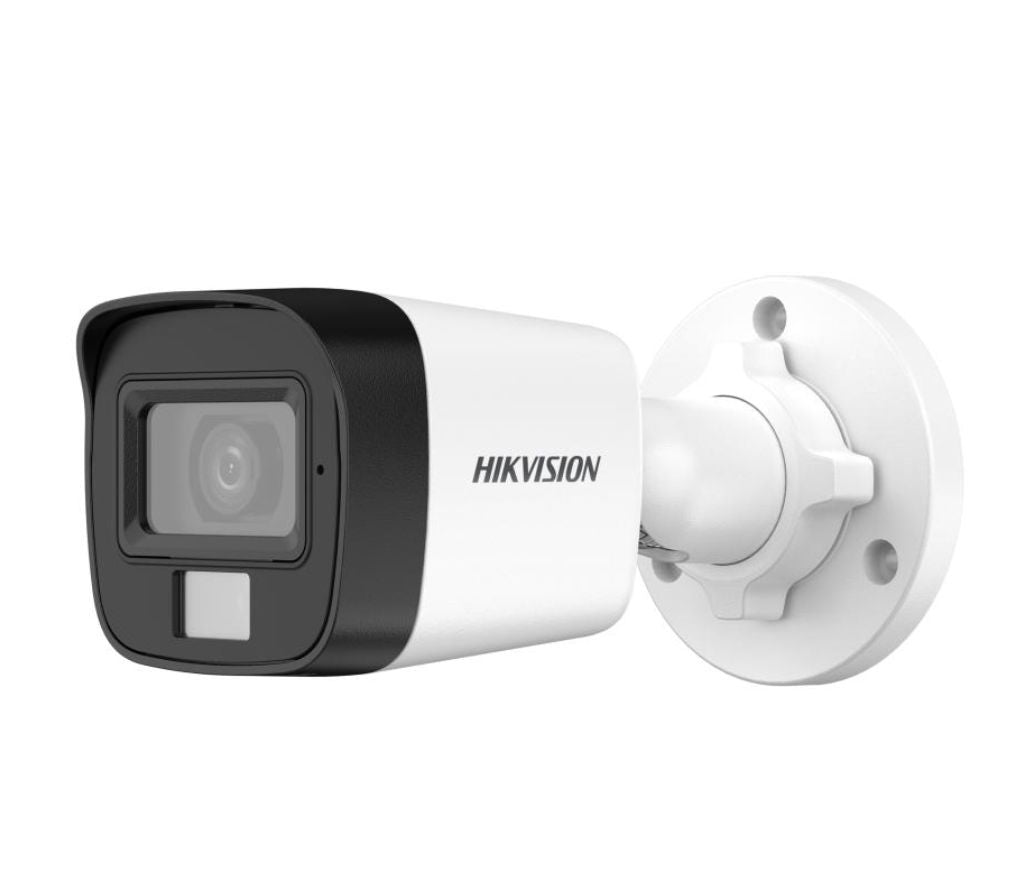

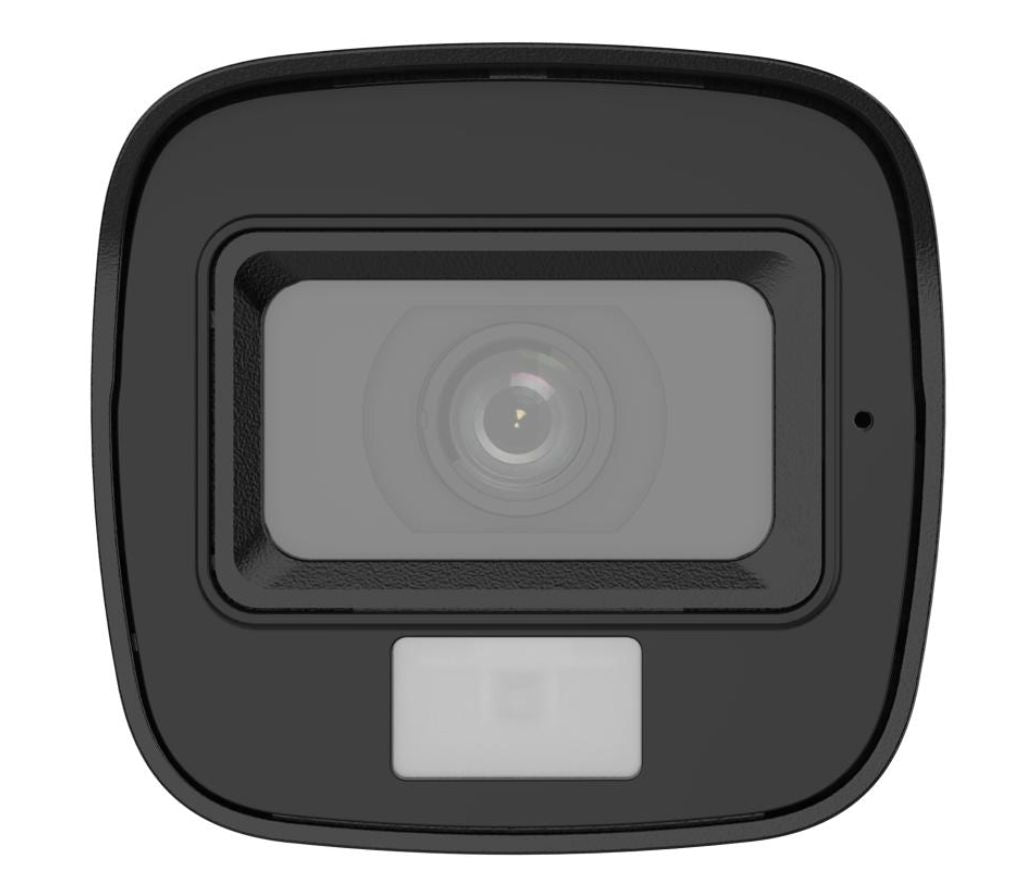

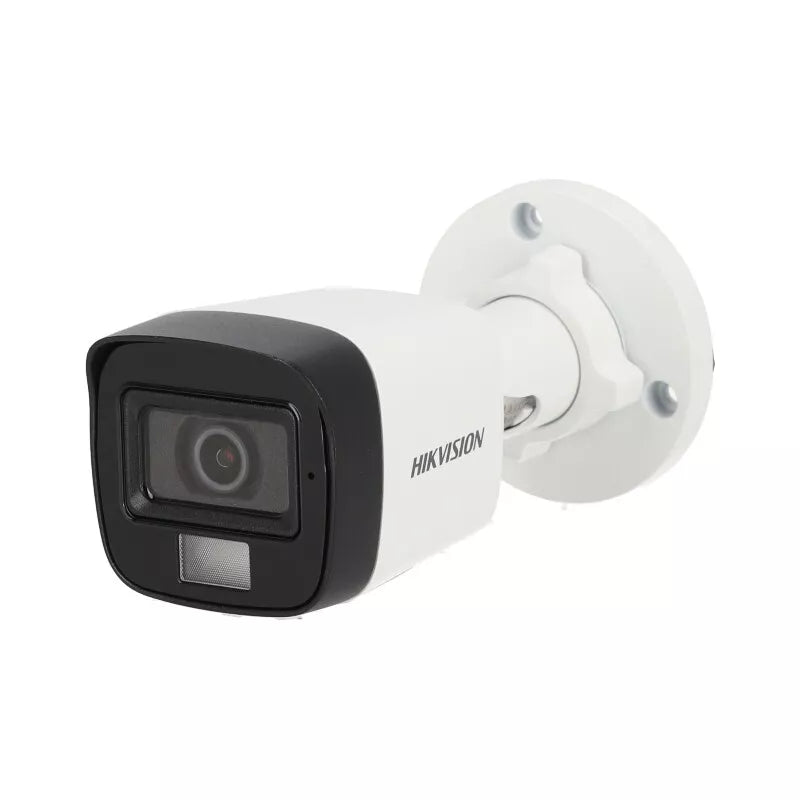

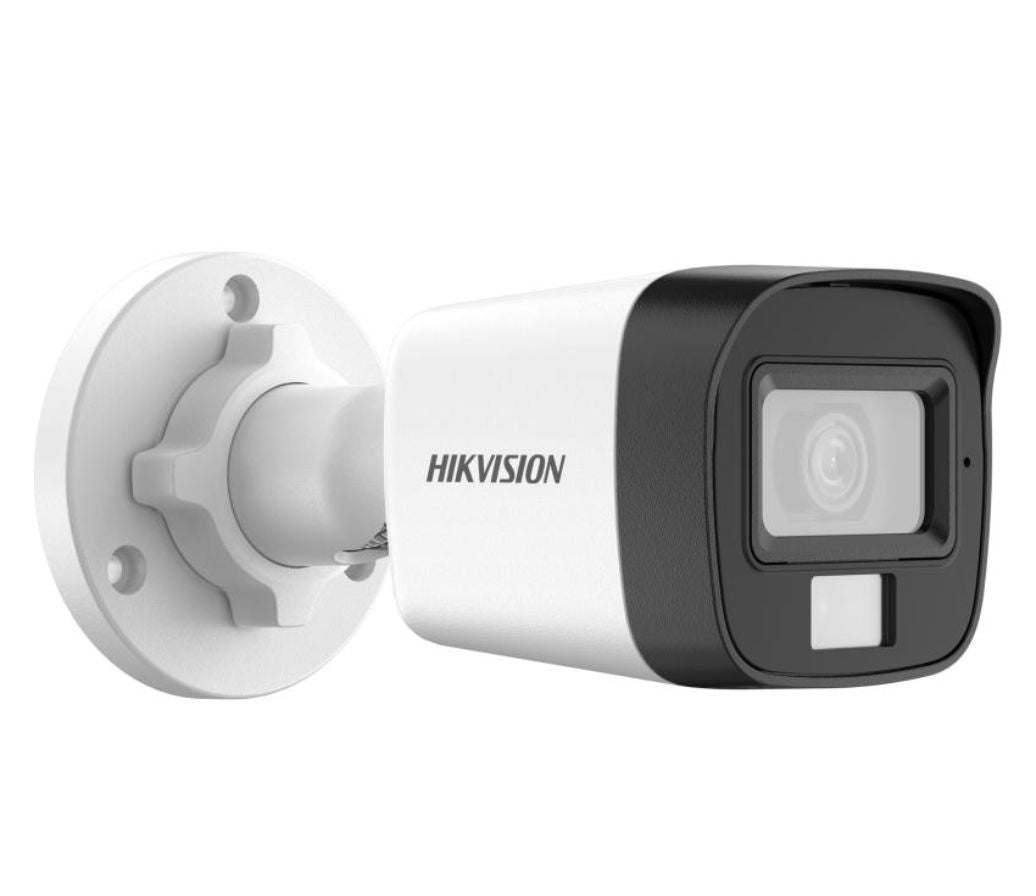

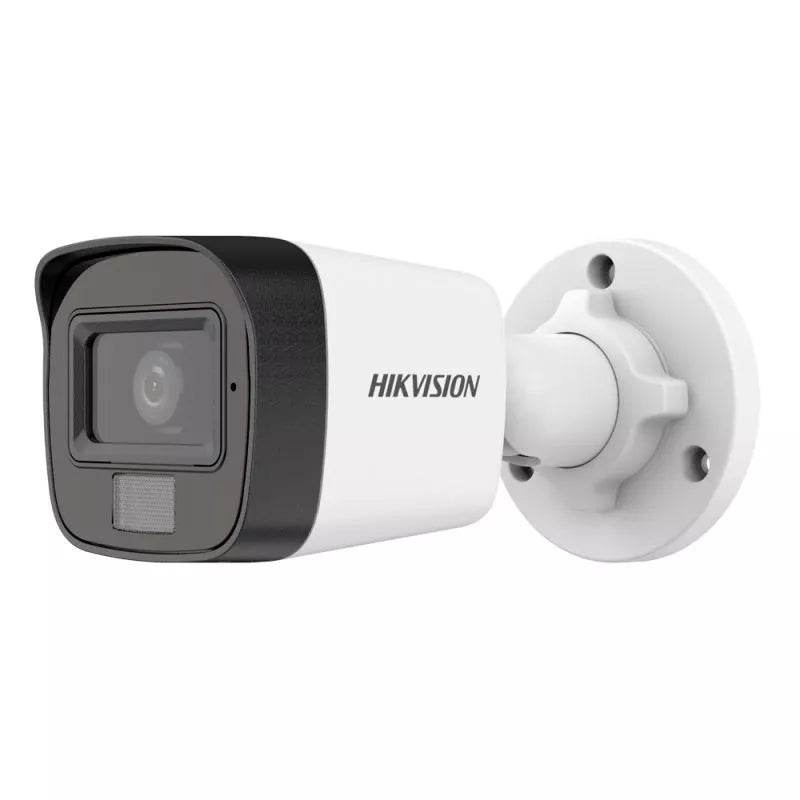

3k/5MP Smart Hybrid Light Audio Fixed Mini Bullet Camera

• High quality imaging with 3k/5MP,
• 2.8 mm and fixed focal lens
• Up to 30 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS?
• Water and dust resistant (IP67)
• High quality audio with audio over coaxial cable, built-in mic
• Smart-Hybrid light, optimize your security with flexible lighting options









Specification

Camera

Lens

Illuminator


Interface

General

Approval

• Camera
• Image Sensor3k/5MP CMOS
• Max. Resolution2960 (H) ? 1665 (V)
• Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 180?, Rotation: 0 to 360?
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm and fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 104.9?, vertical FOV: 67.3?, diagonal FOV: 129.8?

  , horizontal FOV: 81.3?, vertical FOV: 50.7?, diagonal FOV: 102.4?

• Lens MountM12
• Illuminator
• Supplement Light TypeWhite Light;IR
• Supplement Light Range

  IR : Up to 30 m

  White Light : Up to 20 m

• Image
• Image SettingsBrightness, Sharpness, Smart IR
• Frame Rate

  TVI: 3k/5MP@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps

  AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps

  CVI: 4 MP@25 fps/30 fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• White BalanceAuto/Manual
• AGCYes
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• Built-In MicrophoneYes
• General
• MaterialMetal
• Dimension138.8 mm ? ?70 mm (5.47" ? ?2.76")
• WeightApprox. 270 g (0.60 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ? 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 3.3 W
• Approval
• ProtectionIP67

Data sheet PDF

Product Description

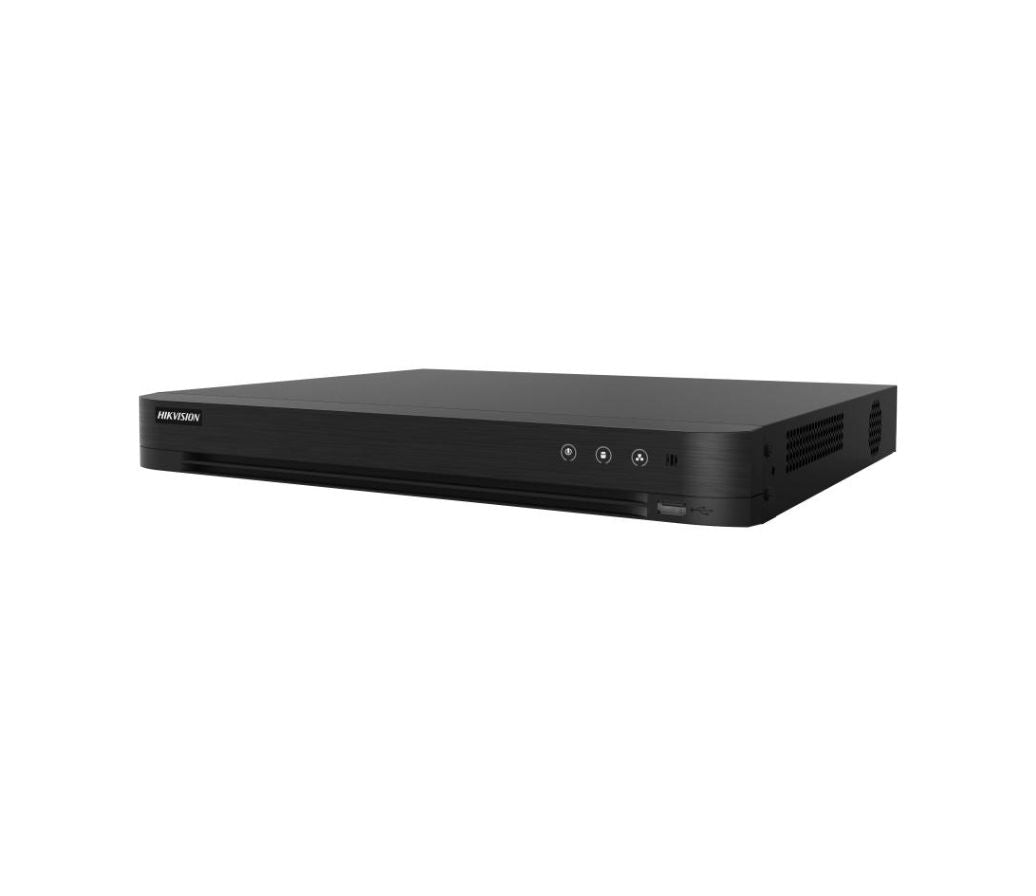

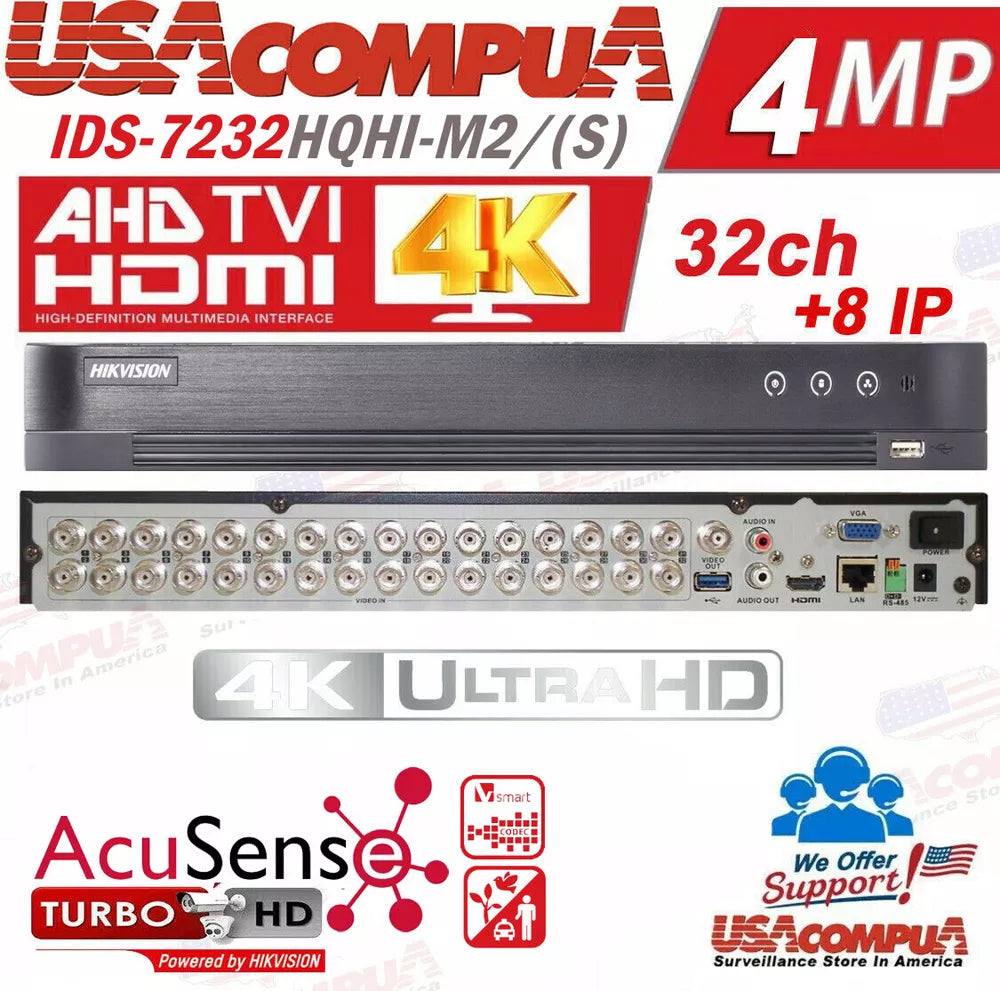

32ch 1080p 1U H.265 AcuSense DVR

• Deep learning-based motion detection 2.0 for all analog channels
• Deep learning-based perimeter protection
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively ("Hybrid")
• Up to 40 network cameras can be connected

Specification

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Perimeter Protection
• Human/Vehicle AnalysisUp to 4ch
• Facial Detection
• Facial Detection And CaptureFace picture detection, face picture search
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

  Main stream:

  When 1080p Lite mode not enabled:

  For 4 MP stream access:

  4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps

  For 1080p stream access:

  1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  When 1080p Lite mode enabled:

  4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 10 Mbps
• Dual-StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Video And Audio
• IP Video Input

  2-ch (up to 34ch)

  Enhanced IP mode on:

  8ch (up to 40-ch), each up to 4 Mbps,

  Up to 6 MP resolution,

  Support H.265+/H.265/H.264+/H.264 IP cameras

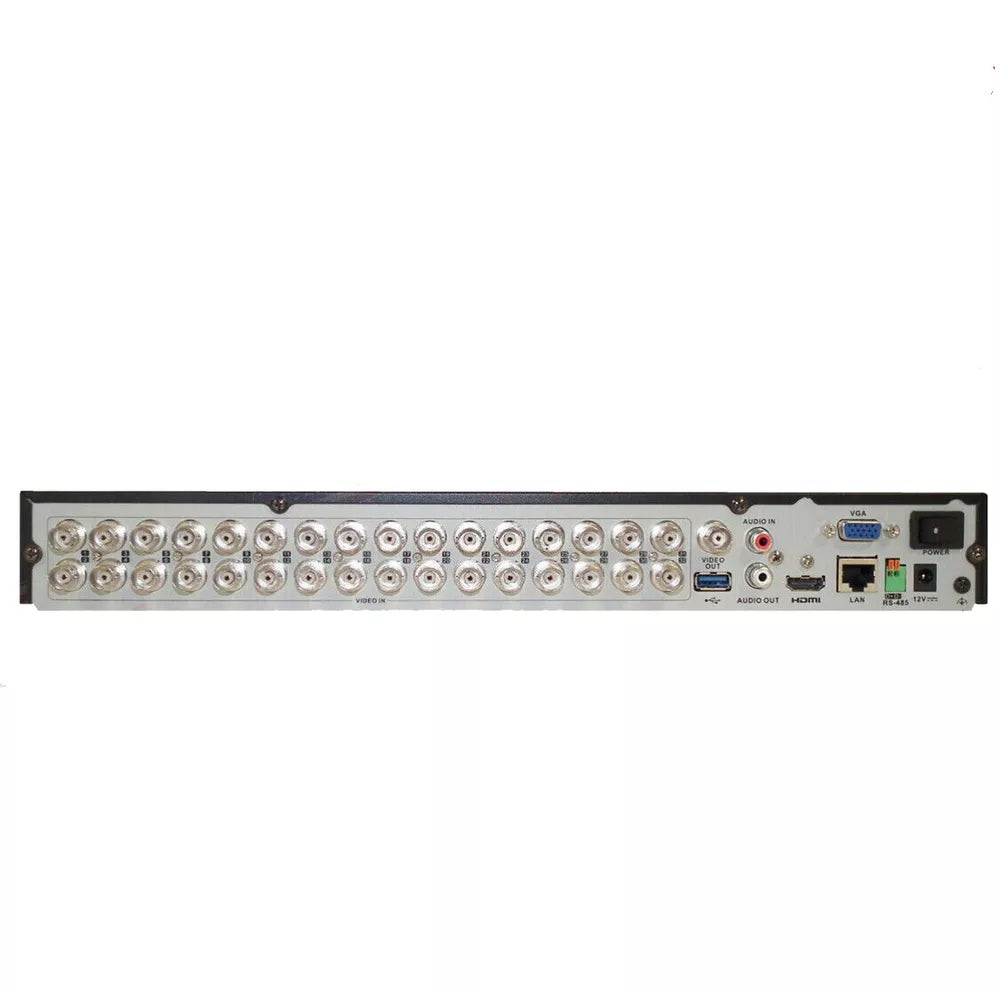

• Analog Video Input

  32ch

  BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection

• HDTVI Input

  4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

  *: The 3 MP signal input is only available for channel 1/2/3/4.

• AHD Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS InputPAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 ?),

  resolution: PAL: 704 ? 576, NTSC: 704 ? 480

• HDMI Output1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
• VGA Output

  1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz

  HDMI/VGA simultaneous output

• Audio Input1-ch, RCA (2.0 Vp-p, 1 K?)?32ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
• Synchronous Playback16ch
• Network
• Remote Connection128
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
• Total Bandwidth128 Mbps
• Network Interface

  1,RJ45 10/100/1000 Mbps self-adaptive

  Ethernet interface

• Wi-FiWi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 10 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex)
• USB Interface

  Front panel: 1 ? USB 2.0

  Rear panel: 1 ? USB 3.0

• Alarm In/OutN/A (optional to support)
• General
• Power Supply12 VDC, 5 A
• Consumption? 40 W
• Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
• Working Humidity10% to 90%
• Dimension (W ? D ? H)380 ? 320 ? 48 mm (15.0? ? 12.6? ? 1.9?)
• Weight? 2.1 kg (4.6 lb)
