Hikvision 4K 8ch IP PoE Security System 8 MP Panoramic ColorVu Turret

Data sheet PDF

Product Description

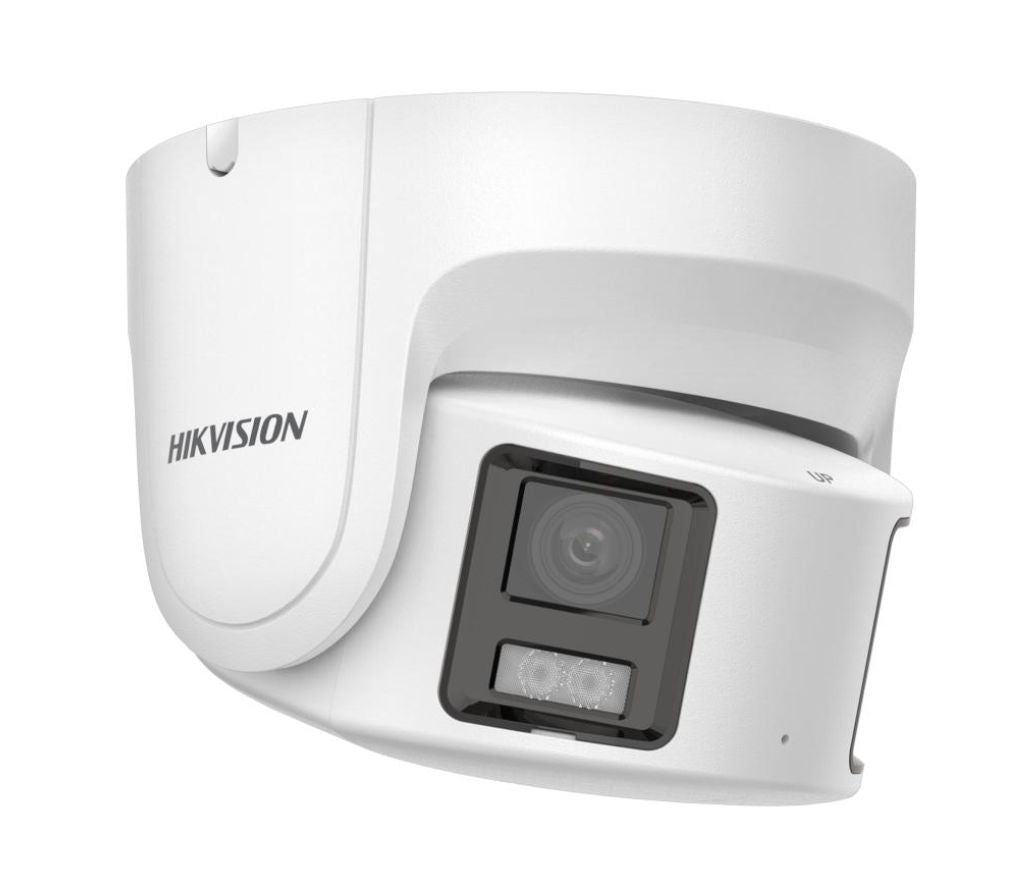

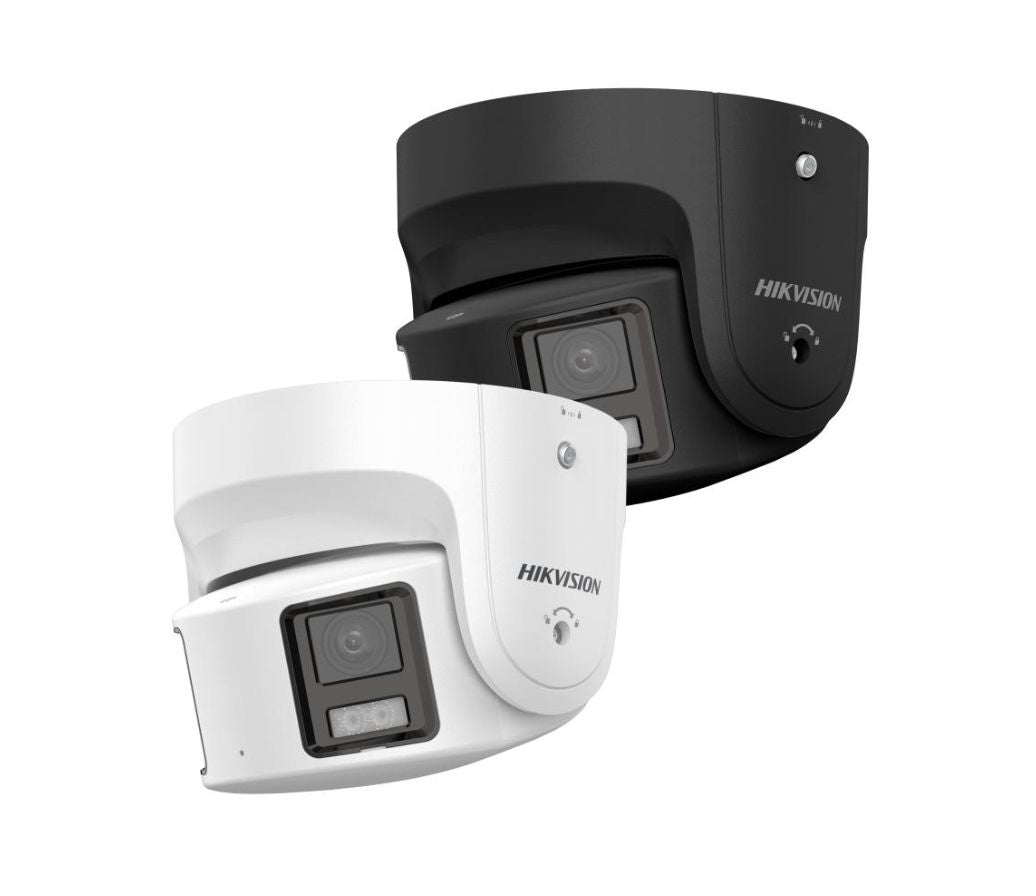

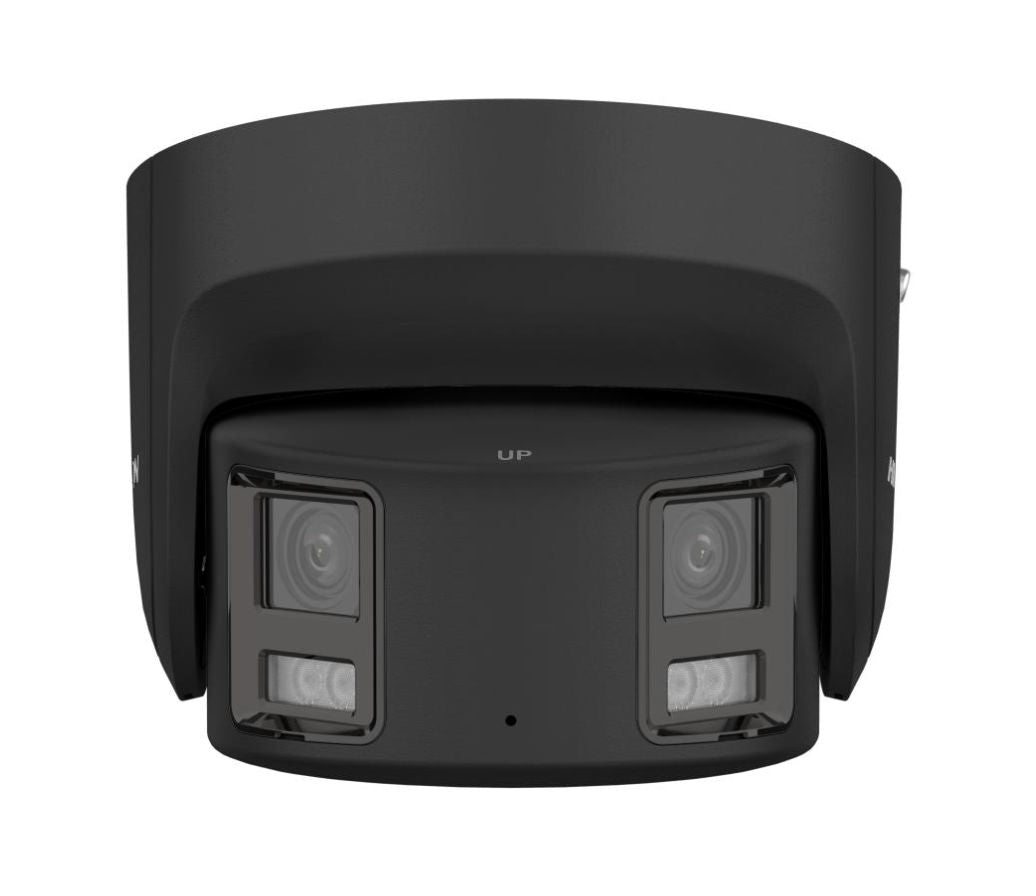

8 MP Panoramic ColorVu Fixed Turret Network Camera

• High quality imaging with 8 MP resolution
• One image that presents all the scenes covered by the camera
• 24/7 colorful imaging
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 130 dB WDR technology
• Focus on human and vehicle classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Water and dust resistant (IP67)

• Camera
• Image Sensor2 ? 1/1.8" Progressive Scan CMOS
• Max. Resolution5120 ? 1440
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time1/3 s to 1/100,000 s
• Angle AdjustmentPan: -30? to 30?,tilt: -75? to 75?
• Lens
• Lens TypeFixed focal lens, Dual lens: 4 mm
• Focal Length & FOV4 mm, horizontal FOV: 180?, vertical FOV: 44?
• Lens MountM16
• Iris TypeFixed
• ApertureF1.0
• Depth Of Field3.6 m to ?
• DORI
• DORI4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• Video
• Main Stream

  When WDR is On:

  50 Hz: 12.5 fps (5120 ? 1440)

  60 Hz: 15 fps (5120 ? 1440)

  When WDR is Off:

  50 Hz: 20 fps (5120 ? 1440)

  60 Hz: 20 fps (5120 ? 1440)

• Sub-Stream

  When WDR is On:

  50 Hz: 12.5 fps (1920 ? 536, 960 ? 272)

  60 Hz: 15 fps (1920 ? 536, 960 ? 272)

  When WDR is Off:

  50 Hz: 20 fps (1920 ? 536, 960 ? 272)

  60 Hz: 20 fps (1920 ? 536, 960 ? 272)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region(s) for main stream
• Audio
• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes
• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• Network Storage

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR,

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11 ,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Image Parameters SwitchYes
• Image Settingssaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Wide Dynamic Range (WDR)130 dB
• SNR? 52 dB
• Image EnhancementBLC,HLC,3D DNR
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512 GB
• Built-In MicrophoneYes
• Built-In SpeakerMax. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
• Audio

  1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium,

  1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium

• Alarm1 input, 1 output (max. 24 VDC, 1 A)
• Reset KeyYes
• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
• Deep Learning Function
• Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
• General
• Power

  12 VDC ? 25%, 0.88 A, max. 10.5 W,?5.5 mm coaxial power plug,

  PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W

• MaterialBase: metal, cover: metal
• Dimension

  ?155 mm ? 155.3 mm (?6.1 ? 6.1\")"

• Package Dimension230 mm ? 230 mm ? 230 mm (9" ? 9" ? 9")
• WeightApprox. 1110 g (2.4 lb.)
• With Package WeightApprox. 1900 g (4.2 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionAnti-flicker, heartbeat, password reset via email, password protection, one-key reset
• Flashing LightYes
• Approval
• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013

Data sheet PDF

Product Description

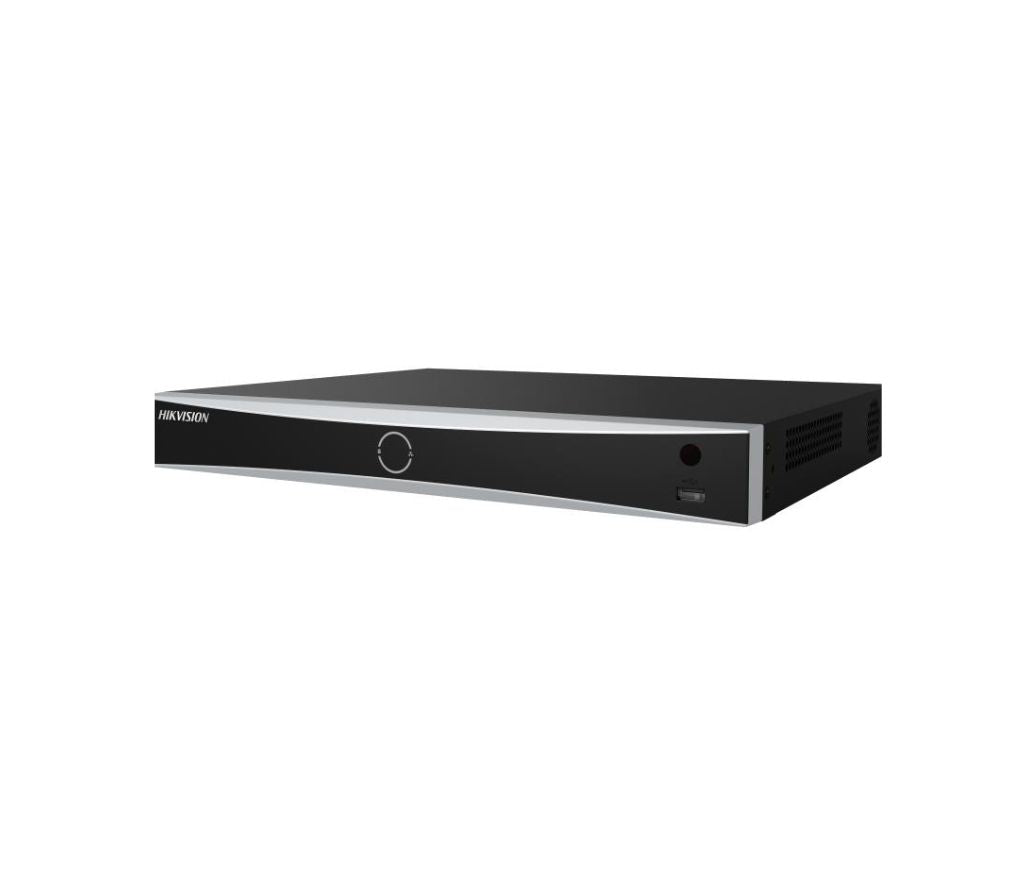

8ch 1U 8 POE AcuSense 4K NVR

• H.265+/H.265/H.264+/H.264 video formats
• Intelligent analytics based on deep learning algorithm
• Up to 4ch perimeter protection
• Up to 4ch facial recognition for video stream
• Up to 8ch facial recognition for face picture
• Up to 8ch IP camera inputs
• Up to 32ch 1080p decoding capability

• Intelligent Analytics
• AI By NVRFacial recognition, perimeter protection, motion detection 2.0
• AI By CameraFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
• Engine1, engine mode is adjustable
• Facial Recognition
• Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ? 512 KB, total capacity ? 150 MB)
• Face Picture Comparison4ch face picture comparison alarm
• Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
• Facial Detection And Analytics Performance1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
• Motion Detection 2.0
• Human/Vehicle Analysis8ch
• By NVRAll channels for Hikvision cameras
• By CameraAll channels
• Perimeter Protection
• Human/Vehicle Analysis

  Up to 4ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

  Up to 12 rules in total;Up to 4ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

• By NVR

  4ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;

  Up to 12 rules in total

• By CameraAll channels
• ANPR
• By CameraAll channels
• Vehicle AttributesPlate number, license plate color, license plate type
• Plate AttributesVehicle brand, vehicle color, vehicle type
• Video And Audio
• IP Video Input8
• Incoming Bandwidth80 Mbps
• Outgoing Bandwidth256 Mbps
• HDMI Output4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• Video Output ModeHDMI/VGA independent output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?)
• Decoding
• Decoding FormatH.265,H.265+,H.264,H.264+,MPEG4
• Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback8ch
• Live View Window Division1/4/6/8/9/16
• Aux Port Window Division1/4/6/8/9/16
• Decoding Capability16ch @ 1080p (30 fps)
• Audio CompressionG.711ulaw,G.711alaw,G.722,G.726,MP2L2
• Dual-Stream RecordingSupport
• Stream TypeVideo, Video & Audio
• Network
• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Remote Connection128
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
• APIONVIF (profile S/G); SDK; ISAPI
• Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• PoE
• Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power? 120W
• StandardIEEE 802.3 af/at
• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 8 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
• Alarm In/Out4/1
• USB InterfaceFront panel: 1 ? USB 2.0; Rear panel: 1 ? USB 3.0
• General
• GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
• Power Supply? 180 W
• Consumption? 15W
• Working Temperature-10???55?
• Working Humidity10% to 90%
• Chassis1U
• Dimension (W ? D ? H)385 ? 315 ?52 mm ( 11.6"? 9.5" ? 1.6")
• Weight? 3 kg (6.6 lb)
• Certification
• Obtained CertificationCE, CB, REACH, WEEE, UKCA, LOA
• CEEN 55032:2015, EN 61000-3-2,
