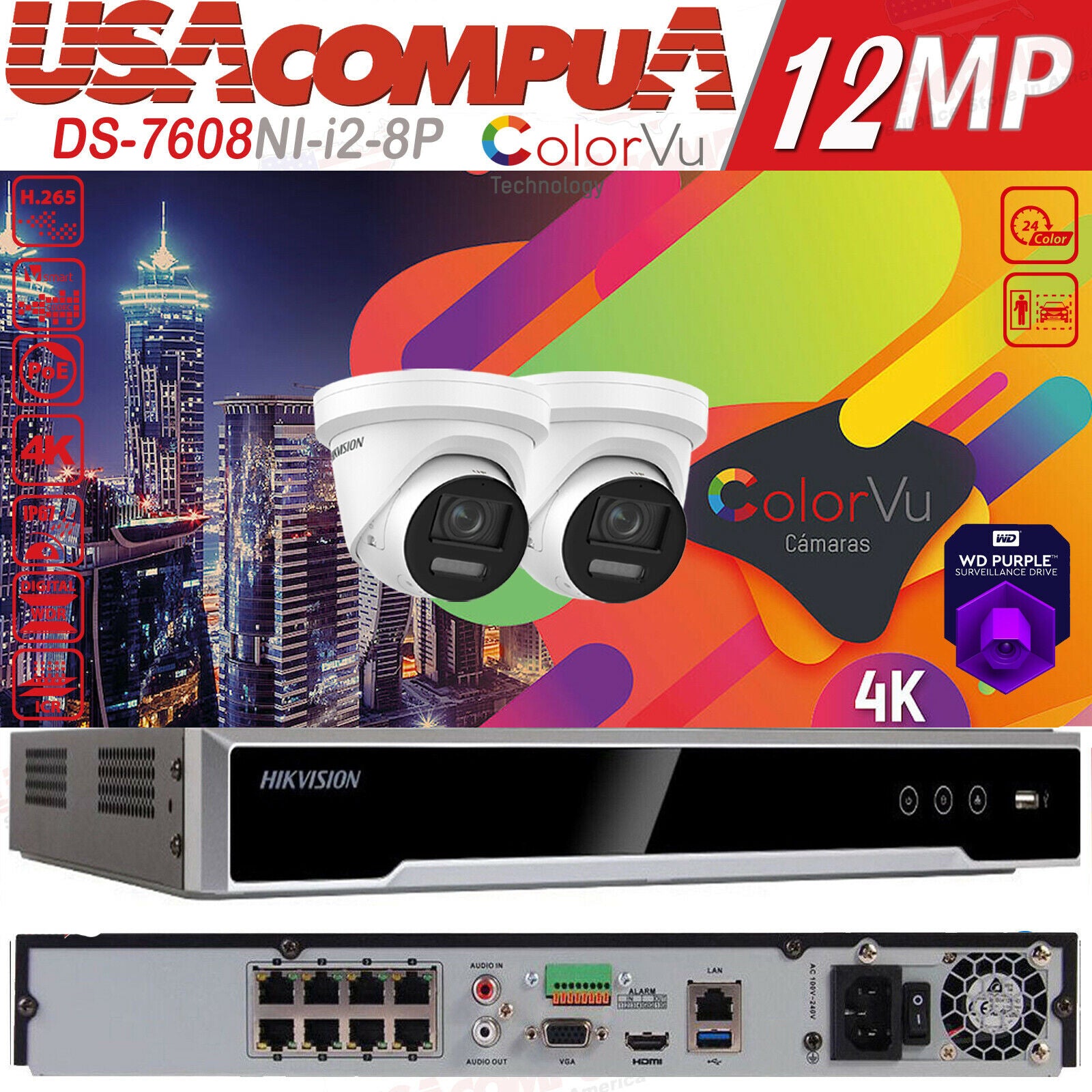

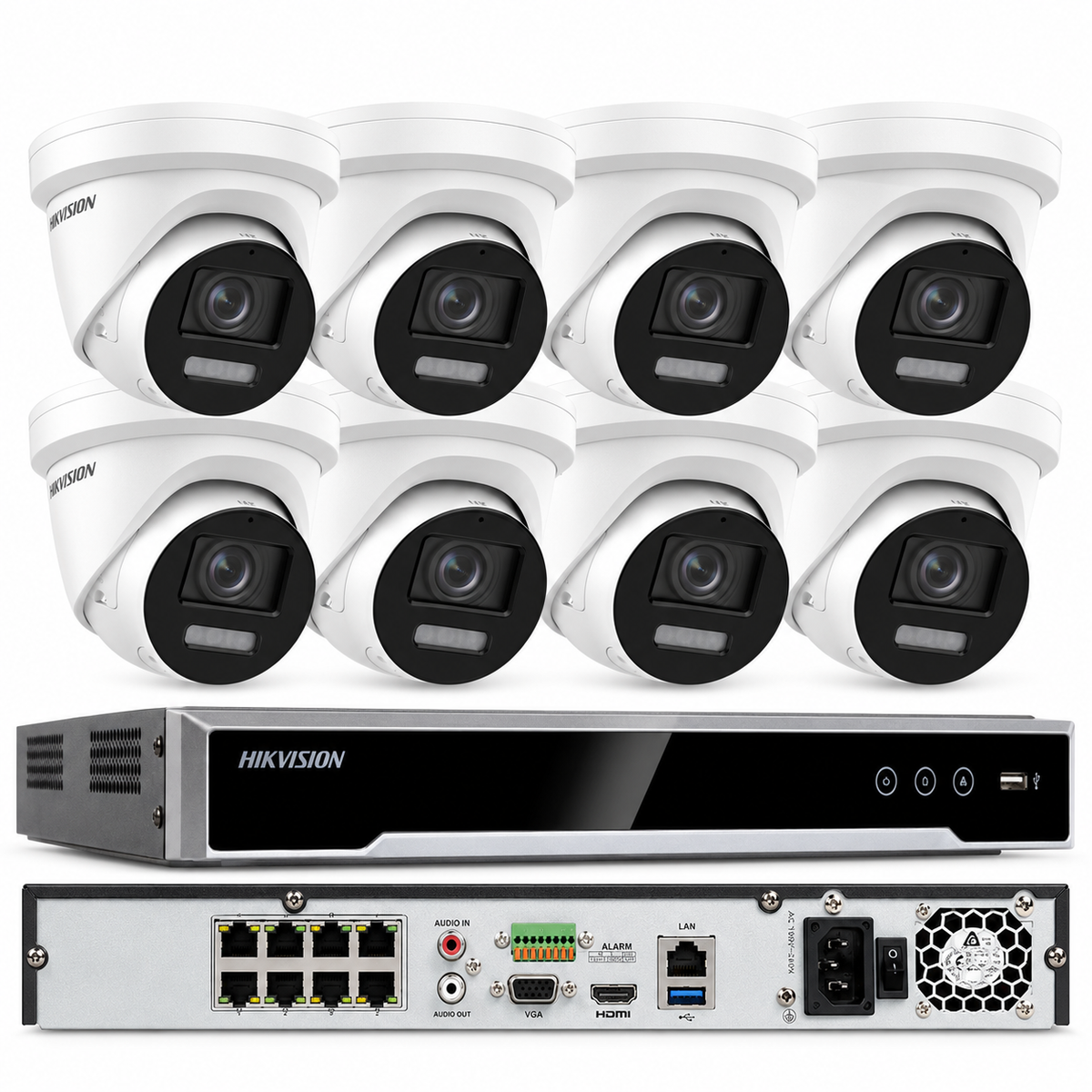

Hikvision 4K 8CH Security Camera System 12MP 8 POE ColorVu 2 Way Audio G2 Lot

Data sheet PDF

Product Description

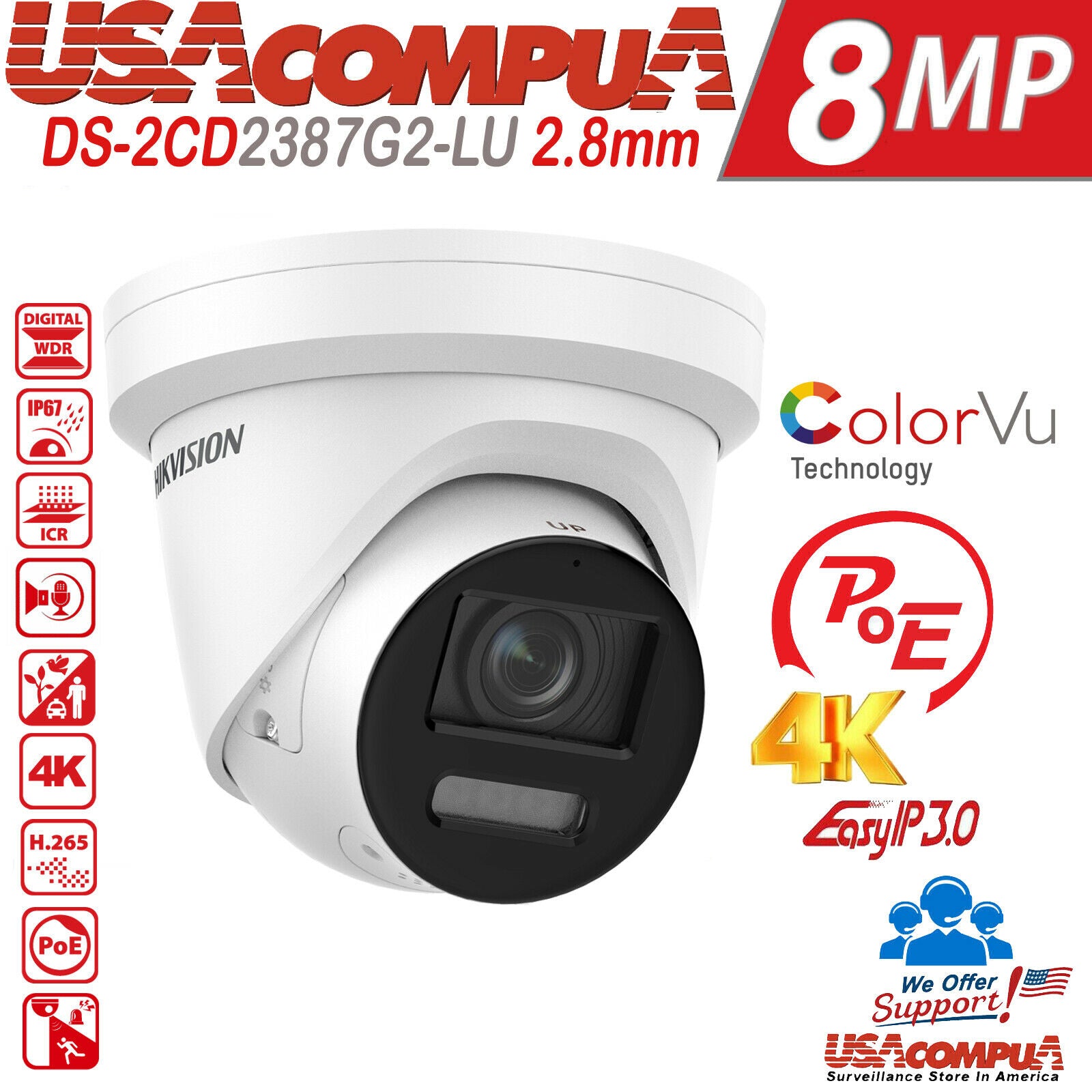

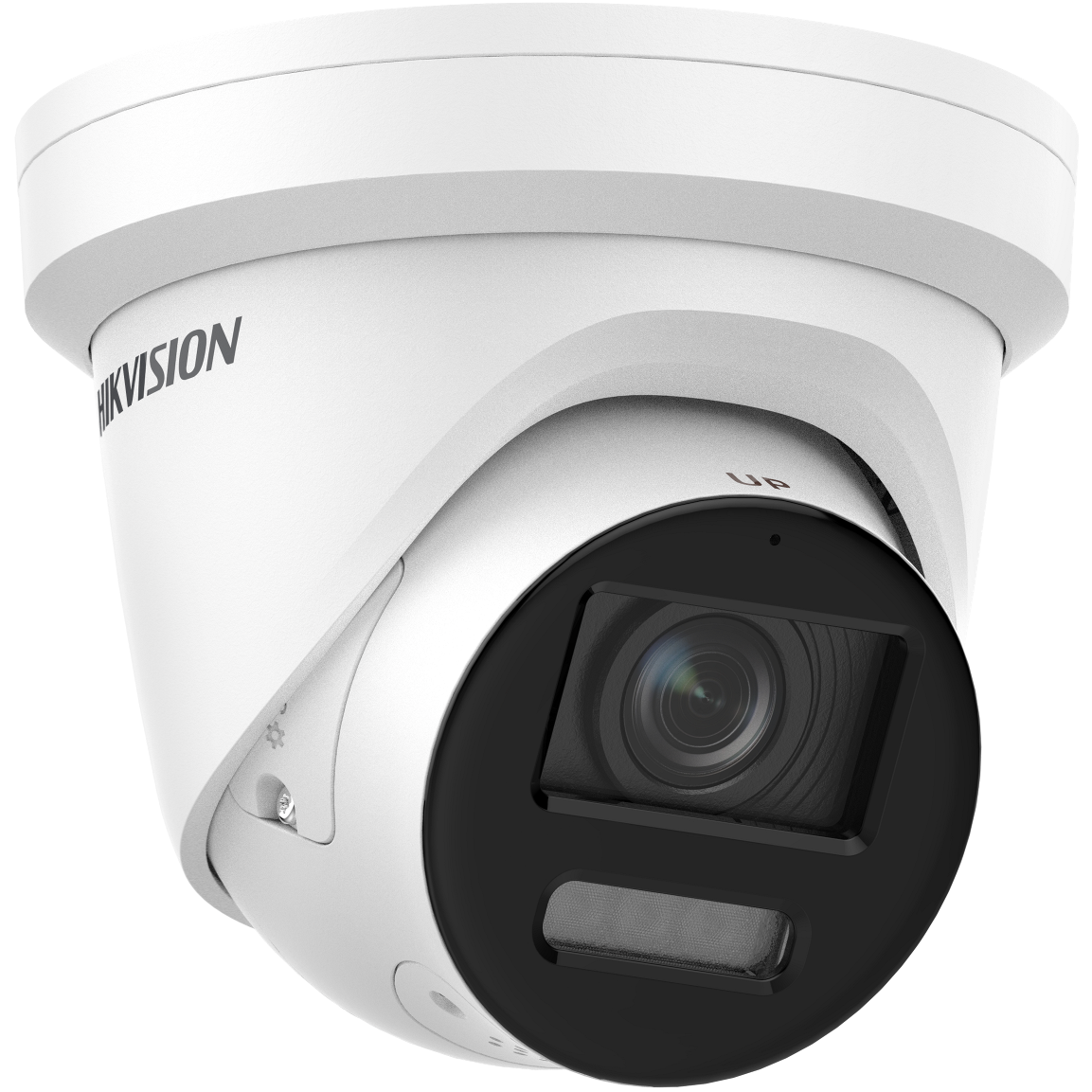

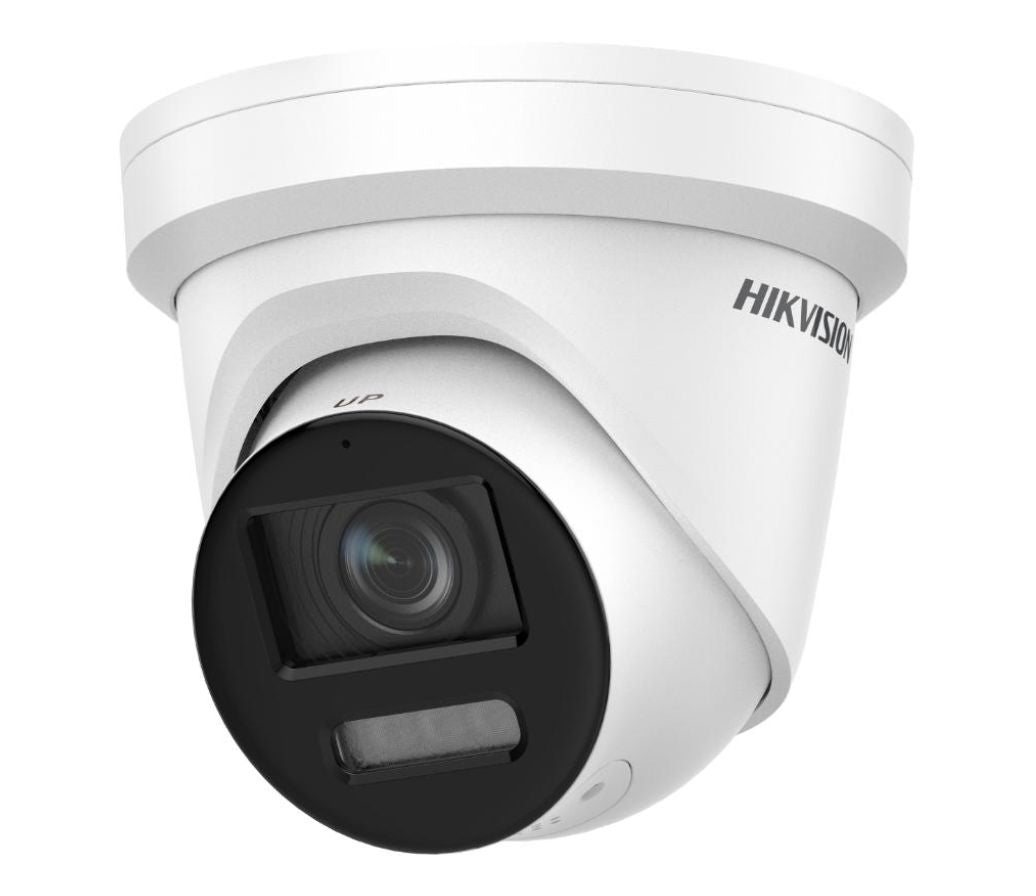

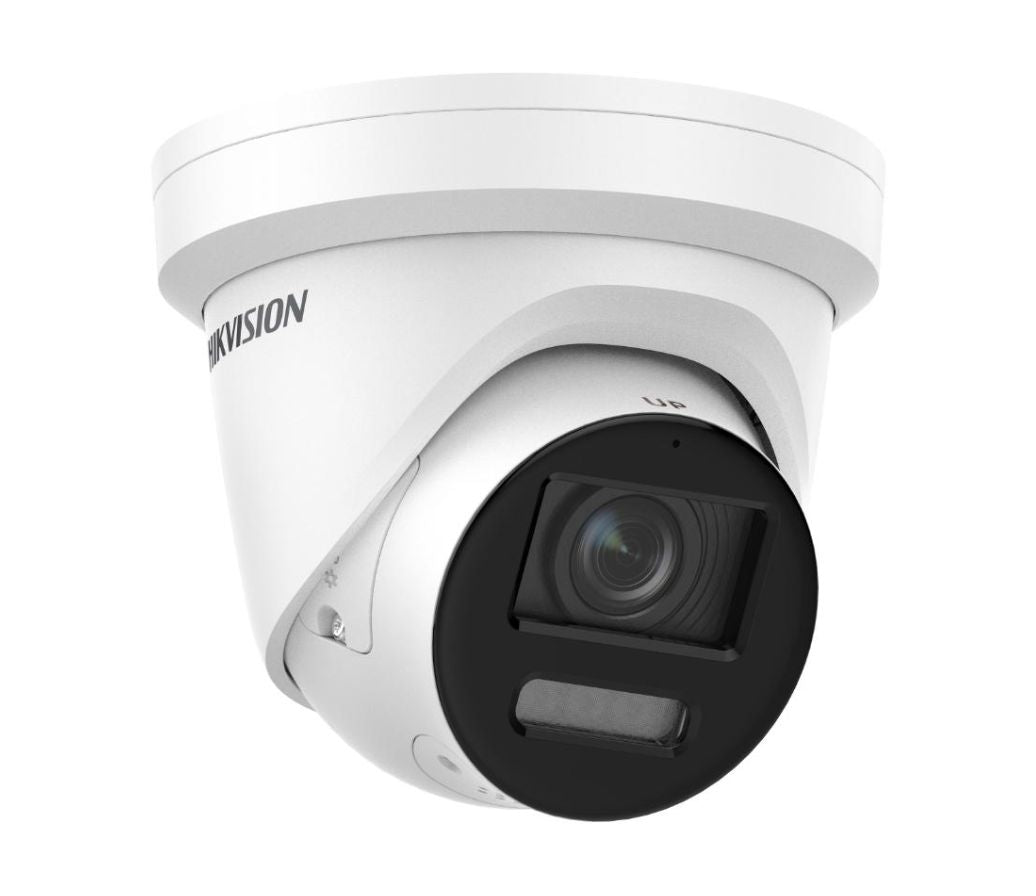

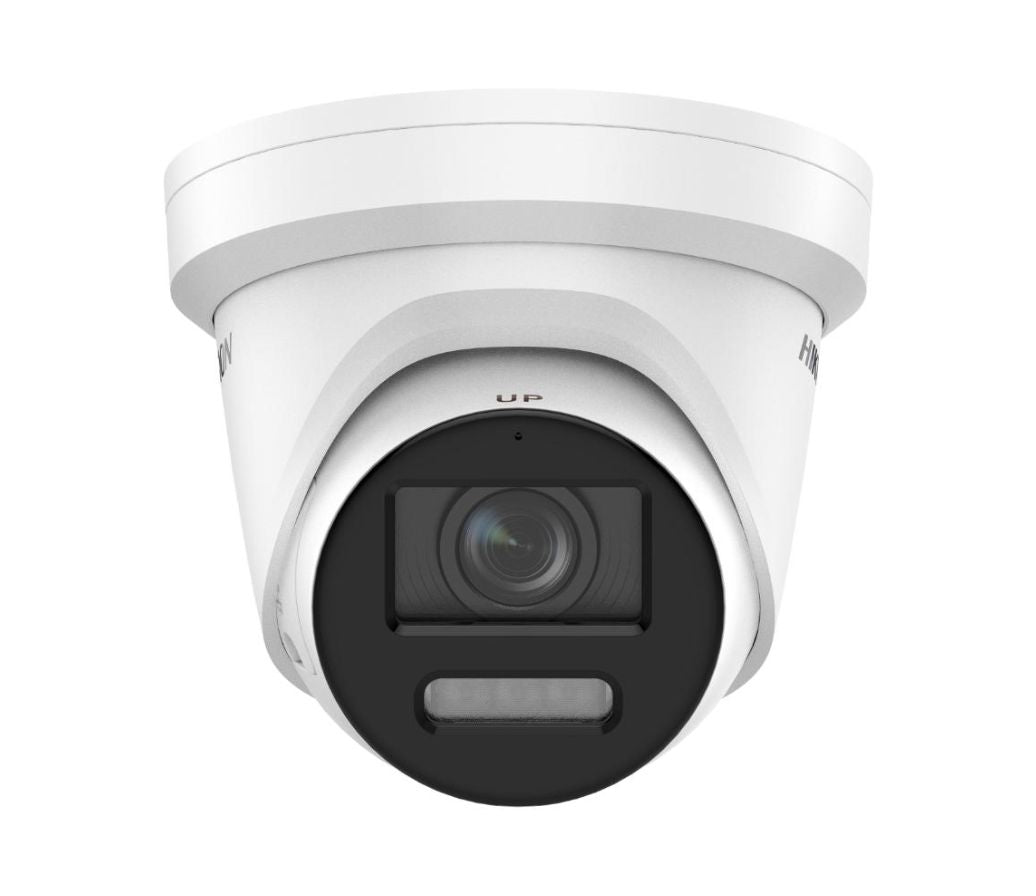

8 MP ColorVu Strobe Light and Audible Warning Fixed Turret Network Camera

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Focus on human and vehicle targets classification
• 24/7 colorful imaging
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Audio and alarm interface available
• Water and dust resistant (IP67)

Camera

Lens

DORI

Illuminator

Video

Audio

Network


Interface

Event

Deep Learning Function

General

Approval

• Camera
• Image Sensor1/1.2? Progressive Scan CMOS
• Max. Resolution3840 ? 2160
• Min. IlluminationColor?0.0005 Lux @ (F1.0, AGC ON)?0 Lux with white light
• Shutter Speed1/3 s to 1/100,000 s
• Day & Night24/7 Color imaging
• Angle AdjustmentPan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360?
• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 102?, vertical FOV 52?, diagonal FOV 124?

  4 mm, horizontal FOV 88?, vertical FOV 47?, diagonal FOV 104?

• Lens MountM mount
• Iris TypeFixed
• ApertureF1.0
• Depth Of Field

  2.8 mm: 4 m to ?

  4 mm: 6.2 m to ?

• DORI
• DORI

  2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m

  4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• Video
• Main Stream

  50 Hz:

  25 fps (3840 ? 2160, 3200 ? 1800 , 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

  60 Hz:

  24 fps (3840 ? 2160)

  30 fps (3200 ? 1800 , 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

• Third Stream

  50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 10 fps (1920 x 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream
• Audio
• Environment Noise Filtering-U: Yes
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Network
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Wide Dynamic Range (WDR)130 dB
• SNR? 52 dB
• Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512 GB
• Built-In MicrophoneYes
• Built-In Speaker1.5 W, 10 cm: 95 dB
• Audio

  1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 K?, interface type: non-equilibrium

  1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium

• Alarm1 input, 1 output (max. 24 VDC, 1 A)
• Reset KeyYes
• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)), scene change detection
• LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email
• Deep Learning Function
• Face CaptureYes
• Gene

  Data sheet PDF

  Product Description

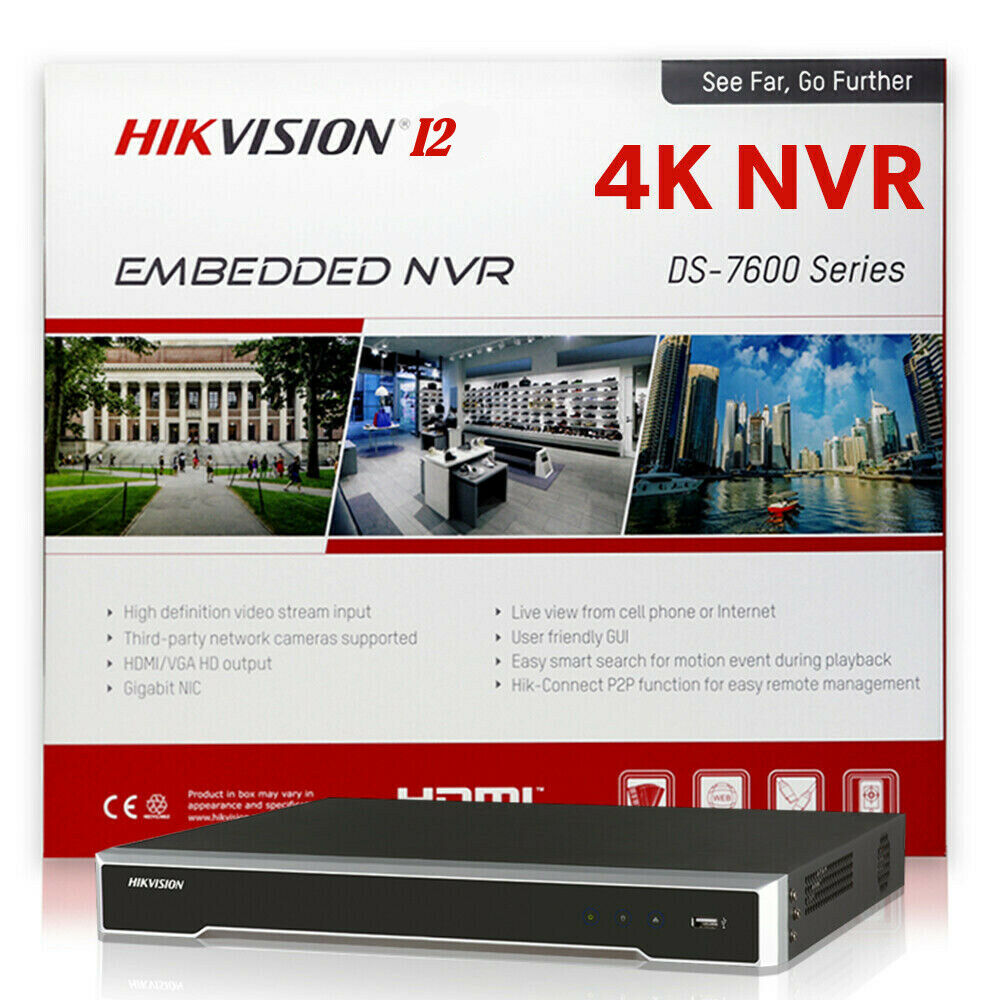

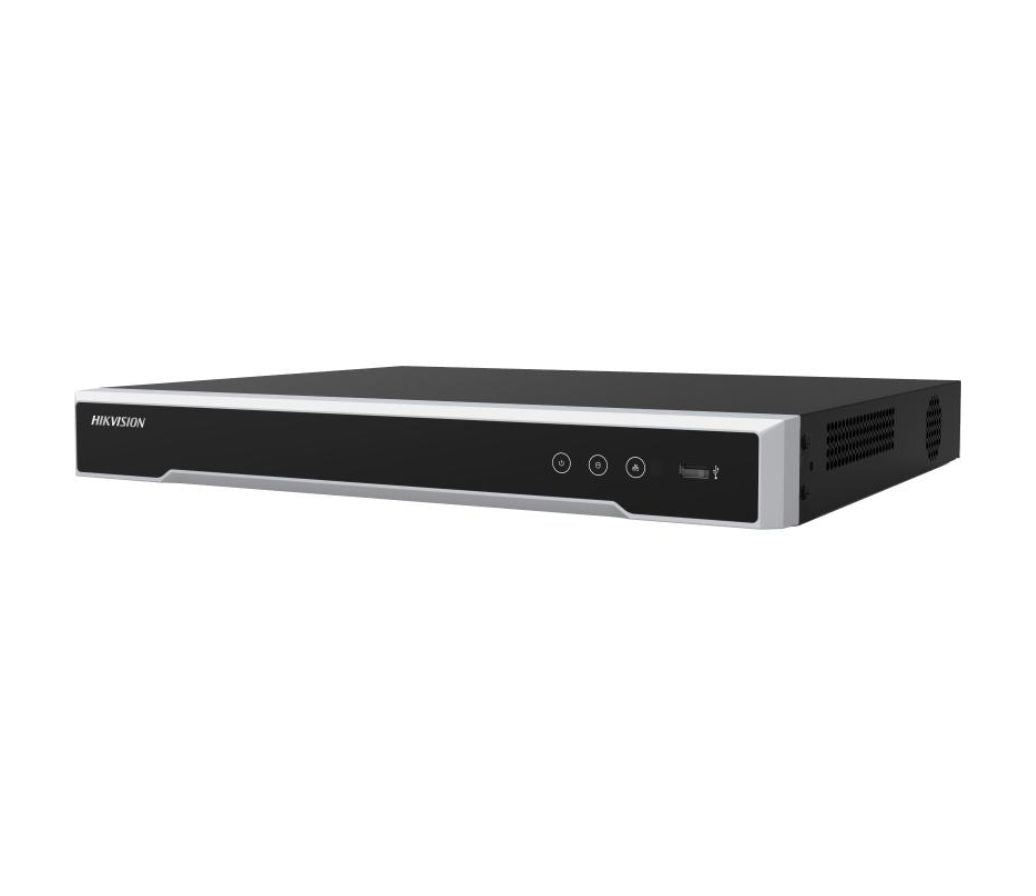

  8ch 1U 8 PoE 4K NVR

  • Up to 8ch IP cameras can be connected
  • Up to 2-ch@12 MP/16ch@1080p decoding capacity
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • 2 HDDs for continuous video recording
  • Plug & Play with 8p (PoE) interfaces
  • Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
  • Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
  • Supports dual-stream recording to save time and bandwidth

  Specification

  Video And Audio

  Decoding

  Network

  PoE

  Auxiliary Interface

  General

  Certification

  • Video And Audio
  • IP Video Input

    8ch

    Up to 12 MP resolution

  • Incoming Bandwidth80 Mbps
  • Outgoing Bandwidth256 Mbps
  • HDMI Output4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
  • VGA Output1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
  • CVBS OutputN/A (1-ch is optional, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480}
  • Audio Output1-ch, RCA (Linear, 1 K?)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
  • Video Output ModeHDMI/VGA independent output
  • Decoding
  • Dual-Stream RecordingSupport
  • Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
  • Decoding Capability2-ch@12 MP (20 fps)/4ch@8 MP (25 fps)/8ch@4 MP (30 fps)/16ch@1080p (30 fps)
  • Synchronous Playback8ch
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
  • Network
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
  • Remote Connection64
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • PoE
  • Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power? 120 W
  • StandardIEEE 802.3 af/at
  • Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 10 TB capacity for each HDD
  • Alarm In/Out4/1
  • USB InterfaceFront panel: 1 ? USB 2.0; Rear panel: 1 ? USB 3.0
  • General
  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption? 15 W (without HDD and PoE off)
  • Working Temperature-10 to +55? C (+14 to +131? F)
  • Working Humidity10 to 90 %
  • Dimension (W ? D ? H)385 ? 315 ? 52 mm (15.2" ? 12.4" ? 2.0")
  • Weight? 3 kg (6.6 lb.)
  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
