Hikvision 4K 8Megapixel Security System CCTV KIT 16CH DVR 8MP Mini Bullet W/HDD

Data sheet PDF

Product Description

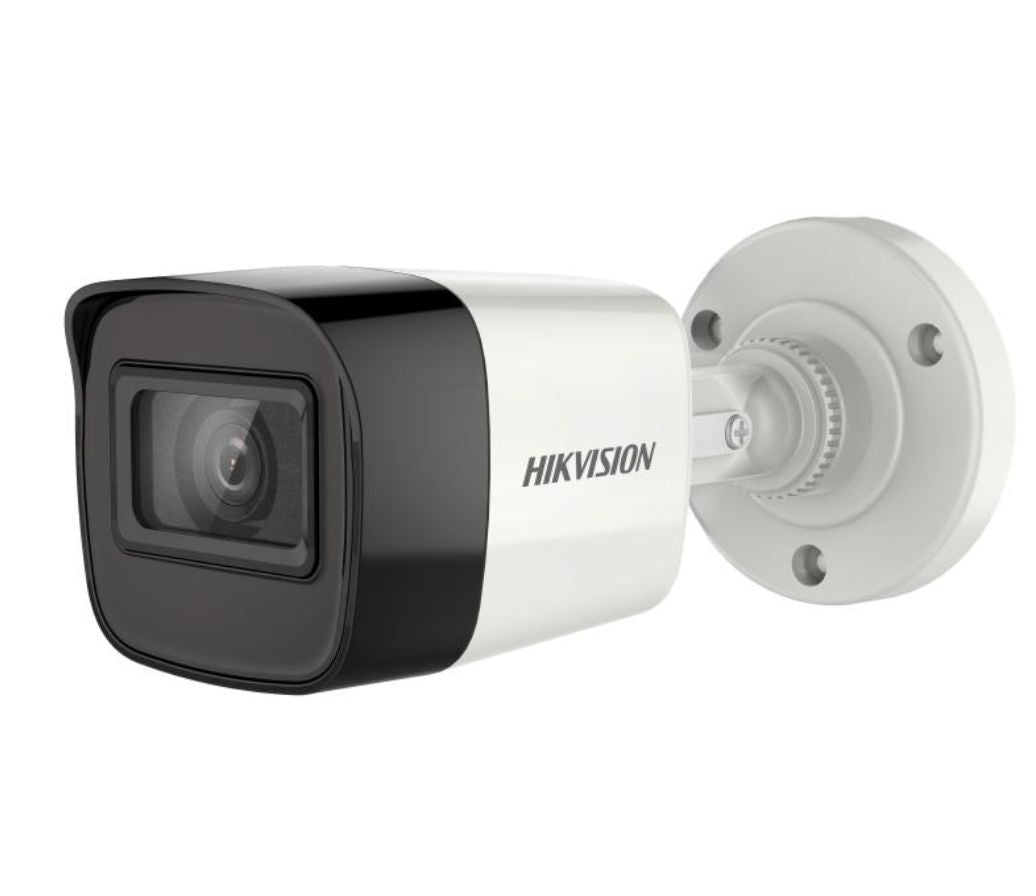

4K Fixed Mini Bullet Camera

• 8 MP bullet camera
• EXIR 2.0: advanced infrared technology with 30 m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)



Specification

• Camera
• Min. IlluminationColor: 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
• Image Sensor8.29 megapixel progressive scan CMOS
• Max. Resolution3840 (H) ? 2160 (V)
• Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0? to 360?, Tilt:0? to 180?, Rotate: 0? to 360?
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm, , 6 mm fixed lens
• Focal Length & FOVHorizontal FOV: 102.2? (2.8 mm), 79? (), 50.8? (6 mm)
• Lens MountM16
• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• Image
• Image SettingsBrightness;Sharpness;Smart IR;AGC
• Frame Rate

  TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

  CVI: 8MP@12.5fps, 8MP@15fps

  AHD: 8M@12.5fps, 8M@15fps

  CVBS: 960H P/N

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC;HLC
• Noise Reduction2D DNR
• White BalanceAuto/Manual
• Interface
• Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS
• General
• Power

  12 VDC ?25%

  *You are recommended to use one power adapter to supply the power for one camera.

  Max. 5.3 W

• MaterialMetal
• Dimension58 mm ? 61 mm ? 159.8 mm (2.28"" ? 2.40"" ? 6.42"")
• WeightApprox. 345 g (0.76 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Approval
• ProtectionIP67

Data sheet PDF

Product Description

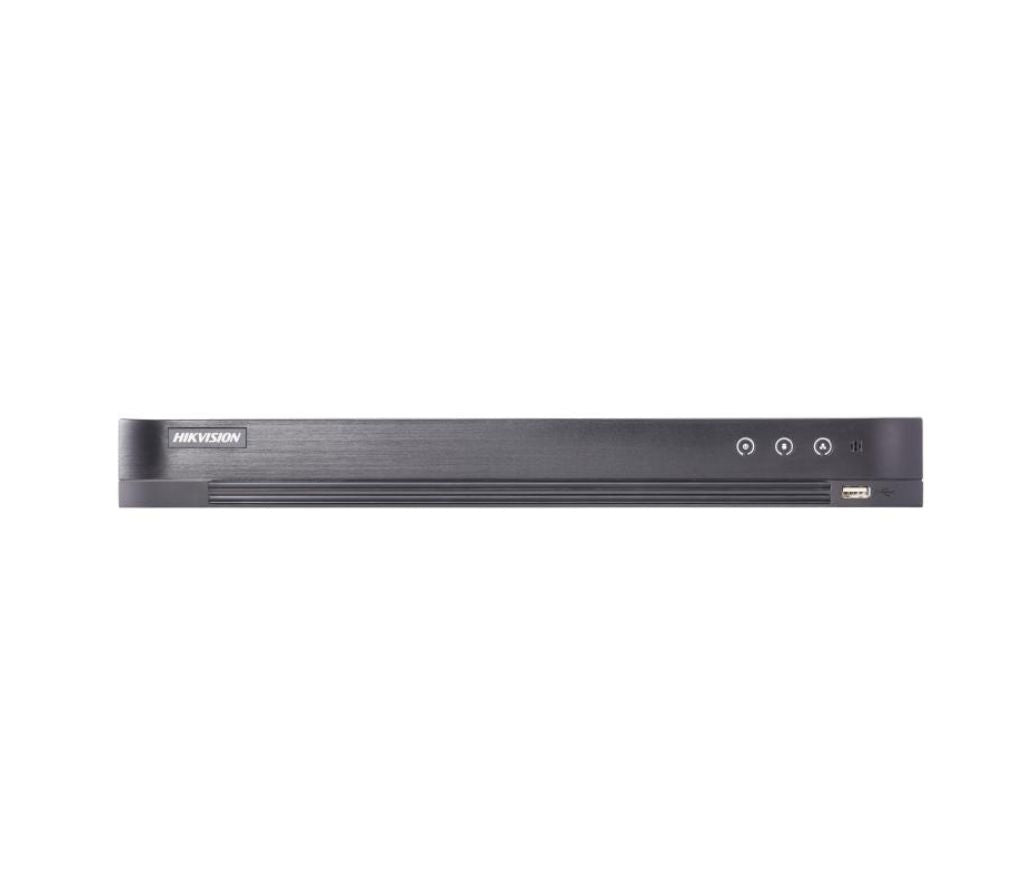

16ch 5 MP 1U H.265 DVR

• 16chs and 2 HDDs 1U DVR
• Efficient H.265 pro+ compression technology
• Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
• 5 signals input adaptively ("Hybrid")
• Up to 32 network cameras can be connected

Specification

• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame RateMain stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N)
• Video Bit Rate32 Kbps to 10 Mbps
• Dual StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bit Rate64 Kbps
• Video And Audio
• IP Video Input16ch (up to 32ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input16ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
• AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• Audio Input4ch, RCA (2.0 Vp-p, 1 K?)
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
• Synchronous Playback16ch
• HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
• VGA/HDMI OutputVGA: 1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz,HDMI: 1-ch, 4K (3840 ? 2160)/30Hz, ,2K (2560 ? 1440)/60Hz,,1920 ? 1080/60Hz, 1280 ? 1024/60Hz, ,1280 ? 720/60Hz, 1024 ? 768/60Hz
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?),
• Network
• Remote Connections128
• Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
• Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 10 TB capacity for each disk
• Alarm In/Out16/4
• USB InterfaceFront panel: 1 ? USB 2.0,Rear panel: 1 ? USB 3.0
• Serial InterfaceRS-485 (half-duplex)
• General
• Power Supply12 VDC
• Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
• Working Humidity10% to 90%
• Dimensions (W ? D ? H)380 ? 320 ? 48 mm (15.0 ? 12.6 ? 1.9 inch)
• Consumption (Without HDD)? 25 W
• Weights (Without HDD)? 2 kg (4.4 lb)
